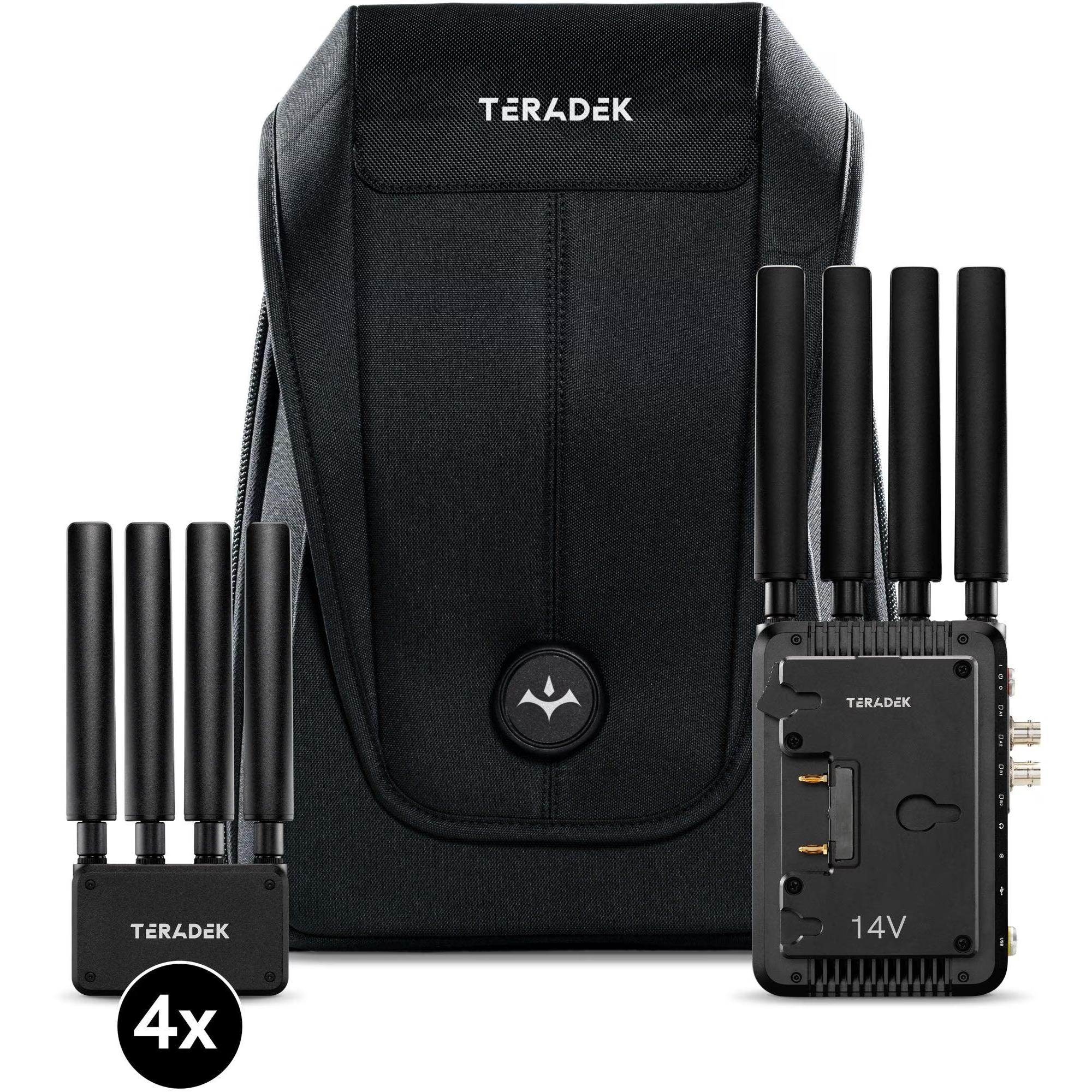

Teradek Prism Mobile Backpack Mk II 4G Gold Mount 4x 5G

Teradek Prism Mobile Backpack Mk II 4G Gold Mount 4x 5G is a portable 4K contribution and cellular-bonding package built for ENG, sports, live events, news gathering, and remote production. From the supplied source, it combines a Prism Mobile Mk II Gold Mount encoder, two internal Node II LTE modems, and four external Node 5G modems installed through the backpack bonding assembly.

This is the kind of system that makes sense when a field crew needs more network diversity than one or two cellular links can provide. Prism Mobile can work across up to six simultaneous cellular connections, giving the production team more paths for sending a contribution feed while moving through changing coverage areas.

Highlights

• Portable 4K cellular-bonded contribution package for field production
• Up to six cellular connections using two internal LTE modems and four external 5G nodes
• 12G-SDI and HDMI 2.0 input with HDR support
• H.264 and H.265 encoding from 250 kbps to 85 Mbps
• TRT, SRT, RTMP, RIST, MPEG-TS, RTSP, HLS, and WHIP support

Quick Specs & Uses

• Product type: Portable 4K cellular-bonded encoder and backpack system
• Primary workflows: ENG, remote production, sports, events, live broadcast, and mobile contribution
• Battery mount: Gold Mount
• Video input: 1 x SD / HD / 3G / 6G / 12G-SDI, 75 Ω BNC
• HDMI input: 1 x HDMI 2.0 Type-A
• Video output: 1 x SD / HD / 3G / 6G / 12G-SDI, 75 Ω BNC
• HDR support: 2020-PQ, 2020-HLG, and P3D65-PQ
• Operating modes: Single encode; bidirectional encode / decode with additional license
• Bonding technology: Teradek Bonding Protocol and Teradek Reliable Transport
• Maximum encoder stream: Up to one 4K DCI 60p, 4:2:2, 10-bit stream
• Supported 4K DCI rates: 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, and 60p
• Supported 4K UHD rates: 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, and 60p
• Supported HD formats: 1080p, 1080i, 1080PsF, 720p, 576i, and 480i
• Video compression: AVC / H.264 Baseline, Main, and High profiles
• HEVC compression: H.265 Main profile
• Video bitrate: 250 kbps to 85 Mbps
• Format conversion: Built-in scaler and deinterlacer
• Color correction: CDL / 1024-point 1D LUT and 33 x 33 x 33 3D LUT with 10-bit support
• Network protocols: TCP/IP, UDP, HTTP, DHCP, NTP, TLS, and IGMP
• Transport protocols: TRT, SRT, RTMP / RTMPS, MPEG-TS, DASH, RTSP / RTP, RIST, HLS Client, and WHIP
• Integrated destinations: YouTube, Facebook, and Vimeo
• Remote management: Teradek Core Cloud and Private SDK
• Audio compression: AAC-LC
• Audio bitrate: 32 kbps to 512 kbps
• Audio input: Embedded SDI audio or 3.5 mm stereo line / microphone input with adjustable gain
• Audio output: 3.5 mm stereo headphone, 3.5 mm analog line level, or USB-A headset / audio interface
• Internal cellular: 2 x Node II LTE modems with CBRS support
• External cellular expansion: 4 x Node 5G modems through the backpack assembly
• Total cellular connections: Up to 6 simultaneous cellular links
• Ethernet: 2 x 10 / 100 / 1000BASE-T Gigabit Ethernet, RJ-45
• Wireless: 2.4 / 5 GHz 802.11 a/b/g/n/ac/ax MIMO Wi-Fi and BLE
• Recording storage: Full-size SD card, USB drive, and NFS
• Cloud integrations: Core Cloud, Frame.io, Sony Ci, Sony C3 Portal, Avid, PIX, and Moxion
• Configuration: Core Cloud, local web interface, iOS app, and OLED status display
• USB interfaces: 1 x powered LEMO for Node modem support and 1 x powered USB-A for Node modem or external storage
• Construction: Milled aluminum
• Mounting: Camera-back, Gold, Gold 26V, V-Lock, or 1/4"-20 mounting
• Dimensions: 162 x 92 x 35 mm / 5.9 x 3.9 x 1.3 in
• Weight without plates: 664 g / 23.4 oz
• Weight with plates: 864 g / 30.5 oz
• Power input: 2-pin circular locking connector
• Auxiliary power input: 6 to 28V DC
• Power consumption: 20 W nominal; 36 W maximum

Why It Helps

This package is useful when a live field feed cannot depend on one carrier or one network path. The two internal LTE modems and four supplied 5G nodes give Prism Mobile up to six simultaneous cellular connections, helping the system maintain a stronger contribution path as network conditions change.

The video side is built for professional production equipment. A 12G-SDI or HDMI 2.0 source can be encoded in H.264 or H.265, while the SDI output provides a local route for monitoring, looping the signal to another device, or keeping a camera-side confidence feed available.

The transport options also give broadcast engineers flexibility at the receive end. Teradek TRT and bonding support managed contribution workflows, while SRT, RIST, RTMP, MPEG-TS, RTSP, HLS, and WHIP make it easier to connect with different control rooms, cloud platforms, and streaming services.

System Characteristics

• Six-path cellular bonding with two LTE and four 5G modem connections
• 4K DCI and UHD encoding at frame rates up to 60p
• 10-bit 4:2:2 processing for supported 4K contribution workflows
• Built-in scaling and deinterlacing for field format conversion
• 1D and 3D LUT support for camera and contribution color workflows
• Local and cloud-based control through OLED, web UI, iOS, and Core Cloud
• Local recording support through SD card, USB storage, or NFS
• Bidirectional encode / decode operation with the required additional license

What’s In The Box

• 1 x Prism Mobile Mk II Gold Mount
• 1 x Backpack Bonding Assembly with Cabling
• 4 x Node 5G Modems
• 12 x Long Multi-Band SMA Antennas
• 12 x Short Multi-Band SMA Antennas
• 1 x 3.0A PTAP Power Supply
