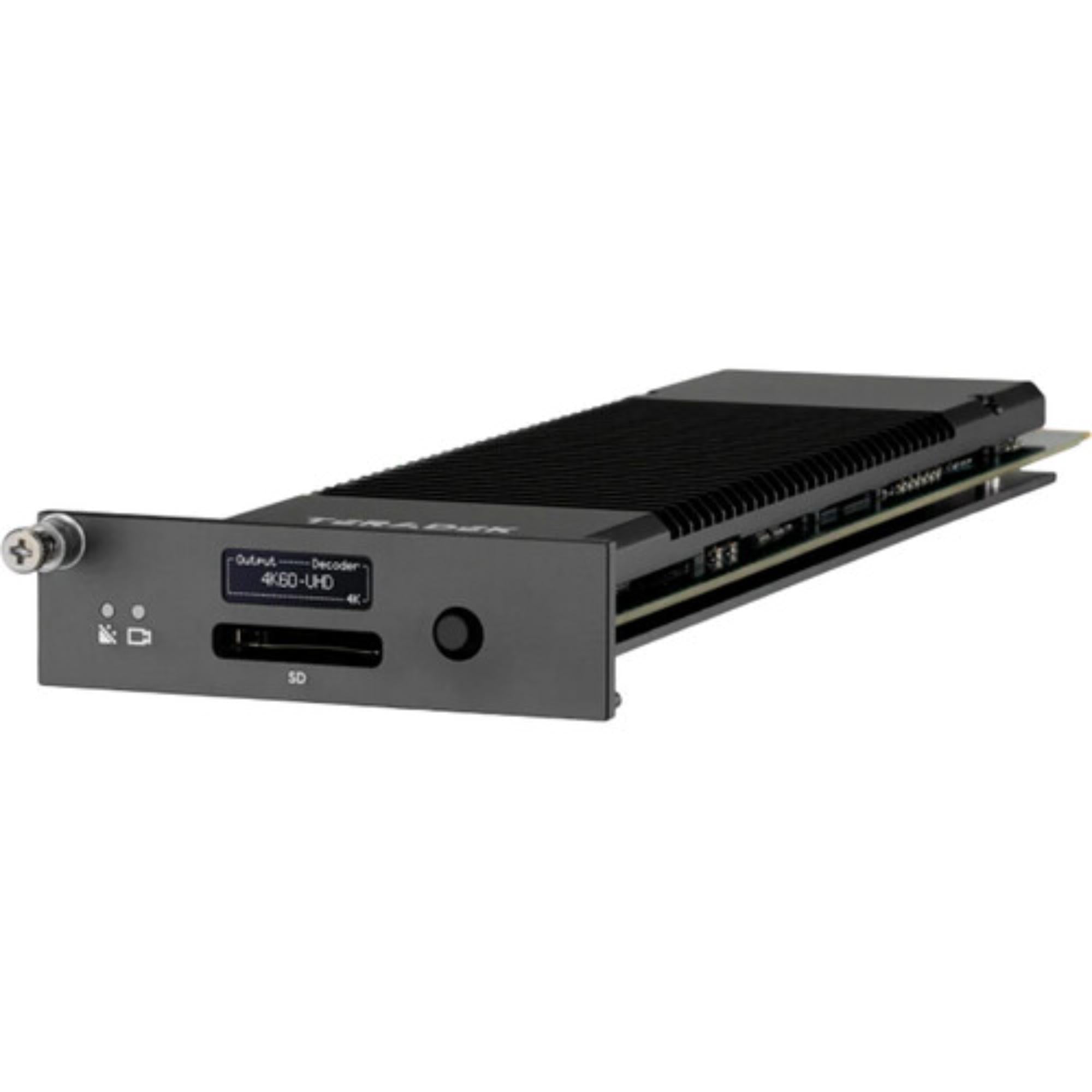

Teradek Prism 877 4K H.264/HEVC Encoder/Decoder Card for Prism Rack (HDMI)

Teradek Prism 877 4K H.264/HEVC Encoder/Decoder Card for Prism Rack (HDMI) is a modular HDMI processing card designed for installation in a Teradek Prism Rack chassis. Based on the supplied source, it can encode and decode H.264 and HEVC video at resolutions up to DCI 4K60 with 10-bit 4:2:2 color.

The card provides two HDMI ports that can be assigned as inputs, outputs, or loop-through connections. It also supports bidirectional encode/decode operation, allowing one card to handle different contribution, distribution, and return-feed roles within a Prism Rack system.

Highlights

• HDMI encoder and decoder card for the Teradek Prism Rack chassis
• Supports H.264 and HEVC processing up to DCI 4K60
• 10-bit 4:2:2 color support for professional video workflows
• Two configurable HDMI ports for input, output, or loop-through use
• 256GB NVMe storage and SD card recording support

Quick Specs & Uses

• Product type: Modular HDMI encoder/decoder card
• Compatible chassis: Teradek Prism Rack
• Video interfaces: 2 x HDMI ports
• HDMI port configuration: Input, output, or loop-through
• Video codecs: H.264 and HEVC
• Maximum video format: DCI 4K60
• Color support: 10-bit 4:2:2
• Operating modes: Encode, decode, and bidirectional encode/decode
• Internal storage: 256GB NVMe
• Removable recording media: SD card slot
• HDR support: Yes
• Audio support: AAC audio
• Additional functions: AVC/HEVC bonding, color correction, overlays, and cloud connectivity
• Primary uses: Live broadcast contribution, remote production, event streaming, return feeds, monitoring, recording, and rack-based video distribution

Why It Helps

Rack-based production systems often need to handle several video paths without filling the installation with separate encoders, decoders, converters, and recorders. The Prism 877 combines those functions in a card designed specifically for the Prism Rack platform.

The two HDMI ports give engineers flexibility when assigning signal paths. A port can be used for source input, decoded output, or loop-through, depending on how the rack is configured for a particular production.

Bidirectional processing is useful when a workflow needs to send one feed while receiving another. The card can therefore support contribution and return-video tasks within the same modular system rather than requiring a separate device for each direction.

The included 256GB NVMe storage and SD card support add local recording options. This can be useful for program backup, confidence recording, event capture, or retaining a local copy of an encoded feed.

Video Processing

• H.264 encoding and decoding for established AVC workflows
• HEVC encoding and decoding for bandwidth-efficient 4K delivery
• DCI 4K60 support for high-resolution live production
• 10-bit 4:2:2 processing for professional color and image quality
• HDR support for compatible high-dynamic-range sources
• Bidirectional operation for simultaneous encode/decode requirements

Workflow Features

• AVC and HEVC bonding support for resilient contribution workflows
• Color-correction tools for image adjustment within the processing chain
• Graphic and data overlays for supported production applications
• Cloud connectivity for networked and remote-production workflows
• AAC audio support for embedded program sound
• Local recording through NVMe and SD card storage

System Characteristics

• Modular Prism Rack integration for centralized deployment
• Configurable dual-HDMI architecture for flexible signal routing
• Combined encoding and decoding in one card
• 4K60 10-bit 4:2:2 support for modern production formats
• Onboard and removable recording options
• Cloud, bonding, overlay, and color-processing capabilities

What’s In The Box

• 1 x Teradek Prism 877 4K H.264/HEVC Encoder/Decoder Card for Prism Rack (HDMI)
