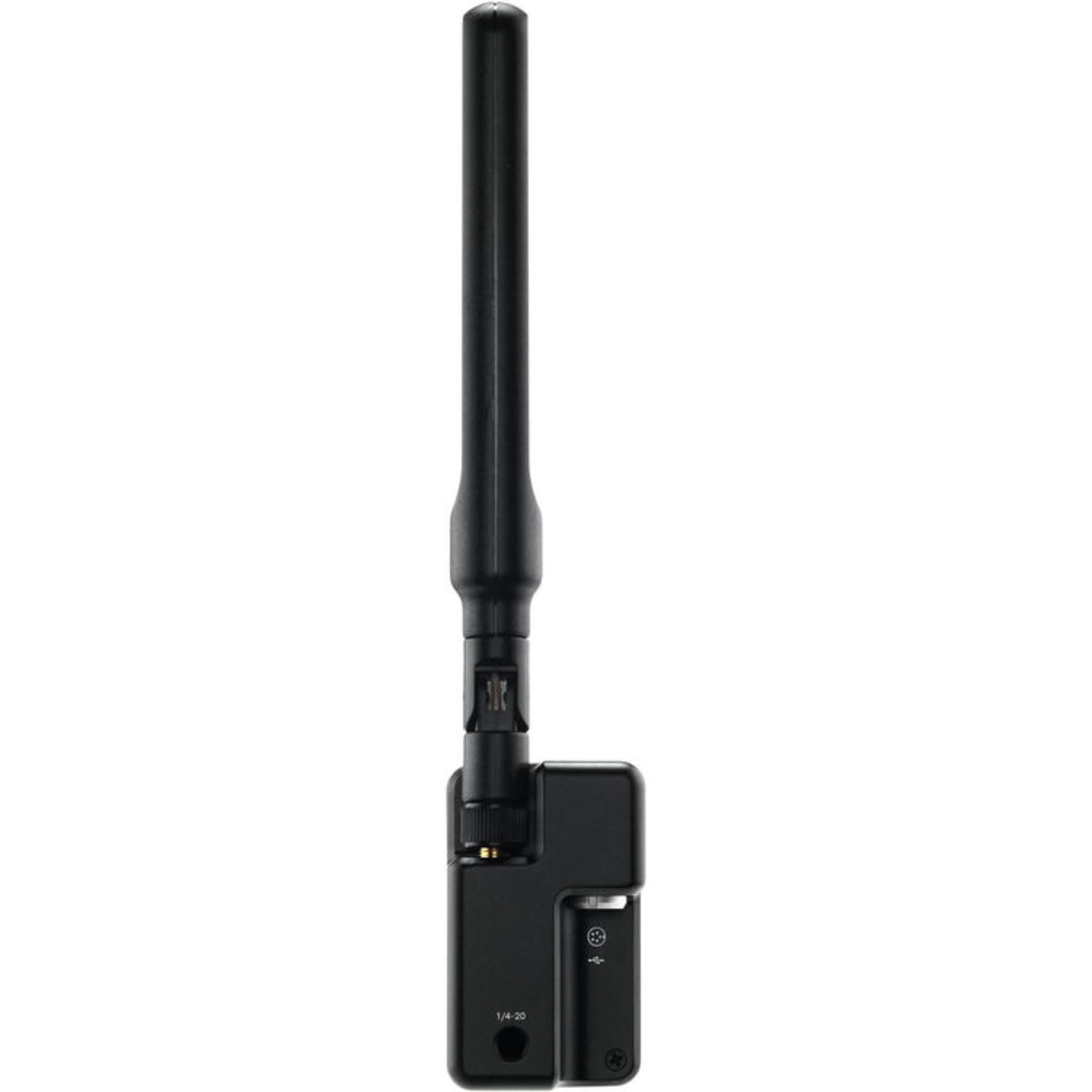

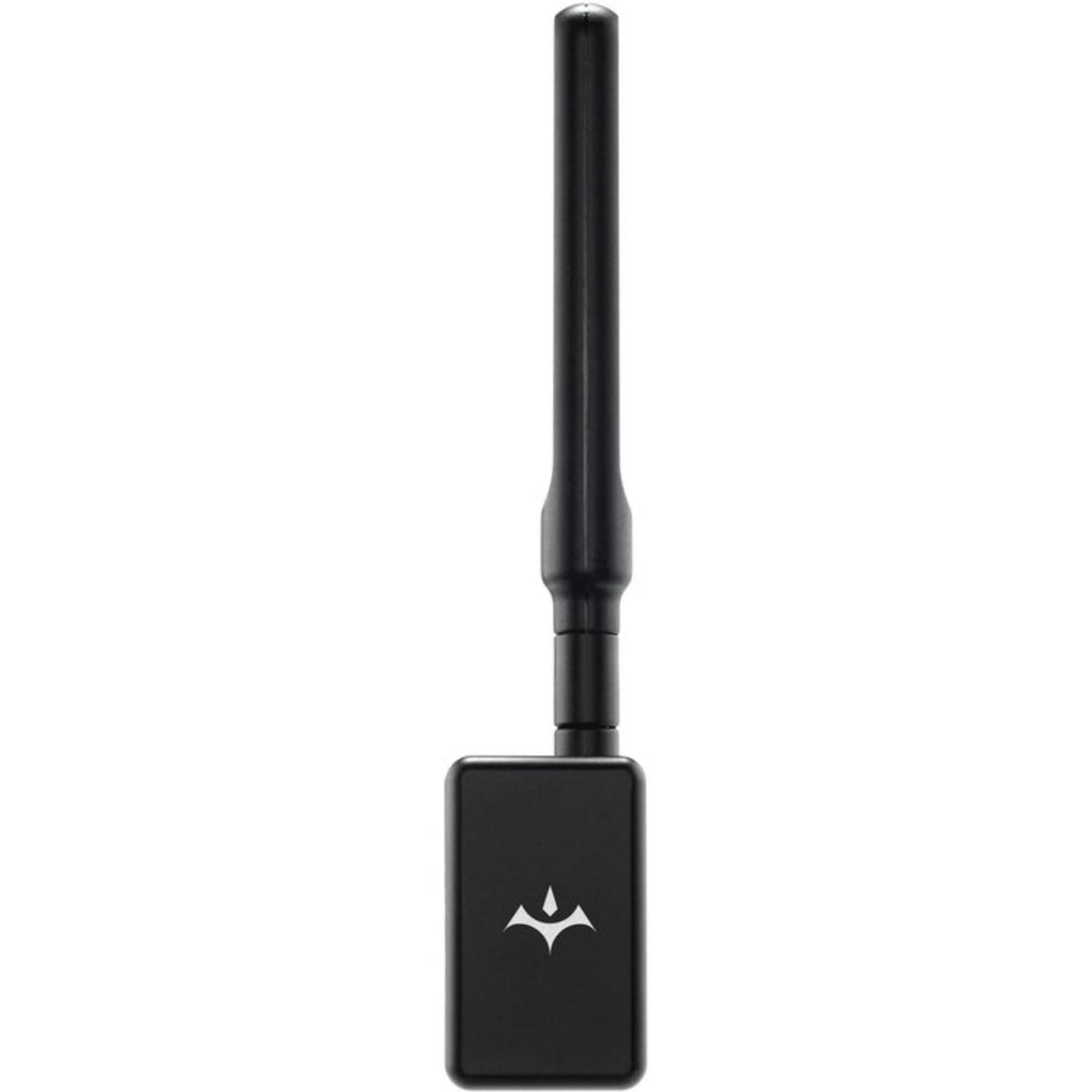

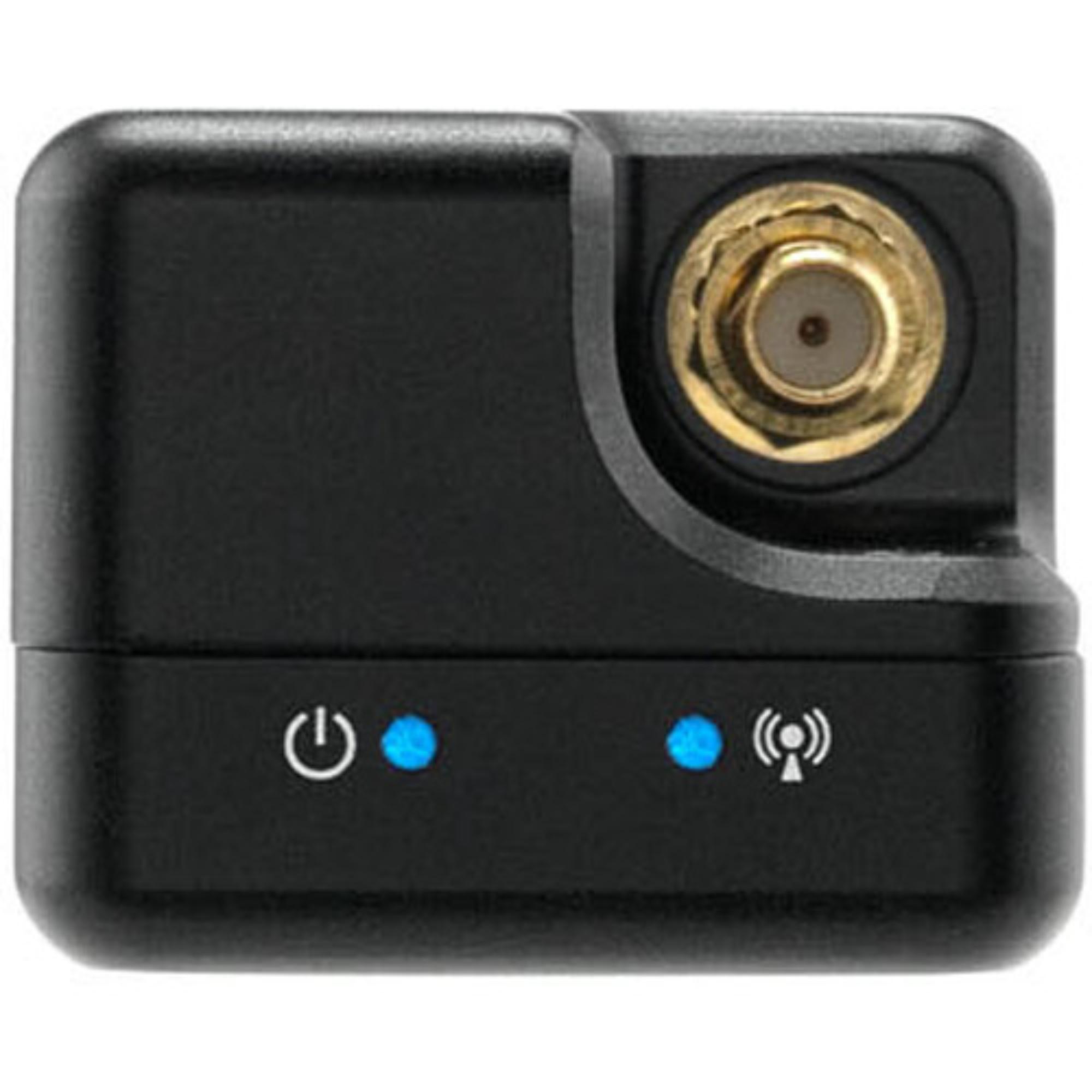

Teradek Node II CBRS 4G/3G Global Modem (USB-C)

Teradek Node II CBRS 4G/3G Global Modem (USB-C) is a cellular modem for production teams using compatible Teradek streaming and contribution hardware. From the supplied source, this USB-C model works with Prism Flex and Serv 4K systems.

The modem supports private LTE through CBRS in the United States and provides non-CBRS cellular connectivity for wider global use. It is rated for up to 480 Mb/s download and 150 Mb/s upload, giving field crews a dedicated network path when wired internet or venue connectivity cannot be trusted.

Highlights

• Global 4G/3G modem with USB-C connectivity for compatible Teradek systems
• Supports Prism Flex and Serv 4K
• Private LTE CBRS capability in the United States
• Up to 480 Mb/s download and 150 Mb/s upload
• Dual SIM support, carrier aggregation, uplink MIMO, and high-gain antennas

Quick Specs & Uses

• Product type: Global cellular modem
• Primary workflows: Live streaming, remote production, field contribution, mobile broadcasting, and cellular video transport
• Compatible systems: Teradek Prism Flex and Serv 4K
• Connection: USB-C
• Maximum download speed: 480 Mb/s
• Maximum upload speed: 150 Mb/s
• CBRS support: Private LTE capability in the United States
• Global connectivity: Non-CBRS cellular operation
• Cellular compatibility: Most LTE, 4G, and 3G data bands
• SIM configuration: Dual MFF2 SIM slots
• Included SIM adapters: Nano-SIM and micro-SIM
• SIM compatibility: Works with virtually any plastic SIM card
• Carrier aggregation: Supported
• Uplink MIMO: Supported
• Antenna system: High-gain external antennas
• GPS support: GPS multiplexed through the antenna for future Teradek applications
• Construction: Aluminum chassis

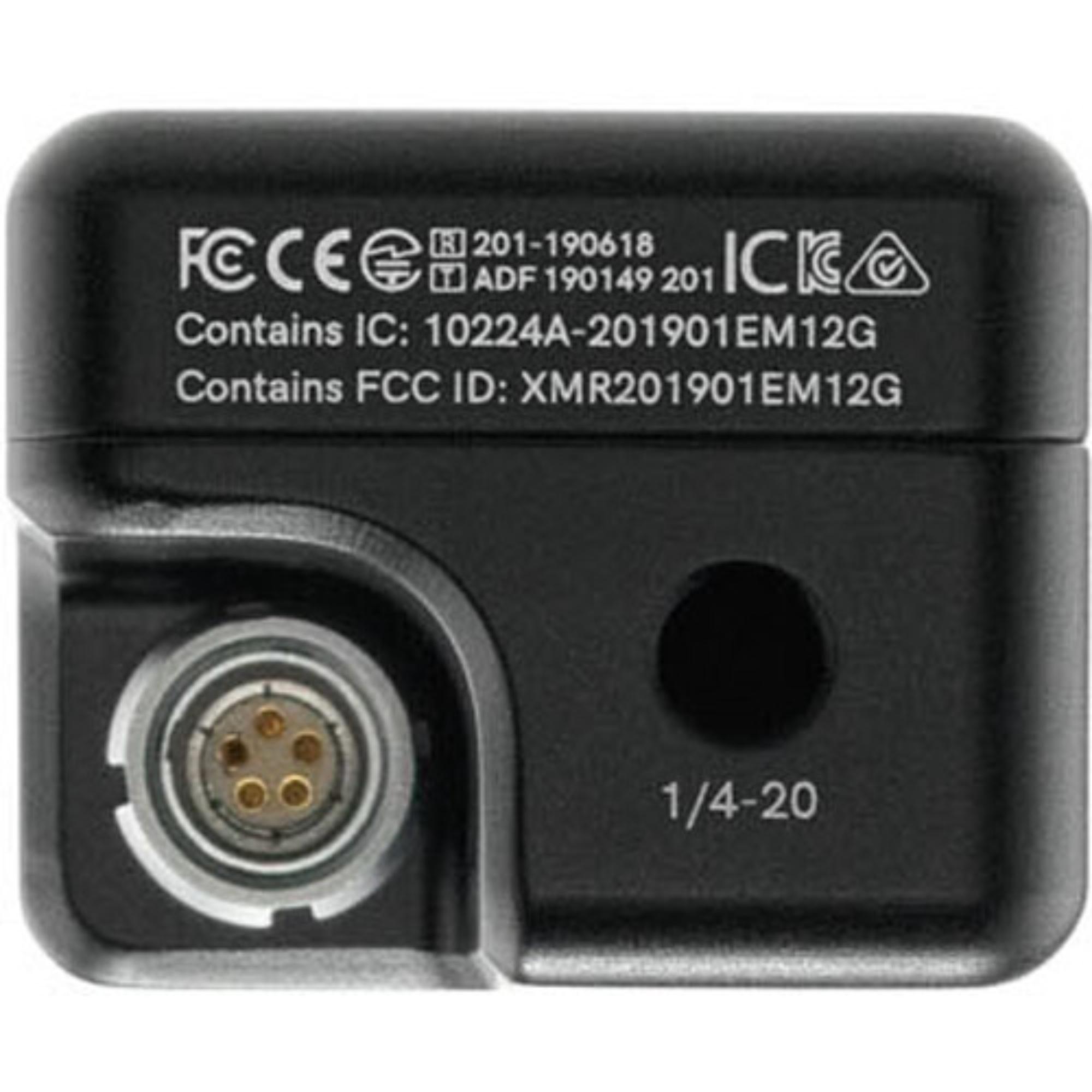

• Mounting points: Three 1/4"-20 mounting holes

Why It Helps

Once a production leaves the studio, the network link becomes part of the signal chain. The Node II CBRS gives Prism Flex and Serv 4K systems a dedicated cellular connection, which can be useful when venue Wi-Fi is overloaded, a wired drop is unavailable, or the crew needs access to a private LTE network.

The listed upload speed of up to 150 Mb/s is the more important figure for live contribution work. Carrier aggregation and uplink MIMO give supported networks more ways to maintain a stable upstream path in crowded or difficult RF conditions.

Dual SIM slots help crews work with different carriers or SIM formats without rebuilding the modem setup. The included nano- and micro-SIM adapters make that easier, while broad LTE, 4G, and 3G support gives traveling production teams more flexibility when operating outside their usual region.

The USB-C connection keeps integration straightforward with supported Teradek hardware. Its aluminum body and three 1/4"-20 mounting holes also give the operator sensible options for fixing the modem to a camera rig, encoder bracket, production cart, or field pack.

System Characteristics

• USB-C cellular integration for Prism Flex and Serv 4K
• CBRS private LTE support for eligible U.S. deployments
• Global non-CBRS connectivity for wider field operation
• Dual SIM operation with nano- and micro-SIM adapter support
• Carrier aggregation and uplink MIMO for supported cellular links
• Broad LTE, 4G, and 3G compatibility
• High-gain external antennas for cellular signal reception
• GPS multiplexing through the antenna for future Teradek uses
• Aluminum chassis with three mounting points for production installation

What’s In The Box

• 1 x Teradek Node II CBRS 4G/3G Global Modem (USB-C)
