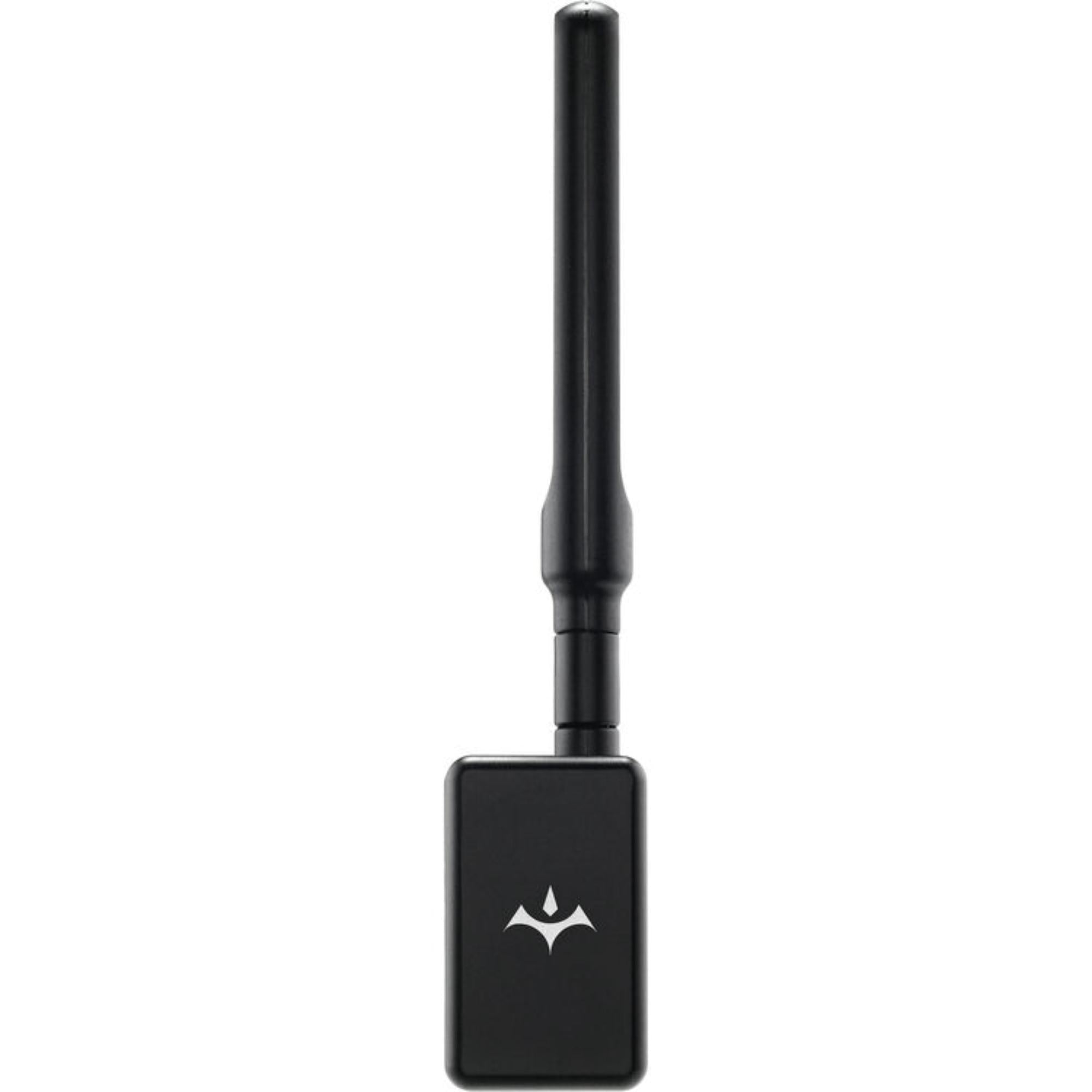

Teradek Node II CBRS 4G/3G Global Modem (USB-A)

Teradek Node II CBRS 4G/3G Global Modem (USB-A) is a cellular modem for crews that need a dedicated mobile connection in the field. From the supplied source, this USB-A version works with Prism Mobile, Serv Micro, VidiU X, Link AX, and Windows or Linux computers.

The modem supports private LTE through CBRS in the United States and non-CBRS connectivity for wider international use. It is rated for up to 480 Mb/s download and 150 Mb/s upload, giving compatible streaming and contribution systems another network path when venue internet is unavailable or unreliable.

Highlights

• Global 4G/3G modem with USB-A connectivity for supported Teradek and computer workflows
• Compatible with Prism Mobile, Serv Micro, VidiU X, Link AX, Windows, and Linux
• Private LTE CBRS capability in the United States
• Up to 480 Mb/s download and 150 Mb/s upload
• Dual SIM support, carrier aggregation, uplink MIMO, and external high-gain antennas

Quick Specs & Uses

• Product type: Global cellular modem
• Primary workflows: Live streaming, remote production, field contribution, mobile broadcasting, and computer-based cellular connectivity
• Compatible Teradek systems: Prism Mobile with USB-A port, Serv Micro, VidiU X, and Link AX
• Computer compatibility: Windows and Linux
• Connection: USB-A
• Maximum download speed: 480 Mb/s
• Maximum upload speed: 150 Mb/s
• CBRS support: Private LTE capability in the United States
• Global connectivity: Non-CBRS cellular operation
• Cellular compatibility: Most LTE, 4G, and 3G data bands
• SIM configuration: Dual MFF2 SIM slots
• Included SIM adapters: Nano-SIM and micro-SIM
• SIM compatibility: Works with virtually any plastic SIM card
• Carrier aggregation: Supported
• Uplink MIMO: Supported
• Antenna system: High-gain external antennas
• GPS support: GPS multiplexed through the antenna for future Teradek uses
• Construction: Aluminum chassis

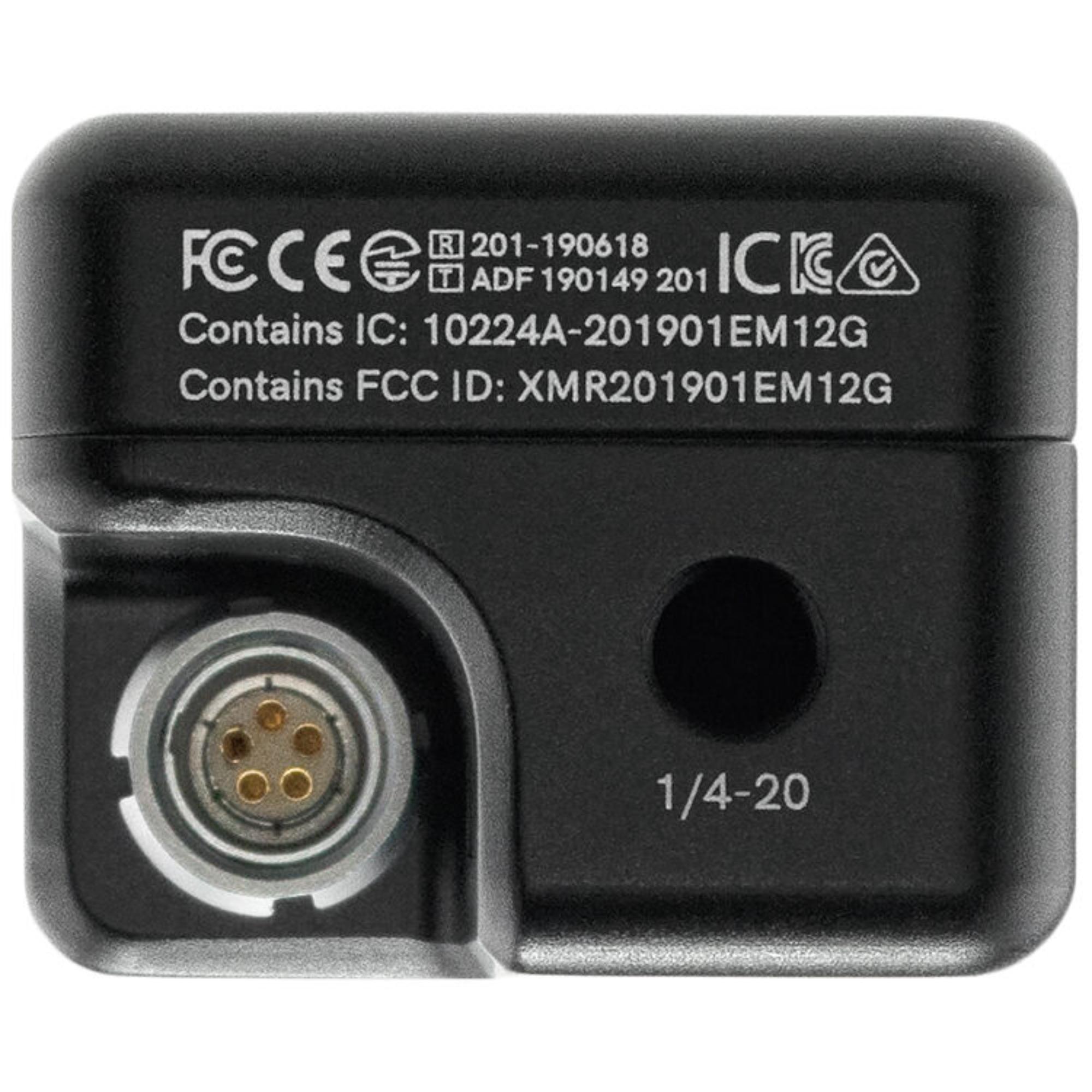

• Mounting points: Three 1/4"-20 mounting holes

Why It Helps

On location, the network connection is often the least predictable part of the production chain. The Node II CBRS gives compatible Teradek devices and computers their own cellular path, which can be useful when the crew cannot depend on venue Wi-Fi or a nearby wired connection.

For contribution work, upload performance matters more than headline download speed. This modem is rated for up to 150 Mb/s upstream and supports carrier aggregation with uplink MIMO, giving supported carriers more ways to maintain a usable connection in crowded or difficult RF environments.

The dual SIM arrangement also makes sense for field crews. Operators can prepare different carrier options or SIM formats before deployment, while the included nano- and micro-SIM adapters make it easier to work with commonly used cards.

USB-A connectivity gives this version a wider role across encoders and computers. The aluminum body and three 1/4"-20 mounting holes also make it easier to secure the modem to a rig, cart, field pack, or encoder bracket instead of leaving it loose in the build.

System Characteristics

• USB-A cellular integration for supported Teradek systems and computers
• CBRS private LTE support for eligible U.S. deployments
• Global non-CBRS connectivity for wider field operation
• Dual SIM operation with nano- and micro-SIM adapter support
• Carrier aggregation and uplink MIMO for supported cellular links
• Broad LTE, 4G, and 3G compatibility
• High-gain external antennas for cellular signal reception
• GPS multiplexing through the antenna for future Teradek applications
• Aluminum chassis with three mounting points for field installation

What’s In The Box

• 1 x Teradek Node II CBRS 4G/3G Global Modem (USB-A)
