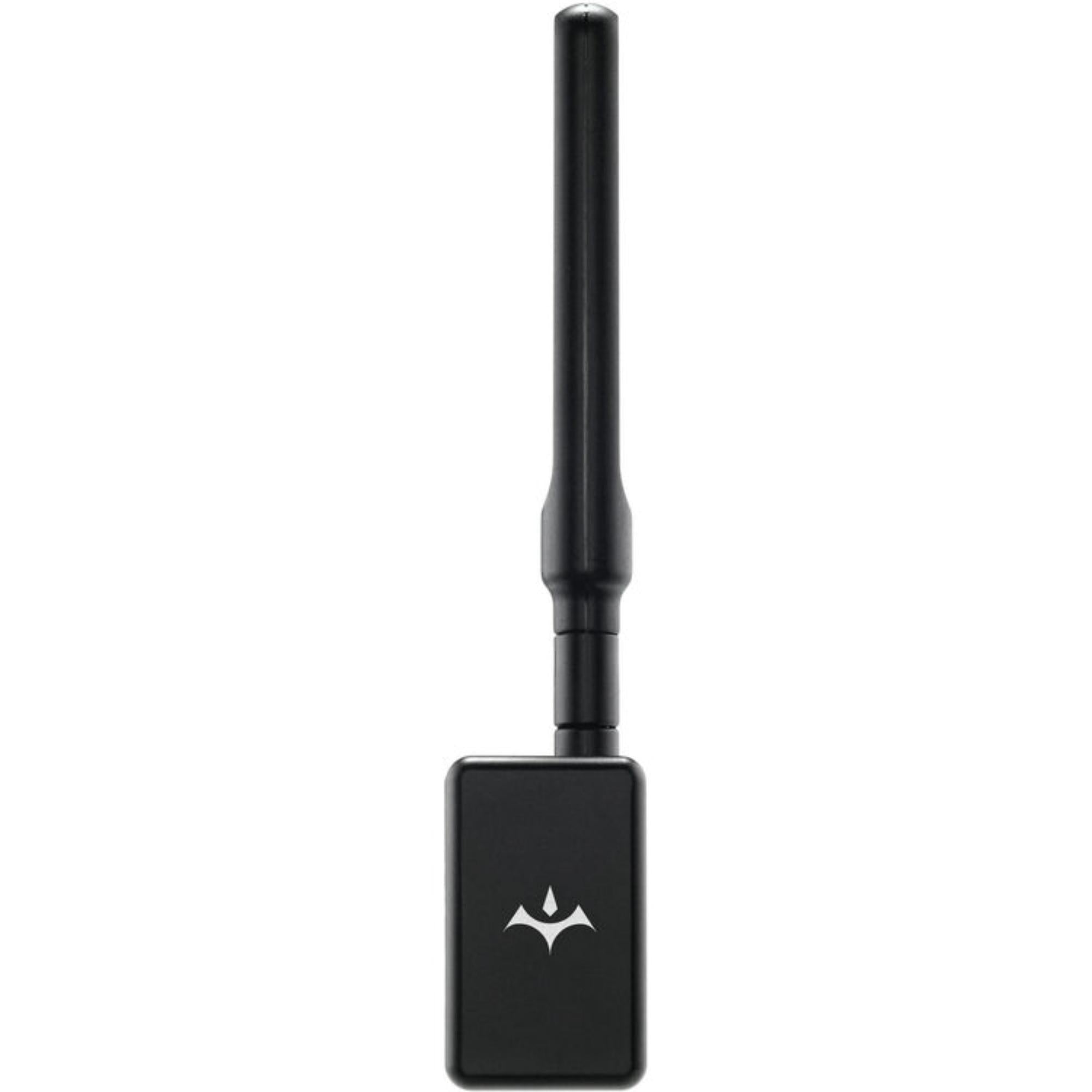

Teradek Node II CBRS 4G/3G Global Modem (5-Pin)

Teradek Node II CBRS 4G/3G Global Modem (5-Pin) is a cellular modem built for compatible Prism Mobile systems that need a dedicated field connection. From the supplied source, it works with Prism Mobile or a Prism Mobile backpack equipped with Node II through a locking 5-pin connector.

The modem is rated for up to 480 Mb/s download and 150 Mb/s upload and supports CBRS operation in the United States along with broader non-CBRS global connectivity. For production crews, that makes it useful when a live contribution path has to run over cellular service instead of venue internet or a fixed network drop.

Highlights

• Global 4G/3G modem with CBRS support for compatible Teradek Prism Mobile systems
• Locking 5-pin connection for secure integration with supported equipment
• Up to 480 Mb/s download and 150 Mb/s upload
• Dual MFF2 SIM slots with nano- and micro-SIM adapters included
• Carrier aggregation, uplink MIMO, external antennas, and broad SIM compatibility

Quick Specs & Uses

• Product type: Global cellular modem
• Primary workflows: Remote production, live streaming, field contribution, mobile broadcasting, and cellular video transport
• Compatible systems: Teradek Prism Mobile and Prism Mobile backpack with Node II

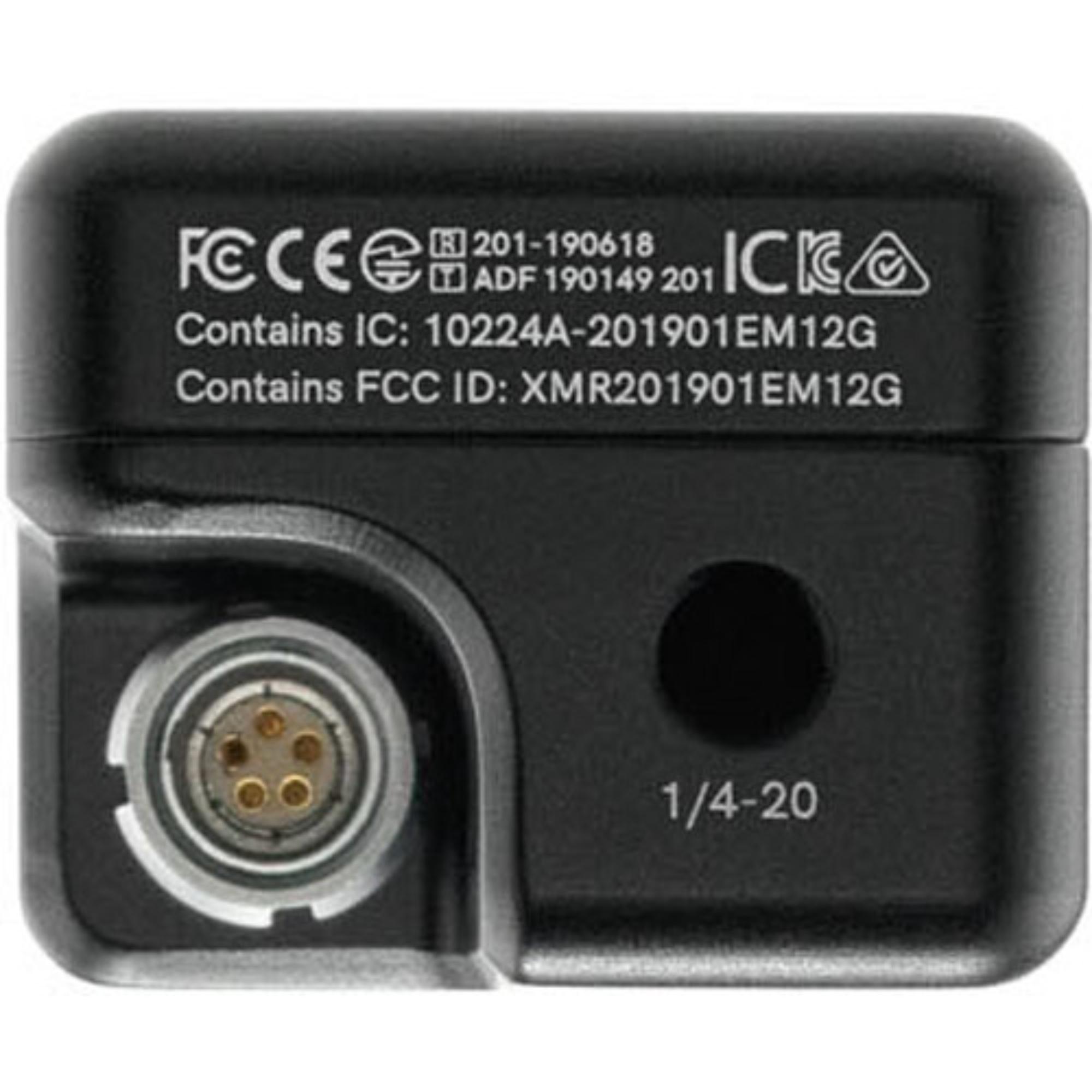

• Connection: Locking 5-pin connector
• Maximum download speed: 480 Mb/s
• Maximum upload speed: 150 Mb/s
• CBRS support: Private LTE capability in the United States
• Global connectivity: Non-CBRS cellular operation
• Cellular network compatibility: Most LTE, 4G, and 3G data bands
• SIM configuration: Dual MFF2 SIM slots
• Included SIM adapters: Nano-SIM and micro-SIM
• SIM compatibility: Works with virtually any plastic SIM card
• Carrier aggregation: Supported
• Uplink MIMO: Supported

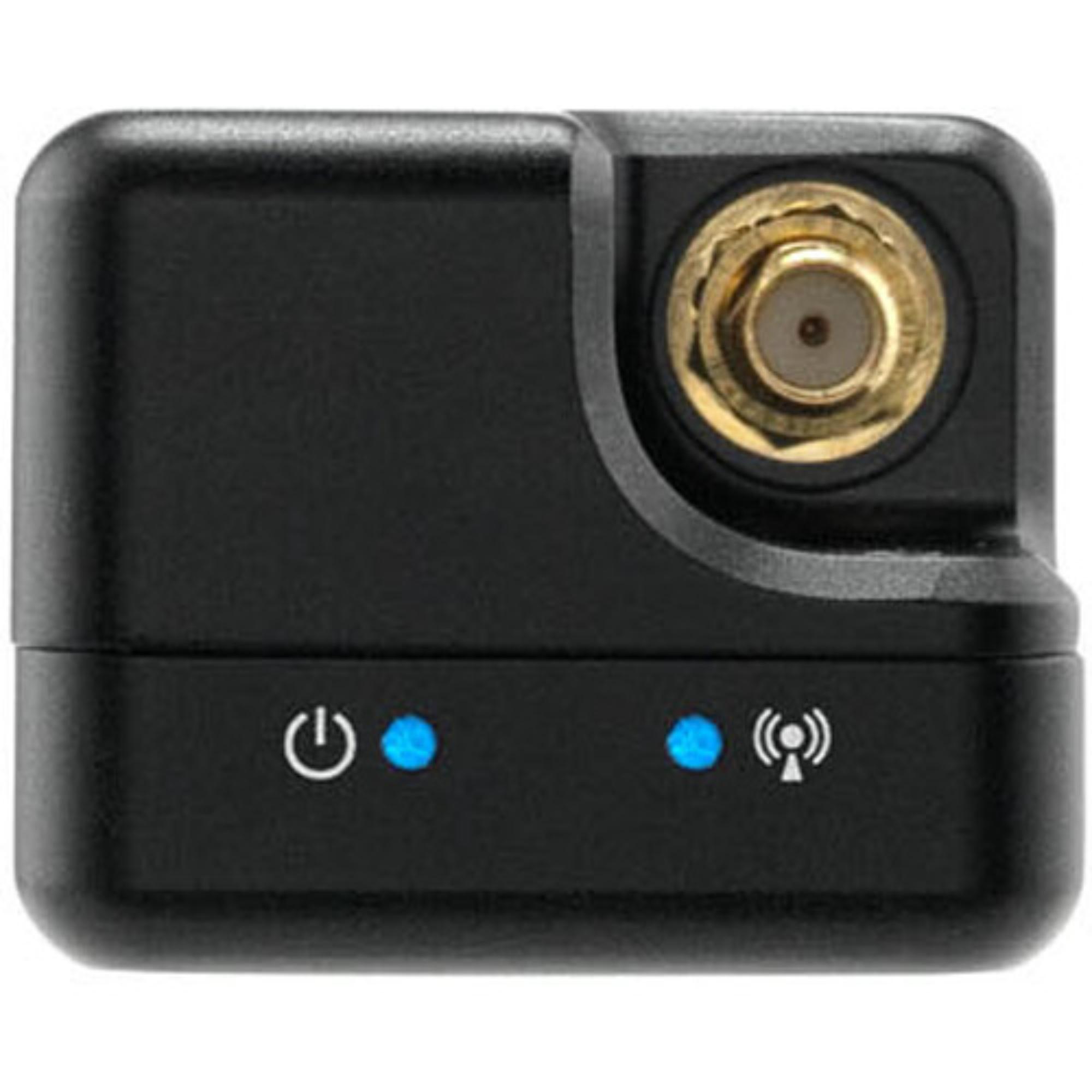

• Antenna system: High-gain external antennas
• GPS support: GPS multiplexed through the antenna for future Teradek uses
• Construction: Aluminum chassis
• Mounting points: Three 1/4"-20 mounting holes

Why It Helps

In a remote production setup, the cellular modem becomes part of the contribution chain. The Node II CBRS gives compatible Prism Mobile systems a dedicated path for sending video when venue Wi-Fi is congested, a wired connection is unavailable, or the production needs access to a private LTE network.

The listed 150 Mb/s upload capability is the more important figure for live contribution work. Carrier aggregation and uplink MIMO add more options for supported carriers to maintain a stronger upstream connection in difficult RF conditions.

Dual SIM slots give the operator room to work with more than one carrier or SIM format, while the included nano- and micro-SIM adapters help simplify deployment. Broad compatibility across LTE, 4G, and 3G data bands also makes the modem useful for crews that travel between regions.

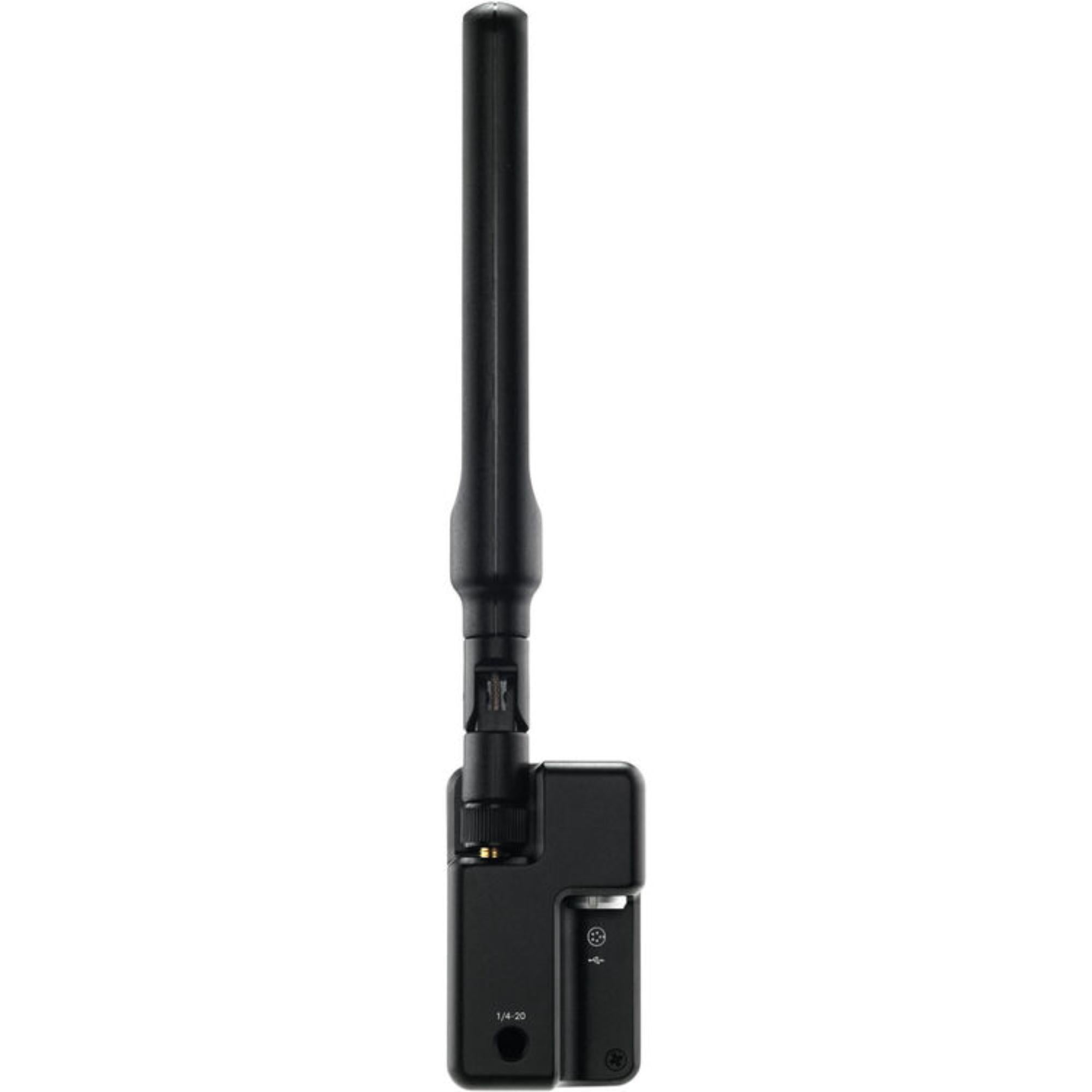

The locking 5-pin connector keeps the modem fixed to the supported Prism system, and the aluminum chassis with three 1/4"-20 mounting points gives the crew practical ways to secure it to a backpack, rig, cart, or field transmission build.

System Characteristics

• CBRS private LTE support for eligible U.S. deployments
• Global non-CBRS connectivity for international production use
• Dual SIM operation with nano- and micro-SIM adapter support
• Carrier aggregation and uplink MIMO for supported cellular links
• Broad LTE, 4G, and 3G compatibility
• High-gain external antennas for cellular signal reception
• GPS multiplexing through the antenna for future Teradek applications
• Locking 5-pin interface for secure production integration
• Aluminum chassis with three mounting points for field installation

What’s In The Box

• 1 x Teradek Node II CBRS 4G/3G Global Modem (5-Pin)
