Teradek Node 5G-Q Series Global Modem (5-Pin)

Teradek Node 5G-Q Series Global Modem (5-Pin) is a cellular modem built to add global internet connectivity to compatible Teradek production systems. From the supplied source, it works with Prism Mobile or a Prism Mobile backpack equipped with Node II through a locking 5-pin connection.

The modem supports 5G Standalone and Non-Standalone networks and provides listed download and upload speeds of up to 480 Mb/s. For field crews, that gives Prism and Serv equipment a dedicated cellular path for live streaming and remote video transport when wired internet is not available.

Highlights

• Global 5G cellular modem for compatible Teradek Prism Mobile systems
• Locking 5-pin connection for secure integration with supported equipment
• Up to 480 Mb/s download and 480 Mb/s upload
• Supports 5G SA and NSA networks with carrier aggregation and uplink MIMO
• CBRS support, external high-gain antennas, and universal SIM compatibility

Quick Specs & Uses

• Product type: Global cellular modem
• Primary workflows: Remote production, live streaming, field contribution, mobile broadcasting, and cellular video transport
• Compatible systems: Teradek Prism Mobile and Prism Mobile backpack with Node II
• Connection: Locking 5-pin connector
• Maximum download speed: 480 Mb/s
• Maximum upload speed: 480 Mb/s
• 5G network support: Standalone and Non-Standalone
• Additional network support: Broad 5G, LTE, 4G, and 3G data-band compatibility
• CBRS support: Yes
• Carrier aggregation: Supported
• Uplink MIMO: Supported
• SIM compatibility: Works with virtually any SIM card
• eSIM support: Teradek Data-ready eSIM slot

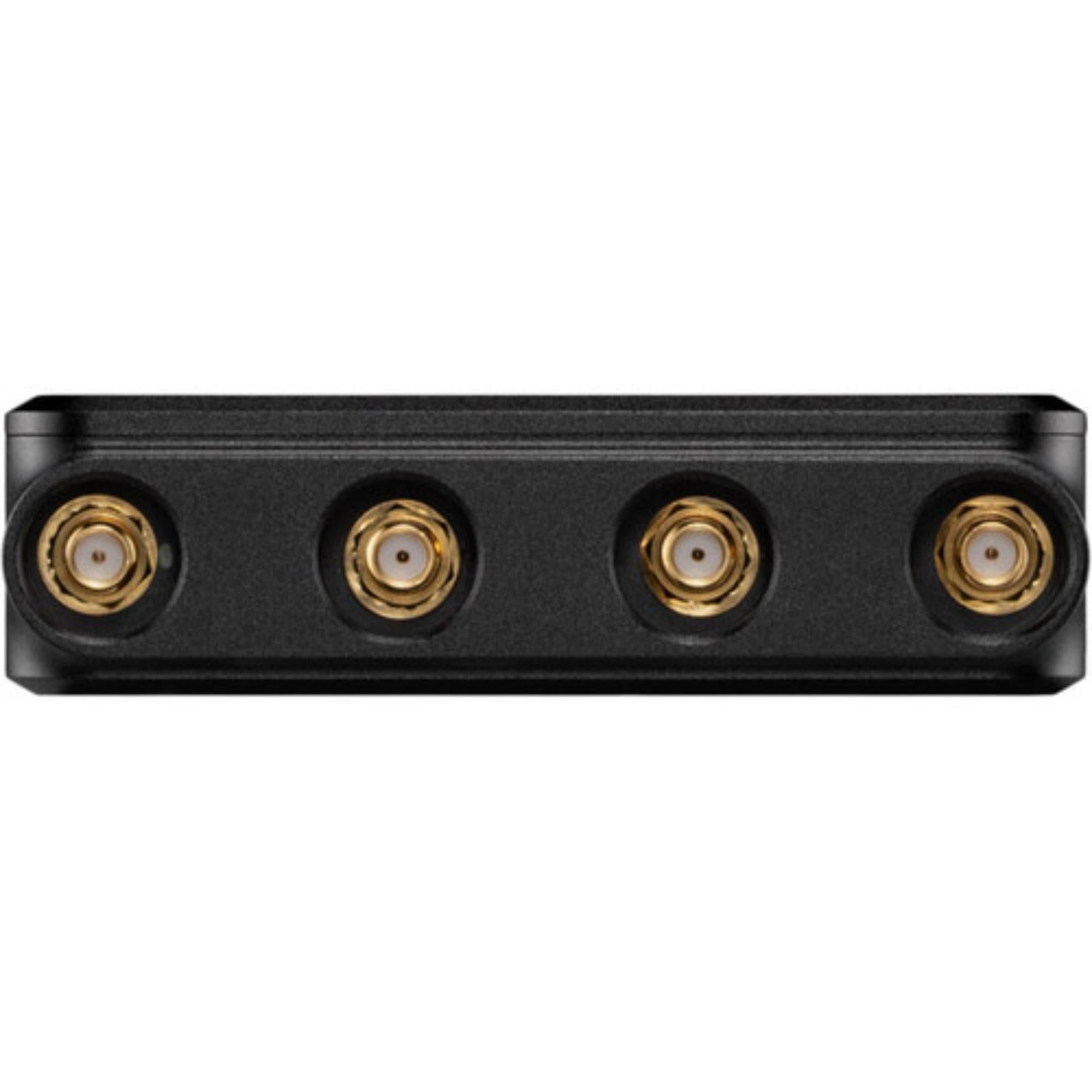

• Antennas: High-gain external antennas
• Construction: Aluminum chassis

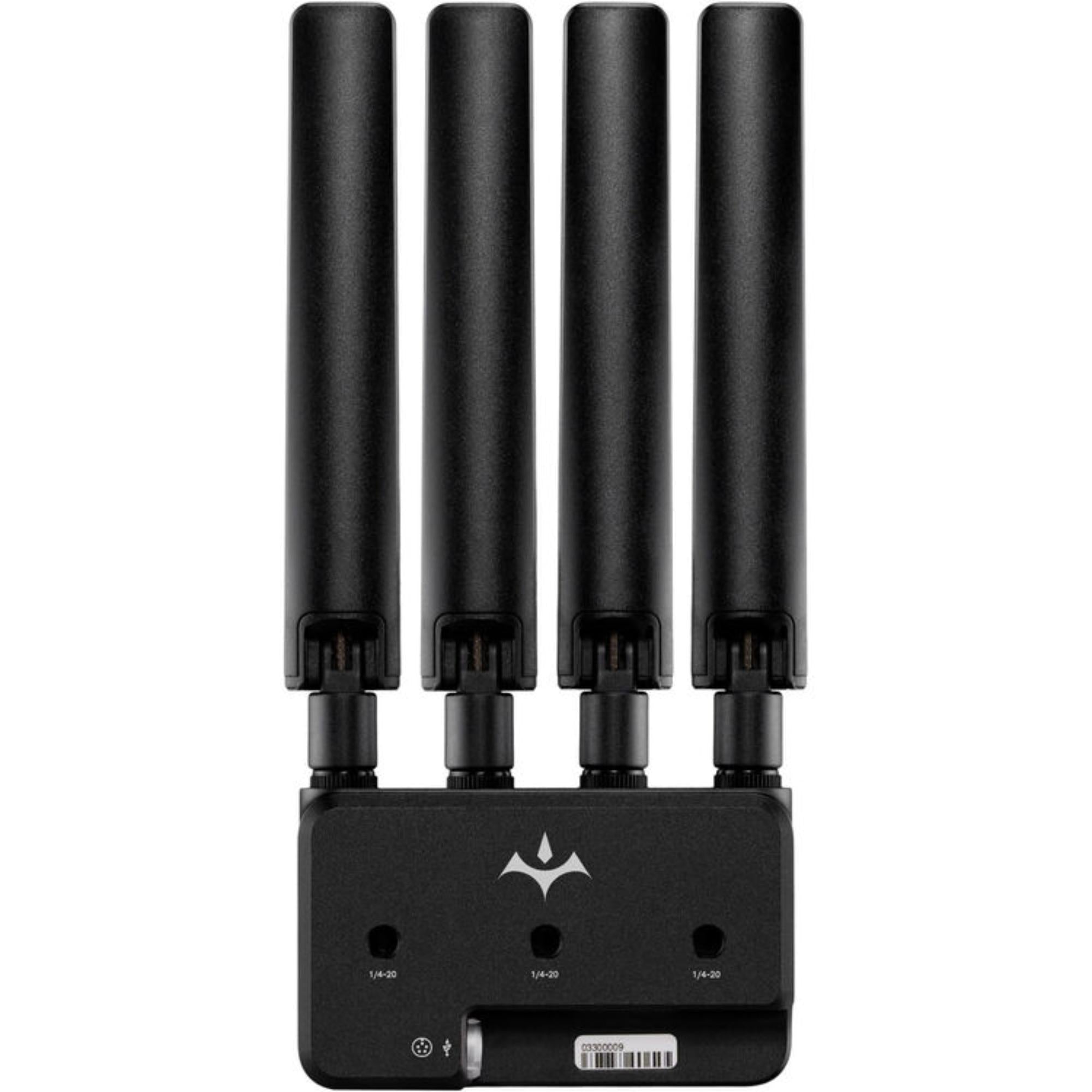

• Mounting points: Three 1/4"-20 mounting holes

Why It Helps

Reliable upload bandwidth matters more than headline download speed during a live production. The Node 5G-Q is rated for uploads up to 480 Mb/s and supports carrier aggregation with uplink MIMO, giving compatible Teradek systems more tools for maintaining a usable contribution path in demanding cellular environments.

Its broad network and SIM support is useful for crews that move between regions or work internationally. Instead of building the production around one carrier, the modem can operate with a wide range of SIM cards and cellular data bands, including 5G, LTE, 4G, and 3G services.

The locking 5-pin connector keeps the modem firmly attached to the supported Prism system, while the aluminum body and three 1/4"-20 mounting points give the operator practical options for securing it to a backpack, camera rig, cart, or field transmission setup.

System Characteristics

• Global cellular connectivity for mobile and remote production workflows
• 5G SA and NSA operation for broad network compatibility
• Carrier aggregation and uplink MIMO for stronger supported upload connections
• CBRS compatibility for additional network deployment options
• Universal SIM support for flexible carrier selection
• Teradek Data-ready eSIM slot for supported service activation
• High-gain external antennas for cellular signal reception
• Locking 5-pin interface for a secure production connection
• Aluminum chassis with three mounting points for field installation

What’s In The Box

• 1 x Teradek Node 5G-Q Series Global Modem (5-Pin)
