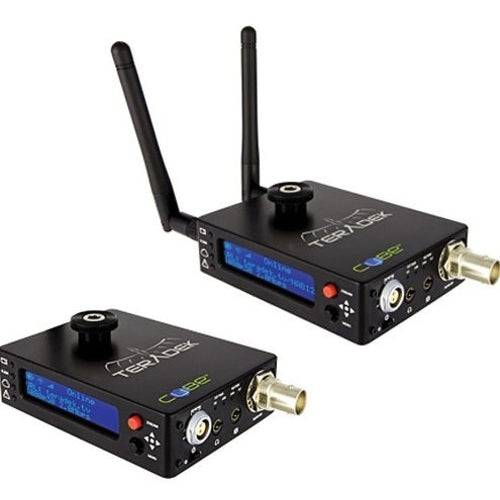

Teradek Cubelet 155/305 HD-SDI Encoder 10/100 USB 2.4/5.8GHz paired to HD-SDI Decoder 10/100

The Teradek Cubelet 155/305 HD-SDI Encoder 10/100 USB 2.4/5.8GHz paired to HD-SDI Decoder 10/100 by Teradek is a group of Cube 155 HD-SDI Encoder and Cube 305 HD-SDI Decoder. Both are the end-to-end and high-definition based streaming video solution that removes the need for PC-based decoding. This group of devices is very useful for ENG, filmmaking, and Pro AV applications. The 155 HD-SDI Encoder can connect to any camera via the SDI and streams proxy files in H.264 format to a decoder or any website. Streaming is possible through the dual-band Wifi when the network is available. Both devices support users to storage into a MicroSD card with 32GB capacity.

To have a good mounting, Teradek Cubelet 155/305 can be attached to any camera’s hot shoe or to the cage/rig by the included 1/4"-20 mounting screw. The extra connection can be acquired from the 1/8" line/mic input, a headphone jack, and the Ethernet port. To recharge the power, there is the AC power adapter or the external battery via the 2-pin Lemo input. Battery life indicator can be seen and monitored from the OLED screen. In addition, users can have the camera batteries with 2-pin Lemo output to power Teradek and camera with the same battery. These consecutive 2-pin Lemo batteries can be used for power: Teradek Panasonic D54, Teradek Canon BP 945, and Teradek Panasonic VW-VGB6.
