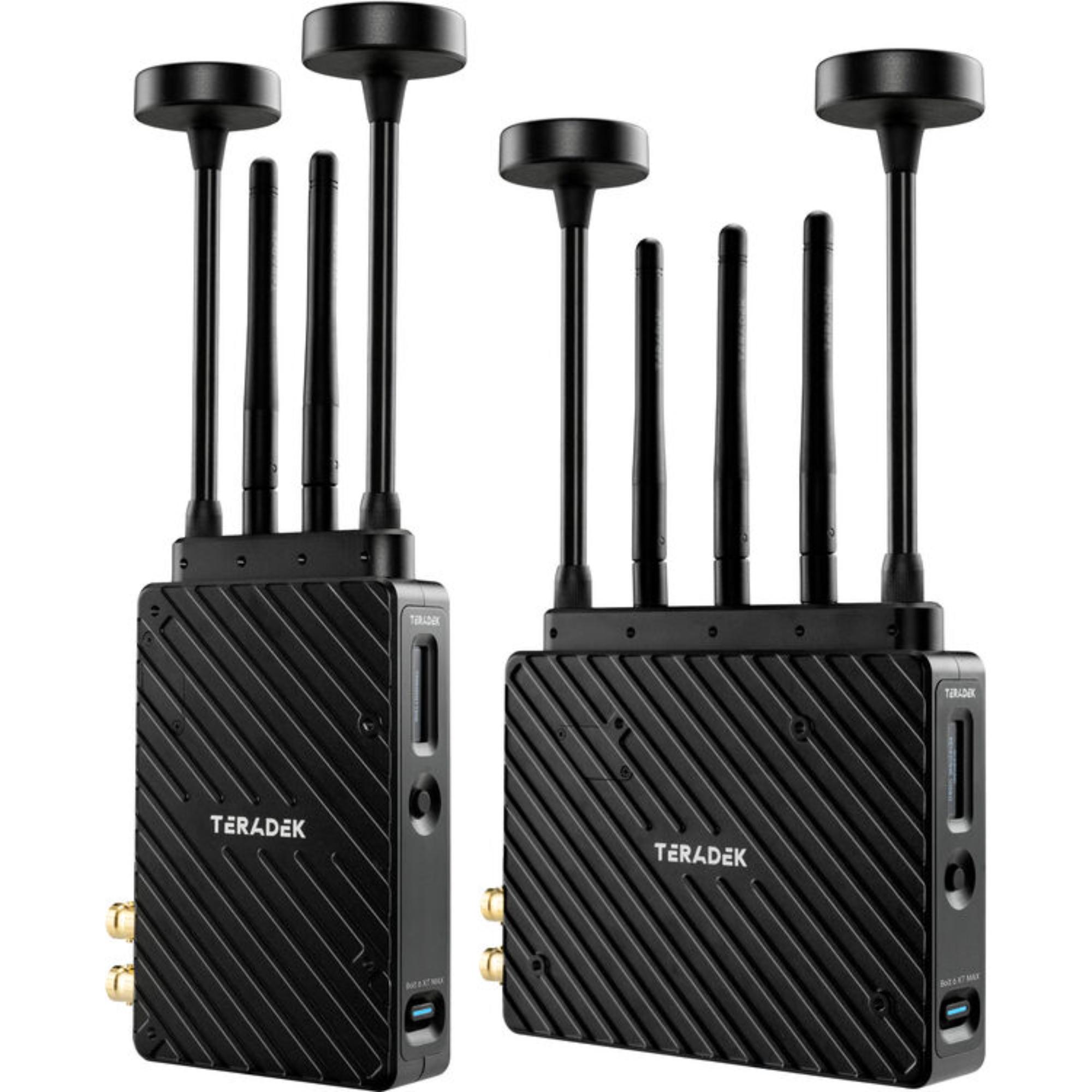

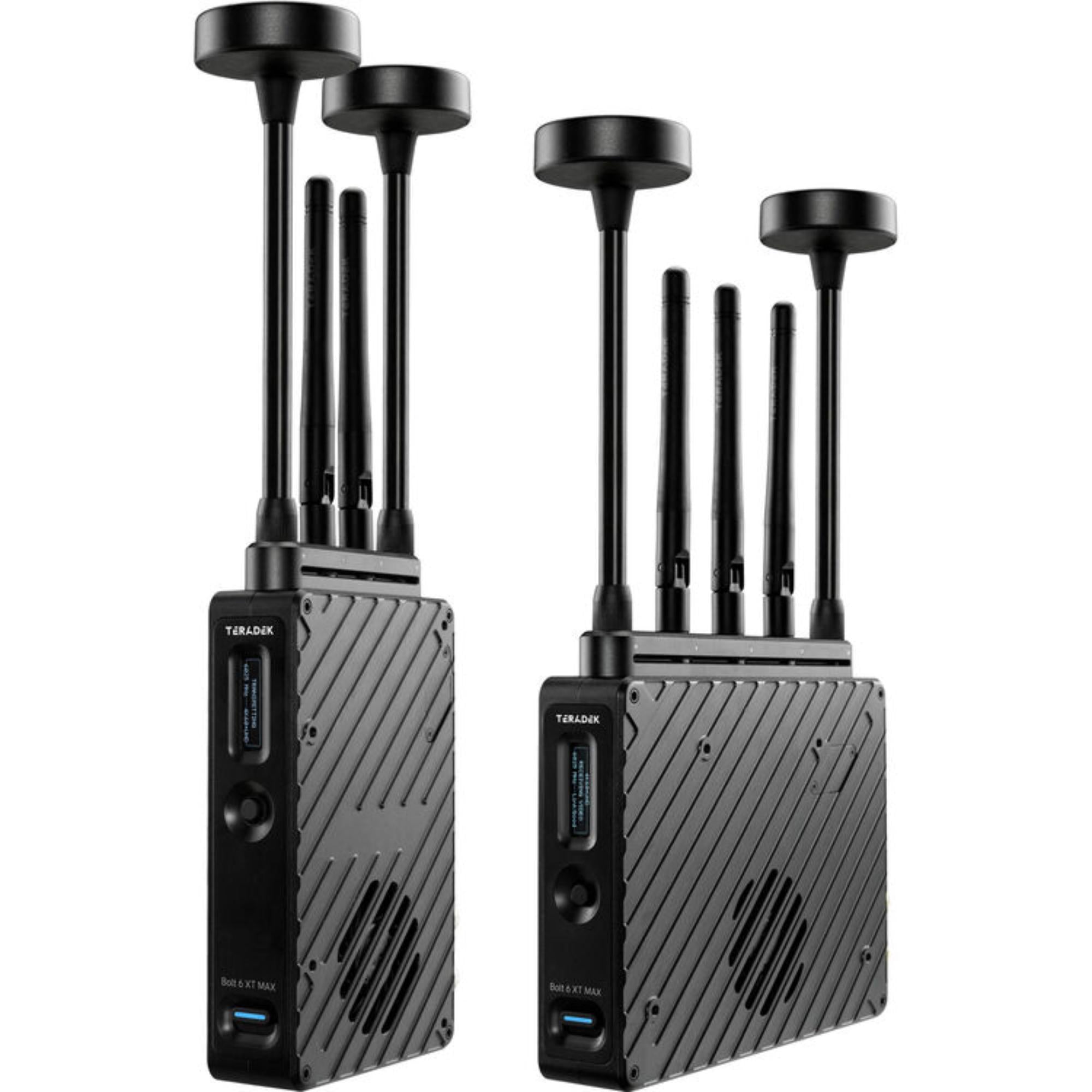

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount) is a complete long-range wireless video system for cinema, broadcast, live production, sports, and video-assist workflows. Based on the supplied source, the kit combines a Bolt 6 XT MAX transmitter and receiver capable of carrying video over distances of up to 5,000 ft / 1,524 m under line-of-sight conditions.

The transmitter accepts HDMI 2.0 or 12G-SDI video and provides a 12G-SDI loop output for a local camera-side monitor or recorder. At the receive position, HDMI 2.0 and 12G-SDI outputs make it easy to feed a director’s monitor, focus station, recorder, switcher, or video-village system.

Highlights

• Complete 12G-SDI/HDMI transmitter and receiver kit for professional wireless monitoring
• Up to 5,000 ft line-of-sight range for large stages and exterior locations
• Supports DCI 4K60 and UHD 4K60 with 10-bit 4:2:2 video
• AES-256 encryption, timecode support, and Bluetooth control
• V-Mount hardware, nine antennas, cables, mounts, and carry case included

Quick Specs & Uses

• Product type: Long-range wireless video transmitter and receiver kit
• Primary workflows: Cinema production, broadcast, live events, sports, video village, focus pulling, vehicle rigs, and remote camera monitoring
• Maximum wireless range: 5,000 ft / 1,524 m, line of sight
• Wireless system: 5G operation with support for the 6 GHz frequency range
• Channel bandwidth: 40 MHz
• RF power: 23 dBm
• Maximum video format: DCI 4K60
• Color support: 10-bit 4:4:4 / 4:2:2 RGB and YCC
• Timecode support: Yes
• Encryption: AES-256
• Bluetooth: Supported
• Mobile app compatibility: Android and iOS through the Bolt App
• Wi-Fi: No
• Cellular support: No
• Battery configuration: V-Mount transmitter and receiver units
• Input voltage: 6 to 28 VDC
• Transmitter power consumption: 20 W
• Receiver power consumption: 18 W

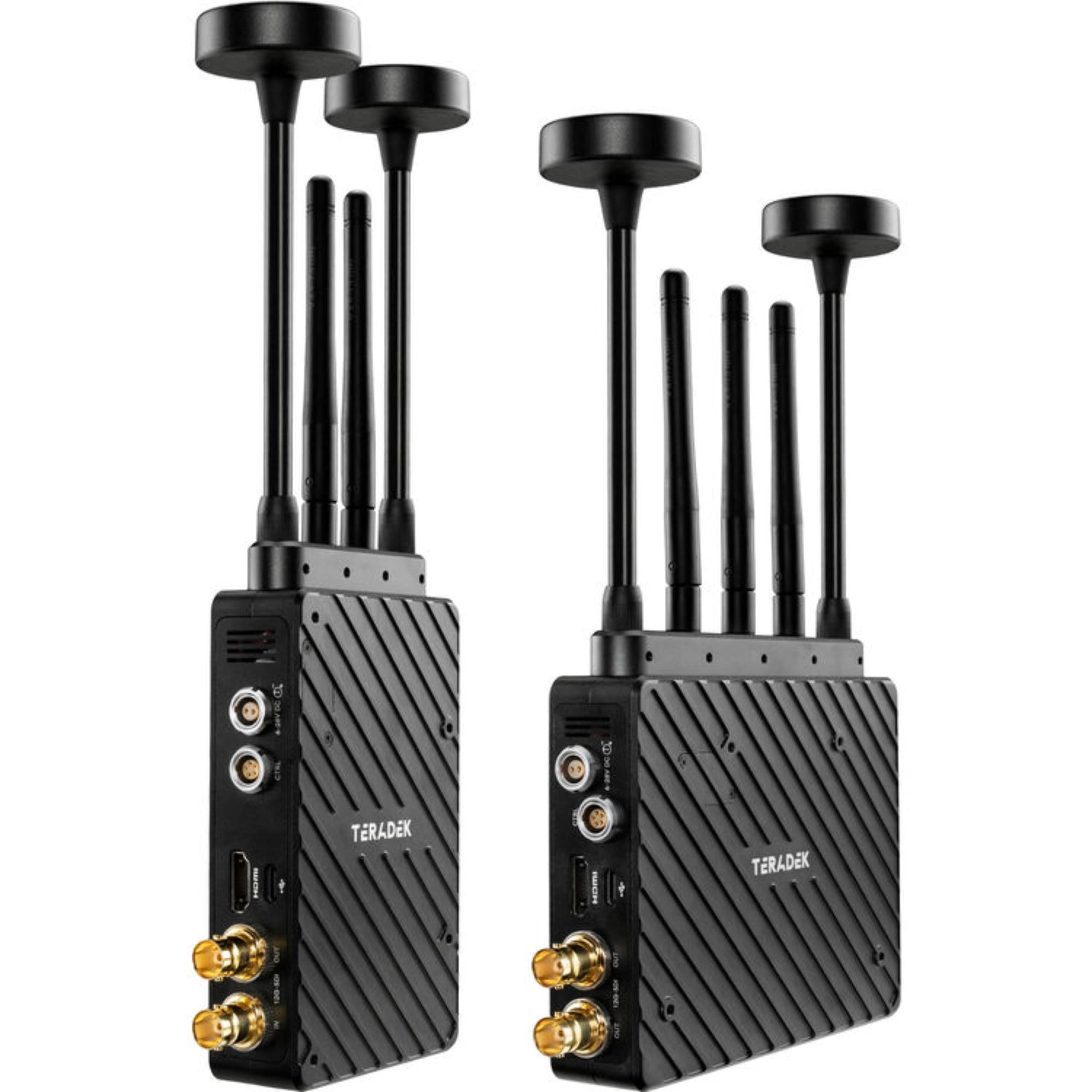

Transmitter Connections

• HDMI input: 1 x HDMI 2.0
• SDI input: 1 x BNC, 12G-SDI
• SDI loop output: 1 x BNC, 12G-SDI

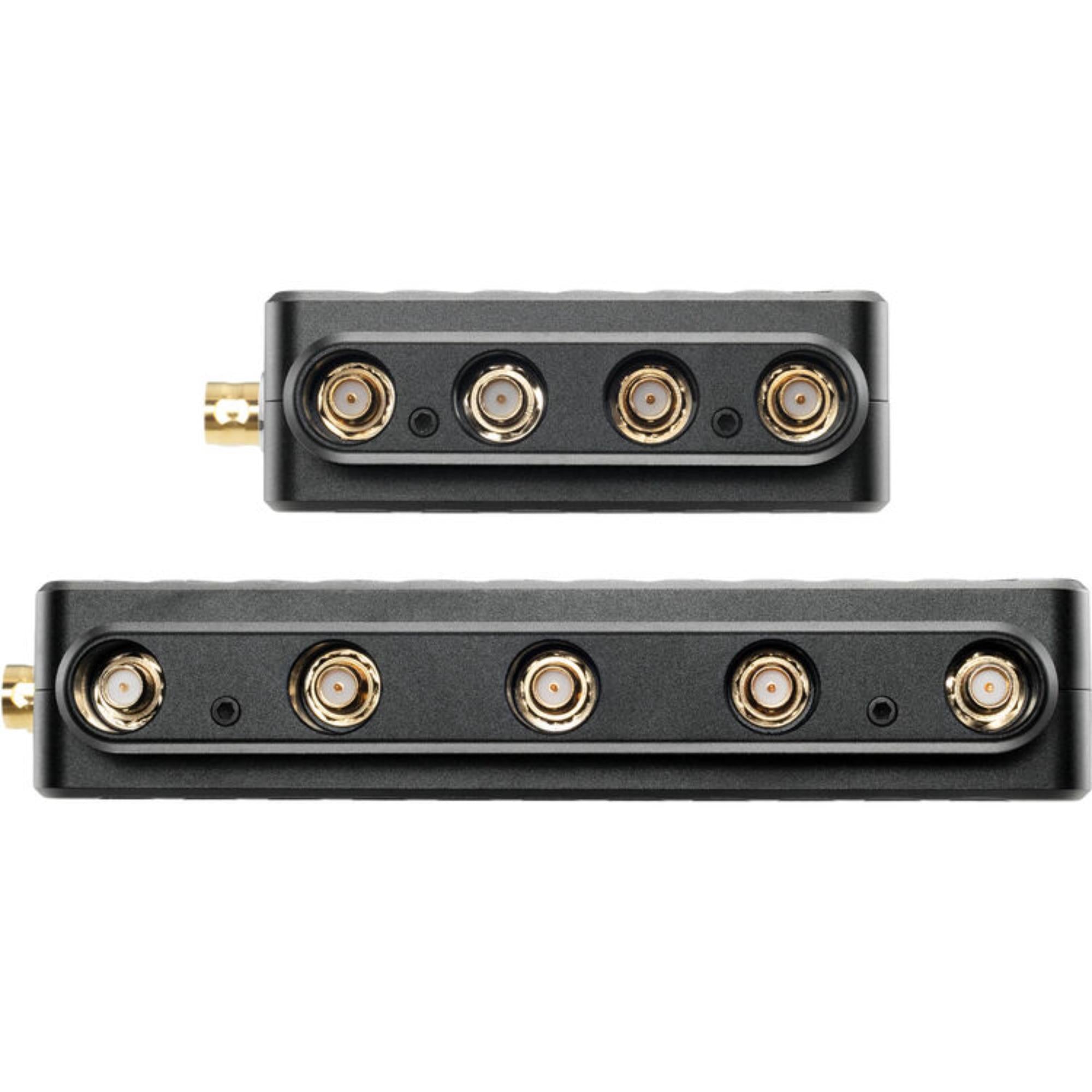

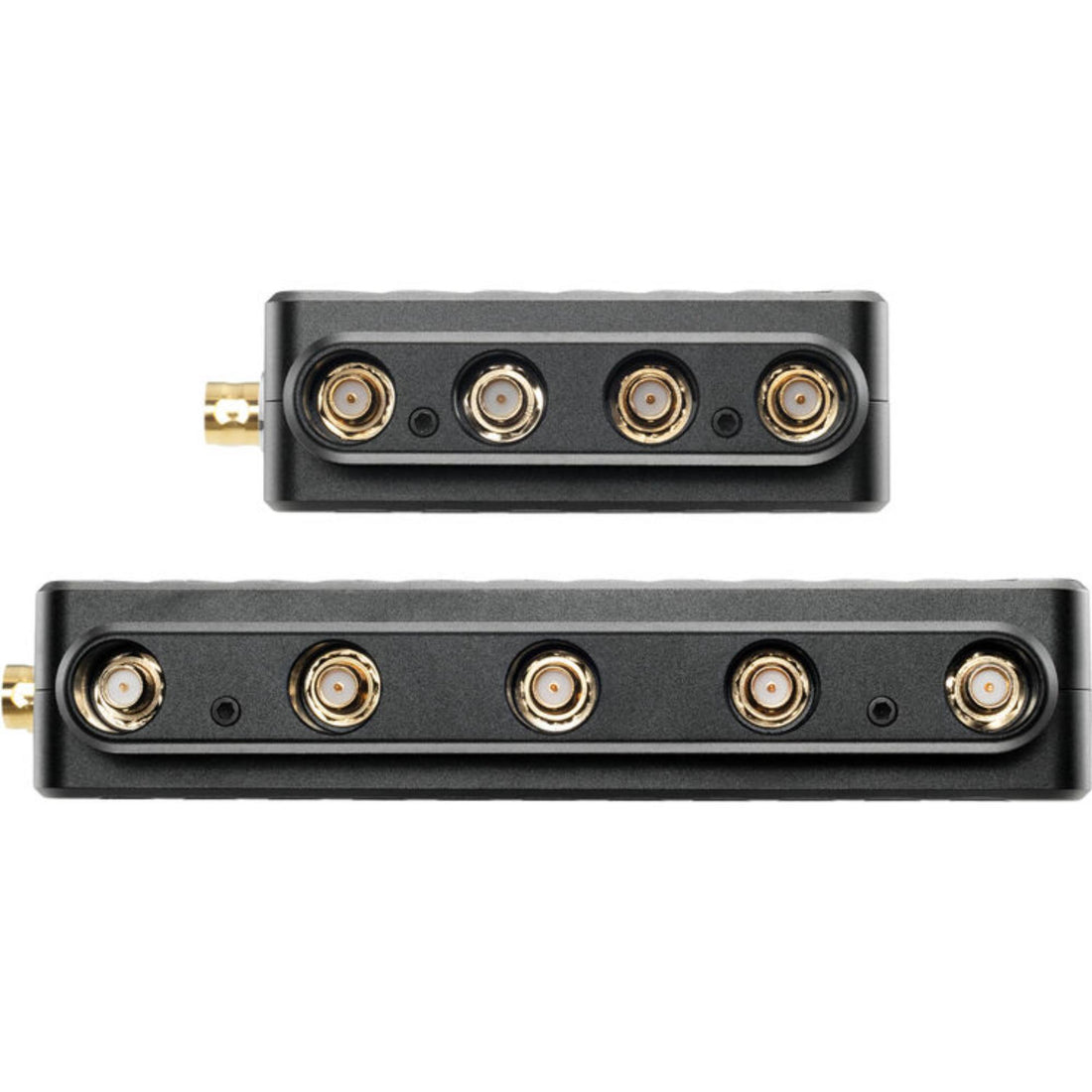

• Antenna connections: 4 x RP-SMA female
• Power input: 1 x LEMO 2-pin, 28 VDC
• USB interface: 1 x USB-C 2.0 input
• Camera-control connection: 1 x LEMO 5-pin 2.0 output

Receiver Connections

• HDMI output: 1 x HDMI 2.0
• SDI output: 1 x BNC, 12G-SDI
• Antenna connections: 5 x RP-SMA female
• Power input: 1 x LEMO 2-pin, 28 VDC
• USB interface: 1 x USB-C 2.0 input
• Camera-control connection: 1 x LEMO 5-pin 2.0 output

Audio Support

• Embedded HDMI audio: 2-channel
• Embedded SDI audio: 2-channel
• Audio format: 2-channel, 24-bit, 48 kHz
• Dedicated analog audio I/O: No

Wireless & Frequency Support

• Wireless range: 5,000 ft / 1,524 m, line of sight
• Non-DFS frequency range: 5.94 to 6.42 GHz
• Additional non-DFS range: 5.19 to 5.23 GHz
• Additional non-DFS range: 5.75 to 5.79 GHz
• DFS frequency range: 5.27 to 5.67 GHz
• Bluetooth support: Yes
• Mobile platforms: Android and iOS
• Application: Bolt App

Supported Video Formats

• HDMI DCI 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI 1080PsF: 30, 29.97, 25, 24, and 23.98
• HDMI 1080i: 60, 59.94, and 50
• HDMI 720p: 60, 59.94, and 50
• HDMI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94
• SDI DCI 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI 1080p: 60, 59.94, and 50
• SDI 1080i: 60, 59.94, and 50
• SDI 720p: 60, 59.94, and 50
• SDI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94

Why It Helps

This kit is built for productions where the camera and monitoring positions may be separated by a considerable distance. The listed 5,000 ft line-of-sight range gives camera and video-assist teams more freedom across stadiums, tracks, large stages, vehicle routes, and exterior locations where long cable runs would restrict movement.

On the camera side, both HDMI 2.0 and 12G-SDI inputs are available. The SDI loop output keeps a local feed open for the operator, onboard monitor, or recorder while the same picture is sent wirelessly.

At video village, the receiver can feed HDMI or 12G-SDI equipment directly. That makes it practical for professional monitors, recorders, switchers, and other production hardware without adding a separate signal converter.

The supplied V-Mount configuration fits naturally into production environments already using full-size camera batteries. With power cables, an AC adapter, mounting hardware, and a carry case included, the kit can be prepared for handheld, cart-based, or fixed monitoring positions.

Camera Control & System Integration

• LEMO 5-pin 2.0 connections on both wireless units
• USB-C 2.0 interfaces on the transmitter and receiver
• Bluetooth control through supported mobile devices
• Bolt App support for Android and iOS
• Compatibility with Bolt 4K Series 5G transmitter and receiver units

Physical Specifications

• Transmitter construction: Aluminum and polycarbonate
• Receiver construction: Aluminum and polycarbonate
• Transmitter dimensions: 5.2 x 3.6 x 1.1 in / 132 x 91 x 27 mm
• Receiver dimensions: 5.5 x 4.4 x 1.1 in / 139 x 112 x 27 mm
• Transmitter weight: 12.13 oz / 344 g
• Receiver weight: 15.17 oz / 430 g
• Operating temperature: 32 to 104°F / 0 to 40°C
• Environmental resistance: No specified environmental sealing

System Characteristics

• 5,000 ft line-of-sight wireless link for large production environments
• 5 and 6 GHz frequency support for additional RF channel options
• DCI 4K60 and UHD 4K60 operation through HDMI and 12G-SDI
• 10-bit 4:2:2 video handling for professional monitoring
• AES-256 encryption for protected video transmission
• Timecode support for production monitoring workflows
• V-Mount power configuration for camera and monitor builds
• Nine supplied antennas for transmitter and receiver deployment
• Camera-control connectivity through LEMO 5-pin 2.0 interfaces

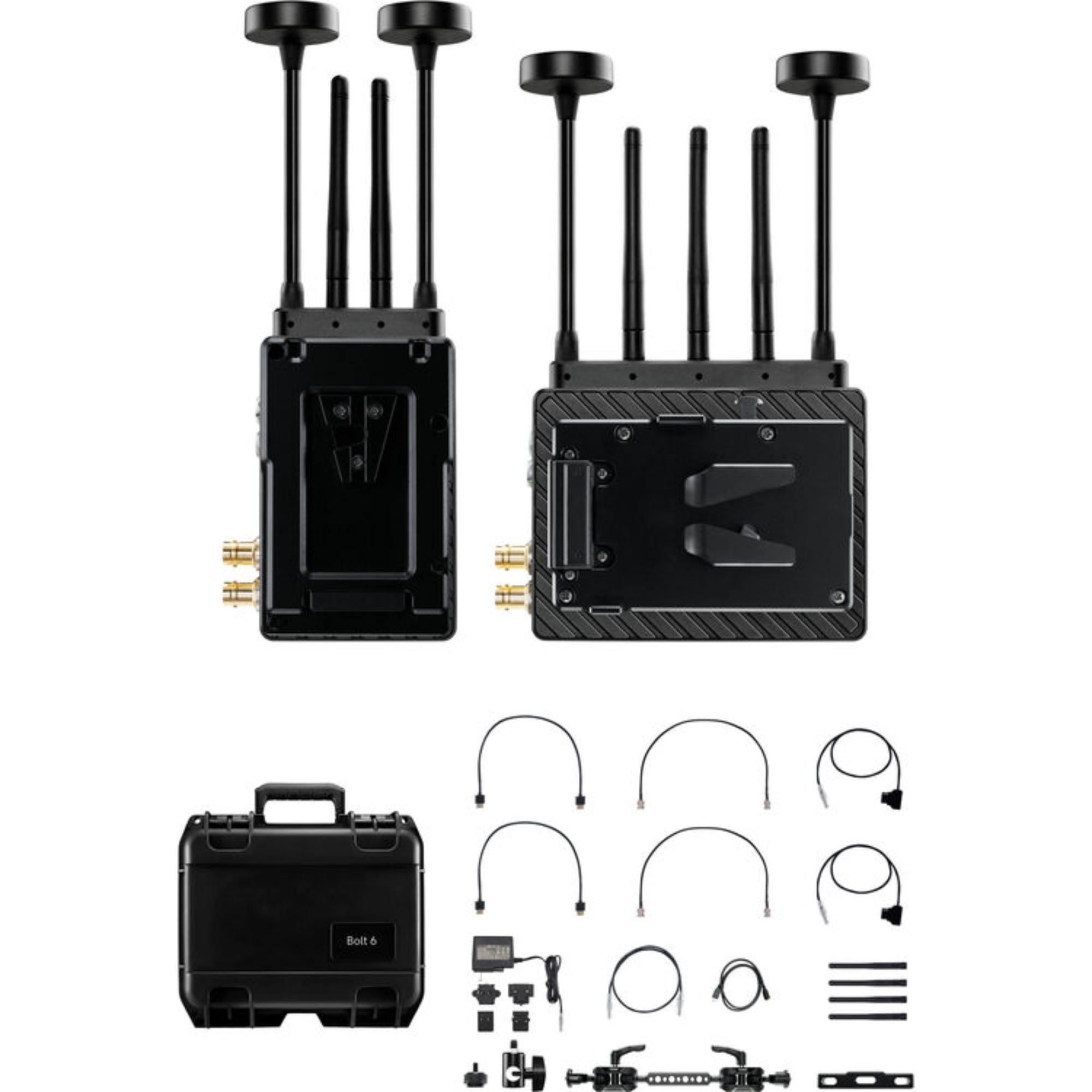

What’s In The Box

• 1 x Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
• 1 x Bolt 6 XT MAX 12G-SDI/HDMI Transmitter (V-Mount)
• 1 x Bolt 6 XT MAX 12G-SDI/HDMI Receiver (V-Mount)
• 2 x 2-Pin to D-Tap Power Cables, 18 in
• 1 x USB 2.0 Type-A Male to USB Type-C Male Cable, 39 in
• 2 x HDMI Type-A Male Cables, 18 in
• 2 x BNC 12G-SDI Cables, 18 in
• 1 x AC Adapter with 6 ft Cable
• 5 x Standard Antennas
• 4 x Mushroom Antennas
• 1 x Light Stand Adapter
• 1 x Shoe Adapter
• 1 x Carry Case
• 2 x Front Battery Covers
• 2 x Rear Battery Covers
• 1 x Screw Set
• 1 x Wooden Camera Monitor Mount
