Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount)

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount) is a complete long-range wireless video system for cinema, broadcast, live production, and large-location monitoring. Based on the supplied source, the kit combines a Bolt 6 XT MAX transmitter and receiver with support for video transmission at distances of up to 5,000 ft / 1,524 m under line-of-sight conditions.

The transmitter accepts HDMI 2.0 or 12G-SDI video and includes a 12G-SDI loop output for a local camera-side feed. The receiver provides HDMI 2.0 and 12G-SDI outputs for connection to a director’s monitor, focus station, recorder, switcher, or video-village system.

Highlights

• Complete 12G-SDI/HDMI transmitter and receiver kit for professional wireless monitoring
• Up to 5,000 ft line-of-sight range for large stages and exterior locations
• Supports DCI 4K60 and UHD 4K60 with 10-bit 4:2:2 video
• AES-256 encryption, timecode support, and Bluetooth control
• V-Mount battery plates, antenna array, nine antennas, cables, mounts, and carry case included

Quick Specs & Uses

• Product type: Long-range wireless video transmitter and receiver deluxe kit
• Primary workflows: Cinema production, broadcast, live events, sports, video village, focus pulling, vehicle rigs, and remote camera monitoring
• Maximum wireless range: 5,000 ft / 1,524 m, line of sight
• Wireless system: 5G operation with support for the 6 GHz frequency range
• Channel bandwidth: 40 MHz
• RF power: 23 dBm
• Maximum video format: DCI 4K60
• Color support: 10-bit 4:4:4 / 4:2:2 RGB and YCC
• HDR support: Listed in the supplied feature source
• Wireless video latency: Zero-delay operation listed in the supplied source
• Encryption: AES-256
• Timecode support: Yes
• Bluetooth: Supported
• Mobile app compatibility: Android and iOS
• Wi-Fi: No
• Cellular support: No
• Battery mounting: V-Mount plates on transmitter and receiver
• Input voltage: 6 to 28 VDC
• Transmitter power consumption: 20 W
• Receiver power consumption: 18 W

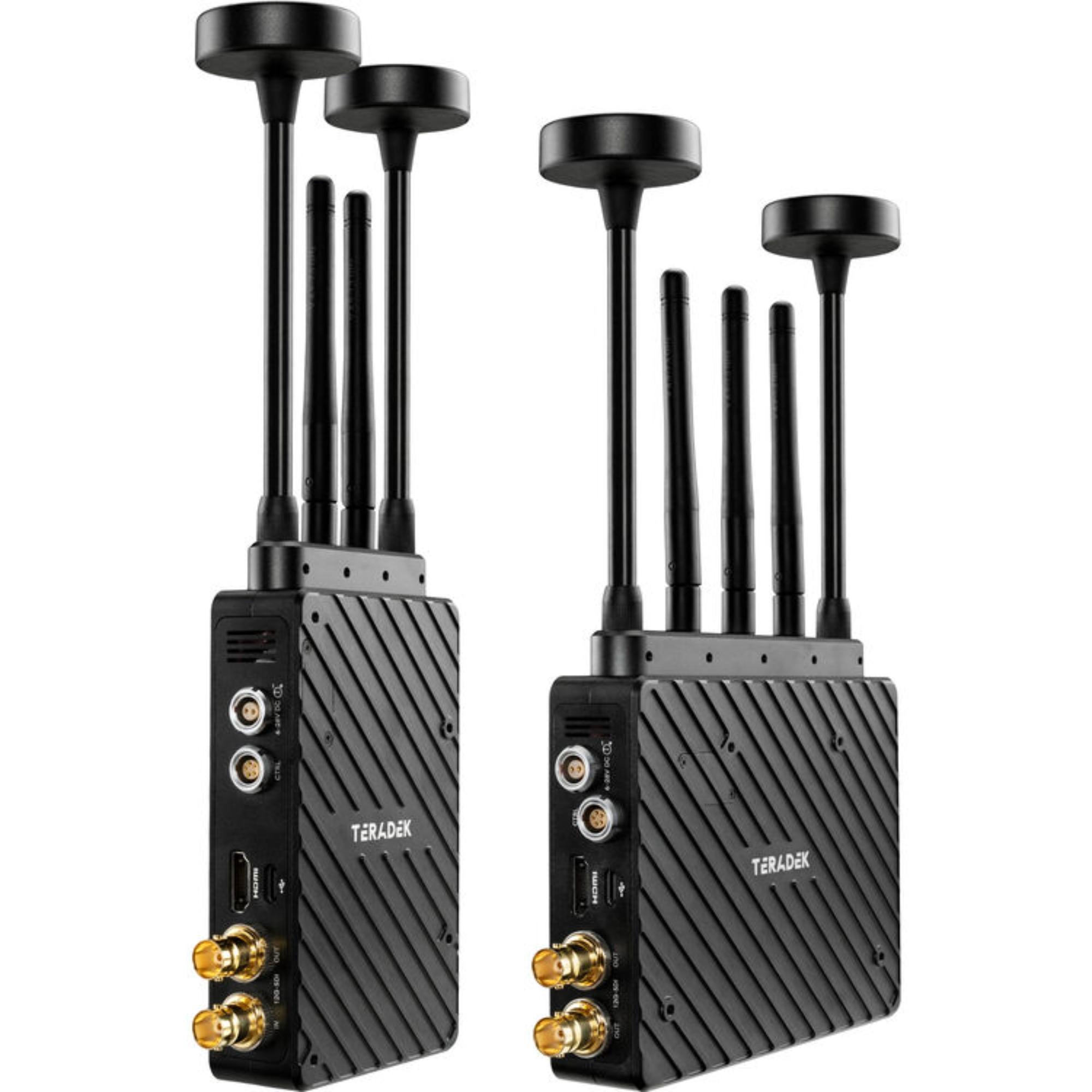

Transmitter Connections

• HDMI input: 1 x HDMI 2.0
• SDI input: 1 x BNC, 12G-SDI
• SDI loop output: 1 x BNC, 12G-SDI

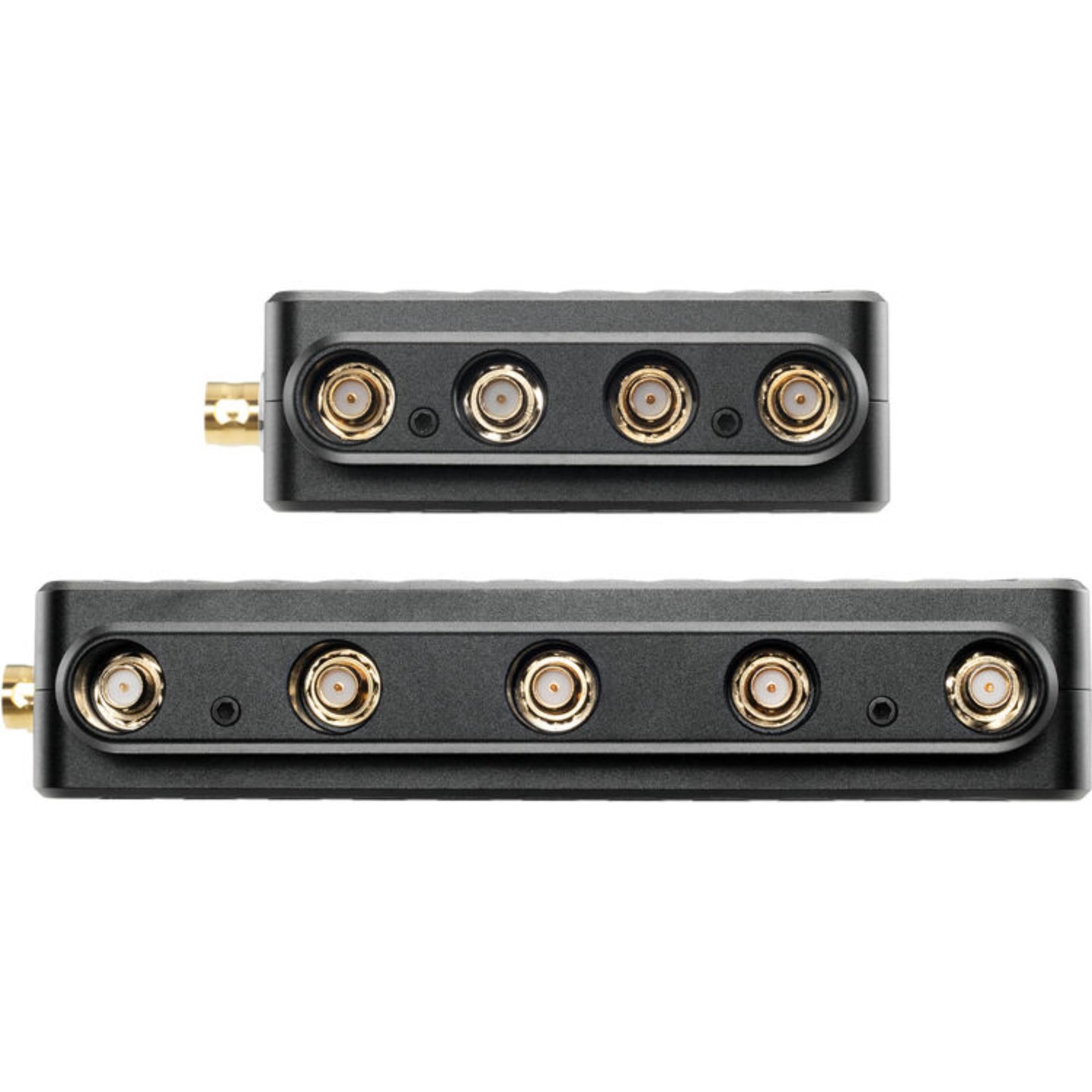

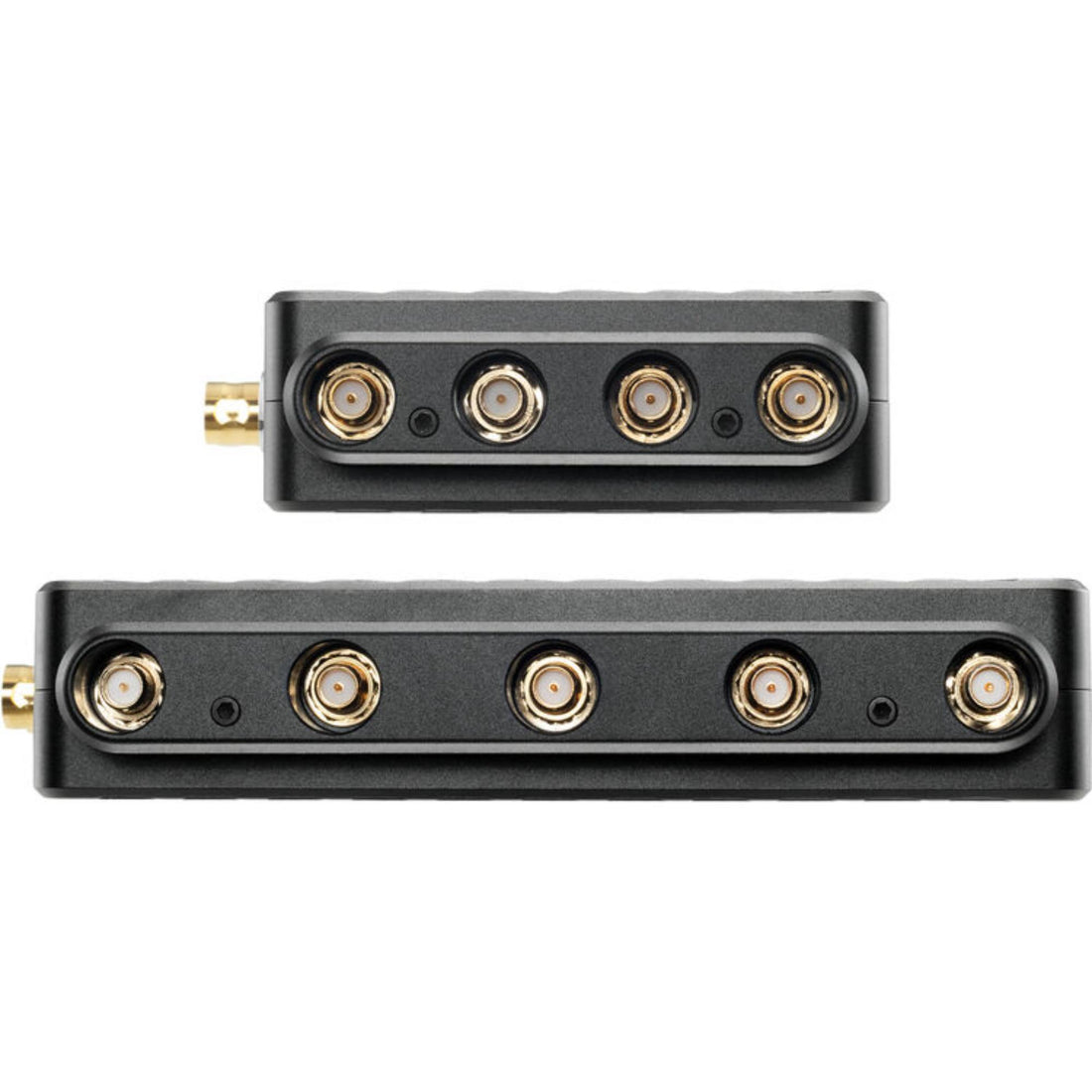

• Antenna connections: 4 x RP-SMA female
• Power input: 1 x LEMO 2-pin, 28 VDC
• Other input: 1 x USB-C 2.0
• Camera-control output: 1 x LEMO 5-pin 2.0

Receiver Connections

• HDMI output: 1 x HDMI 2.0
• SDI output: 1 x BNC, 12G-SDI
• Antenna connections: 5 x RP-SMA female
• Power input: 1 x LEMO 2-pin, 28 VDC
• Other input: 1 x USB-C 2.0
• Camera-control output: 1 x LEMO 5-pin 2.0

Audio Support

• Embedded HDMI audio: 2-channel
• Embedded SDI audio: 2-channel
• Audio format: 2-channel, 24-bit, 48 kHz
• Dedicated analog audio I/O: No

Wireless & Frequency Support

• Wireless range: 5,000 ft / 1,524 m, line of sight
• Non-DFS frequency range: 5.94 to 6.42 GHz
• Additional non-DFS range: 5.19 to 5.23 GHz
• Additional non-DFS range: 5.75 to 5.79 GHz
• DFS frequency range: 5.27 to 5.67 GHz
• Bluetooth support: Yes
• Mobile platforms: Android and iOS

Supported Video Formats

• HDMI DCI 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI 1080PsF: 30, 29.97, 25, 24, and 23.98
• HDMI 1080i: 60, 59.94, and 50
• HDMI 720p: 60, 59.94, and 50
• HDMI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94
• SDI DCI 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI 1080p: 60, 59.94, and 50
• SDI 1080i: 60, 59.94, and 50
• SDI 720p: 60, 59.94, and 50
• SDI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94

Why It Helps

The Bolt 6 XT MAX Deluxe Kit is built for productions where the camera and monitoring positions may be separated by a large distance. Its listed 5,000 ft line-of-sight range is useful for stadiums, racetracks, vehicle work, large exterior locations, and stages where a long SDI run would limit camera movement.

The transmitter supports both HDMI 2.0 and 12G-SDI sources, while the SDI loop output keeps a local feed available for the camera operator or onboard recorder. At the receive position, HDMI and 12G-SDI outputs make it straightforward to connect professional monitoring, recording, or switching equipment.

The supplied antenna array gives the receiver position another option for managing the wireless link. The kit also includes standard and mushroom antennas, allowing the engineering team to build out the system using the antenna hardware listed in the package.

V-Mount plates on both units keep the system compatible with a common professional battery format. Together with the included AC adapter and power cables, the kit can be prepared for mobile camera work, monitor stations, or longer fixed-location operation.

Camera Control & System Integration

• LEMO 5-pin 2.0 connections on the transmitter and receiver
• Included 2-pin cable for ALEXA based on the supplied package list
• USB-C 2.0 interfaces on both wireless units
• Bluetooth app support for Android and iOS
• Spectrum analyzer support listed in the supplied features

Mounting & Physical Specifications

• Transmitter construction: Aluminum and polycarbonate
• Receiver construction: Aluminum and polycarbonate
• Transmitter dimensions: 5.2 x 3.6 x 1.1 in / 132 x 91 x 27 mm, excluding battery plate
• Receiver dimensions: 5.5 x 4.4 x 1.1 in / 139 x 112 x 27 mm, excluding battery plate
• Transmitter weight: 12.13 oz / 344 g, excluding battery plate
• Receiver weight: 15.17 oz / 430 g, excluding battery plate
• Operating temperature: 32 to 104°F / 0 to 40°C
• Environmental resistance: No specified environmental sealing

System Characteristics

• 5,000 ft line-of-sight wireless link for large production environments
• 5 and 6 GHz frequency support for additional RF channel options
• DCI 4K60 and UHD 4K60 operation through HDMI and 12G-SDI
• 10-bit 4:2:2 video handling for professional monitoring
• AES-256 encryption for protected video transmission
• Timecode support for production monitoring workflows
• V-Mount power integration on both wireless units
• Antenna array and nine supplied antennas for flexible system deployment
• Camera-control connectivity through LEMO 5-pin 2.0 interfaces

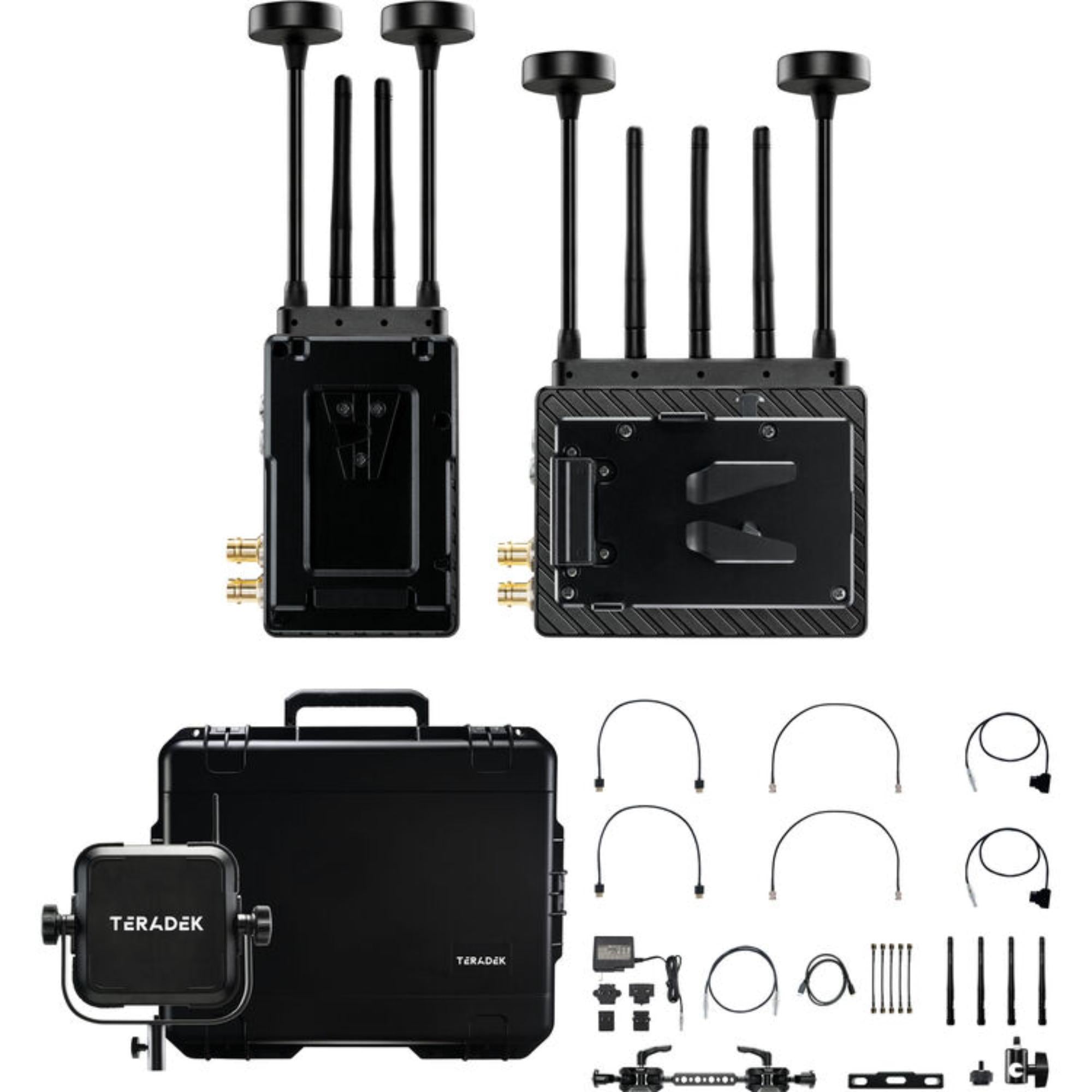

What’s In The Box

• 1 x Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount)
• 1 x Bolt 6 XT MAX 12G-SDI/HDMI Transmitter (V-Mount)
• 1 x Bolt 6 XT MAX 12G-SDI/HDMI Receiver (V-Mount)
• 1 x Antenna Array
• 2 x 2-Pin to D-Tap Power Cables, 18 in
• 1 x Micro-USB to USB Type-A Cable, 36 in
• 2 x HDMI Type-A Cables, 18 in
• 2 x BNC Cables, 18 in
• 1 x 2-Pin Cable for ALEXA, 18 in
• 1 x 18W AC Adapter with 6 ft Cable
• 2 x Bolt Battery Covers, Front
• 2 x Bolt Battery Covers, Rear
• 5 x RP-SMA Cables, 4 in
• 1 x 1/4"-20 Light Stand Adapter
• 1 x Shoe Adapter
• 1 x Screw Set
• 1 x Allen Wrench
• 1 x Wooden Camera Monitor Mount
• 1 x Carry Case
• 5 x Standard Antennas
• 4 x Mushroom Antennas
