Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount) is a complete long-range wireless video package for cinema, broadcast, live production, sports, and video-assist workflows. Based on the supplied source, the system can carry video over distances of up to 5,000 ft / 1,524 m under line-of-sight conditions.

The transmitter accepts HDMI 2.0 or 12G-SDI video and provides a 12G-SDI loop output for an onboard monitor or recorder. At the receive position, HDMI 2.0 and 12G-SDI outputs allow the picture to feed a director’s monitor, focus station, recorder, switcher, or video-village system.

Highlights

• Complete 12G-SDI/HDMI transmitter and receiver kit for professional wireless monitoring
• Up to 5,000 ft line-of-sight range for large stages and exterior locations
• Supports DCI 4K60 and UHD 4K60 with 10-bit 4:2:2 video
• Zero-delay operation, timecode support, and AES-256 encryption
• Gold Mount plates, antenna array, nine antennas, cables, mounts, and case included

Quick Specs & Uses

• Product type: Long-range wireless video transmitter and receiver deluxe kit
• Primary workflows: Cinema production, broadcast, live events, sports, video village, focus pulling, vehicle rigs, and remote camera monitoring
• Maximum wireless range: 5,000 ft / 1,524 m, line of sight
• Wireless system: 5G operation with support for the 6 GHz frequency range
• Channel bandwidth: 40 MHz
• RF power: 23 dBm
• Maximum video format: DCI 4K60
• Color support: 10-bit 4:4:4 / 4:2:2 RGB and YCC
• HDR support: Yes
• Latency: Zero delay, as listed in the supplied features
• Encryption: AES-256
• Timecode support: Yes
• Bluetooth: Supported
• Mobile app compatibility: Android and iOS
• Wi-Fi: No
• Cellular support: No
• Battery mounting: Gold Mount plates on the transmitter and receiver
• Input voltage: 6 to 28 VDC
• Transmitter power consumption: 20 W
• Receiver power consumption: 18 W

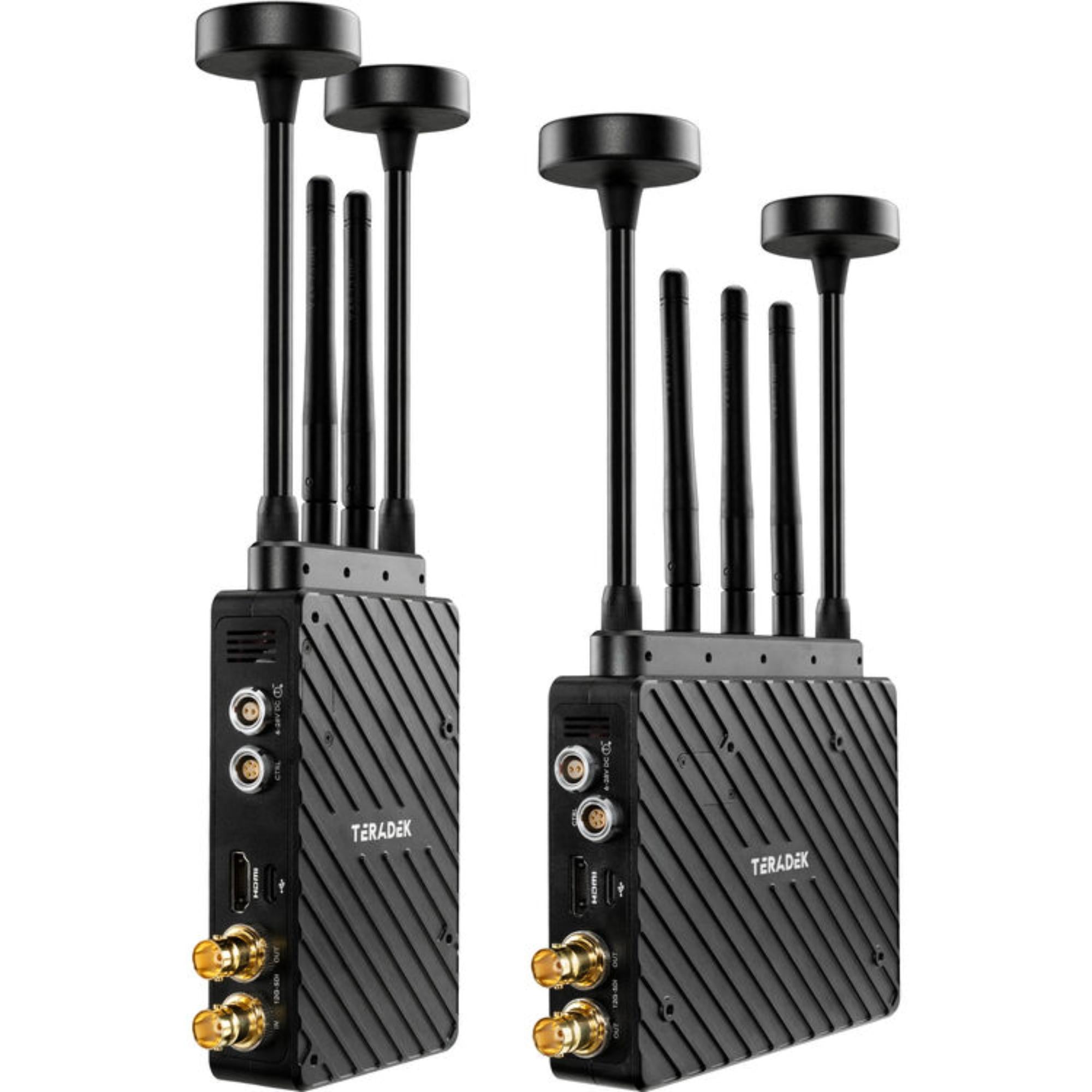

Transmitter Connections

• HDMI input: 1 x HDMI 2.0
• SDI input: 1 x BNC, 12G-SDI
• SDI loop output: 1 x BNC, 12G-SDI

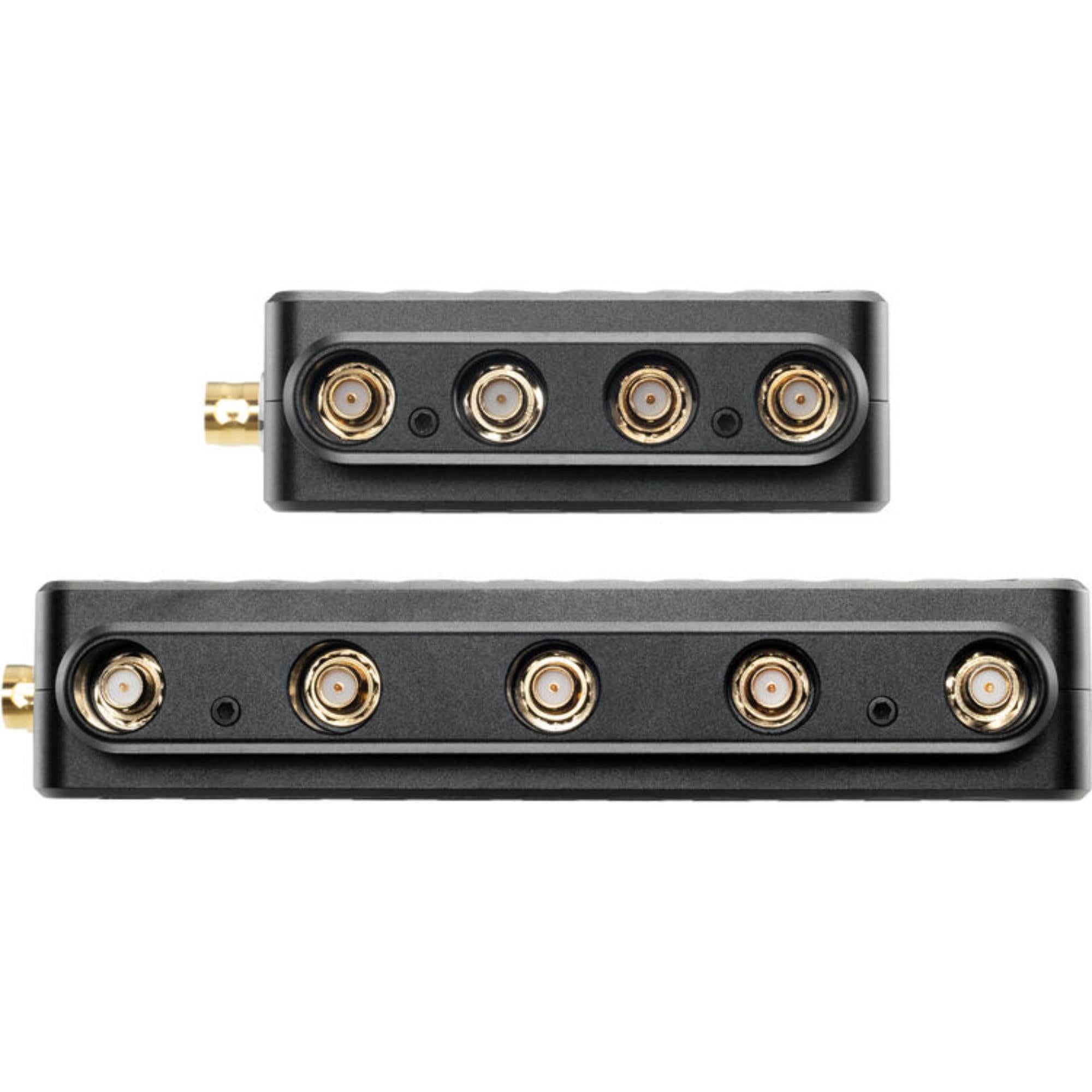

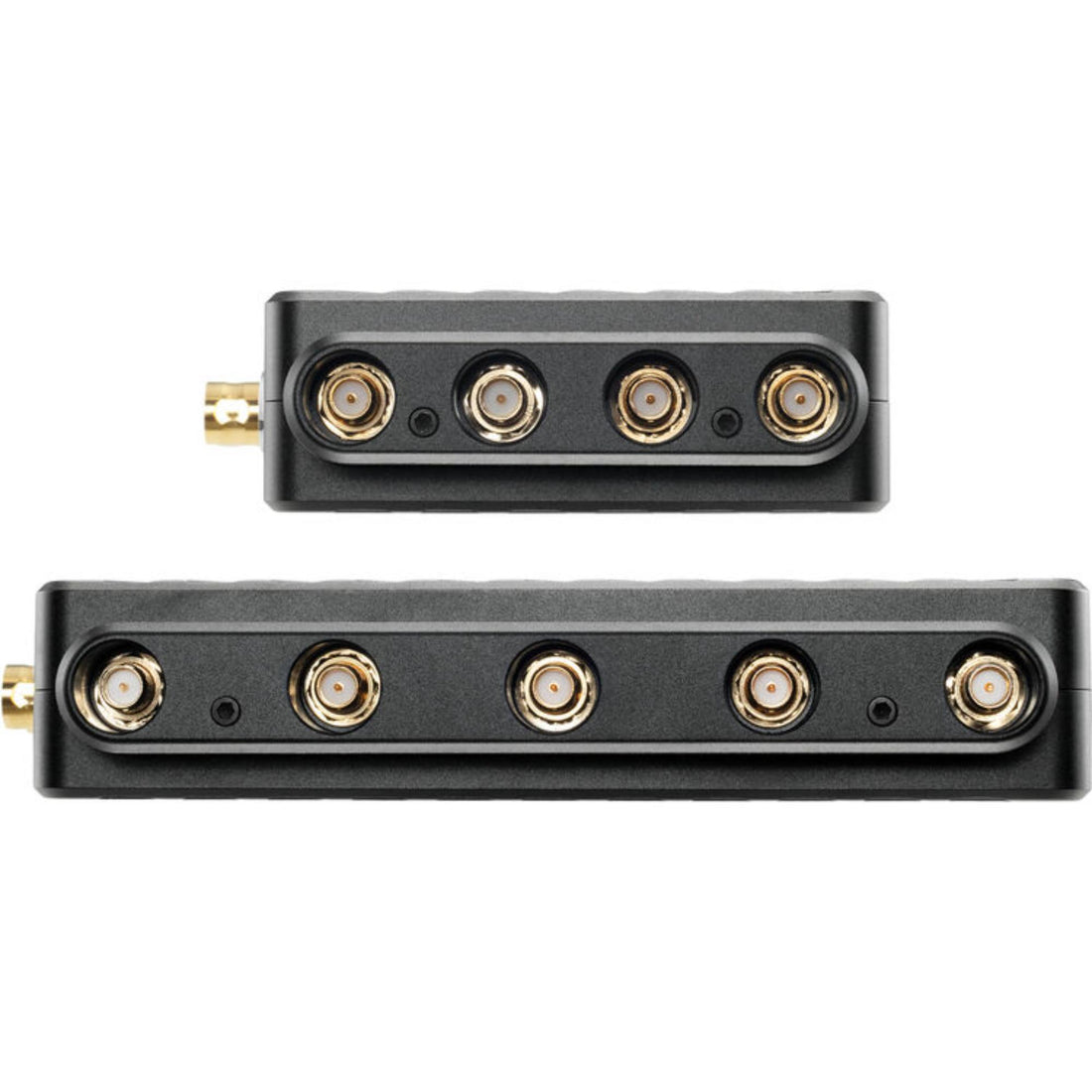

• Antenna connections: 4 x RP-SMA female
• Power input: 1 x LEMO 2-pin, 28 VDC
• USB interface: 1 x USB-C 2.0 input
• Camera-control connection: 1 x LEMO 5-pin 2.0 output

Receiver Connections

• HDMI output: 1 x HDMI 2.0
• SDI output: 1 x BNC, 12G-SDI
• Antenna connections: 5 x RP-SMA female
• Power input: 1 x LEMO 2-pin, 28 VDC
• USB interface: 1 x USB-C 2.0 input
• Camera-control connection: 1 x LEMO 5-pin 2.0 output

Audio Support

• Embedded HDMI audio: 2-channel
• Embedded SDI audio: 2-channel
• Audio format: 2-channel, 24-bit, 48 kHz
• Dedicated analog audio I/O: No

Wireless & Frequency Support

• Wireless range: 5,000 ft / 1,524 m, line of sight
• Non-DFS frequency range: 5.94 to 6.42 GHz
• Additional non-DFS range: 5.19 to 5.23 GHz
• Additional non-DFS range: 5.75 to 5.79 GHz
• DFS frequency range: 5.27 to 5.67 GHz
• Bluetooth support: Yes
• Mobile platforms: Android and iOS

Supported Video Formats

• HDMI DCI 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI 1080PsF: 30, 29.97, 25, 24, and 23.98
• HDMI 1080i: 60, 59.94, and 50
• HDMI 720p: 60, 59.94, and 50
• HDMI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94
• SDI DCI 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI 1080p: 60, 59.94, and 50
• SDI 1080i: 60, 59.94, and 50
• SDI 720p: 60, 59.94, and 50
• SDI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94

Why It Helps

The Bolt 6 XT MAX Deluxe Kit is intended for productions where the camera and monitoring positions may be separated by a considerable distance. Its listed 5,000 ft line-of-sight range is useful for stadiums, racetracks, vehicle work, large exterior locations, and stages where a long SDI run would restrict camera movement.

Both HDMI 2.0 and 12G-SDI inputs are available at the transmitter. The SDI loop output keeps a local feed open for the camera operator, onboard display, or recorder while the same picture is sent wirelessly.

At video village, the receiver can feed HDMI or 12G-SDI equipment directly. This allows the system to connect with professional monitors, switchers, and recorders without adding a separate conversion stage.

The supplied antenna array gives the receive position an additional option for building the RF setup. Standard and mushroom antennas are also included, along with the RP-SMA cables required to connect the array.

Gold Mount plates on both units keep the wireless link compatible with a common professional battery format. The included AC adapter and D-Tap power cables also give the crew options for camera-mounted, cart-based, or fixed operation.

Camera Control & System Integration

• LEMO 5-pin 2.0 connections on the transmitter and receiver
• Included 2-pin cable for ALEXA based on the supplied package list
• USB-C 2.0 interfaces on both wireless units
• Bluetooth app support for Android and iOS devices
• Spectrum analyzer support listed in the supplied features
• Compatibility with Bolt 4K 5G transmitter and receiver units

Physical Specifications

• Construction: Aluminum and polycarbonate
• Transmitter dimensions: 5.2 x 3.6 x 1.1 in / 132 x 91 x 27 mm
• Receiver dimensions: 5.5 x 4.4 x 1.1 in / 139 x 112 x 27 mm
• Transmitter weight: 12.13 oz / 344 g, excluding battery plate
• Receiver weight: 15.17 oz / 430 g, excluding battery plate
• Operating temperature: 32 to 104°F / 0 to 40°C
• Environmental resistance: No specified environmental sealing

System Characteristics

• 5,000 ft line-of-sight wireless link for large production environments
• 5 and 6 GHz frequency support for additional RF channel options
• DCI 4K60 and UHD 4K60 operation through HDMI and 12G-SDI
• 10-bit 4:2:2 video handling for professional monitoring
• Zero-delay operation for live camera and focus workflows
• AES-256 encryption for protected video transmission
• Timecode support for production monitoring workflows
• Gold Mount integration on both wireless units
• Antenna array and nine supplied antennas for flexible deployment

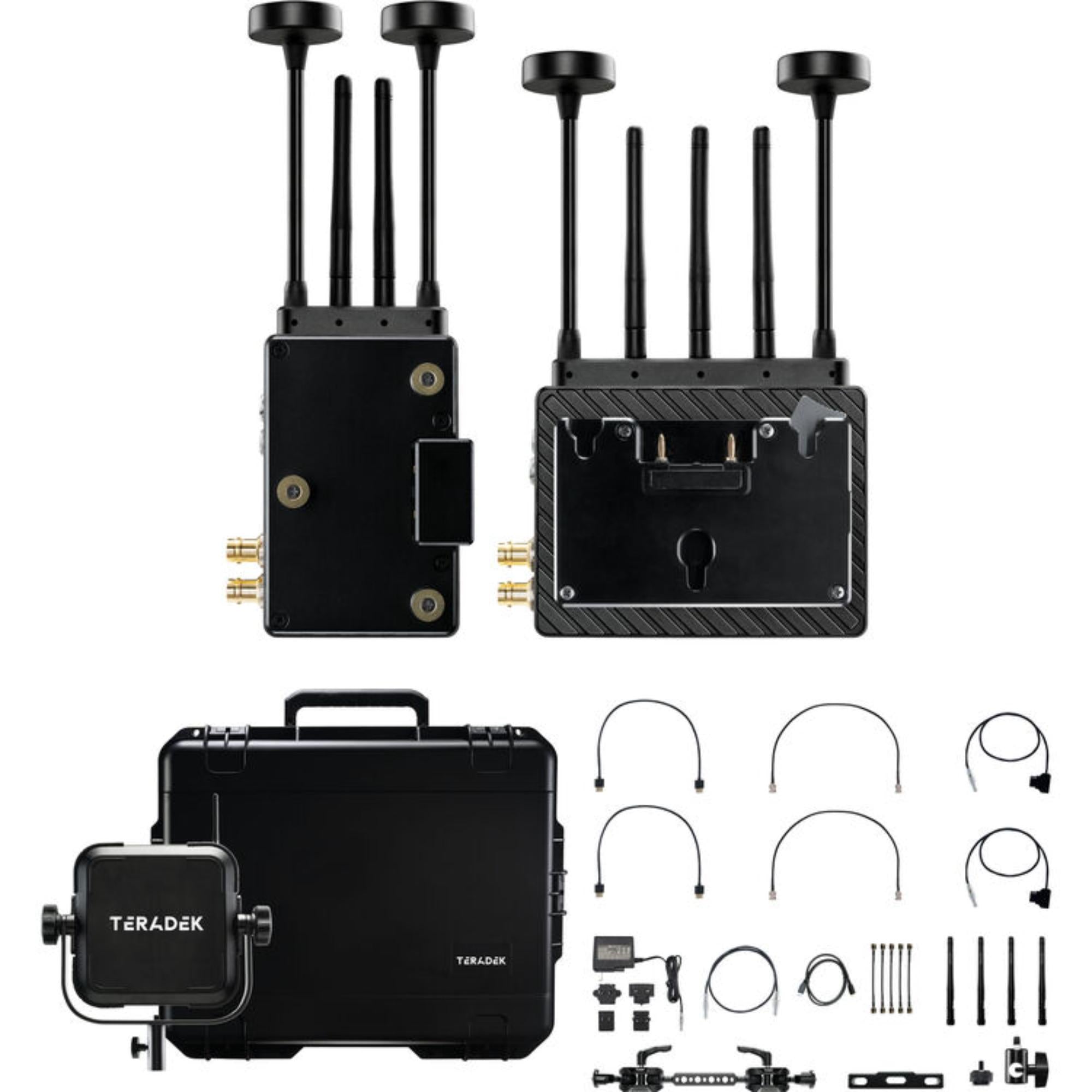

What’s In The Box

• 1 x Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)
• 1 x Bolt 6 XT MAX 12G-SDI/HDMI Transmitter (Gold Mount)
• 1 x Bolt 6 XT MAX 12G-SDI/HDMI Receiver (Gold Mount)
• 1 x Antenna Array
• 2 x 2-Pin to D-Tap Power Cables, 18 in
• 1 x Micro-USB to USB Type-A Cable, 36 in
• 2 x HDMI Type-A Cables, 18 in
• 2 x BNC Cables, 18 in
• 1 x 2-Pin Cable for ALEXA, 18 in
• 1 x 18W AC Adapter with 6 ft Cable
• 2 x Bolt Battery Covers, Front
• 2 x Bolt Battery Covers, Rear
• 5 x RP-SMA Cables, 4 in
• 1 x 1/4"-20 Light Stand Adapter
• 1 x Shoe Adapter
• 1 x Screw Set
• 1 x Allen Wrench
• 1 x Wooden Camera Monitor Mount
• 1 x Carry Case
• 5 x Standard Antennas
• 4 x Mushroom Antennas
