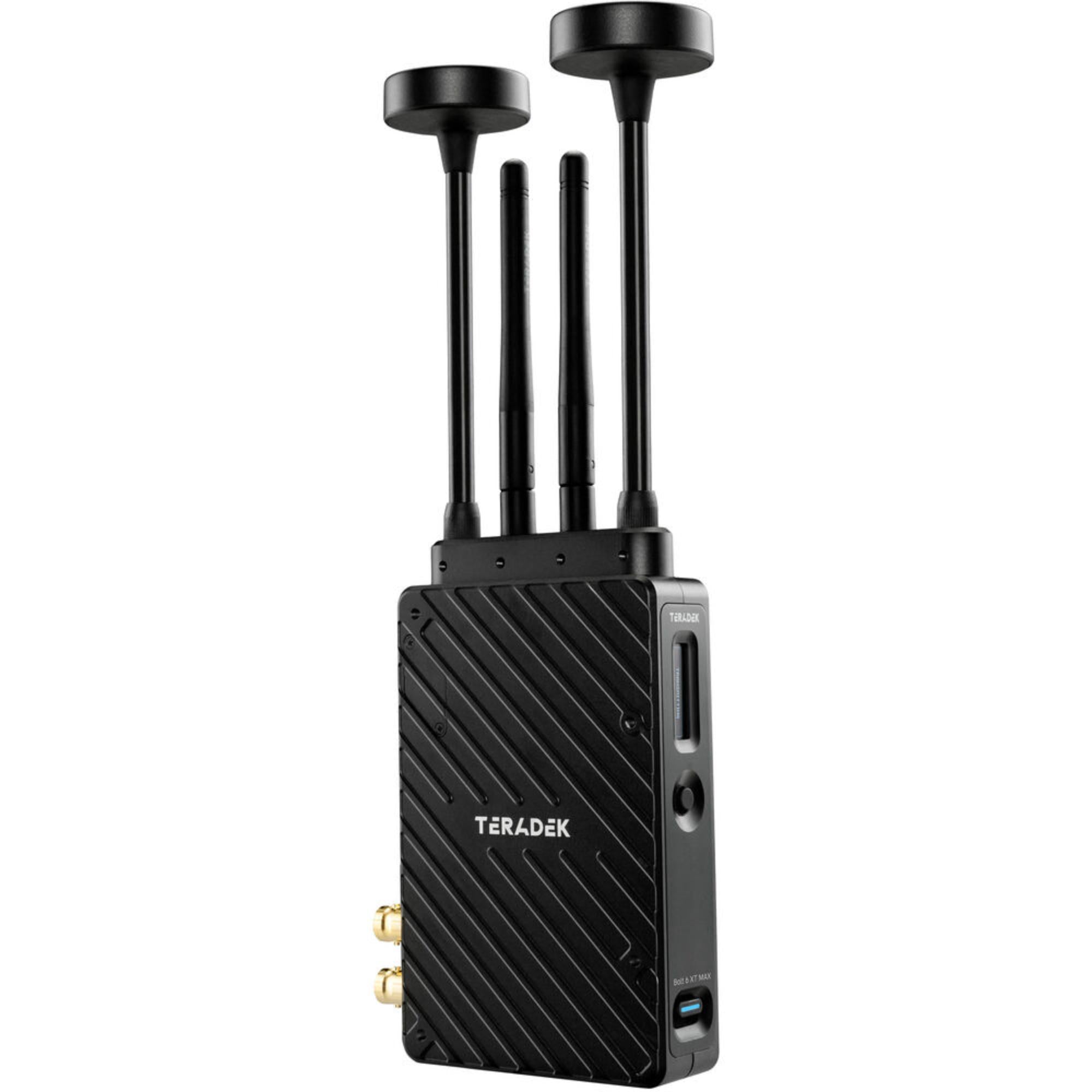

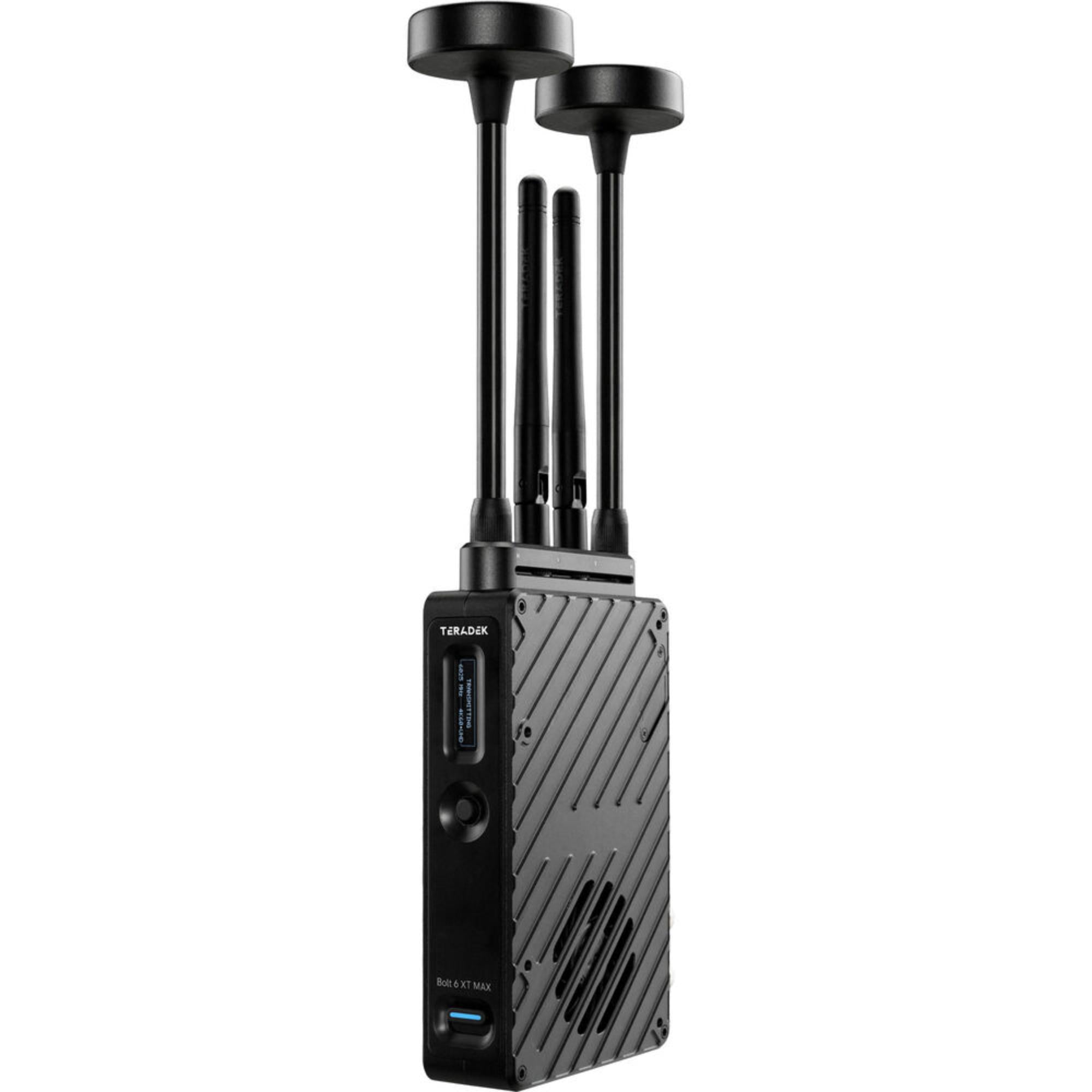

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter (V-Mount)

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter (V-Mount) is a long-range wireless video transmitter for cinema, broadcast, live production, and mobile camera workflows. Based on the supplied source, it can send video to compatible receivers from up to 5,000 ft / 1,524 m under line-of-sight conditions.

The transmitter accepts HDMI 2.0 or 12G-SDI video and provides a 12G-SDI loop output for a local monitor or recorder. It supports formats up to DCI 4K60, along with 10-bit 4:2:2 video, HDR, timecode, AES-256 encryption, and latency below 1 ms.

Highlights

• Long-range 12G-SDI/HDMI wireless transmitter for professional video production
• Transmits video up to 5,000 ft line of sight
• Supports DCI 4K60 and UHD 4K60 with 10-bit 4:2:2 and HDR
• Less than 1 ms latency with AES-256 encrypted transmission
• Interchangeable V-Mount battery plate with 12G-SDI loop output and camera-control connection

Quick Specs & Uses

• Product type: Professional wireless video transmitter
• Primary workflows: Cinema production, broadcast, live events, handheld cameras, gimbals, vehicle rigs, Steadicam, and remote camera positions
• Maximum wireless range: 5,000 ft / 1,524 m, line of sight
• Receiver support: Transmission to up to six compatible receivers
• Additional compatibility: Bolt 4K 5G devices
• Maximum HDMI format: DCI 4K60
• Maximum SDI format: DCI 4K60
• Color support: 10-bit 4:4:4 / 4:2:2
• HDR support: Yes
• Latency: Less than 1 ms
• Encryption: AES-256
• Timecode support: Yes
• Wireless system: 5G operation with supported 6 GHz frequencies
• Channel bandwidth: 40 MHz and 20 MHz
• RF power: 23 dBm
• Bluetooth: Supported
• Wi-Fi: No
• Cellular support: No
• Battery mount: Interchangeable V-Mount plate
• Input voltage: 6 to 28 VDC
• Power consumption: 20 W

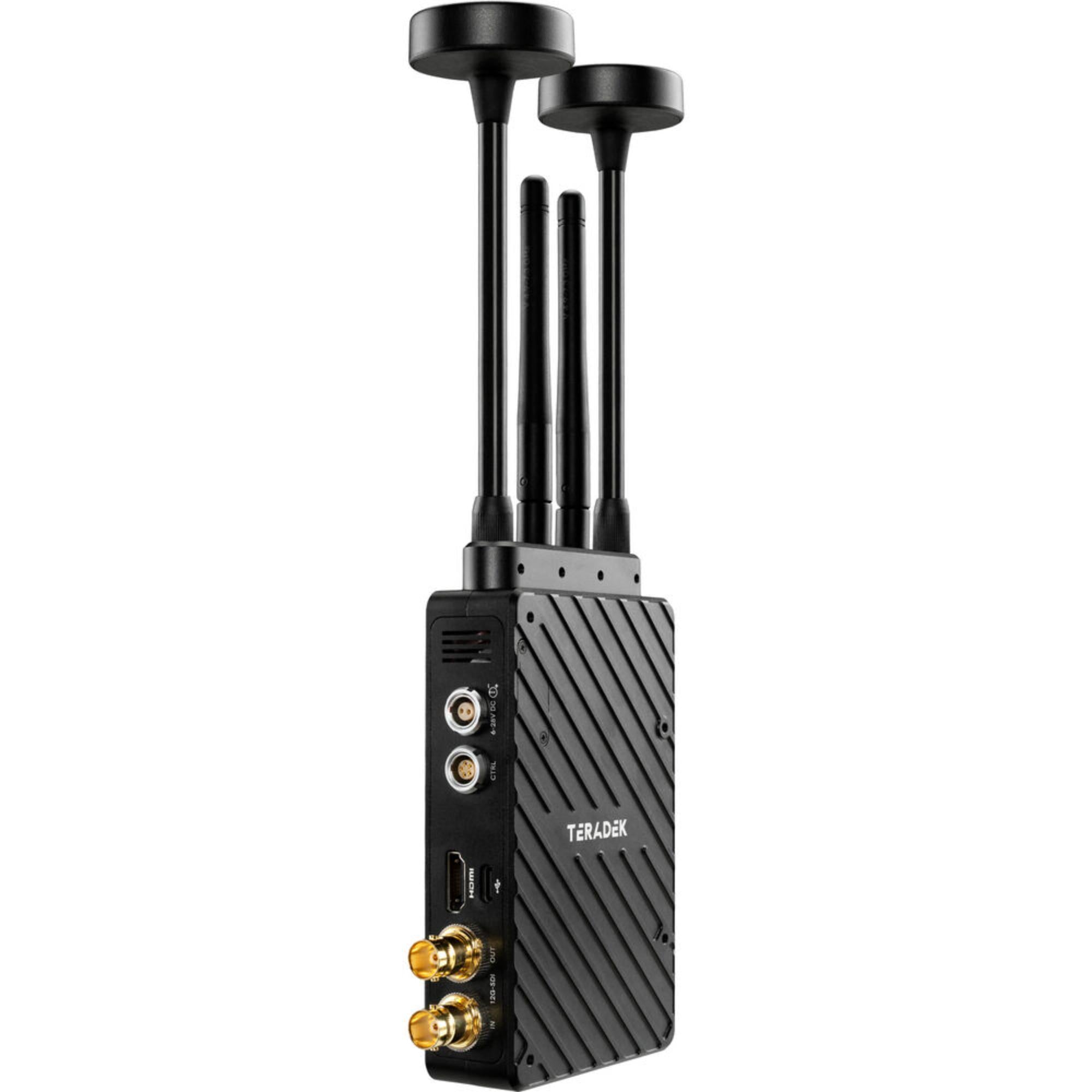

Video & Audio Connections

• HDMI input: 1 x HDMI 2.0
• SDI input: 1 x BNC, 12G-SDI
• SDI loop output: 1 x BNC, 12G-SDI

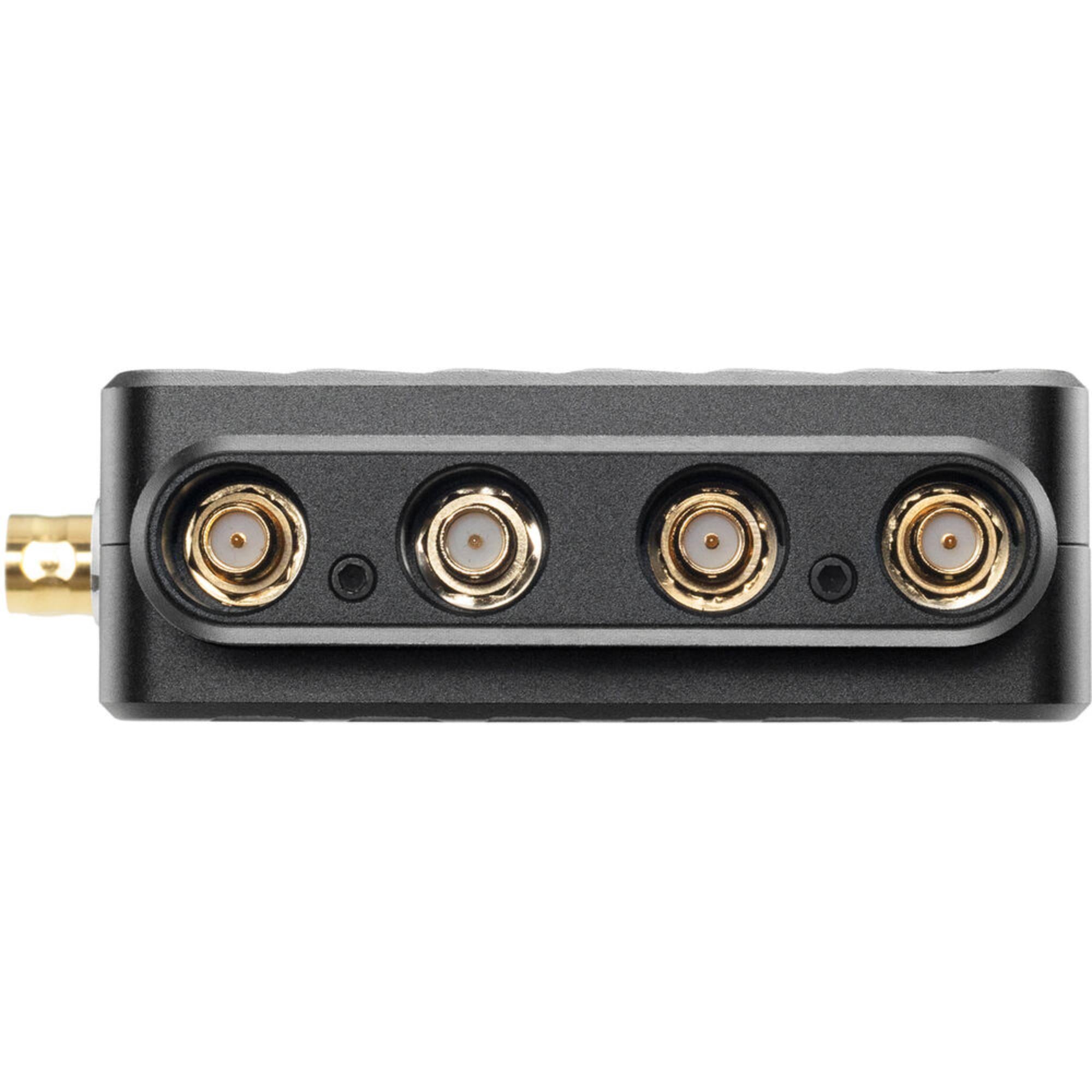

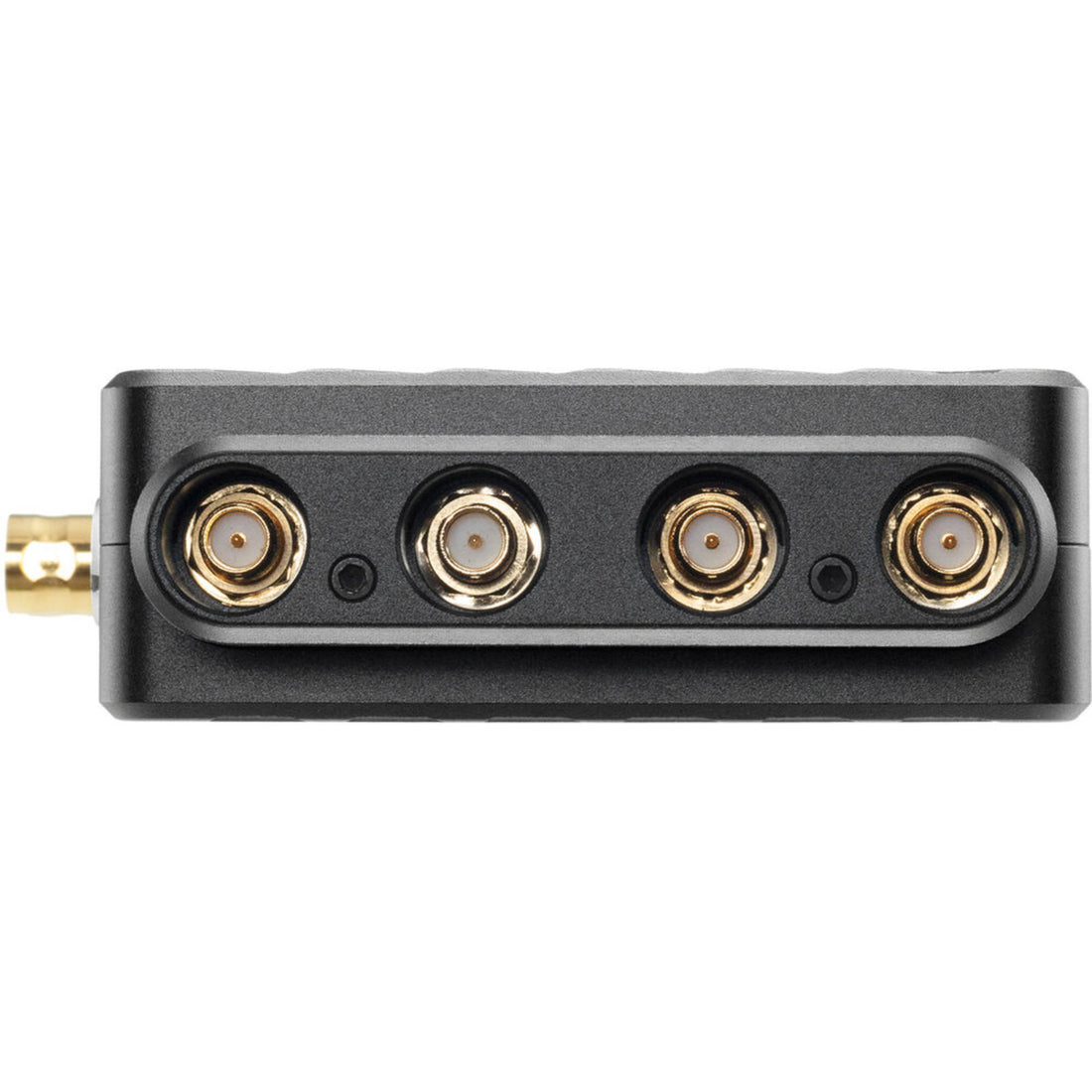

• Antenna connections: 2 x RP-SMA female
• Embedded HDMI audio: 2-channel
• Embedded SDI audio: Supported
• Audio format: 2-channel, 24-bit, 48 kHz
• Dedicated analog audio I/O: No

Wireless & Frequency Support

• Wireless range: 5,000 ft / 1,524 m, line of sight
• Non-DFS frequency range: 5.94 to 6.42 GHz
• Additional non-DFS range: 5.19 to 5.23 GHz
• Additional non-DFS range: 5.75 to 5.79 GHz
• DFS frequency range: 5.27 to 5.67 GHz
• Bluetooth support: Yes
• Mobile app compatibility: No

Supported Video Formats

• HDMI DCI 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI 1080PsF: 30, 29.97, 25, 24, and 23.98
• HDMI 1080i: 60, 59.94, and 50
• HDMI 720p: 60, 59.94, and 50
• HDMI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94
• SDI DCI 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI 1080p: 60, 59.94, and 50
• SDI 1080i: 60, 59.94, and 50
• SDI 720p: 60, 59.94, and 50
• SDI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94

Why It Helps

The Bolt 6 XT MAX is intended for productions where the camera needs to move a long way from video village or the monitoring position. Its listed 5,000 ft line-of-sight range makes it useful for sports, vehicle work, large exterior locations, stages, and other setups where running a long SDI cable would restrict camera movement.

Both HDMI 2.0 and 12G-SDI inputs are available, so the transmitter can work with cinema cameras, broadcast cameras, switchers, and other professional sources. The SDI loop output also lets the camera team feed a local monitor or recorder while the same signal is being transmitted wirelessly.

Support for DCI 4K60, UHD 4K60, 10-bit 4:2:2 video, and HDR gives the link enough headroom for modern monitoring workflows. Latency below 1 ms is particularly useful for focus pulling, live camera operation, and other situations where delayed feedback would make precise control difficult.

The interchangeable V-Mount plate keeps the power system integrated with the transmitter while allowing the mounting configuration to be changed when the production requires a different battery setup.

Camera Control & Power

• Camera-control output: 1 x LEMO 5-pin 2.0
• Power input: 1 x LEMO 2-pin, 28 VDC maximum
• Firmware interface: 1 x USB-C input
• Input voltage range: 6 to 28 VDC
• Battery plate: Interchangeable V-Mount plate
• Power consumption: 20 W

Mounting & Physical Specifications

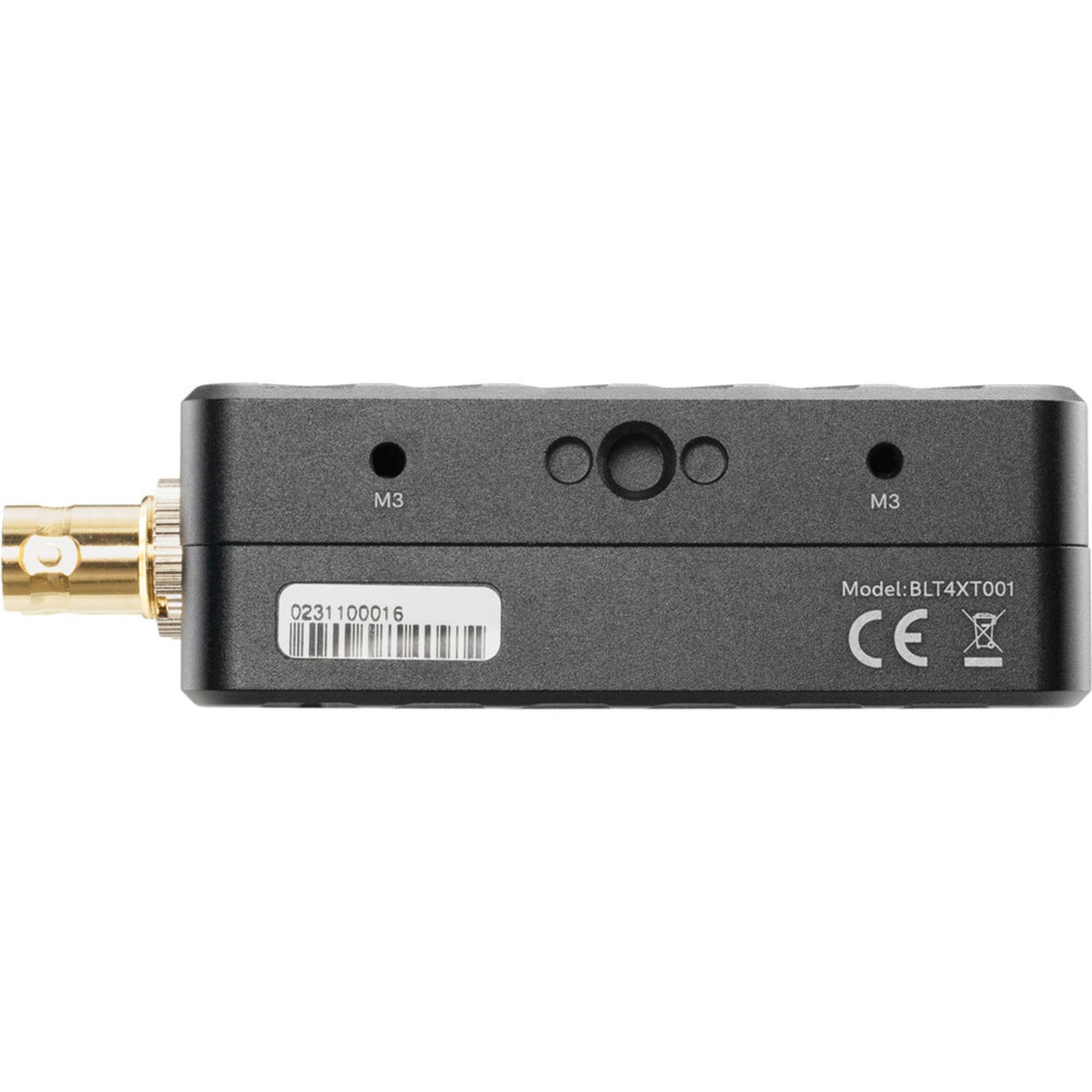

• Mounting point: 1 x 1/4"-20 female
• Construction: Aluminum and polycarbonate
• Dimensions: 5.2 x 3.6 x 1.1 in / 132 x 91 x 27 mm, excluding battery plate
• Weight: 12.13 oz / 344 g, excluding battery plate
• Operating temperature: 32 to 104°F / 0 to 40°C
• Environmental resistance: No specified environmental sealing

System Characteristics

• 5,000 ft line-of-sight transmission for large production environments
• 5 and 6 GHz frequency support for expanded RF channel selection
• DCI 4K60 and UHD 4K60 transmission through HDMI or 12G-SDI
• Sub-1 ms latency for focus and live camera workflows
• AES-256 encryption for protected wireless delivery
• Timecode support for professional monitoring workflows
• Bluetooth support for compatible control functions
• 12G-SDI loop output for a local camera-side feed
• Interchangeable V-Mount plate for adaptable power setups

What’s In The Box

• 1 x Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter (V-Mount)
• 1 x V-Mount Battery Plate
• 1 x 2-Pin Power Cable, 18 in
• 1 x USB Type-A to USB Type-C Cable, 3 ft
• 1 x Ultrathin USB Type-A to HDMI Type-A Cable, 18 in
• 1 x AC Adapter with 6 ft Cable
• 2 x Standard Antennas
• 2 x Mushroom Antennas
• 2 x Battery Covers
• 2 x Screws
