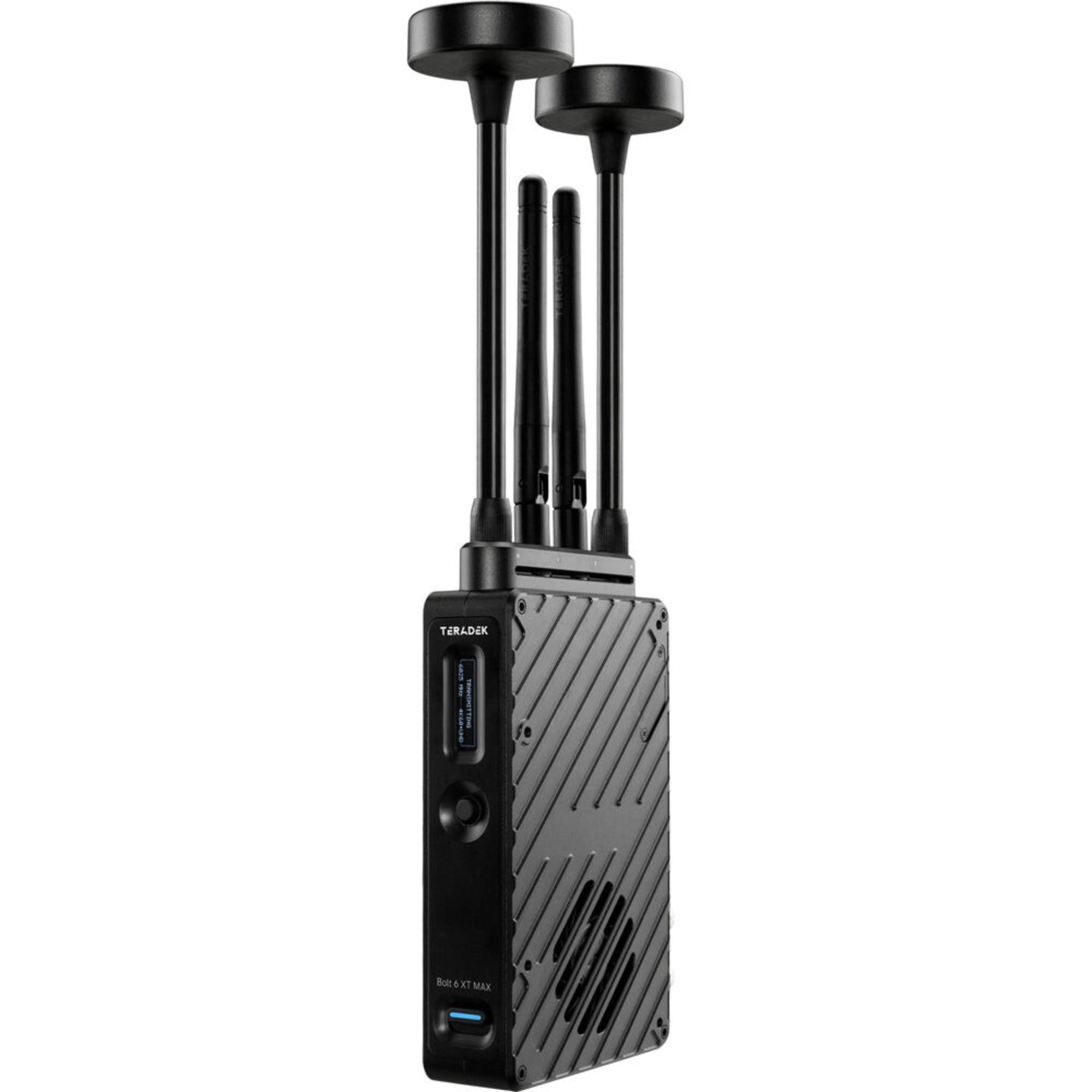

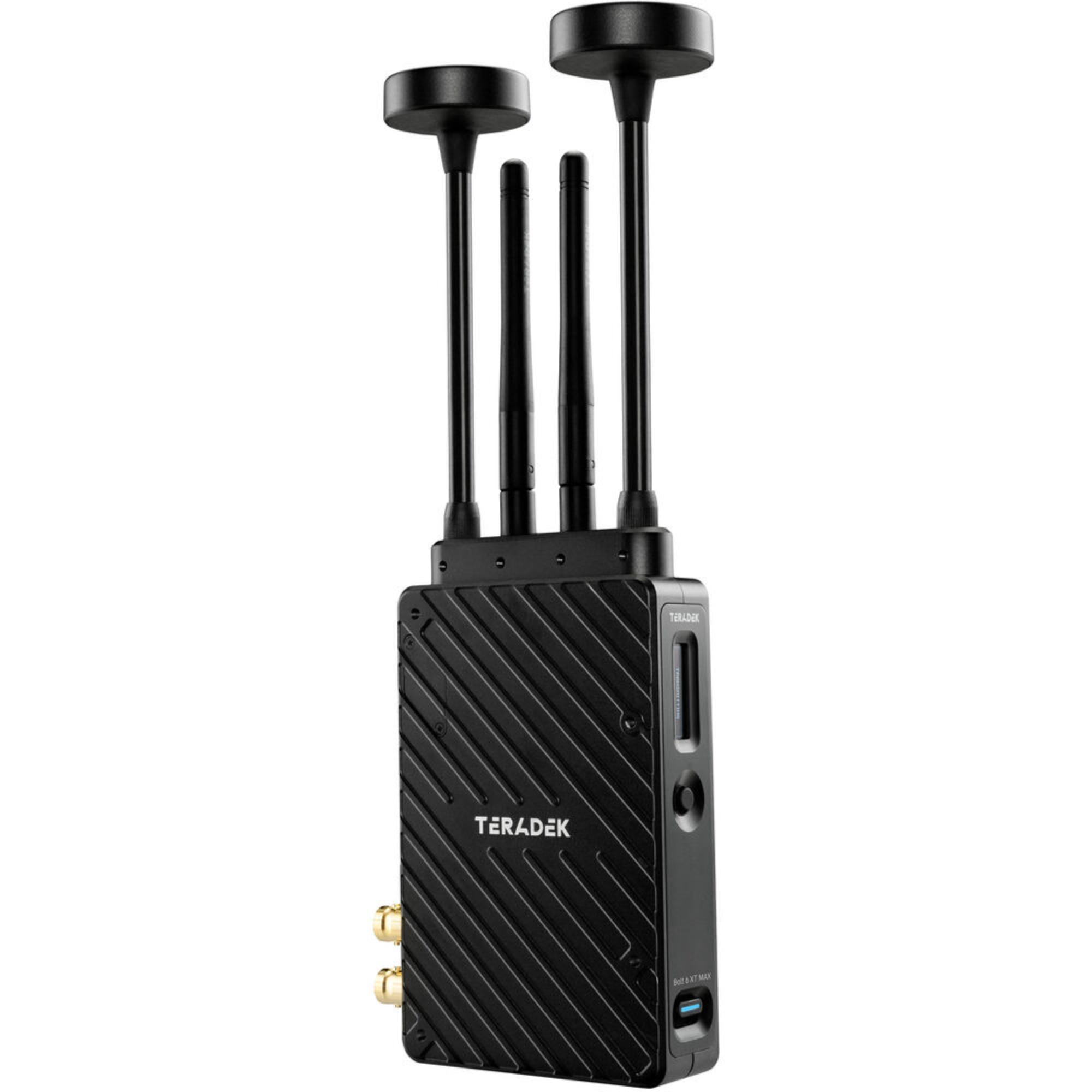

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter (Gold Mount)

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter (Gold Mount) is a long-range wireless video transmitter for cinema, broadcast, live production, and mobile camera applications. Based on the supplied source, it can send video to compatible receivers from up to 5,000 ft / 1,524 m under line-of-sight conditions.

The transmitter accepts HDMI 2.0 or 12G-SDI video and provides a 12G-SDI loop output for a camera-side monitor or recorder. It supports formats up to DCI 4K60, along with 10-bit 4:2:2 video, HDR, timecode, AES-256 encryption, and latency below 1 ms.

Highlights

• Long-range 12G-SDI/HDMI wireless transmitter for professional video production
• Transmits video up to 5,000 ft line of sight
• Supports DCI 4K60 and UHD 4K60 with 10-bit 4:2:2 and HDR
• Less than 1 ms latency with AES-256 encrypted transmission
• Interchangeable Gold Mount battery plate with SDI loop output and camera-control connection

Quick Specs & Uses

• Product type: Professional wireless video transmitter
• Primary workflows: Cinema production, broadcast, live events, handheld cameras, gimbals, vehicle rigs, Steadicam, and remote camera positions
• Maximum wireless range: 5,000 ft / 1,524 m, line of sight
• Receiver support: Transmission to up to six compatible receivers
• Additional compatibility: Bolt 4K 5G devices
• Maximum HDMI format: DCI 4K60
• Maximum SDI format: DCI 4K60
• Color support: 10-bit 4:4:4 / 4:2:2
• HDR support: Yes
• Latency: Less than 1 ms
• Encryption: AES-256
• Timecode support: Yes
• Wireless system: 5G operation with supported 6 GHz frequencies
• Channel bandwidth: 40 MHz and 20 MHz
• RF power: 23 dBm
• Bluetooth: Supported
• Wi-Fi: No
• Mobile app compatibility: No
• Cellular support: No
• Battery mount: Interchangeable Gold Mount plate
• Input voltage: 6 to 28 VDC
• Power consumption: 20 W

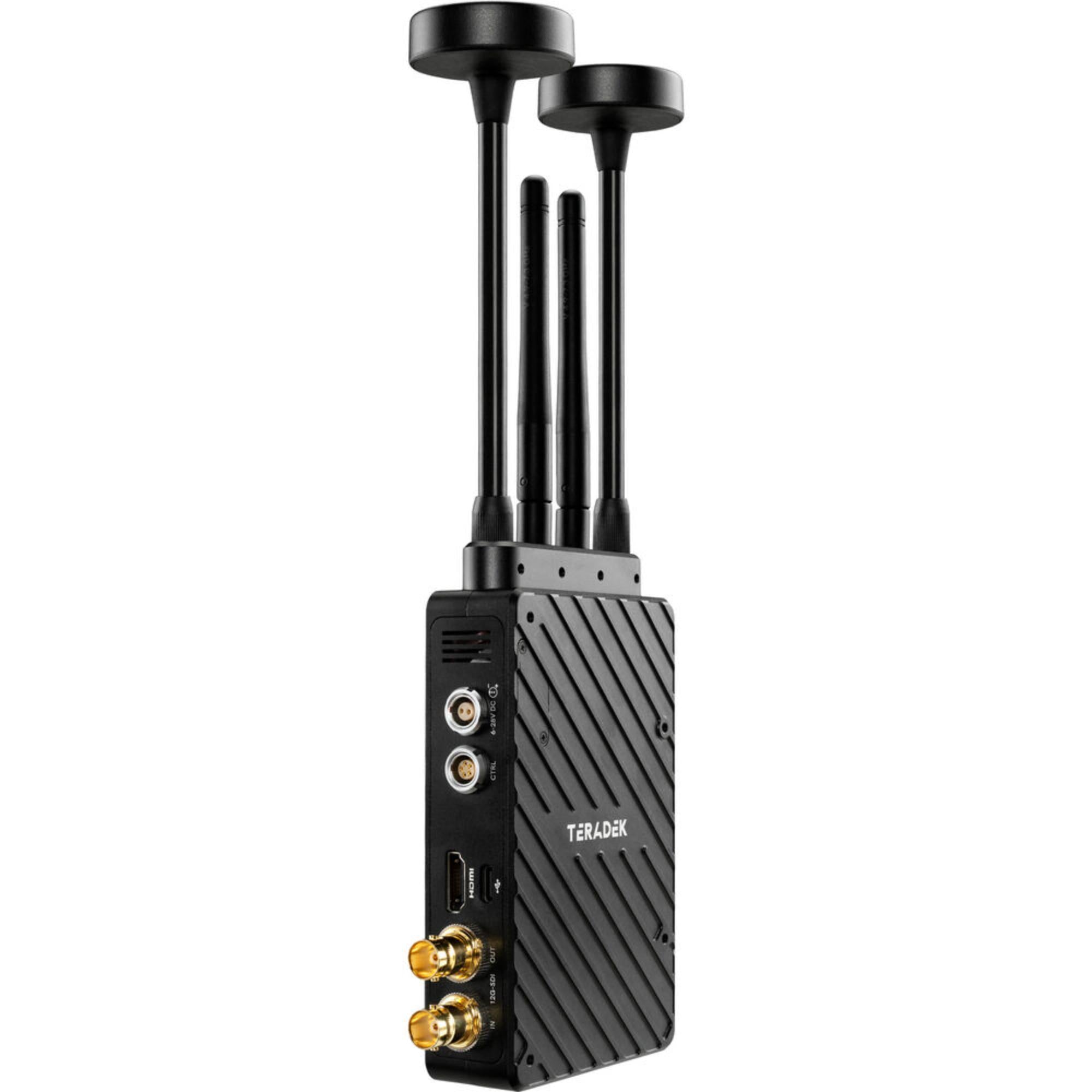

Video & Audio Connections

• HDMI input: 1 x HDMI 2.0
• SDI input: 1 x BNC, 12G-SDI
• SDI loop output: 1 x BNC, 12G-SDI

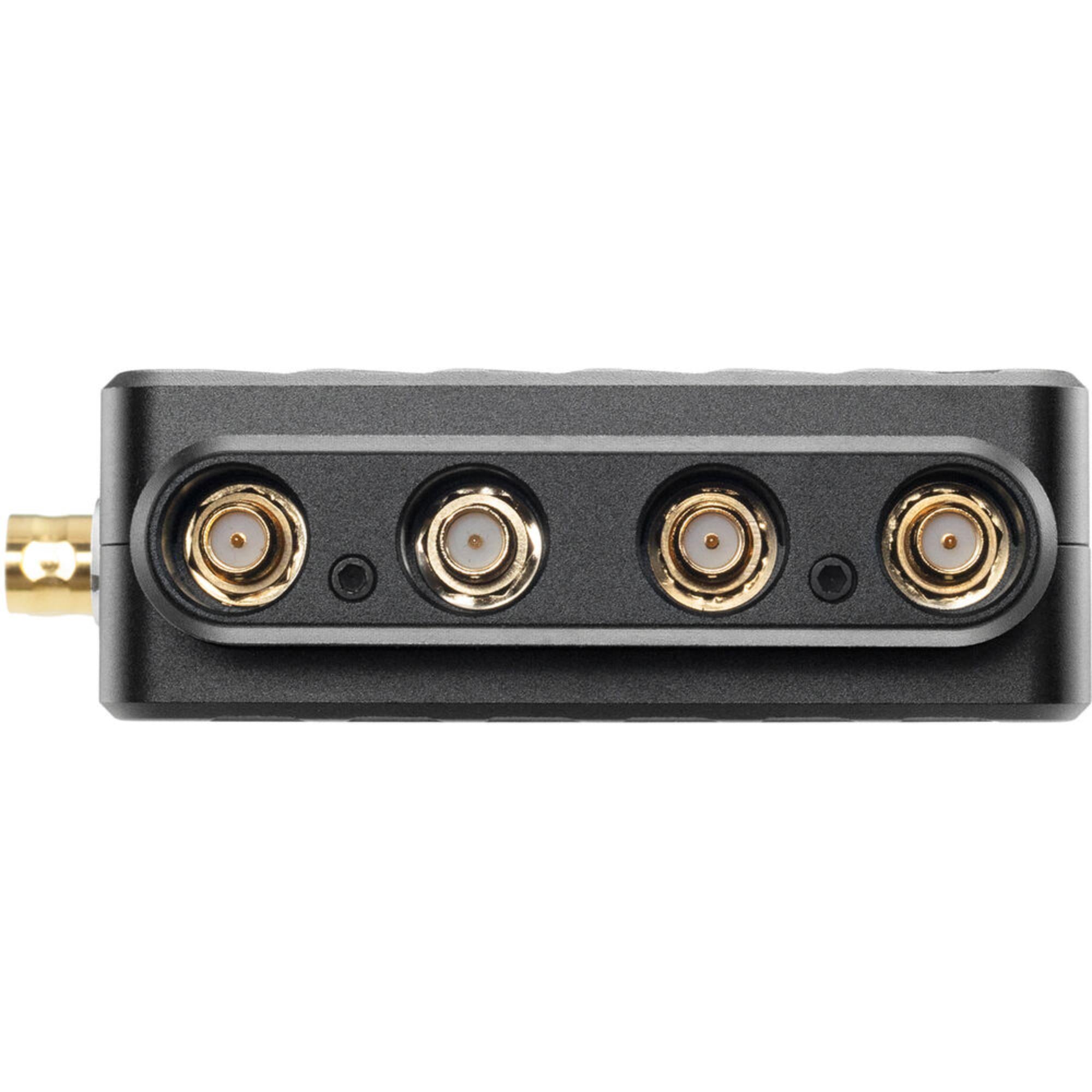

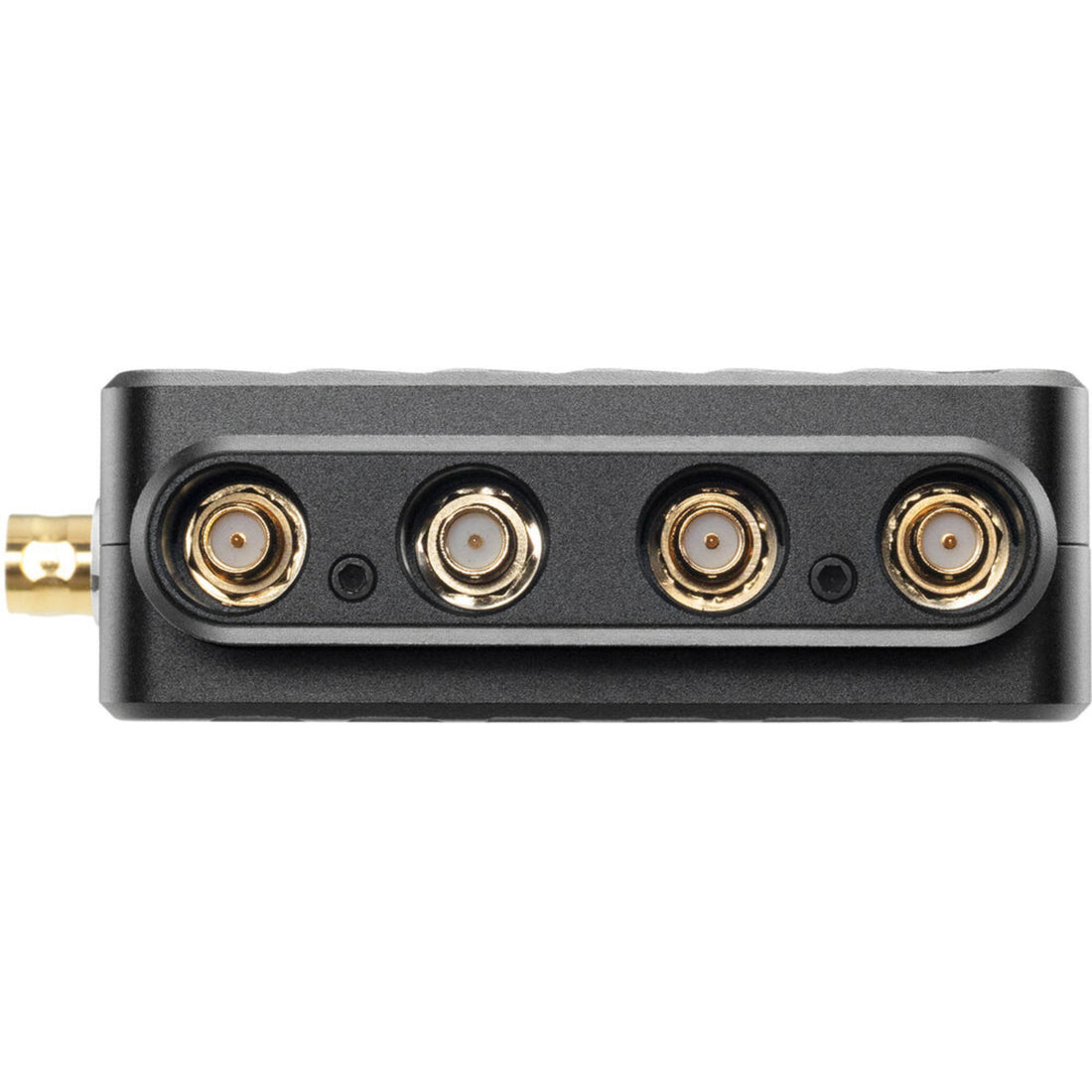

• Antenna connections: 2 x RP-SMA female
• Embedded HDMI audio: 2-channel
• Embedded SDI audio: Supported
• Audio format: 2-channel, 24-bit, 48 kHz
• Dedicated analog audio I/O: No

Wireless & Frequency Support

• Wireless range: 5,000 ft / 1,524 m, line of sight
• Non-DFS frequency range: 5.94 to 6.42 GHz
• Additional non-DFS range: 5.19 to 5.23 GHz
• Additional non-DFS range: 5.75 to 5.79 GHz
• DFS frequency range: 5.27 to 5.67 GHz
• Bluetooth support: Yes
• Mobile app compatibility: No

Supported Video Formats

• HDMI DCI 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI 1080PsF: 30, 29.97, 25, 24, and 23.98
• HDMI 1080i: 60, 59.94, and 50
• HDMI 720p: 60, 59.94, and 50
• HDMI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94
• SDI DCI 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI 1080p: 60, 59.94, and 50
• SDI 1080i: 60, 59.94, and 50
• SDI 720p: 60, 59.94, and 50
• SDI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94

Why It Helps

The Bolt 6 XT MAX is intended for productions where the camera needs to operate a long way from video village or the monitoring position. Its listed 5,000 ft line-of-sight range makes it useful for sports, vehicle work, large exterior locations, stages, and other setups where a long SDI cable would restrict camera movement.

Both HDMI 2.0 and 12G-SDI inputs are available, allowing the transmitter to work with cinema cameras, broadcast cameras, switchers, and other professional sources. The SDI loop output also keeps a local feed available for a camera-side monitor or recorder while the signal is being sent wirelessly.

Support for DCI 4K60, UHD 4K60, 10-bit 4:2:2 video, and HDR gives the link enough headroom for current high-resolution workflows. Latency below 1 ms is particularly useful for focus pulling, live camera operation, and other situations where delayed feedback would make precise control difficult.

The interchangeable Gold Mount plate keeps the battery and transmitter together as one production-ready assembly. It also allows the power configuration to be changed when the camera package or monitor build requires a different mounting arrangement.

Camera Control & Power

• Camera-control output: 1 x LEMO 5-pin 2.0
• Power input: 1 x LEMO 2-pin, 28 VDC maximum
• Firmware interface: 1 x USB-C input
• Input voltage range: 6 to 28 VDC
• Battery plate: Interchangeable Gold Mount plate
• Power consumption: 20 W

Mounting & Physical Specifications

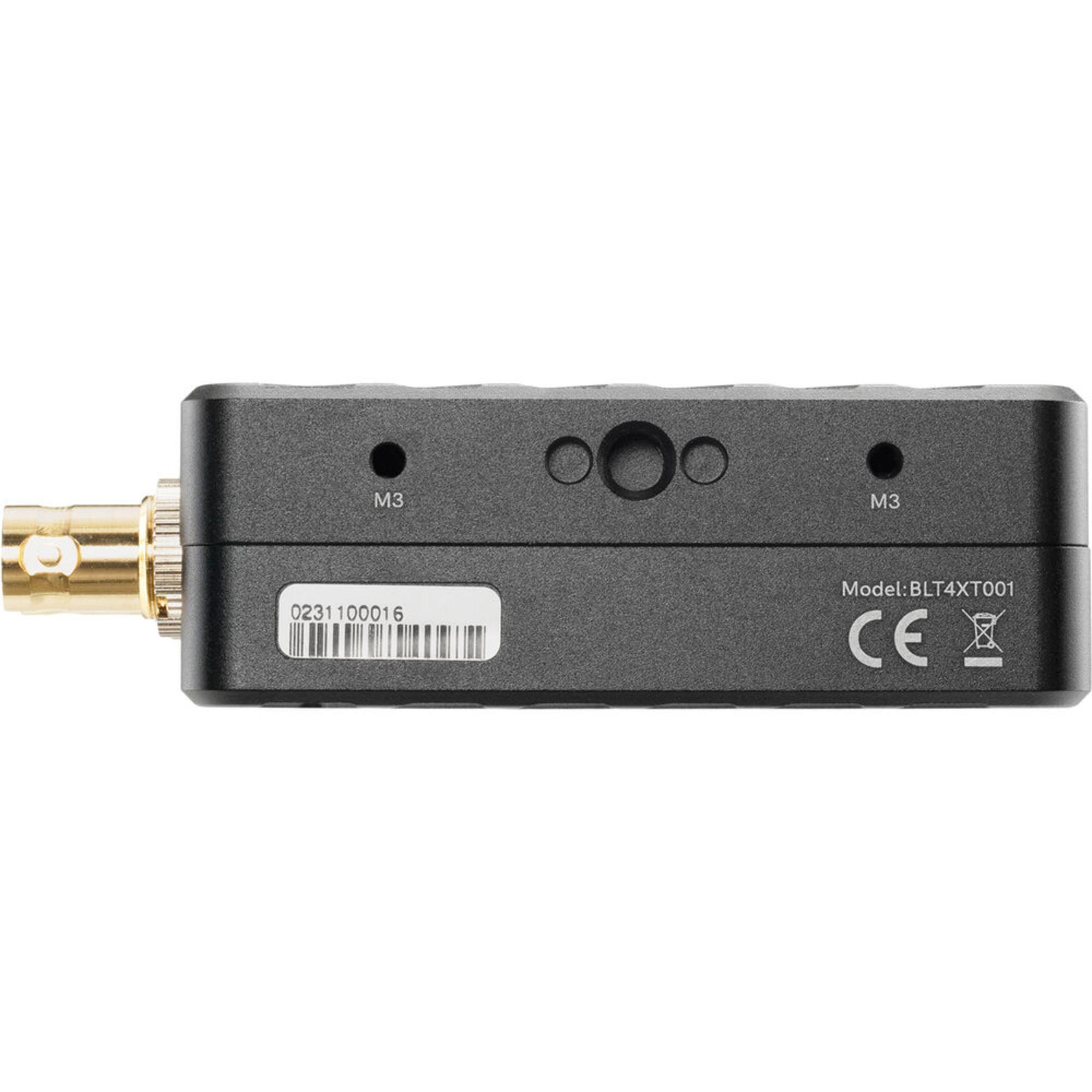

• Mounting point: 1 x 1/4"-20 female
• Construction: Aluminum and polycarbonate
• Dimensions: 5.2 x 3.6 x 1.1 in / 132 x 91 x 27 mm, excluding battery plate
• Weight: 12.13 oz / 344 g, excluding battery plate
• Operating temperature: 32 to 104°F / 0 to 40°C
• Environmental resistance: No specified environmental sealing

System Characteristics

• 5,000 ft line-of-sight transmission for large production environments
• 5 and 6 GHz frequency support for expanded RF channel selection
• DCI 4K60 and UHD 4K60 transmission through HDMI or 12G-SDI
• Sub-1 ms latency for focus and live camera workflows
• AES-256 encryption for protected wireless delivery
• Timecode support for professional monitoring workflows
• Bluetooth support for compatible control functions
• 12G-SDI loop output for a local camera-side feed
• Interchangeable Gold Mount plate for adaptable power setups

What’s In The Box

• 1 x Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter (Gold Mount)
• 1 x Gold Mount Battery Plate
• 1 x 2-Pin Power Cable, 18 in
• 1 x USB Type-A to USB Type-C Cable, 3 ft
• 1 x Ultrathin USB Type-A to HDMI Type-A Cable, 18 in
• 1 x AC Adapter with 6 ft Cable
• 2 x Standard Antennas
• 2 x Mushroom Antennas
• 2 x Battery Covers
• 2 x Screws
