Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Receiver (Gold Mount)

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Receiver (Gold Mount) is a professional long-range receiver for cinema, broadcast, live production, and video-assist workflows. Based on the supplied source, it can receive video from compatible Bolt 4K transmitters at distances of up to 5,000 ft / 1,524 m under line-of-sight conditions.

The receiver provides HDMI 2.0 and 12G-SDI outputs and supports video formats up to DCI 4K60. Its fixed Gold Mount battery plate makes it a practical fit behind a production monitor, on a video-village cart, or at a remote focus and monitoring position.

Highlights

• Long-range 12G-SDI/HDMI wireless receiver for professional monitoring
• Receives video from up to 5,000 ft line of sight
• Supports DCI 4K60 and UHD 4K60 with 10-bit 4:2:2 and HDR
• Less than 1 ms latency with AES-256 encrypted transmission

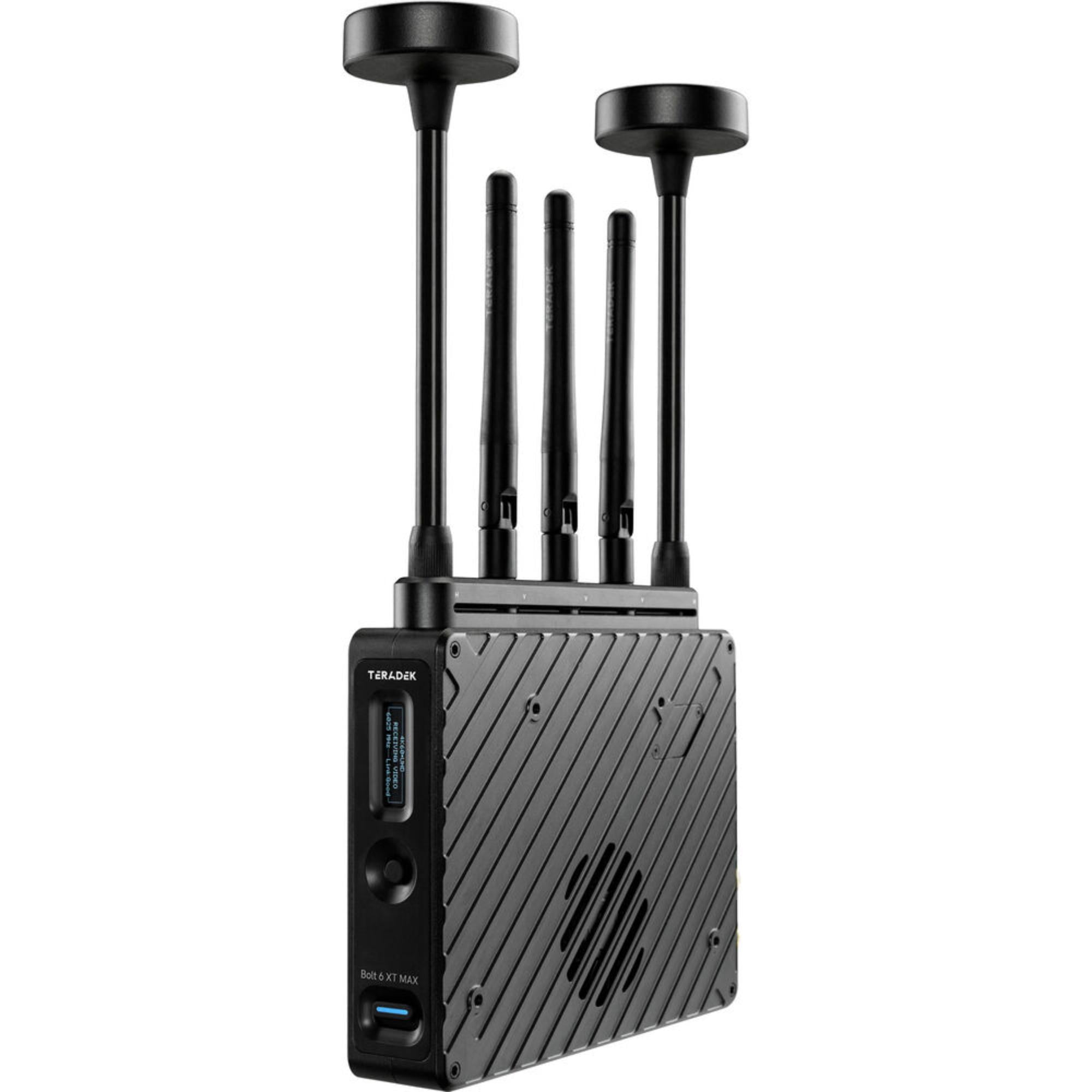

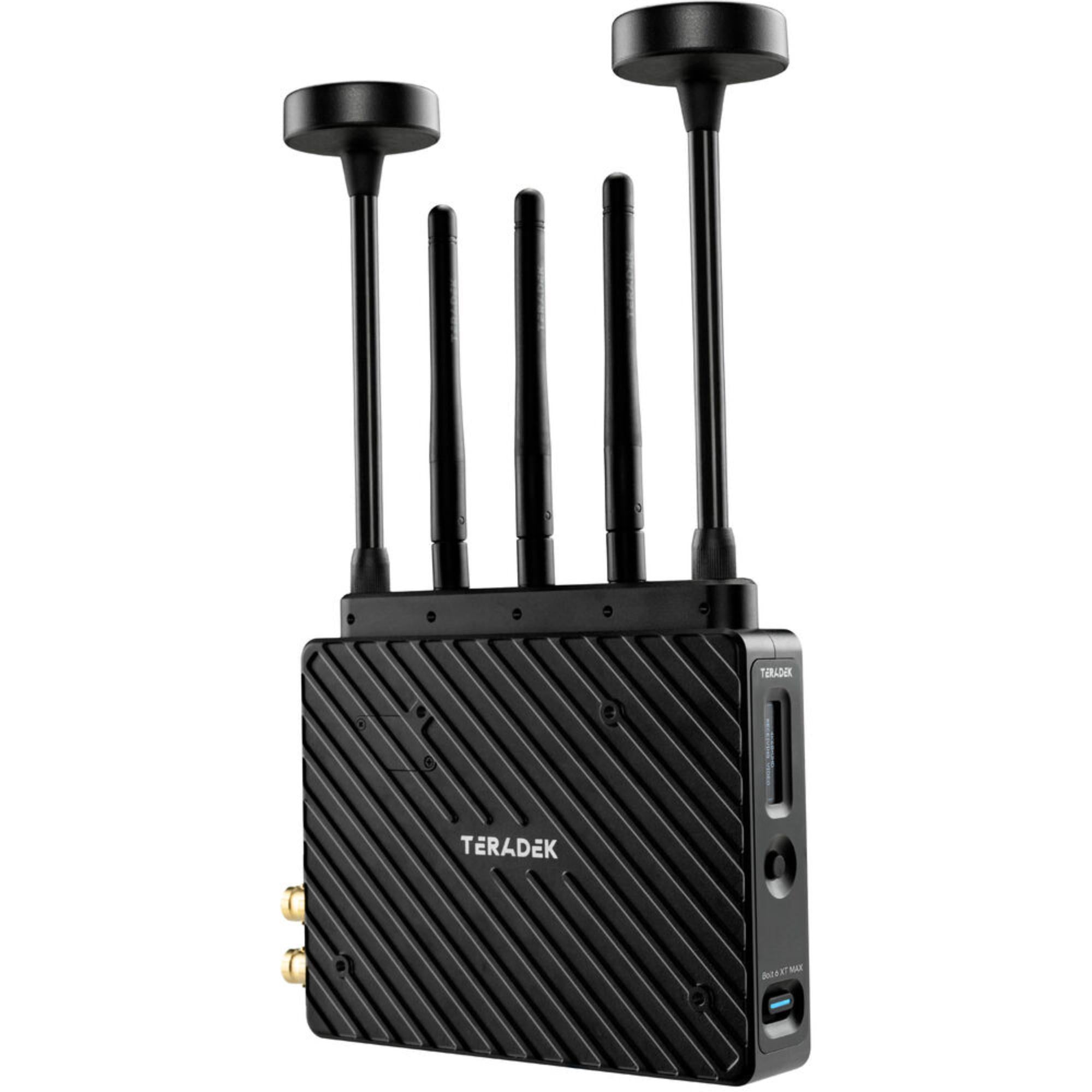

• Fixed Gold Mount battery plate with five-antenna reception

Quick Specs & Uses

• Product type: Professional wireless video receiver
• Primary workflows: Cinema production, broadcast, live events, video village, focus pulling, director monitoring, and remote camera positions
• Maximum wireless range: 5,000 ft / 1,524 m, line of sight
• Compatible transmitters: All Bolt 4K transmitters
• Maximum HDMI format: DCI 4K60
• Maximum SDI format: DCI 4K60
• Color support: 10-bit 4:4:4 / 4:2:2 RGB and YCC
• HDR support: Yes
• Latency: Less than 1 ms
• Encryption: AES-256
• Timecode support: Yes
• Wireless system: 5G wireless operation with supported 6 GHz frequency range
• Channel bandwidth: 40 MHz and 20 MHz
• RF power: 21 dBm
• Bluetooth: Supported
• Wi-Fi: No
• Cellular support: No
• Battery mount: Fixed Gold Mount plate
• Input voltage: 6 to 28 VDC
• Power consumption: 18 W

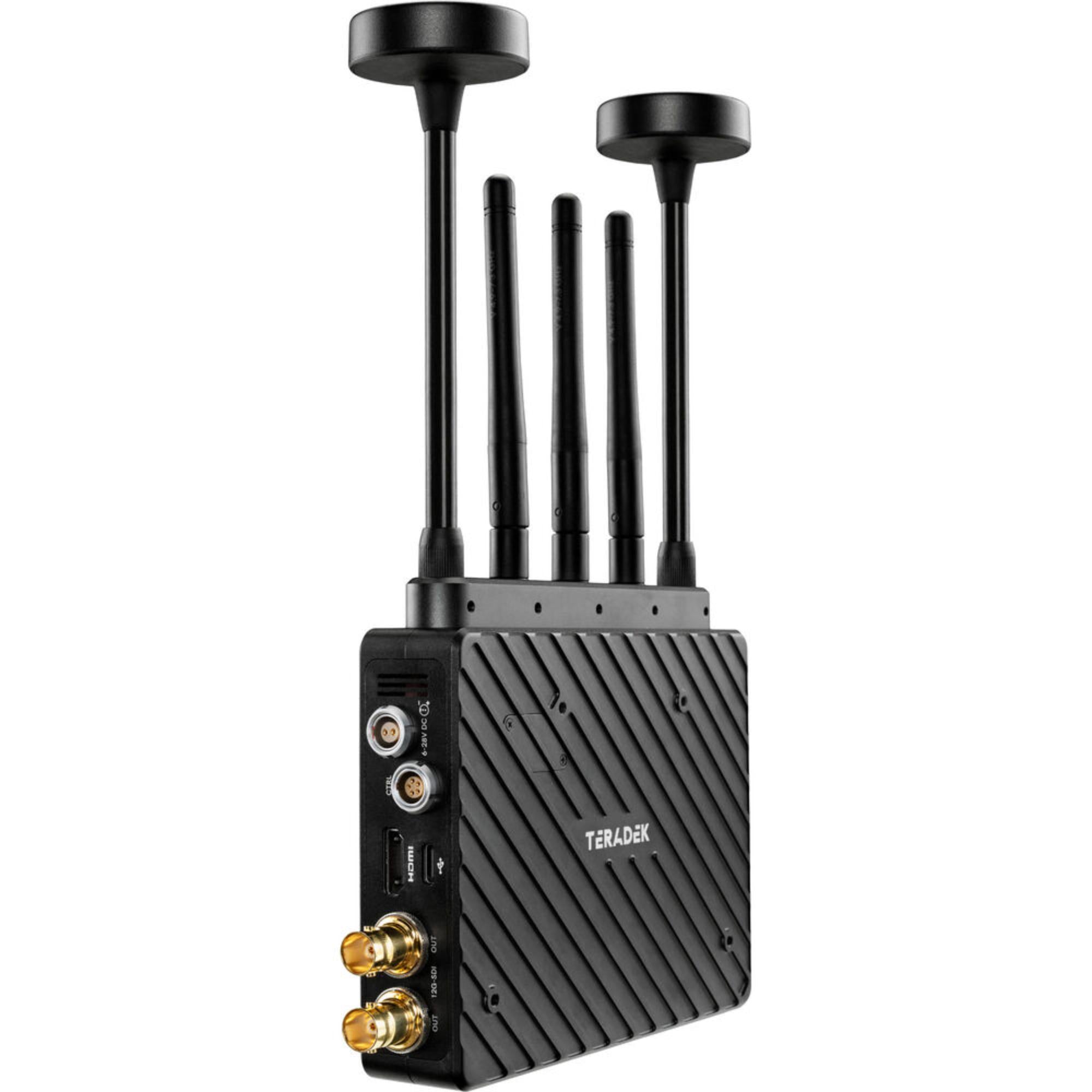

Video & Audio Connections

• HDMI output: 1 x HDMI 2.0
• SDI output: 1 x BNC, 12G-SDI

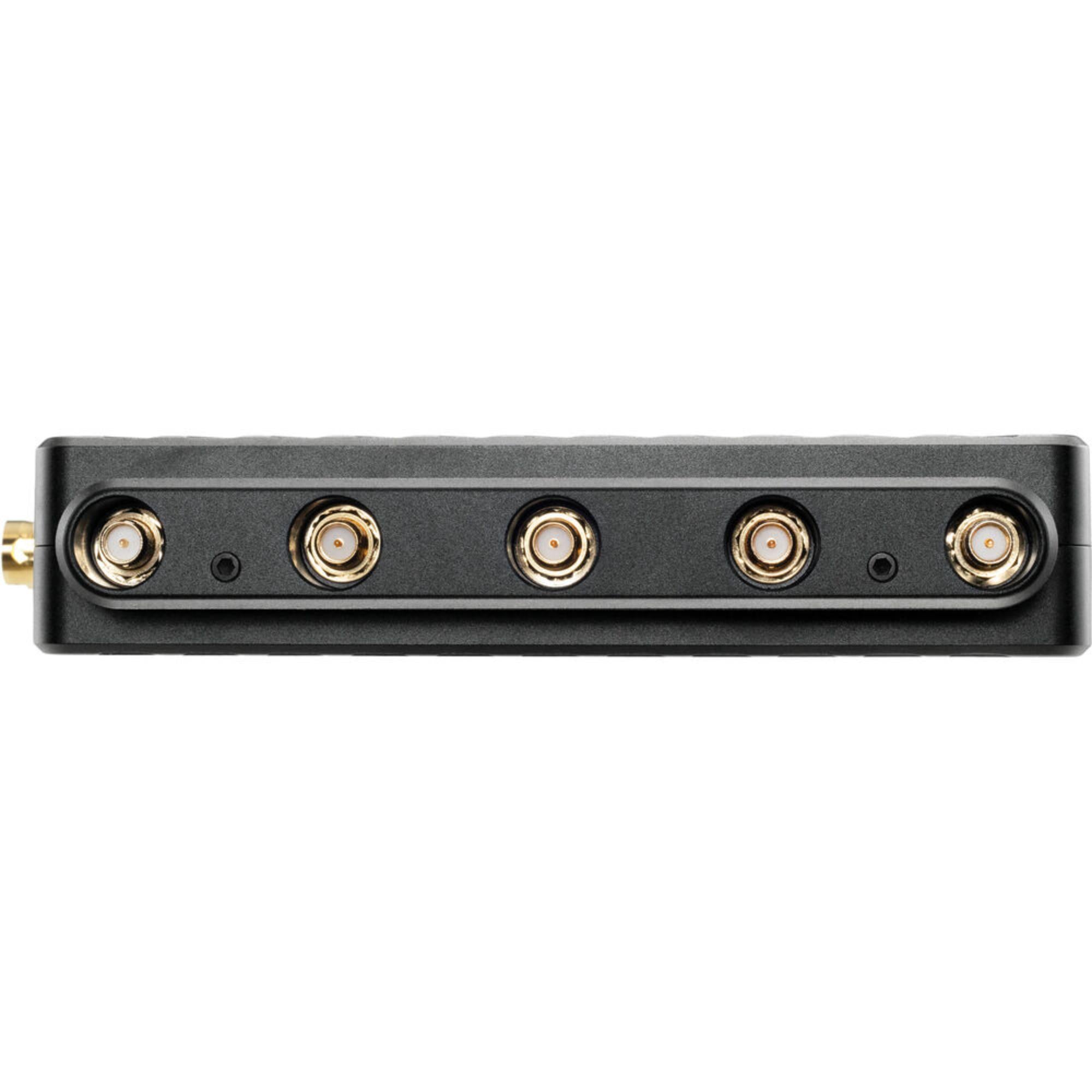

• Antenna connections: 5 x RP-SMA female
• Embedded HDMI audio: 2-channel
• Embedded SDI audio: 2-channel
• Audio format: 2-channel, 24-bit, 48 kHz
• Dedicated analog audio I/O: No

Wireless & Frequency Support

• Wireless range: 5,000 ft / 1,524 m, line of sight
• Non-DFS frequency range: 5.94 to 6.42 GHz
• Additional non-DFS range: 5.19 to 5.23 GHz
• Additional non-DFS range: 5.75 to 5.79 GHz
• DFS frequency range: 5.27 to 5.67 GHz
• Bluetooth support: Yes
• Mobile app compatibility: No

Supported Video Formats

• HDMI DCI 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• HDMI 1080PsF: 30, 29.97, 25, 24, and 23.98
• HDMI 1080i: 60, 59.94, and 50
• HDMI 720p: 60, 59.94, and 50
• HDMI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94
• SDI DCI 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• SDI 1080p: 60, 59.94, and 50
• SDI 1080i: 60, 59.94, and 50
• SDI 720p: 60, 59.94, and 50
• SDI SD formats: 576p50, 576i50, 480p60/59.94, and 480i59.94

Why It Helps

The Bolt 6 XT MAX is built for productions where the camera may operate far from the monitoring position. Its listed 5,000 ft line-of-sight range gives the video-assist and engineering teams more room to work across stadiums, racetracks, exterior locations, large stages, or moving-camera routes.

HDMI 2.0 and 12G-SDI outputs make the receiver easy to integrate with professional monitors, recorders, switchers, and video-village systems. The same receive unit can therefore fit into both cinema and broadcast signal chains without adding a separate converter.

Support for DCI 4K60, UHD 4K60, 10-bit 4:2:2 video, and HDR provides enough headroom for modern high-resolution monitoring. The listed latency of less than 1 ms is particularly important for focus pulling, live camera operation, and any workflow where delayed visual feedback would be a problem.

The fixed Gold Mount plate keeps the receiver and production battery together as one practical assembly. That reduces loose power hardware and makes the unit easier to mount behind a monitor or move between stands and carts.

Camera Control & Power

• Camera-control output: 1 x LEMO 5-pin 2.0
• Power input: 1 x LEMO 2-pin, 28 VDC maximum
• Firmware interface: 1 x USB-C input
• Input voltage range: 6 to 28 VDC
• Battery plate: Fixed Gold Mount
• Power consumption: 18 W

Mounting & Physical Specifications

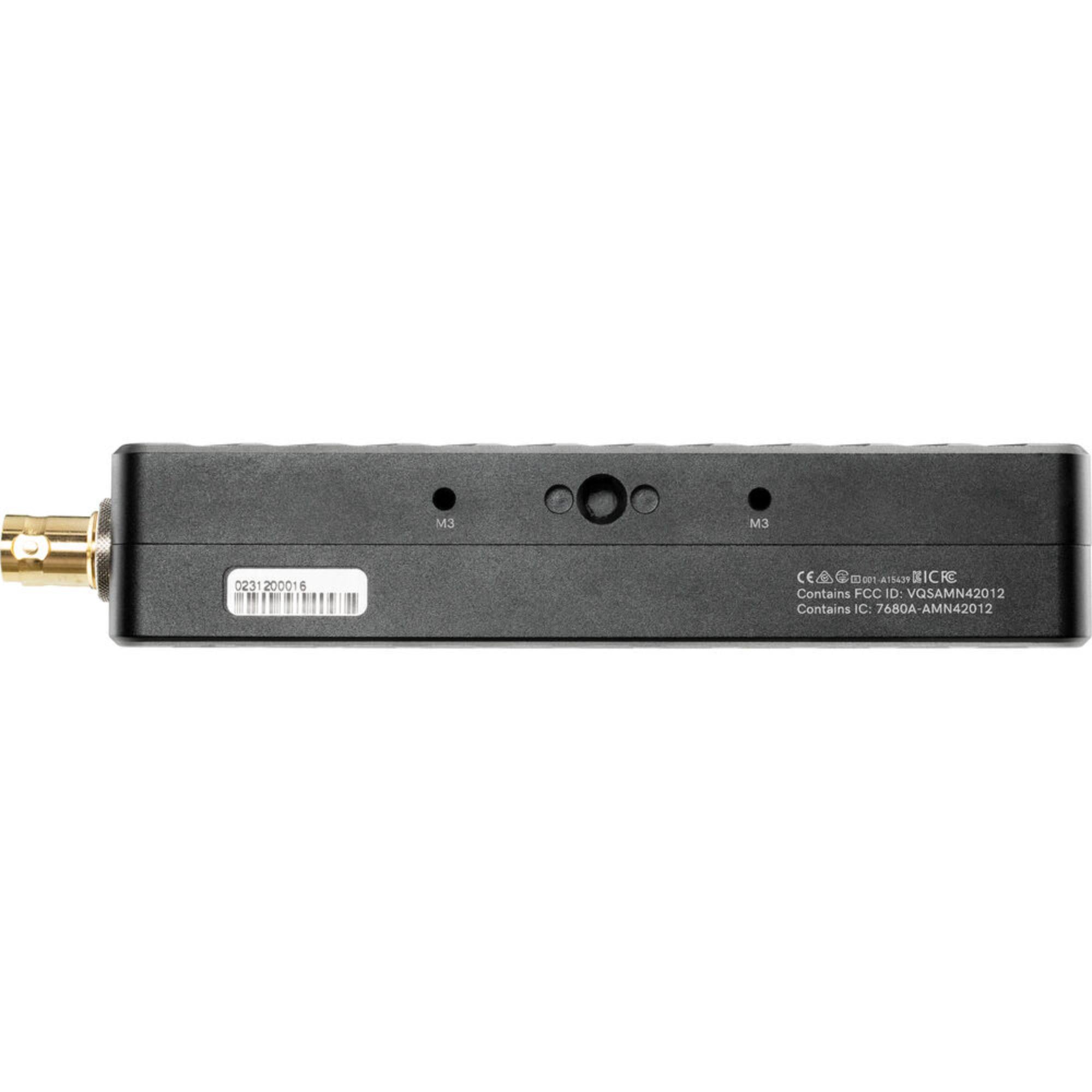

• Mounting points: 1 x 1/4"-20 female and 1 x 3/8"-16 female
• Construction: Aluminum and polycarbonate
• Dimensions: 5.5 x 4.4 x 1.1 in / 139 x 112 x 27 mm, excluding battery plate
• Weight: 15.17 oz / 430 g, excluding battery plate
• Operating temperature: 32 to 104°F / 0 to 40°C
• Environmental resistance: No specified environmental sealing

System Characteristics

• 5,000 ft line-of-sight reception for large production environments
• 5 and 6 GHz frequency support for additional RF channel options
• DCI 4K60 and UHD 4K60 monitoring over HDMI and SDI
• Sub-1 ms latency for focus and live camera workflows
• AES-256 encryption for protected wireless delivery
• Timecode support for professional monitoring workflows
• Bluetooth support for compatible control functions
• Fixed Gold Mount integration for monitor and video-village builds
• Five-antenna receive design for long-range operation

What’s In The Box

• 1 x Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Receiver (Gold Mount)
• 1 x Gold Mount Battery Plate
• 1 x 2-Pin to D-Tap Power Cable, 18 in
• 1 x USB Type-A to Micro-USB Type-B Cable, 3 ft
• 1 x Ultrathin HDMI Type-A Cable, 18 in
• 1 x BNC SDI Cable, 10 in
• 1 x AC Adapter with 6 ft Cable
• 5 x Antennas
• 1 x Battery Cover
• 2 x Screws
