Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount) is a professional wireless video system built for cinema, broadcast, live production, and on-set monitoring. The kit carries visually lossless video over distances of up to 750 ft / 228.6 m under line-of-sight conditions, allowing the camera to move without being tied to video village by a long signal cable.

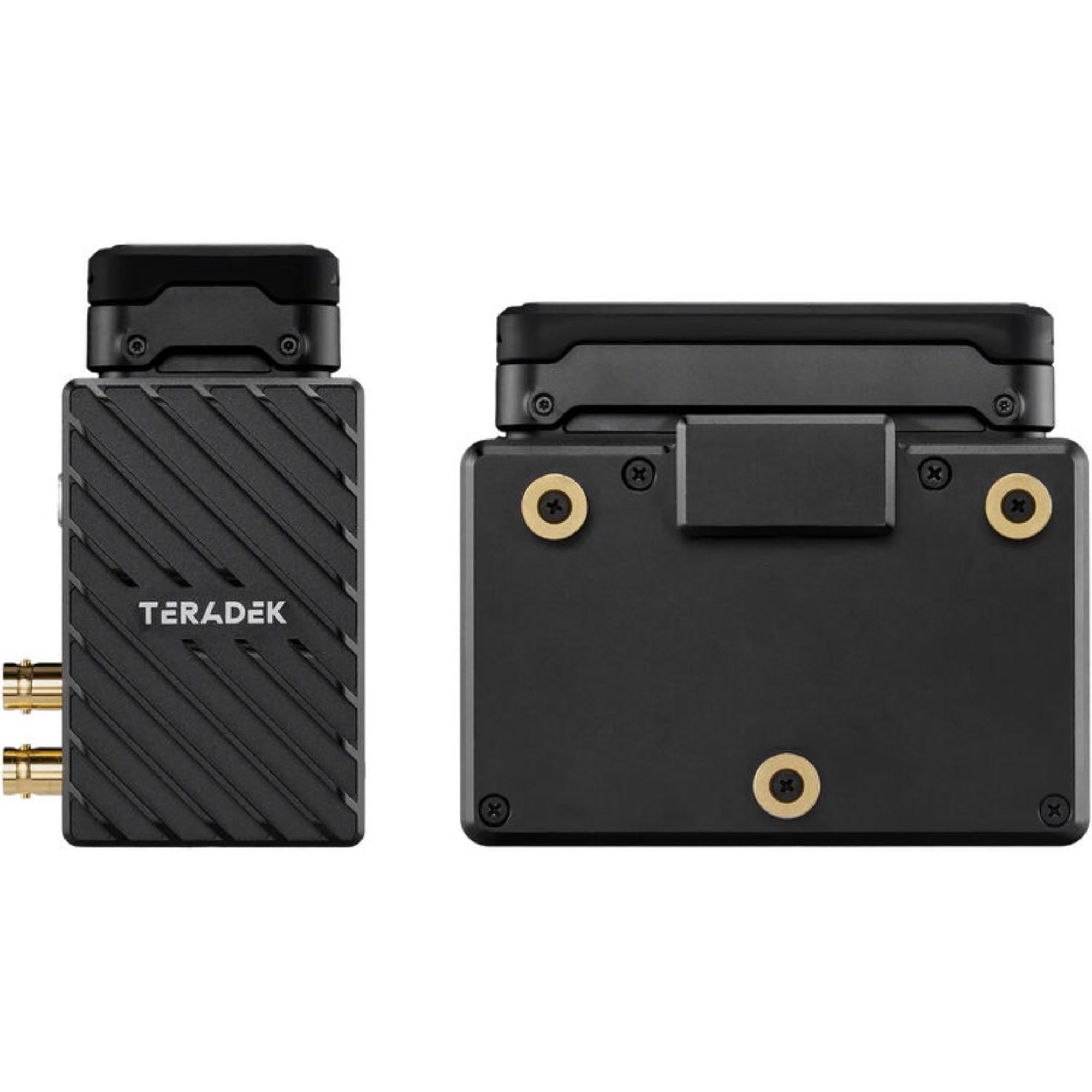

The transmitter accepts HDMI 1.4b or 3G-SDI video and provides a 3G-SDI loop output for a camera-side monitor or recorder. At the receiving position, HDMI 1.4b and 3G-SDI outputs can feed a production monitor, recorder, switcher, or focus station. The included receiver uses a fixed Gold Mount plate for straightforward monitor-back battery integration.

Highlights

• Complete HDMI and 3G-SDI wireless video kit with transmitter and receiver
• Up to 750 ft / 228.6 m line-of-sight range
• HDMI input support up to UHD 4K30
• 3G-SDI support up to 1080p60
• Zero-delay transmission with AES-256 encryption
• Gold Mount receiver plate and seven antennas included

Quick Specs & Uses

• Product type: Wireless video transmitter and receiver deluxe kit
• Primary applications: Cinema production, broadcast, live events, video village, director monitoring, focus pulling, handheld cameras, and field production
• Maximum wireless range: 750 ft / 228.6 m, line of sight
• Wireless latency: 0 ms
• HDMI maximum format: UHD 4K30
• SDI maximum format: 1080p60
• Color support: 10-bit 4:4:4 and 4:2:2 RGB/YCC
• HDR support: Listed in the supplied product features
• Encryption: 256-bit AES
• Timecode support: Yes
• Channel bandwidth: 40 MHz and 20 MHz
• RF power: 23 dBm
• Bluetooth: Yes
• Mobile compatibility: Android and iOS
• Wi-Fi connectivity: No
• Cellular support: No
• Receiver battery system: Fixed Gold Mount plate
• Input voltage: 6 to 28 VDC
• Transmitter power consumption: 9 W
• Receiver power consumption: 11 W

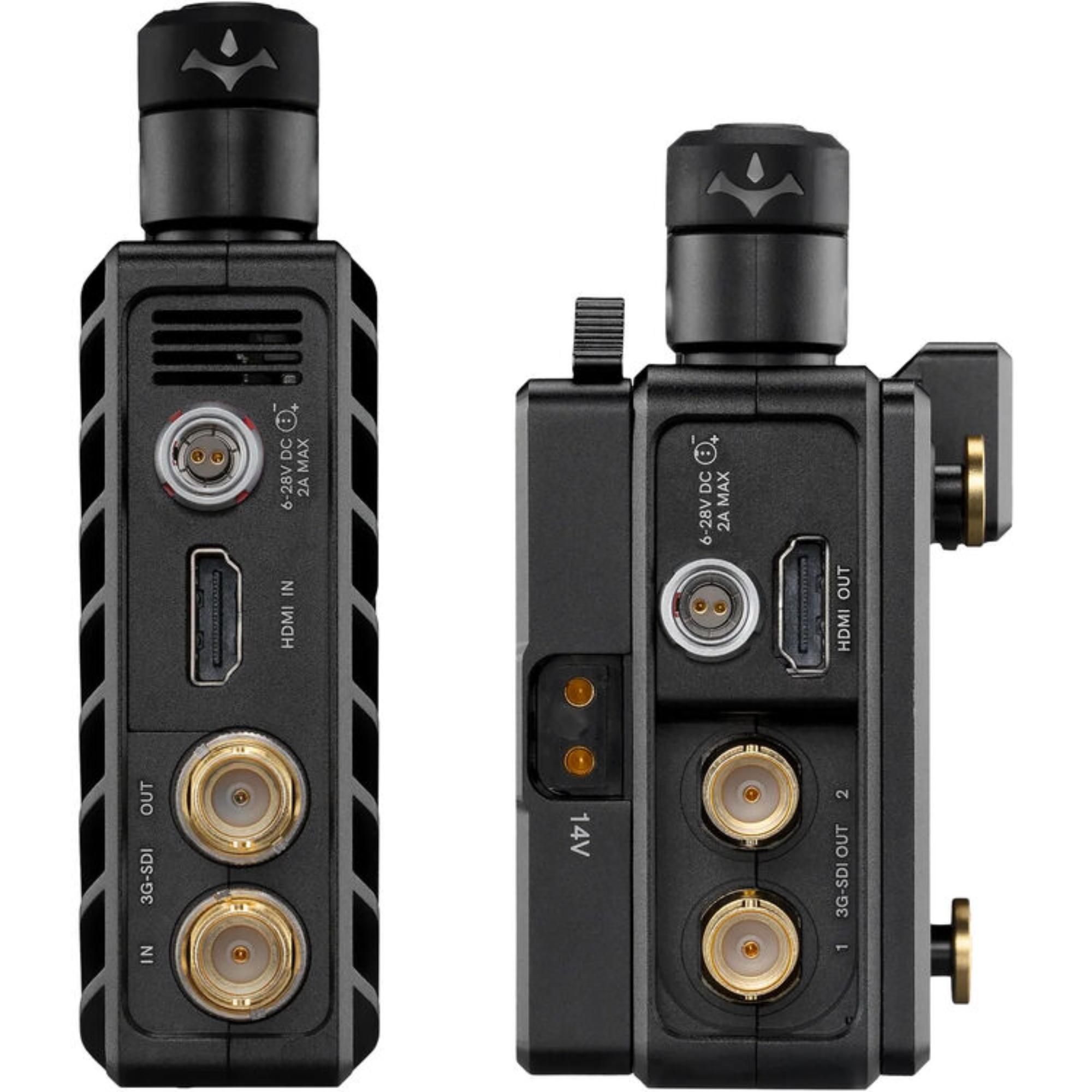

Transmitter Connections

• HDMI input: 1 x HDMI 1.4b
• SDI input: 1 x BNC, 3G-SDI
• SDI loop output: 1 x BNC, 3G-SDI

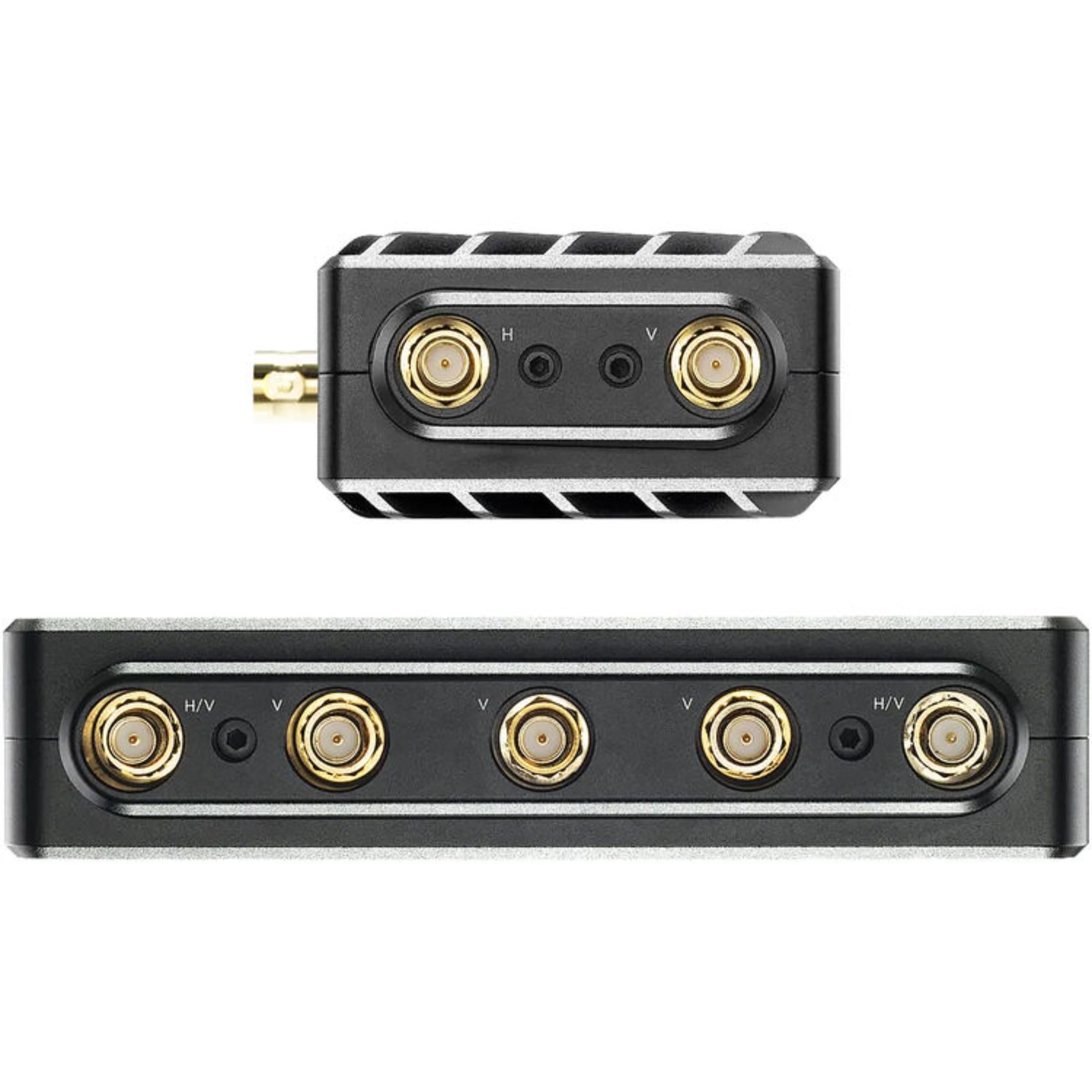

• Antenna connections: 2 x RP-SMA female
• Power input: 1 x LEMO 2-pin
• Service interface: 1 x Micro-USB input

Receiver Connections

• HDMI output: 1 x HDMI 1.4b
• SDI output: 1 x BNC, 3G-SDI
• Antenna connections: 5 x RP-SMA female
• Power input: 1 x LEMO 2-pin
• Service interface: 1 x Micro-USB input
• Battery plate: Fixed Gold Mount

Embedded Audio

• HDMI audio: 2-channel
• SDI audio: 2-channel
• Audio format: 2-channel, 24-bit, 48 kHz
• Dedicated analog audio I/O: No

Wireless Performance

• Maximum range: 750 ft / 228.6 m, line of sight
• Latency: 0 ms
• Channel bandwidth: 40 MHz and 20 MHz
• RF power: 23 dBm
• Bluetooth control: Supported
• Mobile platforms: Android and iOS
• Spectrum analyzer: Listed in the supplied features

Frequency Support

• Non-DFS: 5.94 to 6.42 GHz
• Non-DFS: 5.19 to 5.23 GHz
• Non-DFS: 5.75 to 5.79 GHz
• DFS: 5.27 to 5.67 GHz

Supported HDMI Formats

• UHD 4K: 30, 29.97, 25, 24, and 23.98
• 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• 1080PsF: 30, 29.97, 25, 24, and 23.98
• 1080i: 60, 59.94, and 50
• 720p: 60, 59.94, and 50
• 576p: 50
• 576i: 50
• 480p: 60 and 59.94
• 480i: 59.94

Supported 3G-SDI Formats

• 1080p: 30, 29.97, 25, 24, and 23.98
• 1080i: 60, 59.94, and 50
• 720p: 60, 59.94, and 50
• 576p: 50
• 576i: 50
• 480p: 60 and 59.94
• 480i: 59.94

Why It Works in Production

The Bolt 6 LT 750 is designed for crews that need a responsive wireless monitoring path without the weight and complexity of a longer-range system. Its 750 ft line-of-sight range is practical for studio floors, event venues, interview sets, exterior locations, and moving camera positions.

The transmitter provides both HDMI and 3G-SDI inputs, so it can be integrated with compact cinema cameras, professional camcorders, or other production sources. The 3G-SDI loop output keeps a local wired feed available for an onboard display or recorder while the signal is transmitted wirelessly.

At video village, the receiver provides both HDMI and 3G-SDI outputs. The engineering team can therefore connect directly to the display, recorder, or switcher already in use without adding a separate signal converter.

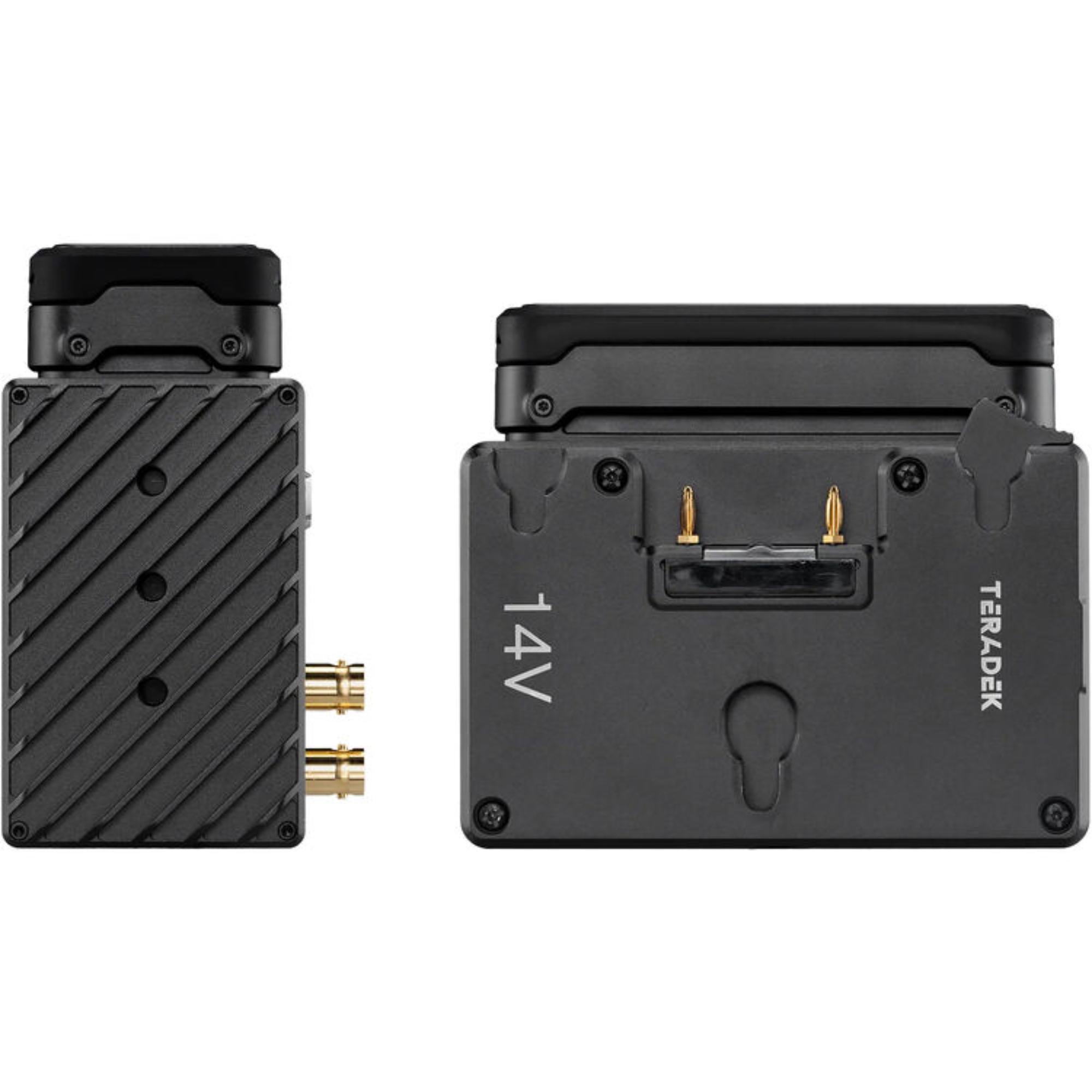

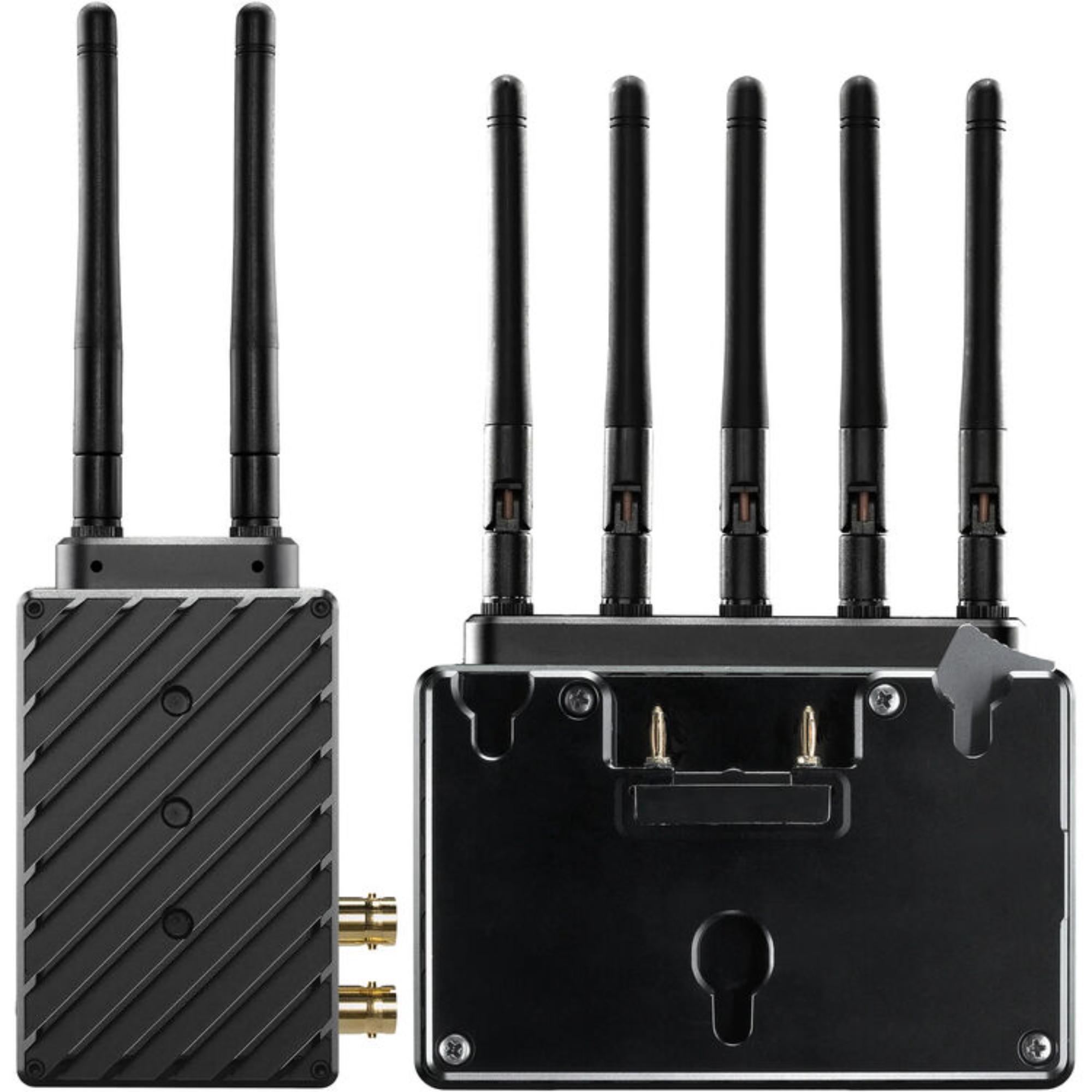

The receiver’s Gold Mount plate keeps the battery and wireless unit together behind the monitor. This produces a cleaner mobile station with fewer loose components and makes the monitor easier to move between setups.

Power & Mounting

• Input voltage: 6 to 28 VDC
• Transmitter power consumption: 9 W
• Receiver power consumption: 11 W
• Receiver battery plate: Fixed Gold Mount

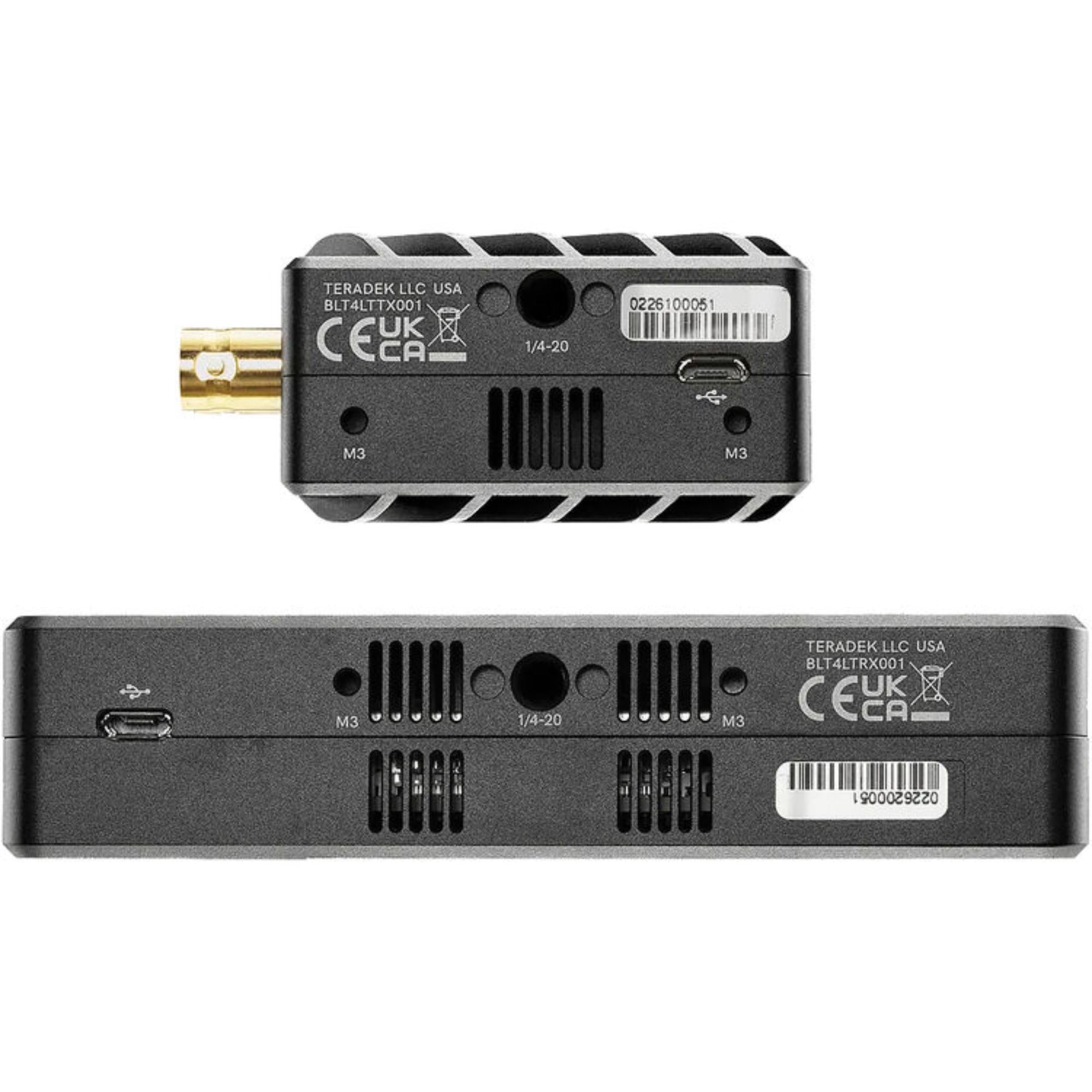

• Transmitter mounting: 1 x 1/4"-20 female and 1 x 3/8"-16 female
• Receiver mounting: 1 x 1/4"-20 female and 1 x 3/8"-16 female

Physical Specifications

• Construction: Aluminum and polycarbonate
• Transmitter dimensions: 4.1 x 2.4 x 1.3 in / 103 x 60 x 33 mm
• Receiver dimensions: 4.8 x 3.7 x 1.1 in / 122 x 94 x 27 mm
• Transmitter weight: 7.27 oz / 206 g
• Receiver weight: 10.30 oz / 292 g
• Environmental resistance: No specified environmental sealing

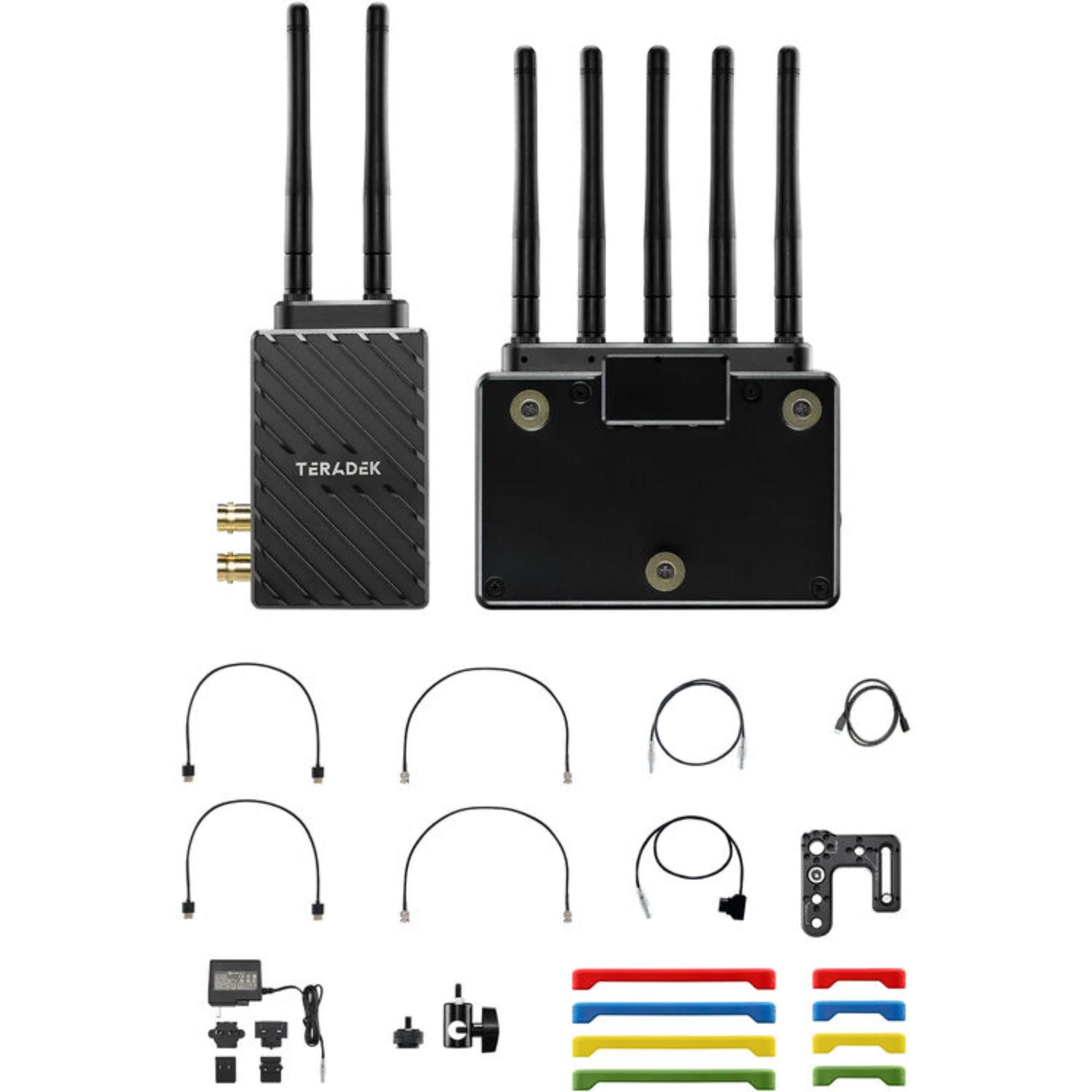

What’s In The Box

• 1 x Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter
• 1 x Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver with Gold Mount Plate
• 1 x 2-Pin to D-Tap Power Cable, 18 in
• 1 x USB 2.0 Type-A Male to Micro-USB Male Cable, 39 in
• 2 x HDMI Type-A Male-to-Male Cables, 18 in
• 2 x BNC SDI Cables, 10 in
• 1 x 2-Pin to 2-Pin Connector for ALEXA, 18 in
• 1 x AC Adapter with 6 ft Cable

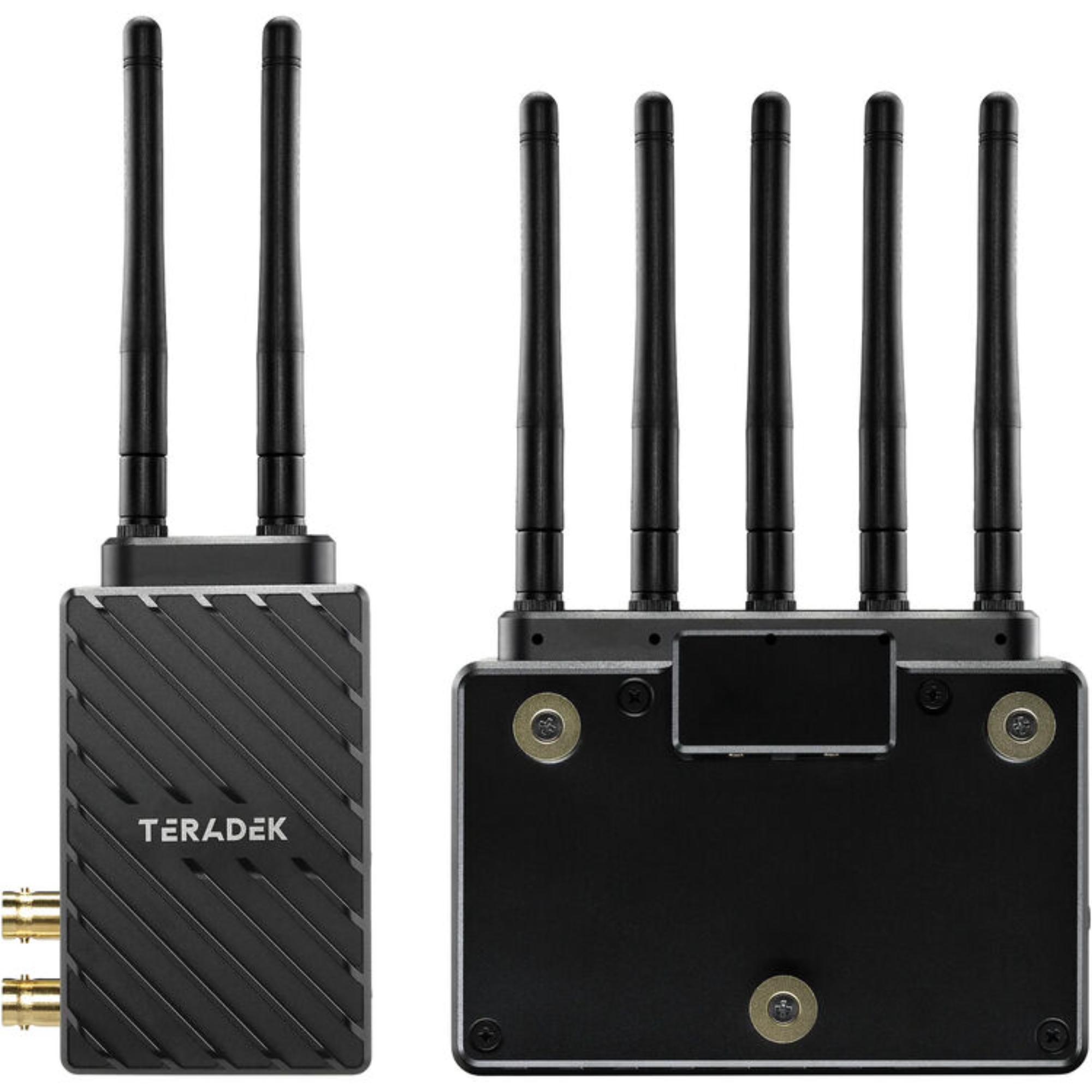

• 7 x Antennas
• 1 x 1/4"-20 Light Stand Adapter
• 1 x Shoe Adapter
• 2 x Screws
• 1 x Wooden Camera Offset Mount
