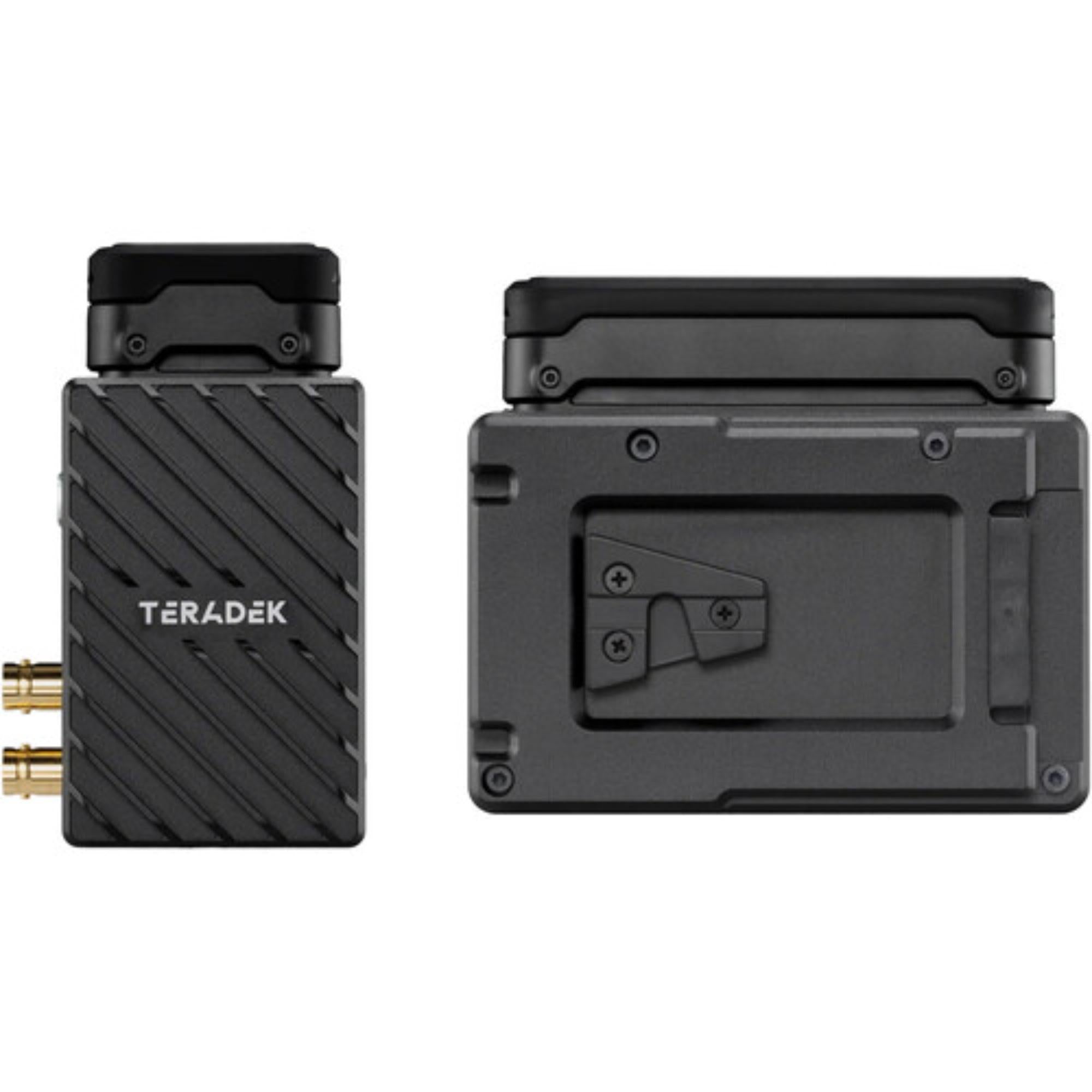

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas (V-Mount)

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas (V-Mount) is a compact wireless video system built for cinema, broadcast, live production, and on-set monitoring. Based on the supplied source, it carries uncompressed HD video over distances of up to 750 ft / 228.6 m under line-of-sight conditions.

Both units use internal antennas, keeping the package clean and easier to mount around a camera or monitoring station. The transmitter accepts HDMI or 3G-SDI video, while the V-Mount receiver provides corresponding outputs for a monitor, recorder, switcher, or video-assist setup.

Highlights

• Complete 3G-SDI/HDMI wireless system with transmitter and receiver
• Up to 750 ft line-of-sight transmission for studio and location work
• Supports the 6 GHz wireless band for compatible RF operation
• Internal antennas on both units for a compact, streamlined build
• V-Mount receiver configuration for professional monitor and video-village setups

Quick Specs & Uses

• Product type: Wireless video transmitter and receiver kit
• Primary workflows: Cinema production, broadcast, live events, video village, director monitoring, focus stations, and field production
• Maximum wireless range: 750 ft / 228.6 m, line of sight
• Maximum supported input resolution: Up to 4K30
• Video interfaces: HDMI and 3G-SDI
• Antenna design: Internal antennas on transmitter and receiver
• Wireless band support: 6 GHz
• Embedded audio: HDMI and SDI
• Timecode support: Yes
• Encryption: AES-256
• Input voltage: 6 to 28 VDC
• Receiver battery mount: V-Mount

Transmitter

The included Bolt 6 LT 750 transmitter is designed for camera-side placement. Its internal antenna layout reduces the number of exposed components around the rig, which can be useful on handheld cameras, gimbals, cages, and other compact builds.

• Video input: HDMI and 3G-SDI
• Embedded HDMI audio: 2-channel
• Embedded SDI audio: Supported
• Timecode support: Yes
• Encryption: 256-bit AES
• Input power: 6 to 28 VDC
• Antenna configuration: Internal

Receiver

The receiver combines internal antennas with a V-Mount battery plate, making it practical for mounting behind a professional monitor. This keeps the receiver and battery together as one manageable unit at video village, a focus station, or a mobile monitoring position.

• Video output: HDMI and 3G-SDI
• Embedded HDMI audio: 2-channel
• Embedded SDI audio: 2-channel
• Timecode support: Yes
• Encryption: 256-bit AES
• Input power: 6 to 28 VDC
• Battery plate: V-Mount
• Antenna configuration: Internal

Why It Helps

Internal antennas make the system easier to handle in tight production environments. There are no external antennas projecting from the transmitter or receiver, helping reduce the chance of snagging surrounding cables, camera accessories, or soft cases during setup and transport.

The listed 750 ft line-of-sight range provides useful working distance for stages, event spaces, interview sets, location productions, and mobile camera positions. The camera can move independently while the monitoring station remains connected without a long SDI or HDMI run.

HDMI and 3G-SDI connectivity allow the kit to work with a wider range of professional and compact camera systems. The same receiver can then feed a production monitor, recorder, or switching system through the connection that best fits the existing signal chain.

The receiver’s V-Mount plate also supports a familiar battery workflow for broadcast and cinema crews. It can be powered from the same battery ecosystem commonly used with professional cameras and monitors.

Video, Audio & Security

• HDMI and 3G-SDI signal support
• Embedded HDMI audio for two-channel program sound
• Embedded SDI audio support
• Timecode transmission for compatible production workflows
• AES-256 encryption for protected wireless delivery

Power & Operating Conditions

• Transmitter input power: 6 to 28 VDC
• Receiver input power: 6 to 28 VDC
• Receiver battery system: V-Mount
• Operating conditions: 32 to 72°F / 0 to 40°C, as listed in the supplied source

System Characteristics

• 750 ft line-of-sight wireless operation
• Internal antennas for a cleaner camera and monitor build
• 6 GHz wireless support for compatible regional operation
• HDMI and 3G-SDI connectivity for mixed production environments
• Up to 4K30 input support
• V-Mount receiver plate for professional battery integration
• Timecode and AES-256 encryption for production use

What’s In The Box

• 1 x Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas
• 1 x 2-Pin to D-Tap Power Cable, 18 in
• 1 x 2-Pin to AC Adapter Cable, 6 ft
• 1 x Ultrathin HDMI Male-to-Male Cable, 18 in
• 1 x BNC SDI Cable, 10 in
• 1 x USB-C Male-to-Male Cable, 3.3 ft
• 1 x Limited One-Year Manufacturer Warranty for Transmitter
• 1 x Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas (V-Mount)
• 1 x V-Mount Battery Plate
• 1 x 2-Pin to D-Tap Power Cable, 18 in
• 1 x 2-Pin to AC Adapter Cable, 6 ft
• 1 x Ultrathin HDMI Male-to-Male Cable, 18 in
• 1 x BNC SDI Cable, 10 in
• 1 x USB-C Male-to-Male Cable, 3.3 ft
• 1 x Limited One-Year Manufacturer Warranty for Receiver
• 1 x Light Stand Adapter, 1/4"-20
• 1 x Hot Shoe Adapter
