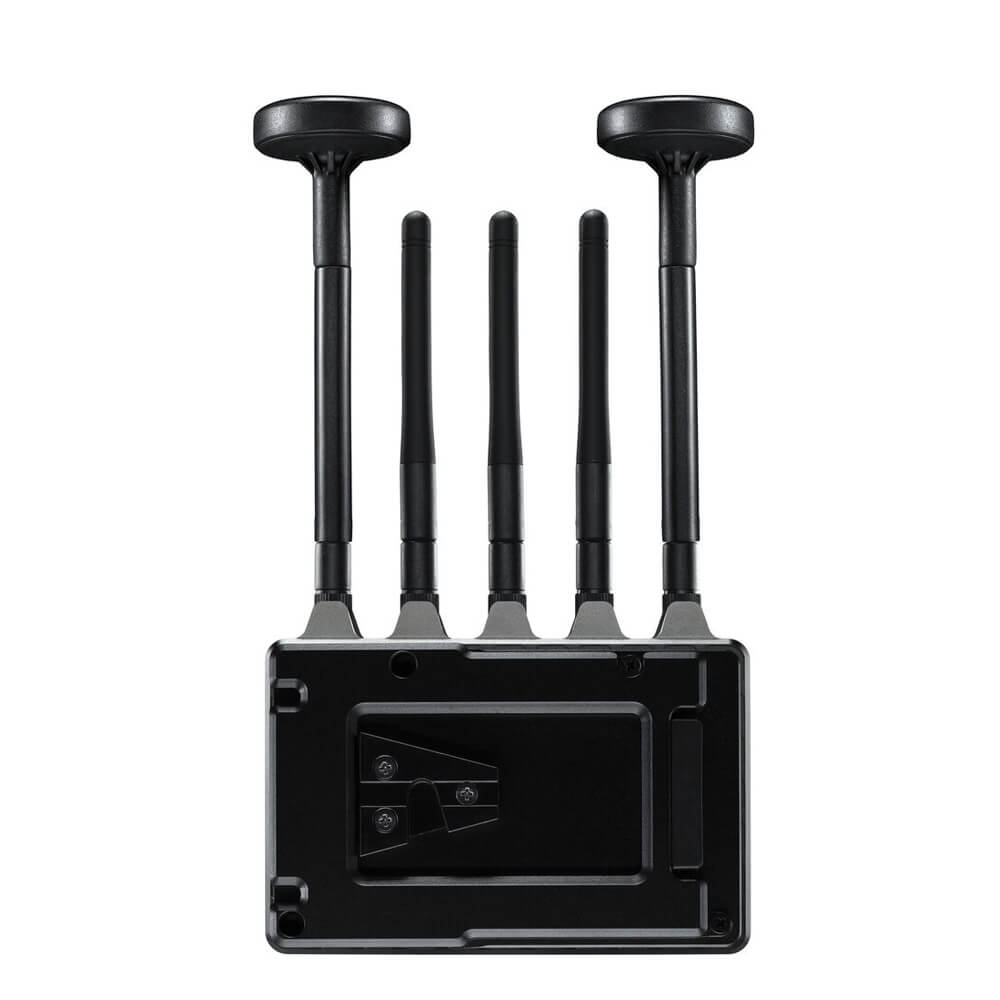

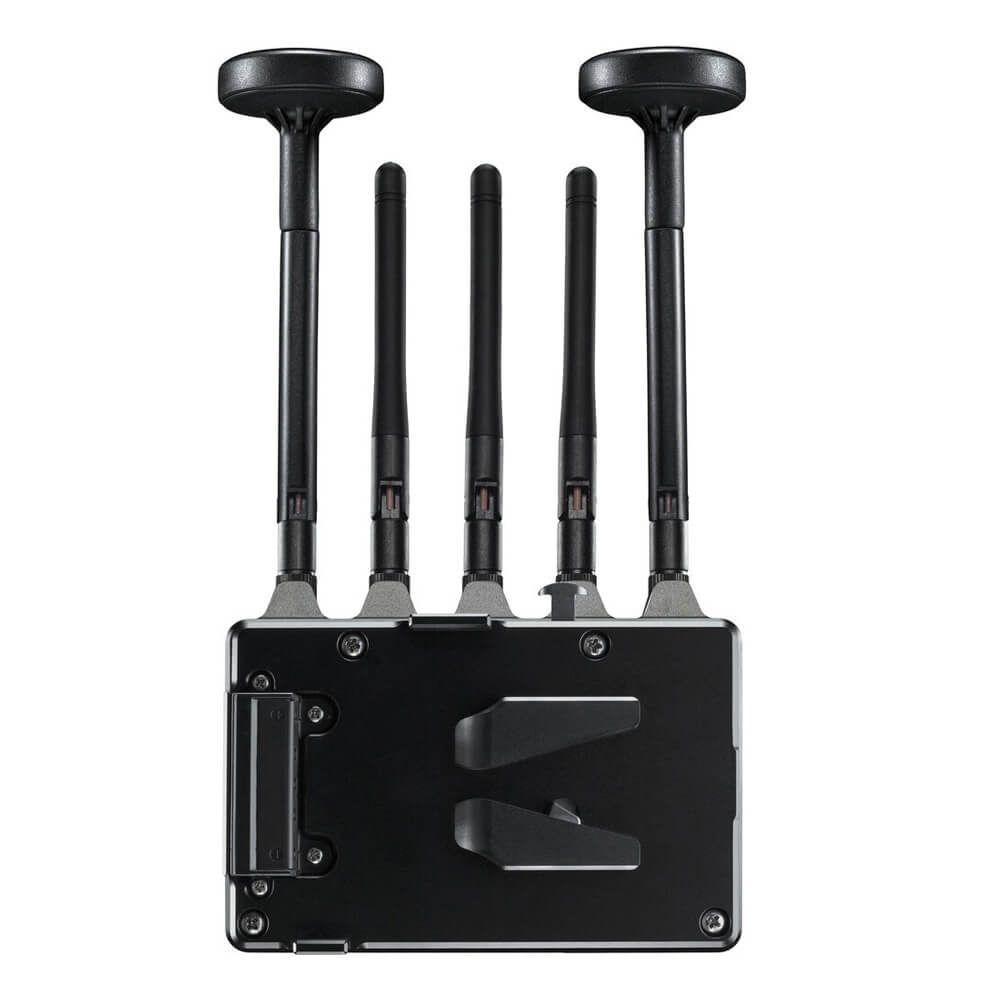

Teradek Bolt 4K LT MAX 3G-SDI/HDMI Wireless Receiver- V-Mount
- SKU:
- TER-10-2222-V
- MPN:
- 10-2222-V
Unavailable
This item is no longer available
0
Recommended Products
Description
Product Overview
| In the box | Teradek Bolt 4K LT MAX 3G-SDI/HDMI Wireless Receiver (V-Mount) 2-Pin to D-Tap Power Cable (18") BNC Cable (10") Micro-USB to USB Type-A Cable (36") Ultra-Thin HDMI Type A Cable (18") 18W AC Adapter Cable with 2-Pin Connector (6') 5 x Antenna V-Mount Battery Plate Limited 1-Year Warranty |
| Video Interface | |
| Antenna Ports | 5 x RP-SMA Female |
| Video | 1 x HDMI Type A (3G-SDI) Output 1 x BNC (3G-SDI) Output |
| Embedded Audio | SDI: 2-Channel HDMI: 2-Channel |
| Audio | None |
| Power | 1 x 2-Pin LEMO (28 VDC) Input |
| Other I/O | 1 x Micro-USB Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 5000' / 1524 m (Line-of-Sight) 3000' / 914.4 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | None |
| RF Power | 17 dBm |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 |
| Video Standard Compliance | SMPTE 424M |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 28 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 11 W |
| Physical | |
| Mounting | 1 x 1/4"-20 Female 1 x 3/8"-16 Female |
| Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C |
| Material of Construction | Aluminum, Plastic |
| Dimensions | 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm |
| Weight | 10.3 oz / 292 g |
