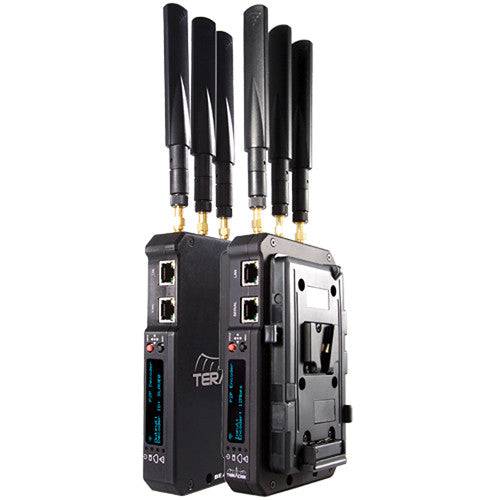

Teradek BEAM TX (V) + RX (V)

BEAM TX (AB) + RX (AB) from Teradek system can transmit up to 1080p60 video along with the audio for up to 2500 ft by using the free of charge license 5GHz frequency, besides the latency is just 70ms-80ms. This concludes that the results outcome is around 2 frames. This set adds one transmitter with a 3G-SDI input plus loop output and one receiver with a 3G-SDI output, moreover the gold mount battery plates are combined with every unit. Both units have RJ45 ports holding wired LAN transfer and bidirectional serial control. This transmitter appears with a Gold-mount male plate on one side and female on the another side in form like a sandwich between the camera and battery.

The BEAM TX (AB) + RX (AB) video is encoded in the H.264 codec and operated at 30 Mbps across the 5GHz band and 50 Mbps over a LAN. The system receives RTSP streaming and includes an MPEG-TS streaming permission that the users can change over to via the OLED menu display. Both units also offer 1/4"-20 mounting on the downs below the foundation of the product. The transmitter aided with a multicast in each 5GHz and LAN modes and can carry up to four receivers synchronized. Both the transmitter and receiver also maintain mic inputs and headphone outputs enabling two-way communication.
