Teradek BEAM TX (AB) + RX (AB)

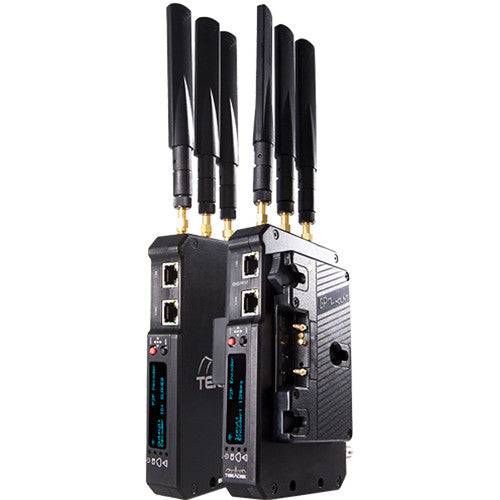

BEAM TX (AB) + RX (AB) from Teradek can transmit up to 1080p60 video among with the audio for up to 2500 ft by using the license-free 5GHz frequency, besides the latency is barely 70ms-80ms. This concludes that the results outcome are nearly 2 frames. This set adds one transmitter with a 3G-SDI input plus loop output and one receiver with a 3G-SDI output, moreover the gold mount battery plates are combined with every unit. Both units have RJ45 ports holding wired LAN transfer and bidirectional serial control. This transmitter appears with a Gold-mount male plate on one side and female on the another side in form like a sandwich between the camera and battery.

The BEAM TX (AB) + RX (AB) video output is encoded in the H.264 codec and performed at 30 Mbps across the 5GHz band and 50 Mbps over a LAN. The system accepts RTSP streaming and includes an MPEG-TS streaming license that the users can change over to via the OLED menu display. Both units also offer 1/4"-20 mounting threads on the bottom.The transmitter facilitated with a multicast in each 5GHz and LAN modes, and can support up to four receivers synchronized. Both the transmitter and receiver also emphasize mic inputs and headphone outputs enabling two-way communication.
