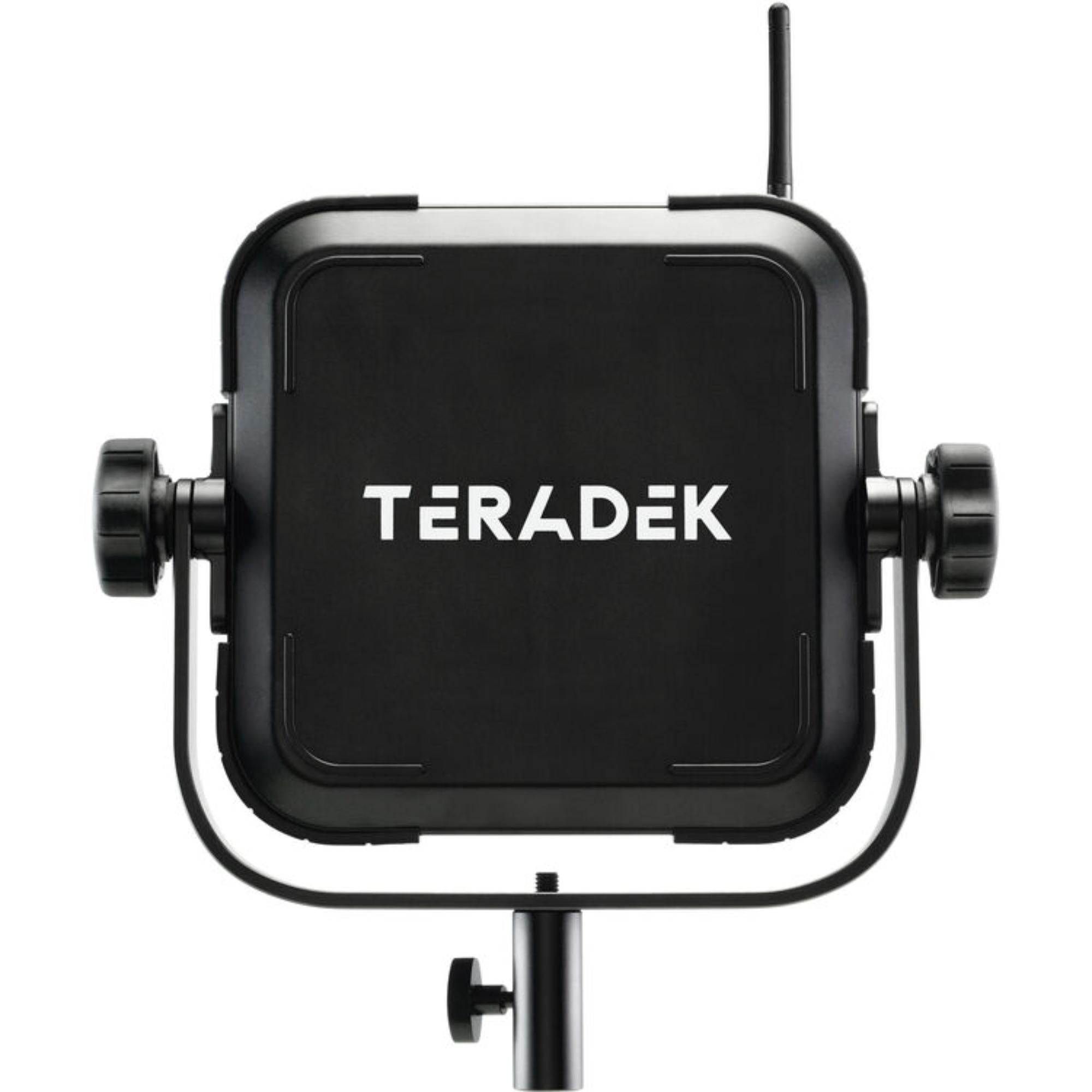

Teradek Antenna Array for Bolt 4K 4.9-7.3 GHz (V-Mount)

Teradek Antenna Array for Bolt 4K 4.9-7.3 GHz (V-Mount) is a directional antenna system for Bolt 4K wireless video workflows. From the supplied source, it uses a log-periodic dipole array to concentrate the receive direction and help maintain a stronger signal in difficult RF environments.

The array is designed for Bolt 4K systems and is listed for operation across the 4.9 to 7.3 GHz range. In practical production use, it gives the receiver a more focused antenna setup for long-distance links, especially when the camera path is known and the receive position can be aimed toward it.

Highlights

• Directional antenna array for Teradek Bolt 4K systems
• Log-periodic dipole design for focused signal reception
• Supports the 4.9 to 7.3 GHz frequency range
• Helps reduce interference in challenging RF conditions
• V-Mount configuration with included RP-SMA antenna cables

Quick Specs & Uses

• Product type: Directional wireless video antenna array
• Primary workflows: Long-range production monitoring, broadcast, live events, sports, exterior locations, and remote camera links
• Compatible system: Teradek Bolt 4K
• Antenna type: Log-periodic dipole array
• Frequency range: 4.9 to 7.3 GHz
• Maximum listed distance: Up to 5,000 ft
• Battery mount: V-Mount
• Included antenna cables: 5 x 3.9 in RP-SMA male-to-male cables
• Included standard antenna: 2 dBi Wi-Fi antenna for 2.4/5.8 GHz

Why It Helps

Long-range wireless video links often become less predictable when the production is working around crowds, buildings, lighting systems, or other active RF equipment. A directional array helps by concentrating reception toward the transmitter instead of listening equally in every direction.

That focused pattern can improve signal stability when the camera path is known, such as a sports position, vehicle route, stage entrance, or remote camera location. It can also reduce the amount of unwanted RF energy reaching the receiver from the sides or rear of the array.

The listed 5,000 ft capability makes the array relevant for larger production environments, but placement and aiming still matter. For the best result, the receive position should have a clear path toward the Bolt 4K transmitter and the array should remain pointed along the expected camera route.

System Characteristics

• Directional receive pattern for focused wireless video links
• Log-periodic dipole construction for wideband operation
• 4.9 to 7.3 GHz support for Bolt 4K frequency coverage
• Interference reduction through more selective antenna aiming
• Long-range system support for links listed up to 5,000 ft
• V-Mount integration for established production battery workflows
• Five RP-SMA antenna connections through the included short cables

What’s In The Box

• 1 x Teradek Antenna Array for Bolt 4K 4.9-7.3 GHz (V-Mount)
• 5 x 3.9 in Antenna Cables, RP-SMA Male to Male
• 1 x Standard 2 dBi Wi-Fi Antenna for 2.4/5.8 GHz
