Teradek Ace 750 Wireless Video Transmitter

Teradek Ace 750 Wireless Video Transmitter is a compact HDMI wireless transmitter designed for cinema, live production, corporate video, and field monitoring. Based on the supplied source, it can send visually lossless, uncompressed video from a camera to compatible receivers at distances of up to 750 ft under line-of-sight conditions.

The transmitter accepts HDMI video up to 4K30 HDR and operates with less than 1 ms of latency. It can feed as many as six compatible receivers or devices, giving directors, camera assistants, clients, and other crew members access to the same live camera signal.

Highlights

• Compact HDMI wireless video transmitter for professional monitoring
• Transmits video up to 750 ft line of sight
• Supports visually lossless 4K30 HDR video
• Less than 1 ms latency for responsive live viewing
• Supports up to six compatible receivers or devices

Quick Specs & Uses

• Product type: HDMI wireless video transmitter
• Primary workflows: Camera monitoring, video village, director viewing, client monitoring, gimbal work, and field production
• Video input: HDMI
• Maximum video format: Up to 4K30 HDR
• Wireless video: Visually lossless and uncompressed
• Maximum wireless range: Up to 750 ft, line of sight
• Maximum receiving devices: Up to six
• Latency: Less than 1 ms
• Embedded audio: HDMI 2-channel
• Timecode support: Yes
• Encryption: 256-bit AES
• Wireless bands: 5 GHz and 6 GHz support
• Compatibility: Ace 750 receivers and selected Bolt 4K and Bolt 6 units
• Additional compatibility: SmallHD monitors
• Input voltage: 7 to 18 VDC
• Operating temperature: 32 to 104°F / 0 to 40°C

Why It Helps

Ace 750 gives the camera team a practical way to send a high-quality HDMI feed without tethering the camera to the monitoring position. This is useful for handheld cameras, gimbals, sliders, and other setups where a long cable would restrict movement or create a trip hazard.

The listed 750 ft line-of-sight range is well suited to stages, interview sets, corporate productions, event spaces, and location shoots. It provides enough reach to move the monitoring station away from the camera while keeping the system smaller than a long-range broadcast link.

Less than 1 ms of latency keeps the image responsive for camera operation, directing, and general production monitoring. The feed remains close enough to real time for crew members who need to react quickly to framing, focus, or action on set.

Support for up to six receivers or compatible devices also makes the transmitter useful when several departments need the same camera feed. One transmission path can serve multiple monitoring positions without requiring a separate cable run for each viewer.

Wireless Monitoring

• 750 ft line-of-sight transmission for studio and location production
• 5 and 6 GHz frequency support for compatible wireless operation
• Visually lossless, uncompressed delivery for production viewing
• Less than 1 ms latency for responsive monitoring
• One-to-six transmission support for multi-viewer workflows

Video, Audio & Security

• Maximum input format: 4K30 HDR
• Video connection: HDMI input
• Embedded audio: 2-channel over HDMI
• Timecode support: Yes
• Encryption: 256-bit AES

System Compatibility

• Teradek Ace 750 receivers
• Selected Teradek Bolt 4K units
• Selected Teradek Bolt 6 units
• Compatible SmallHD monitors

Power & Operating Conditions

• Input power: 7 to 18 VDC
• Operating temperature: 32 to 104°F / 0 to 40°C

System Characteristics

• Compact camera-side transmitter for mobile production rigs
• 4K30 HDR support for high-resolution monitoring
• Sub-1 ms latency for live production use
• 5 and 6 GHz wireless support
• AES-256 encryption for protected video transmission
• Timecode support for compatible production workflows
• Up to six receiving devices for shared monitoring

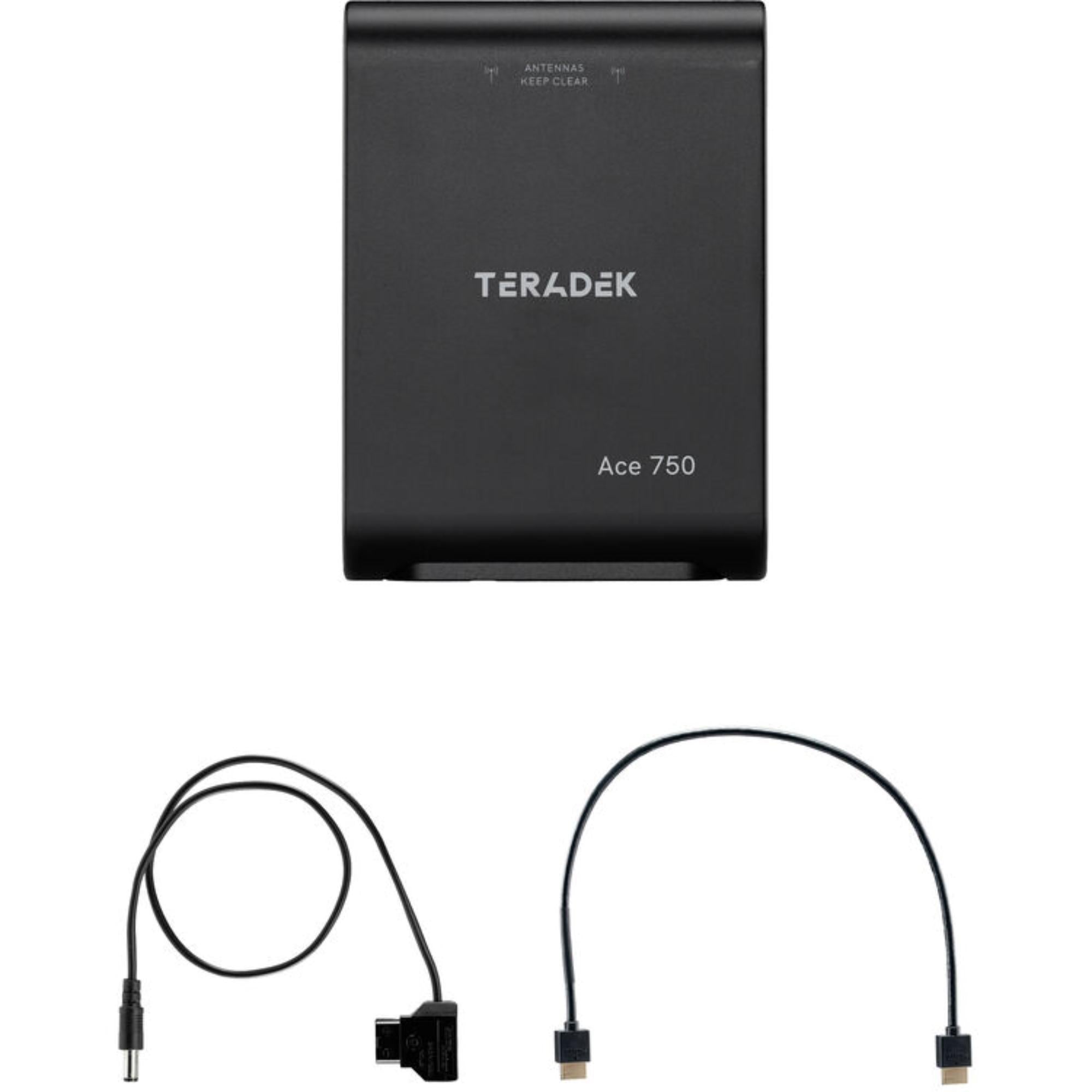

What’s In The Box

• 1 x Teradek Ace 750 Wireless Video Transmitter
• 1 x Shoe Adapter
• 1 x Ultrathin HDMI Cable, 18 in
• 1 x D-Tap to Barrel Cable, 18 in
