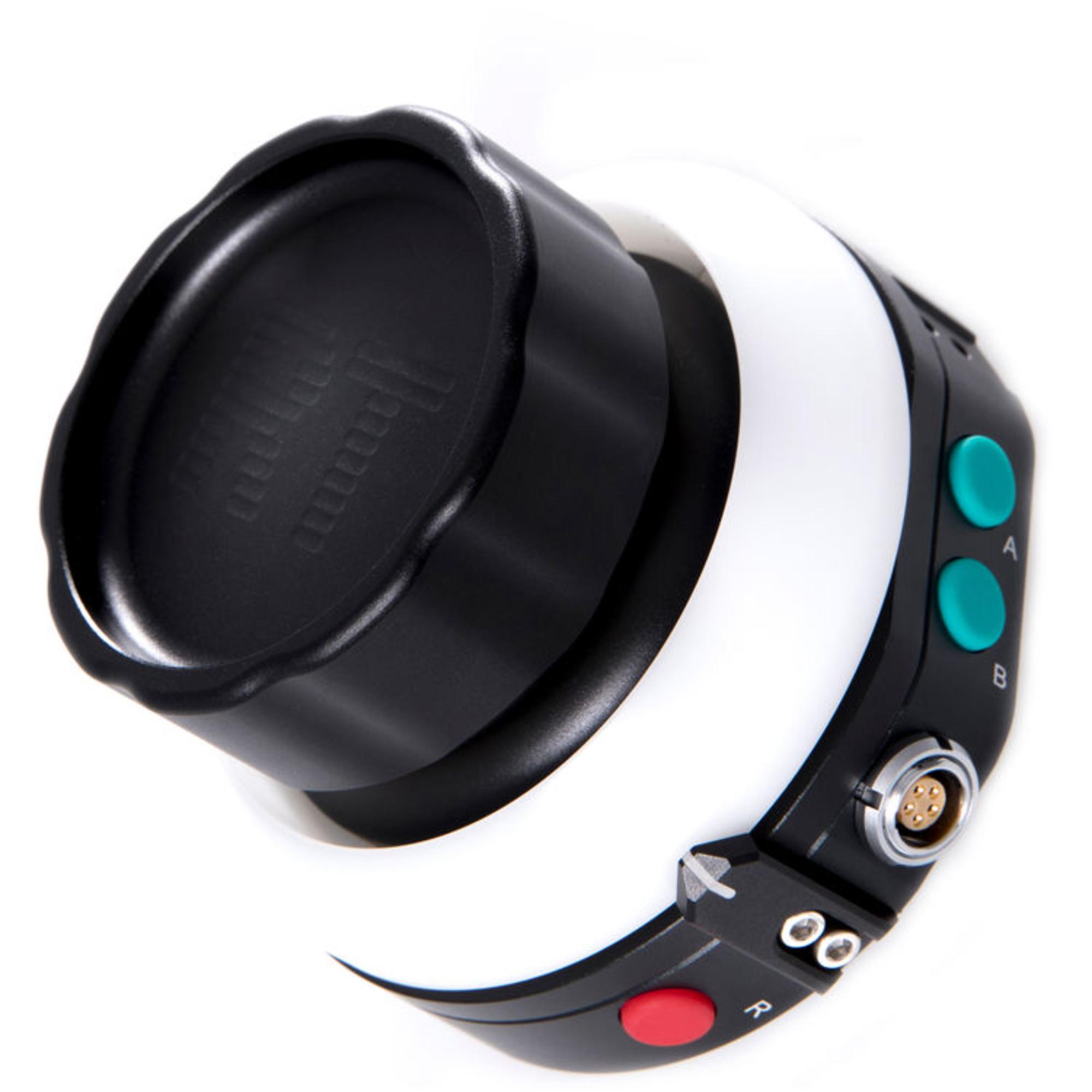

Teradek RT Smartknob Wired Smart Controller

Teradek RT Smartknob Wired Smart Controller is a wired single-axis lens controller for off-camera focus or iris operation. From the supplied source, it works with MK3.1 receivers, Latitude lens controllers, RT lens motors, and compatible RED camera MDR systems.

The controller uses a main Smartknob for lens movement and includes a marking disk for visual reference. Six customizable buttons sit around the body, giving the operator quick access to functions such as control changes, recording start/stop, and other assigned commands.

Highlights

• Wired single-axis lens controller for focus or iris operation
• Compatible with MK3.1, Latitude, RT lens motors, and RED MDR workflows

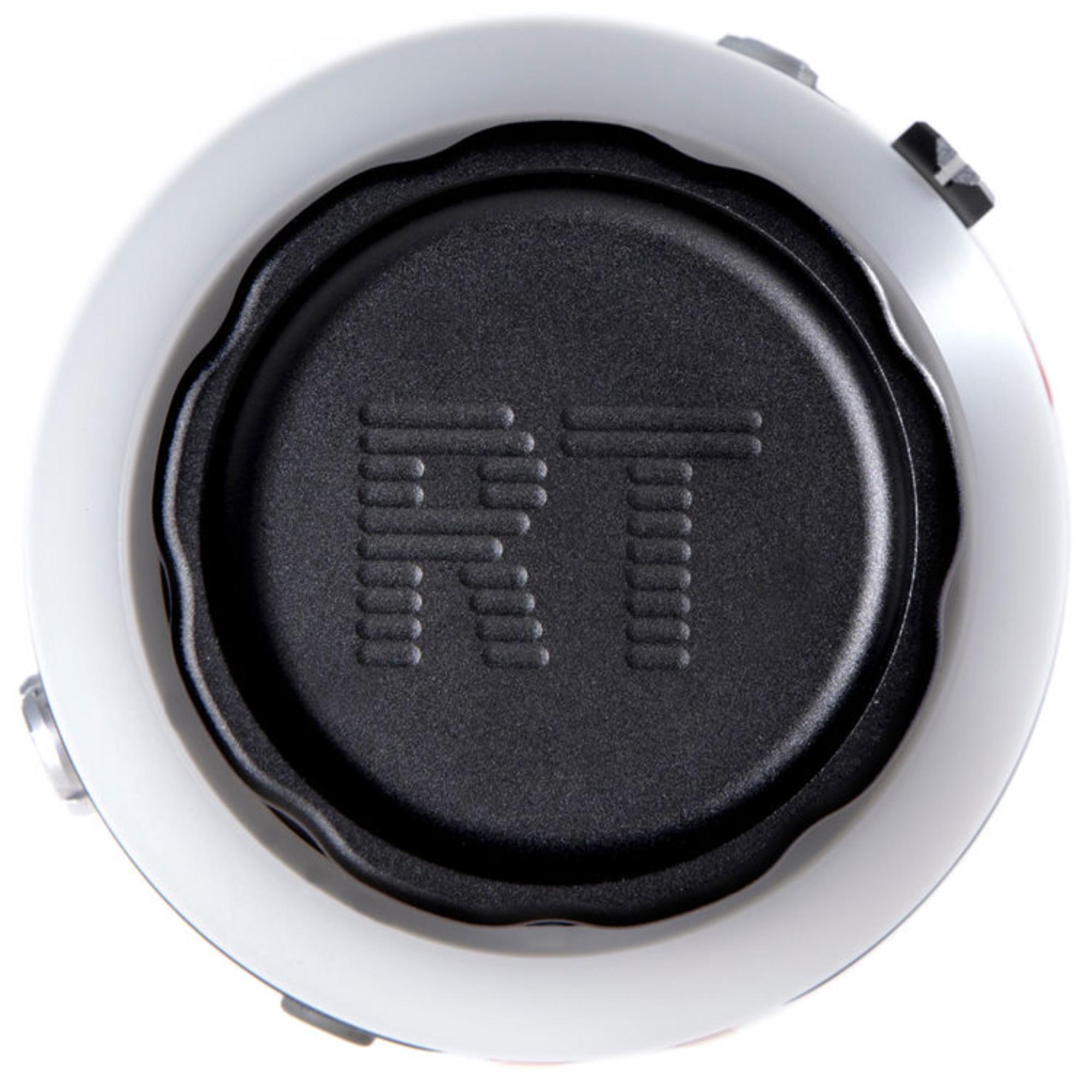

• Main Smartknob with marking disk for repeatable lens adjustments

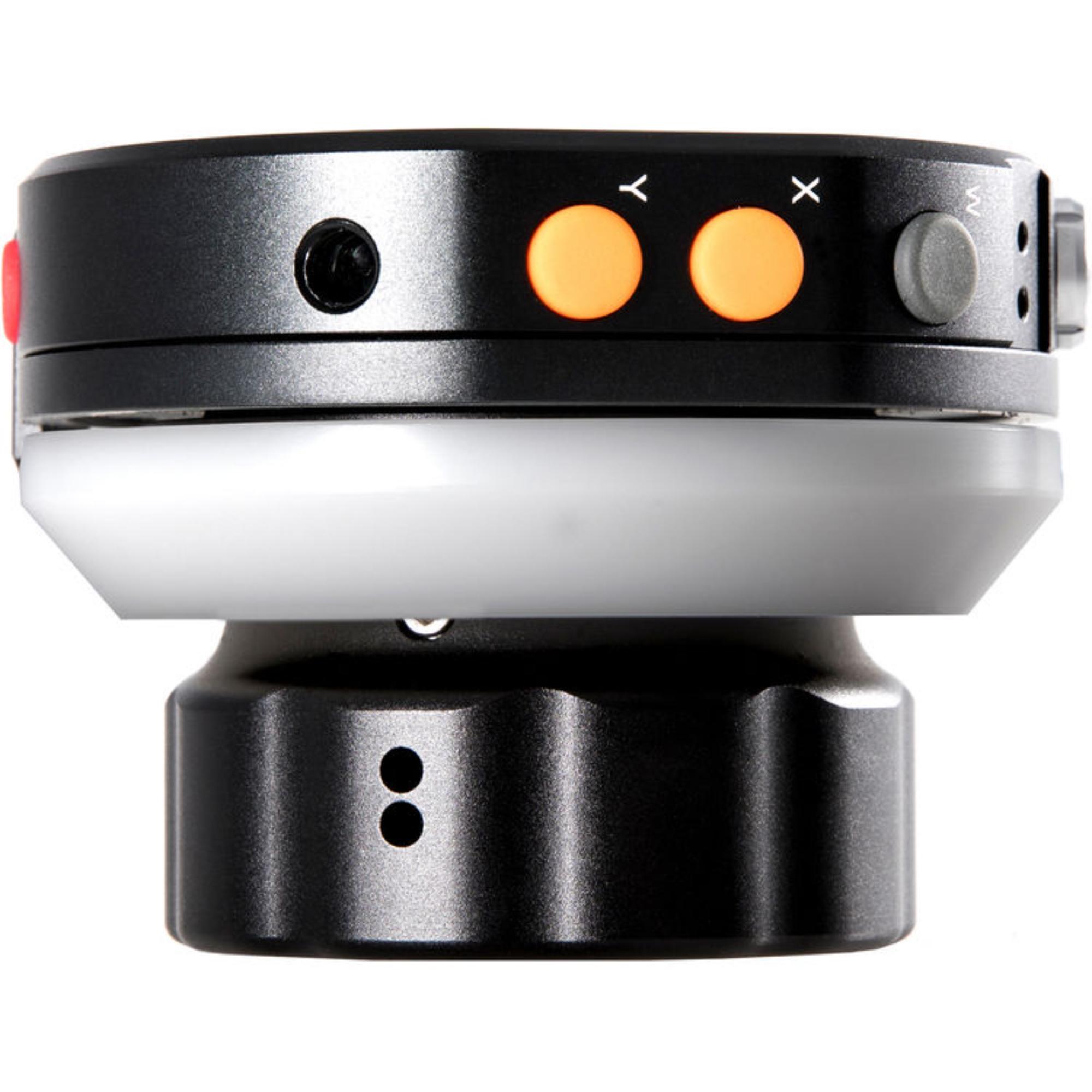

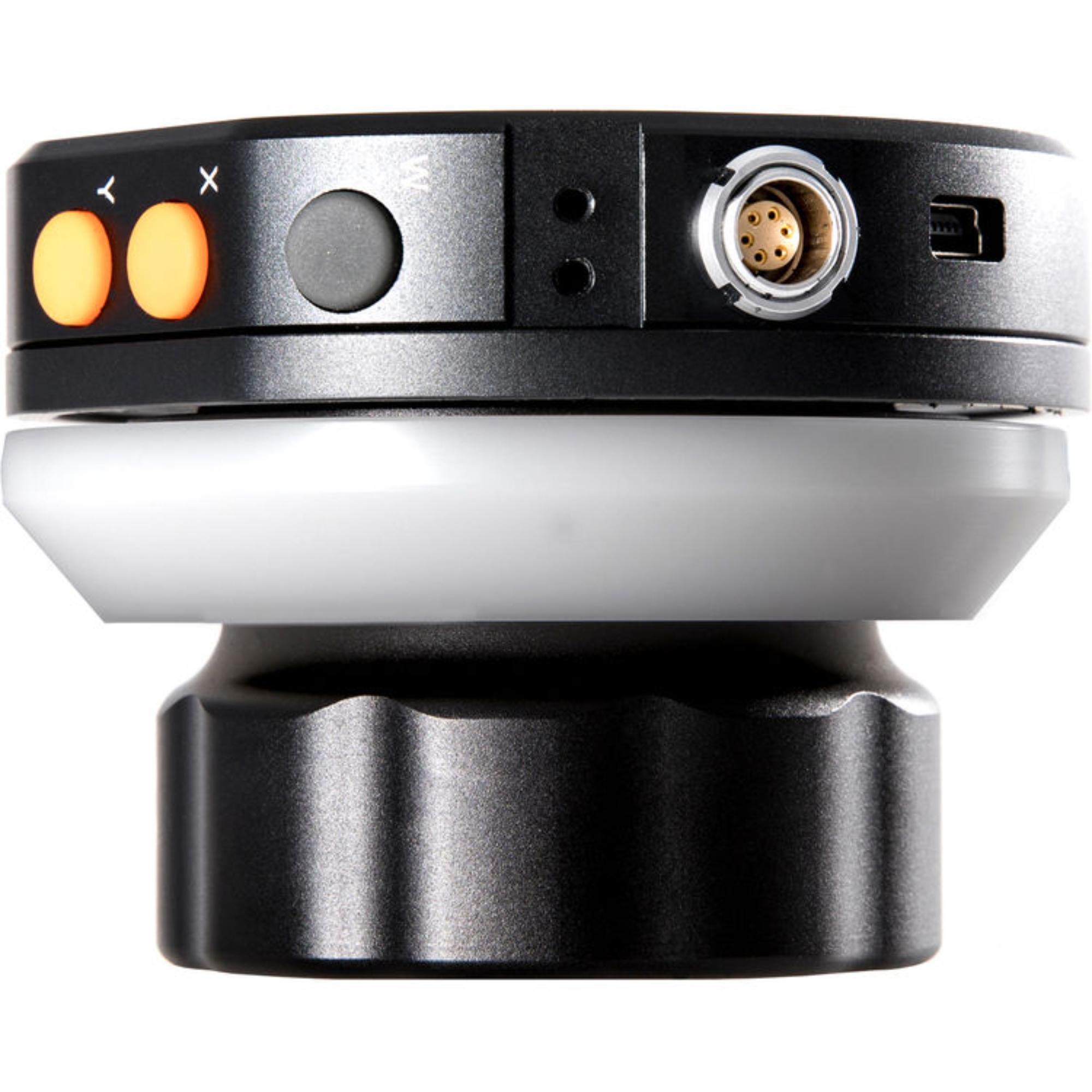

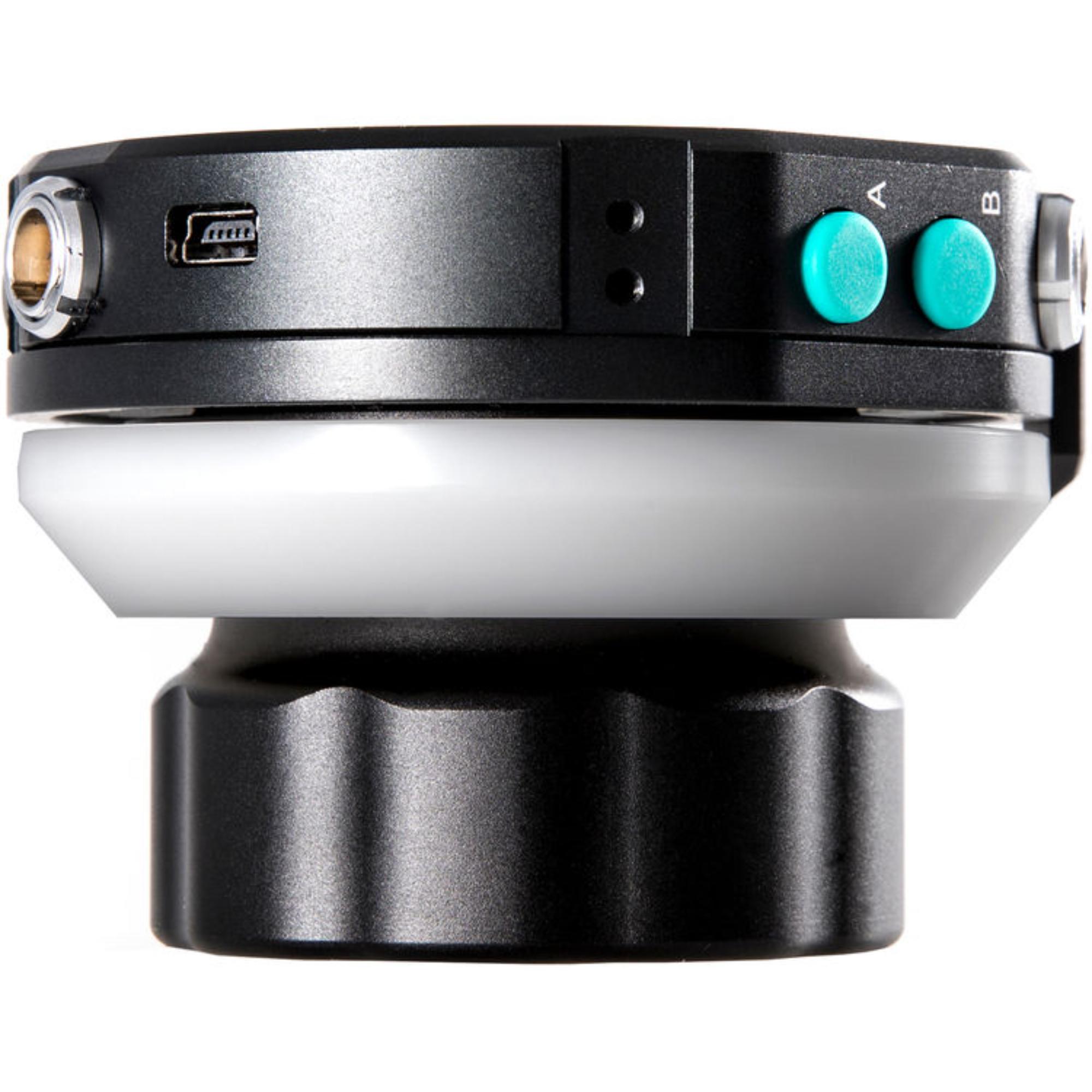

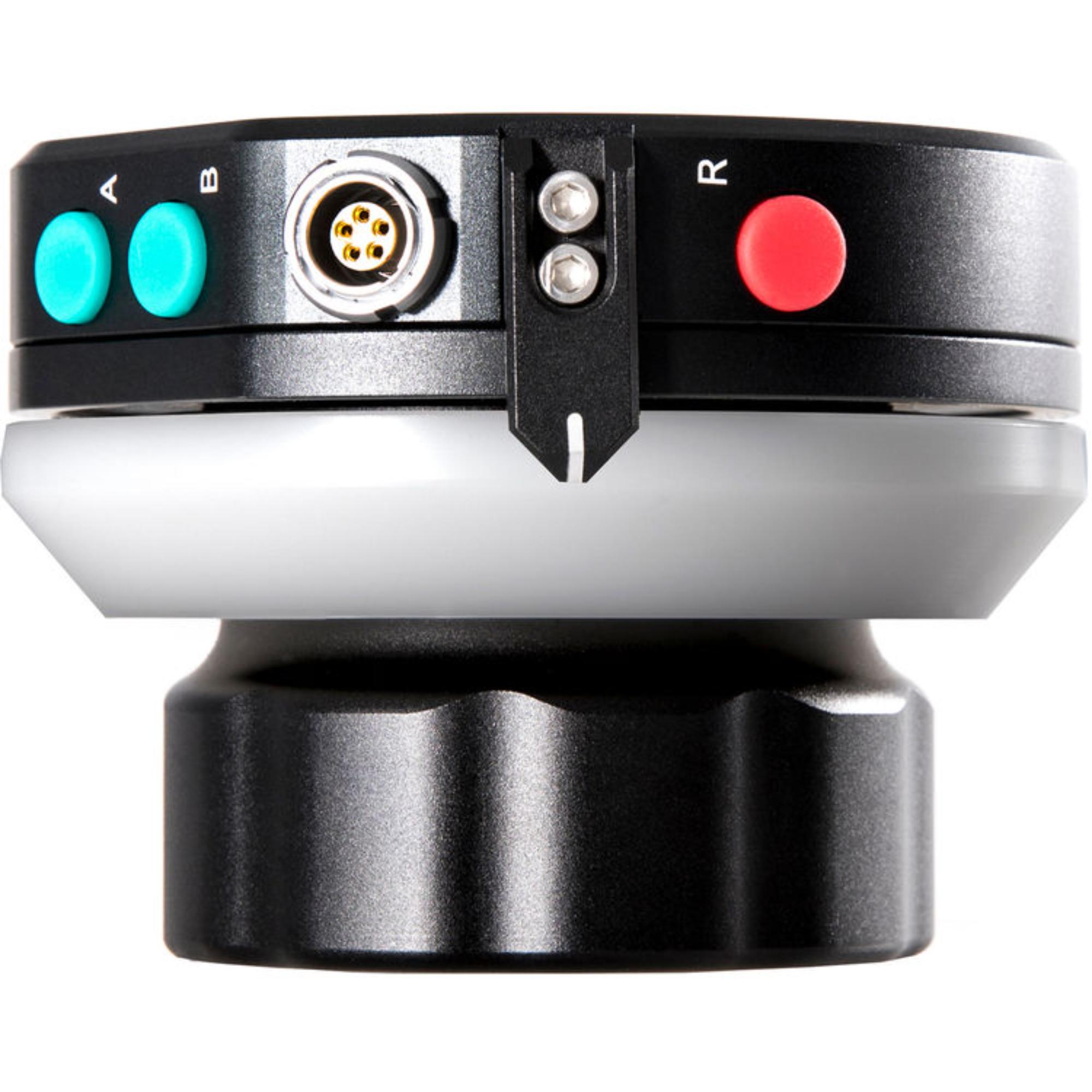

• Six customizable buttons for control and recording functions

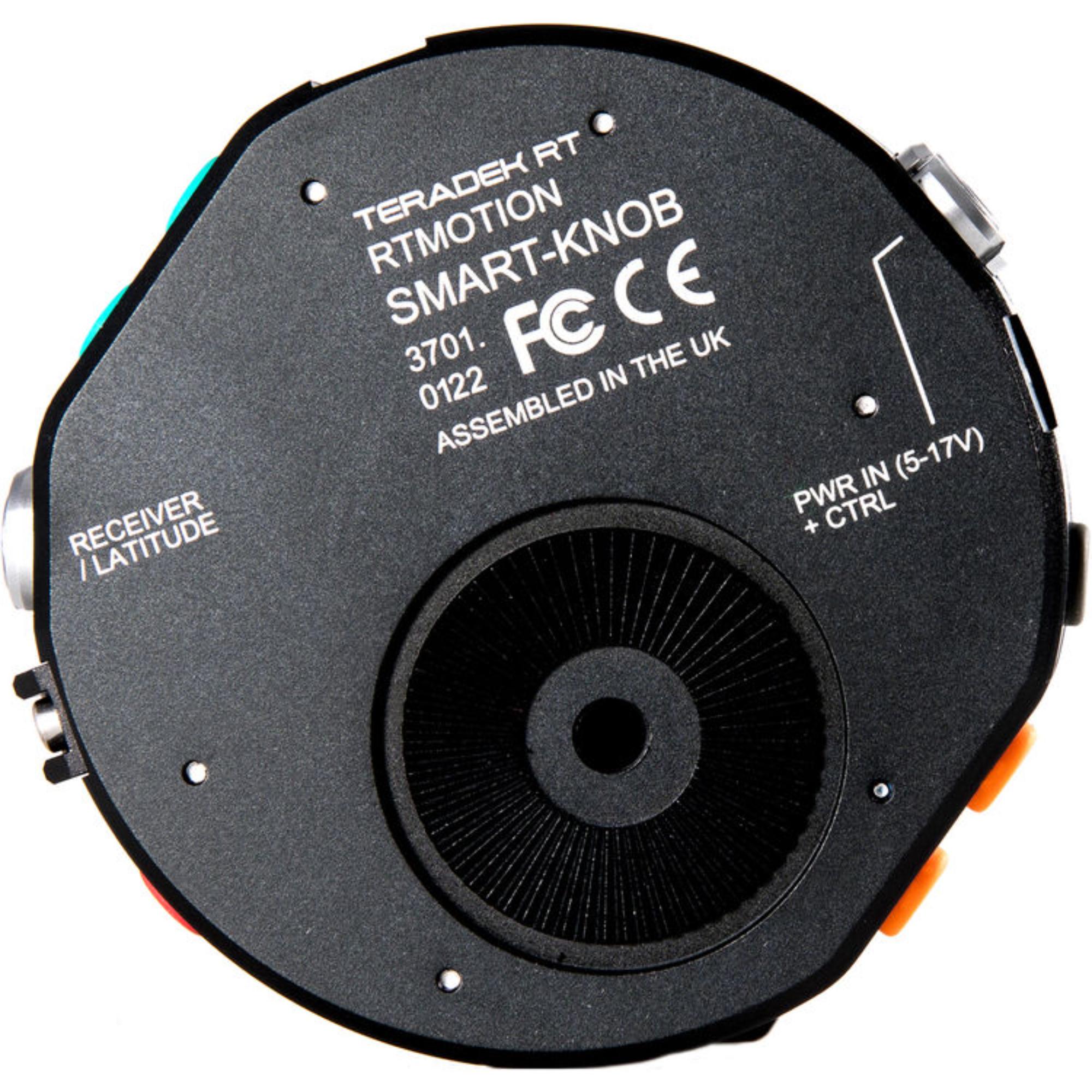

• 1/4"-20 mounting threads for clamps, arms, and off-camera placement

Quick Specs & Uses

• Product type: Wired smart lens controller
• Control type: Single-axis
• Supported functions: Focus or iris control
• Compatible systems: Teradek MK3.1 receiver, Latitude lens controller, RT lens motors, and RED camera MDR setups
• Main control: Smartknob
• Lens-limit function: Set and reset lens limits
• Custom controls: Six customizable buttons
• Button functions: Control-mode changes, recording start/stop, and other assigned actions
• Marking reference: Illuminated marking disk
• Mounting: 1/4"-20 mounting threads
• Primary uses: Focus pulling, iris control, off-camera lens operation, studio rigs, camera carts, and remote operator stations

Why It Helps

An off-camera lens controller gives the operator more freedom when the camera body is difficult to reach or when the control position needs to stay separate from the rig. The Smartknob can be mounted to a clamp or articulating arm and placed wherever it is most comfortable to operate.

The main knob provides direct control over one lens axis, while the marking disk gives the operator a clear place to note positions for repeatable moves. Its backlit design also helps keep those marks readable when the production is working in a dark studio, stage, or nighttime location.

The six customizable buttons reduce the need to reach for another controller during operation. Depending on the setup, they can change the unit’s function, trigger recording start/stop, or handle other assigned commands from the same control position.

Support for lens limits is useful when the operator needs to confine motor travel to a defined section of the focus or iris range. That can make short, repeatable moves easier to manage and helps prevent unnecessary movement beyond the required lens positions.

System Characteristics

• Single-axis wired operation for precise focus or iris control
• Off-camera mounting flexibility through 1/4"-20 threads
• Smartknob control surface for direct lens adjustment
• Settable lens limits for controlled motor travel
• Six programmable buttons for workflow-specific commands
• Backlit marking disk for low-light readability
• Compatibility across Teradek RT and RED MDR systems

What’s In The Box

• 1 x Teradek RT Smartknob Wired Smart Controller
• 1 x Y Cable
• 1 x Marking Disk
• 1 x USB Cable
