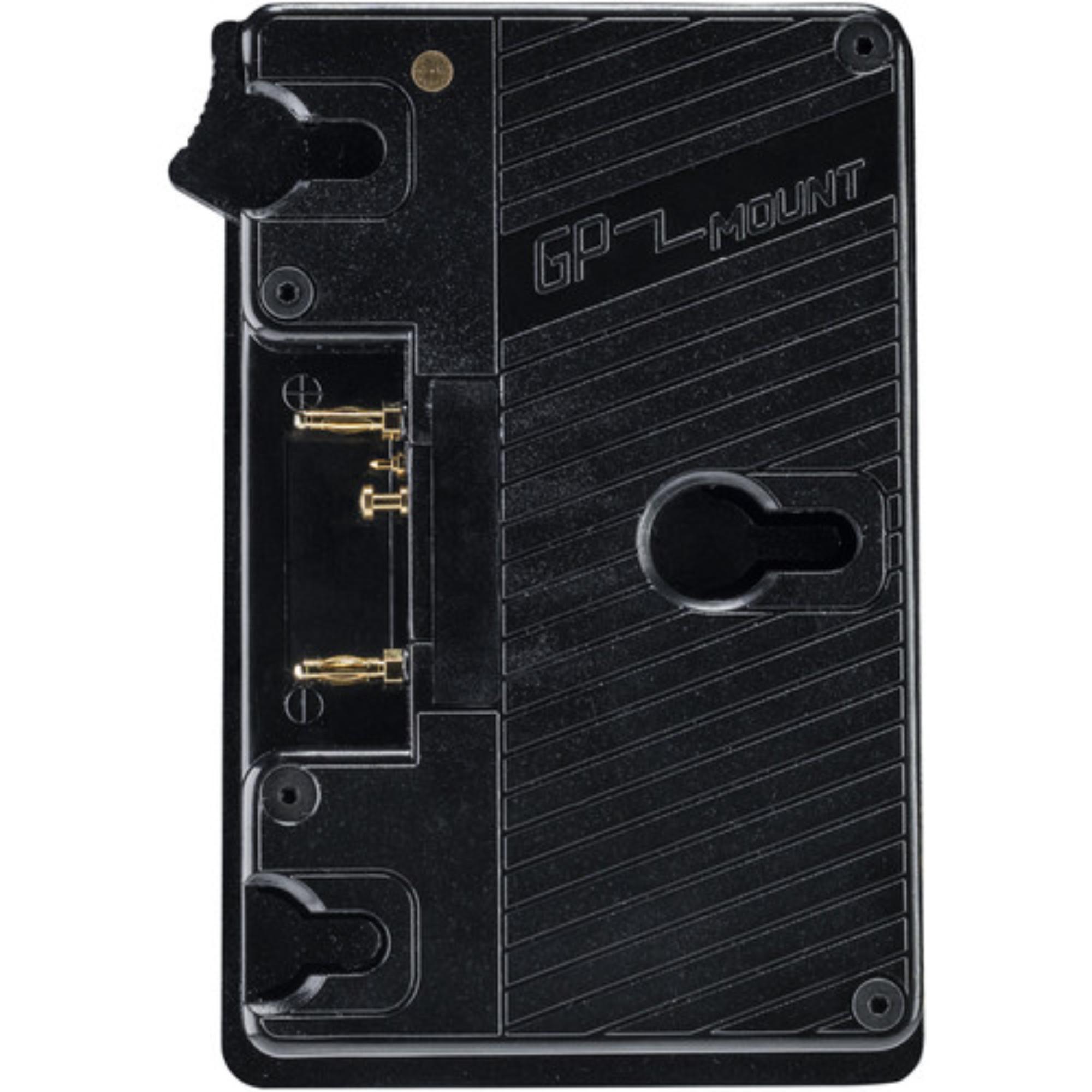

Teradek Bolt 1000 LT and 500 XT RX Battery Plate (Gold Mount)

Teradek Bolt 1000 LT and 500 XT RX Battery Plate (Gold Mount) is a receiver-side power plate for compatible Teradek wireless video systems. From the supplied source, it supports Bolt 1000 LT receivers, Bolt 500 XT receivers, and the Bolt XT Sidekick.

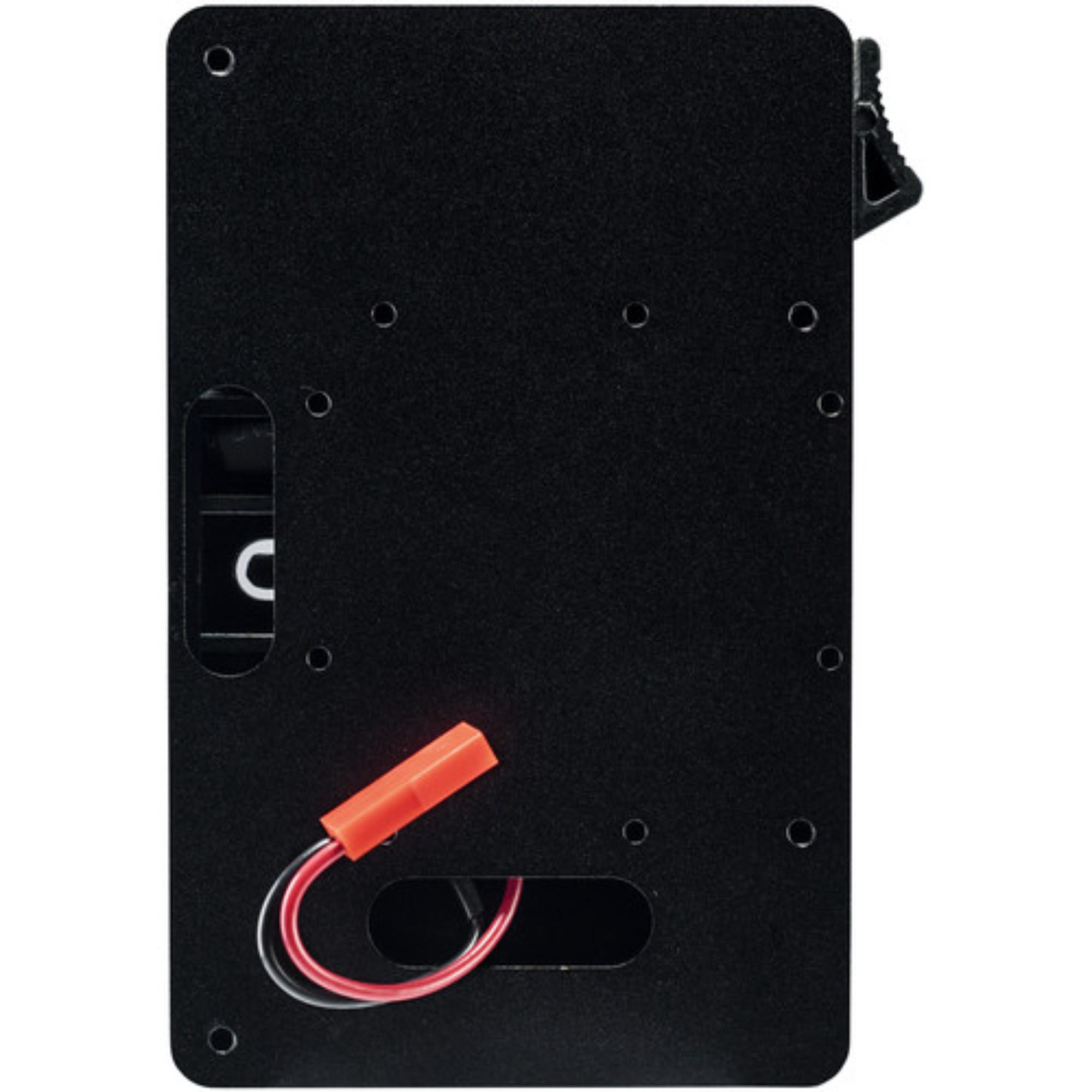

The plate mounts directly to the receiver and uses a JST connection to feed power internally. That keeps the power path contained inside the build instead of relying on an exposed external cable, while the two D-Tap outputs remain available for compatible accessories.

Highlights

• Gold Mount receiver battery plate for compatible Teradek Bolt systems
• Supports Bolt 1000 LT, Bolt 500 XT, and Bolt XT Sidekick receivers
• Internal JST power connection for a cleaner receiver build
• Two D-Tap accessory outputs for additional production equipment
• 6061-T6 aluminum construction with mounting hardware included

Quick Specs & Uses

• Product type: Receiver battery plate
• Battery mount: Gold Mount
• Compatible receivers: Bolt 1000 LT, Bolt 500 XT, and Bolt XT Sidekick
• Power connector: 1 x JST
• Accessory power outputs: 2 x D-Tap
• Material: 6061-T6 aluminum
• Dimensions: 6.17 x 3.36 x 3.06 in / 15.67 x 8.53 x 7.77 cm
• Weight: 15.3 oz / 433.7 g
• Primary uses: Video village, receiver stations, production carts, live monitoring, and battery-powered field setups

Why It Helps

A wireless receiver is easier to deploy when the battery plate, power connection, and receiver stay together as one assembly. This plate mounts directly to the supported Bolt unit, which keeps the setup more organized when it is moved between a stand, cart, or monitor station.

The internal JST connection is useful because it removes the need for a separate exposed power lead between the plate and receiver. Fewer loose cables mean fewer snag points and a cleaner build around the monitoring position.

The two D-Tap outputs also give the operator room to power nearby accessories from the same Gold Mount battery. Depending on the rest of the setup, that can help simplify power distribution around a monitor, receiver station, or compact video village.

System Characteristics

• Direct receiver mounting for a compact, integrated power setup
• Gold Mount battery support for established broadcast and cinema power workflows
• Internal JST connection to reduce exposed cabling
• Dual D-Tap outputs for compatible accessories
• 6061-T6 aluminum body for regular production use
• Included riser and mounting hardware for secure installation

What’s In The Box

• 1 x Teradek Bolt 1000 LT and 500 XT RX Battery Plate (Gold Mount)
• 4 x M3 x 12 mm Socket Head Screws
• 4 x M2 x 6 mm Phillips Head Screws
• 1 x Riser Plate
