Teradek Dual Direct Mount Battery Plate for L-Series and LP-E6 Batteries

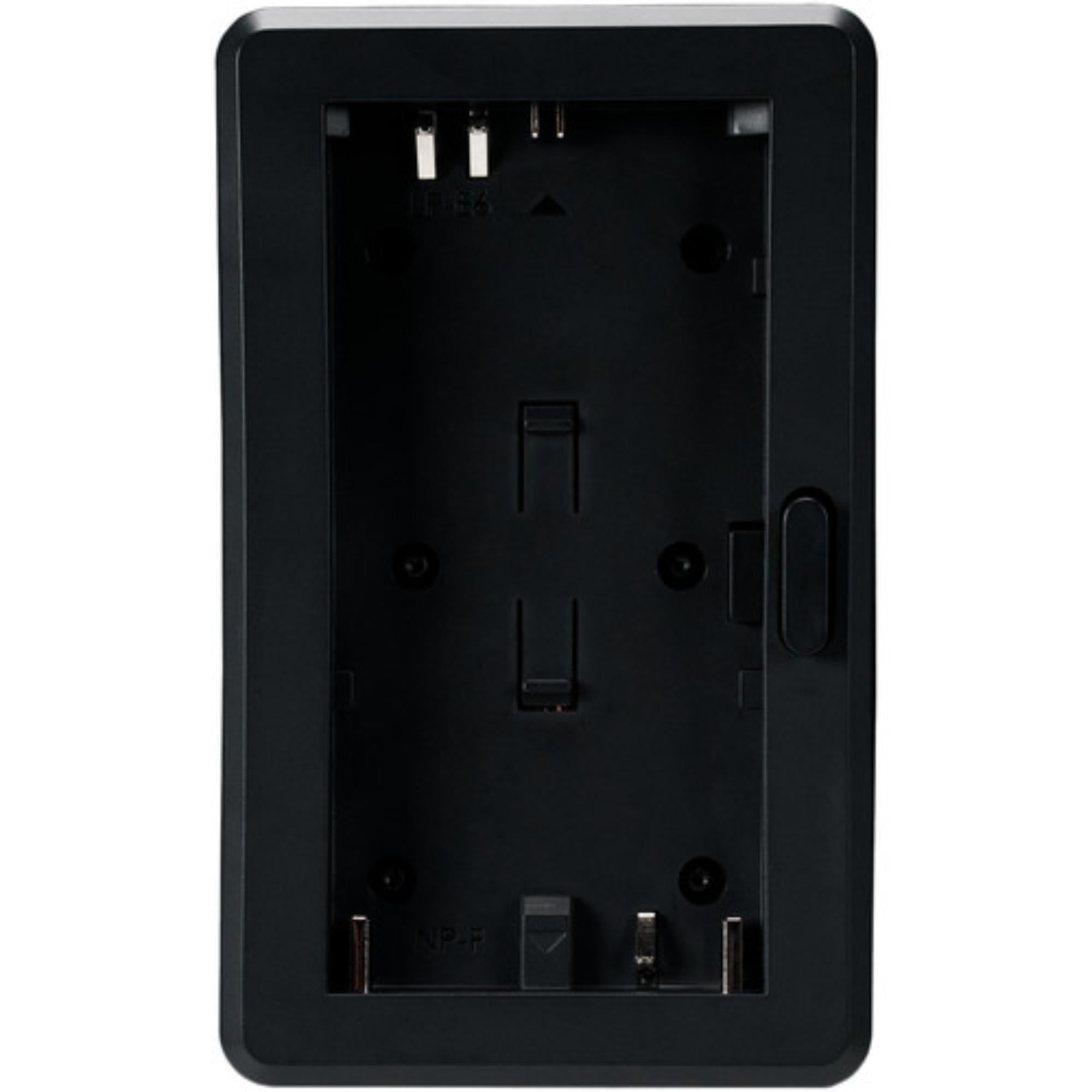

Teradek Dual Direct Mount Battery Plate for L-Series and LP-E6 Batteries is a compact power plate for compatible Teradek Bolt wireless video systems. From the supplied source, it accepts either a Sony L-Series battery or a Canon LP-E6 battery, allowing crews to use either format without swapping battery plates.

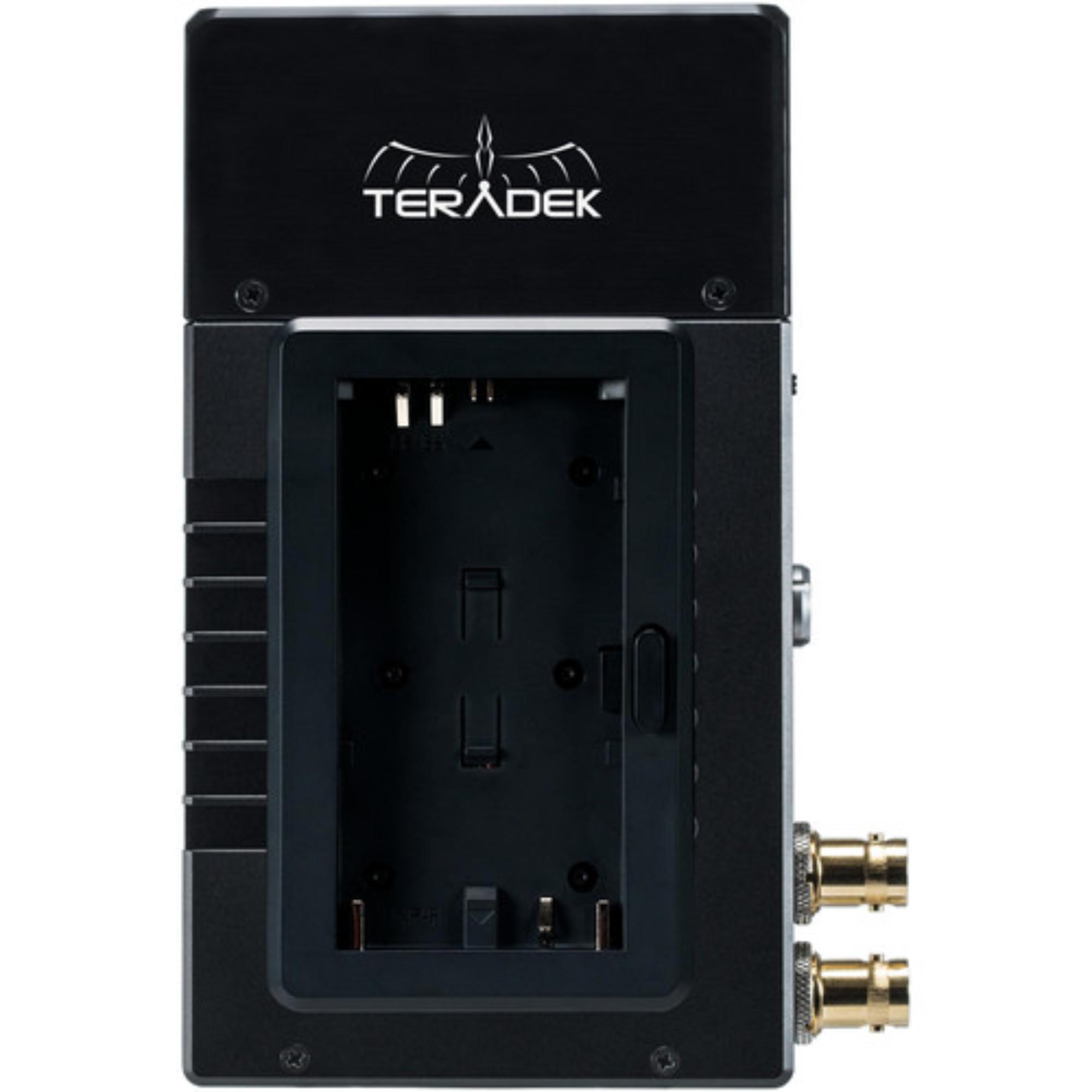

The plate mounts directly to the top of a compatible Bolt transmitter or receiver and provides power through a JST connection or the included Fischer accessory cable. Two built-in 1.35 mm coaxial outputs are also available for compatible accessories.

Highlights

• Dual-format battery plate for Sony L-Series and Canon LP-E6 batteries
• Direct-mount design for compatible Teradek Bolt transmitters and receivers
• JST power connection for direct device power
• Two 1.35 mm coaxial accessory outputs
• 6061-T6 aluminum construction with included mounting hardware and power cable

Quick Specs & Uses

• Product type: Dual direct-mount battery plate
• Supported battery types: Sony L-Series and Canon LP-E6
• Compatible transmitters: Bolt 1000/3000 XT transmitters, Bolt 500 XT transmitters, and all Bolt LT transmitters
• Compatible receivers: Bolt 500 XT receivers, all Bolt LT receivers, and Bolt XT Sidekick
• Not compatible with: Bolt 1000/3000 XT receivers
• Power connection: JST connector
• Accessory power outputs: 2 x 1.35 mm coaxial ports
• Included accessory cable: 9 in 1.35 mm to Fischer 2-pin cable
• Mounting: Direct top mount with six mounting holes
• Battery release: Built-in push-button release
• Material: 6061-T6 aluminum
• Dimensions: 2.32 x 3.83 x 0.63 in / 5.89 x 9.73 x 1.6 cm
• Weight: 1.4 oz / 39.69 g
• Primary uses: Camera-mounted wireless video, compact transmitter builds, receiver stations, and lightweight field rigs

Why It Helps

Battery compatibility can become a nuisance when a kit carries more than one small battery format. This plate solves that by accepting either L-Series or LP-E6 batteries, which gives the operator more flexibility without changing the hardware mounted to the Bolt unit.

The direct-mount layout keeps the battery close to the transmitter or receiver instead of placing it on a separate bracket. That helps reduce cable clutter and keeps the wireless video package more compact on handheld, gimbal, and camera-top builds.

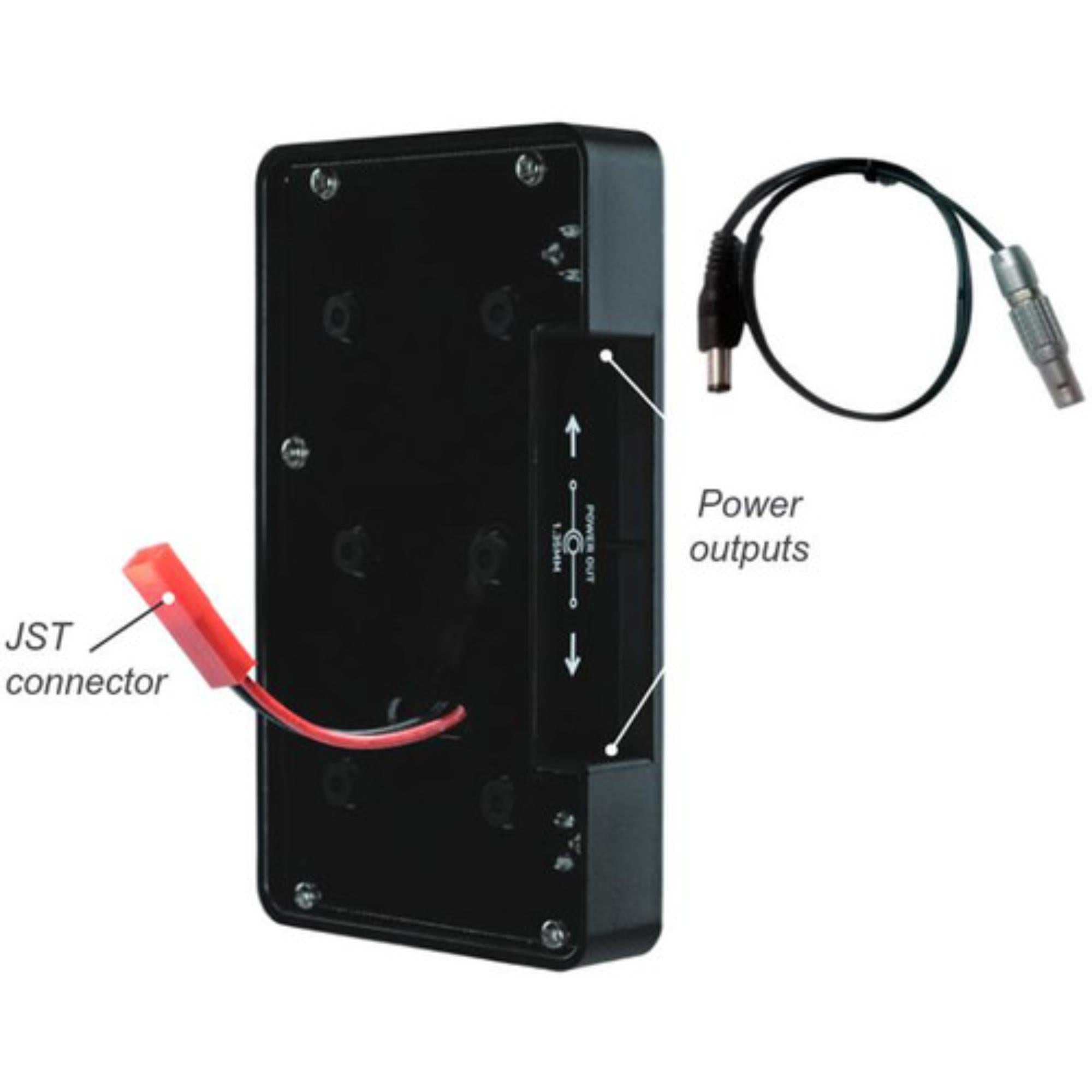

The JST connection can power the Bolt device directly, while the two coaxial outputs provide extra power points for compatible accessories. The included 1.35 mm-to-Fischer cable gives the operator another way to route power within the rig.

At only 1.4 oz, the plate adds very little weight. That matters on smaller camera packages where every bracket, cable, and power accessory affects balance.

System Characteristics

• Dual battery-format support without changing plates
• Direct top mounting for a compact Bolt power setup
• JST device power with two accessory outputs
• Push-button battery release for quick battery changes
• Six mounting holes for secure attachment
• Lightweight 6061-T6 aluminum body for mobile production use

What’s In The Box

• 1 x Teradek Dual Direct Mount Battery Plate for L-Series and LP-E6 Batteries
• 1 x 1.5 mm Allen Key
• 4 x M2 Socket Head Screws
• 1 x 9 in 2-Pin Fischer to Coax Cable
