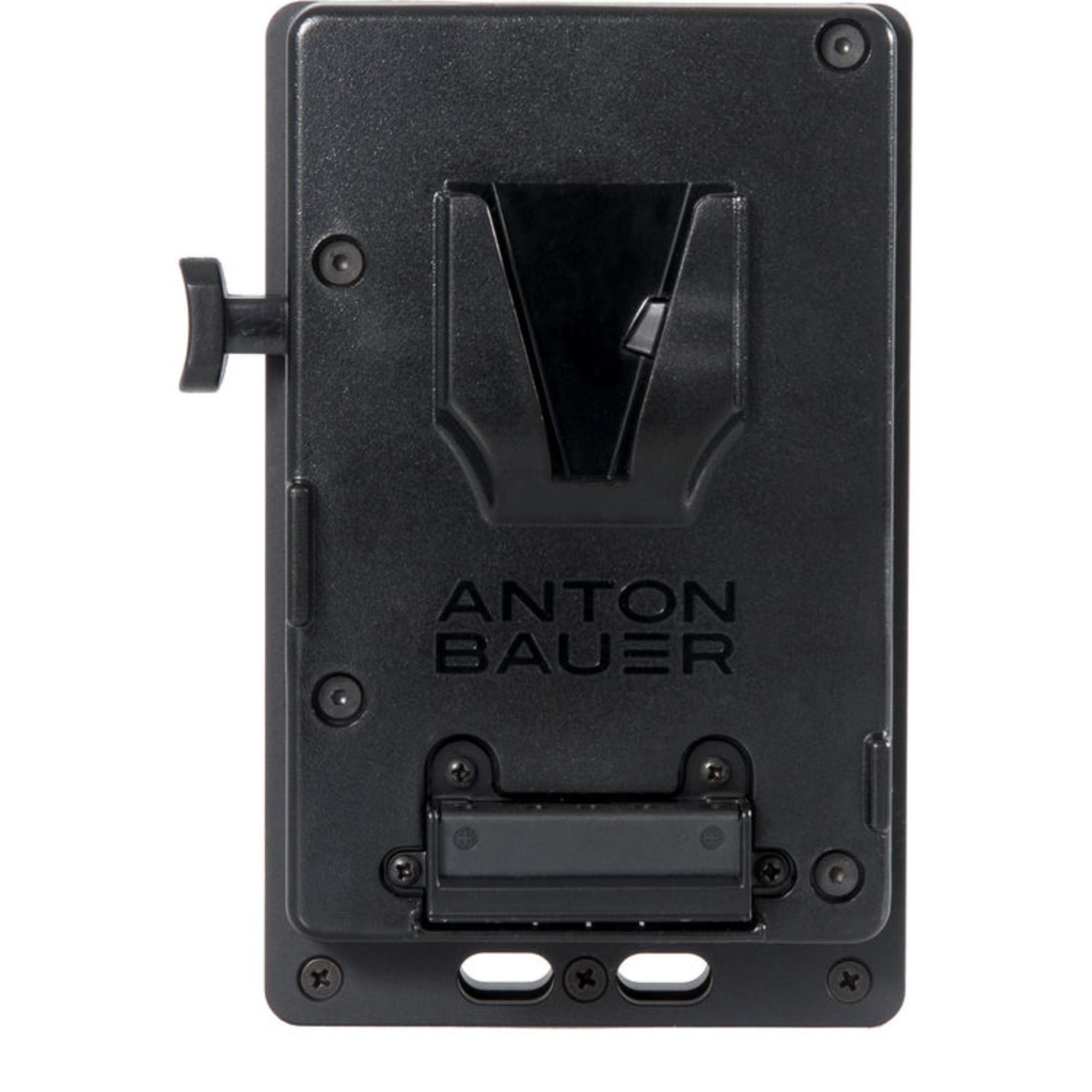

Teradek Single V-Mount 14.4V Battery Plate for Bolt Pro 300/500/600/1000/2000/3000 Receivers

Teradek Single V-Mount 14.4V Battery Plate for Bolt Pro 300/500/600/1000/2000/3000 Receivers is a receiver-side power plate for compatible Teradek Bolt Pro systems. From the supplied source, it allows a Bolt Pro 300, 500, 600, 1000, 2000, or 3000 receiver to run from a 14.4V V-Mount battery.

The plate includes an 11-inch D-Tap-to-2-pin cable for connecting power to the receiver and provides one side-mounted D-Tap accessory output rated up to 50W. It can be used with a Teradek Antenna Array or installed as a standalone bracket.

Highlights

• Single V-Mount battery plate for compatible Teradek Bolt Pro receivers
• Supports Bolt Pro 300, 500, 600, 1000, 2000, and 3000 receivers
• 14.4V maximum output for receiver power
• One D-Tap accessory output rated up to 50W
• 6061-T6 aluminum construction with antenna-array and standalone mounting options

Quick Specs & Uses

• Product type: Single V-Mount receiver battery plate
• Compatible receivers: Teradek Bolt Pro 300, 500, 600, 1000, 2000, and 3000
• Battery mount: 1 x female V-Mount
• Maximum output voltage: 14.4V
• Accessory output: 1 x D-Tap
• D-Tap output rating: 50W maximum
• Included power cable: D-Tap to 2-pin
• Cable length: 11 in / 27 cm
• Mounting points: Three 1/4"-20 points
• Pass-through slots: Two 1/4"-20 slots
• Compatible mounting workflow: Teradek Antenna Array or standalone bracket use
• Material: 6061-T6 aluminum
• Dimensions: 3.36 x 6.17 x 3.06 in / 8.5 x 15.7 x 7.7 cm
• Weight: 15.3 oz / 433.7 g
• Primary uses: Wireless receiver stations, video village, production carts, field monitoring, and antenna-array builds

Why It Helps

A receiver station is easier to move when the battery, mounting plate, and wireless receiver stay together as one package. This plate gives compatible Bolt Pro receivers a direct V-Mount power option, which fits naturally into broadcast and cinema environments already using full-size 14.4V batteries.

The included D-Tap-to-2-pin cable handles the connection between the battery plate and receiver. At 11 inches, it provides enough reach for nearby mounting without leaving a large loop of unused cable around the stand or cart.

The side-mounted D-Tap output can provide up to 50W for a compatible accessory. That gives the operator another power point for nearby equipment and may reduce the need for a separate battery or distribution block at the monitoring position.

The mounting layout also gives the plate more than one role. It can be integrated with a Teradek Antenna Array or used as a standalone bracket through its 1/4"-20 mounting points and pass-through slots.

System Characteristics

• V-Mount power integration for compatible Bolt Pro receivers
• 14.4V receiver power through the included D-Tap-to-2-pin cable
• 50W D-Tap accessory output for compatible production equipment
• Antenna Array compatibility for integrated wireless receiver builds
• Standalone mounting support through multiple 1/4"-20 points
• 6061-T6 aluminum construction for regular field and production use

What’s In The Box

• 1 x Teradek Single V-Mount 14.4V Battery Plate for Bolt Pro 300/500/600/1000/2000/3000 Receivers
