Teradek Dual 14.4V Gold Mount Battery Plate for Bolt Pro 300/500/1000/2000/3000 Receivers

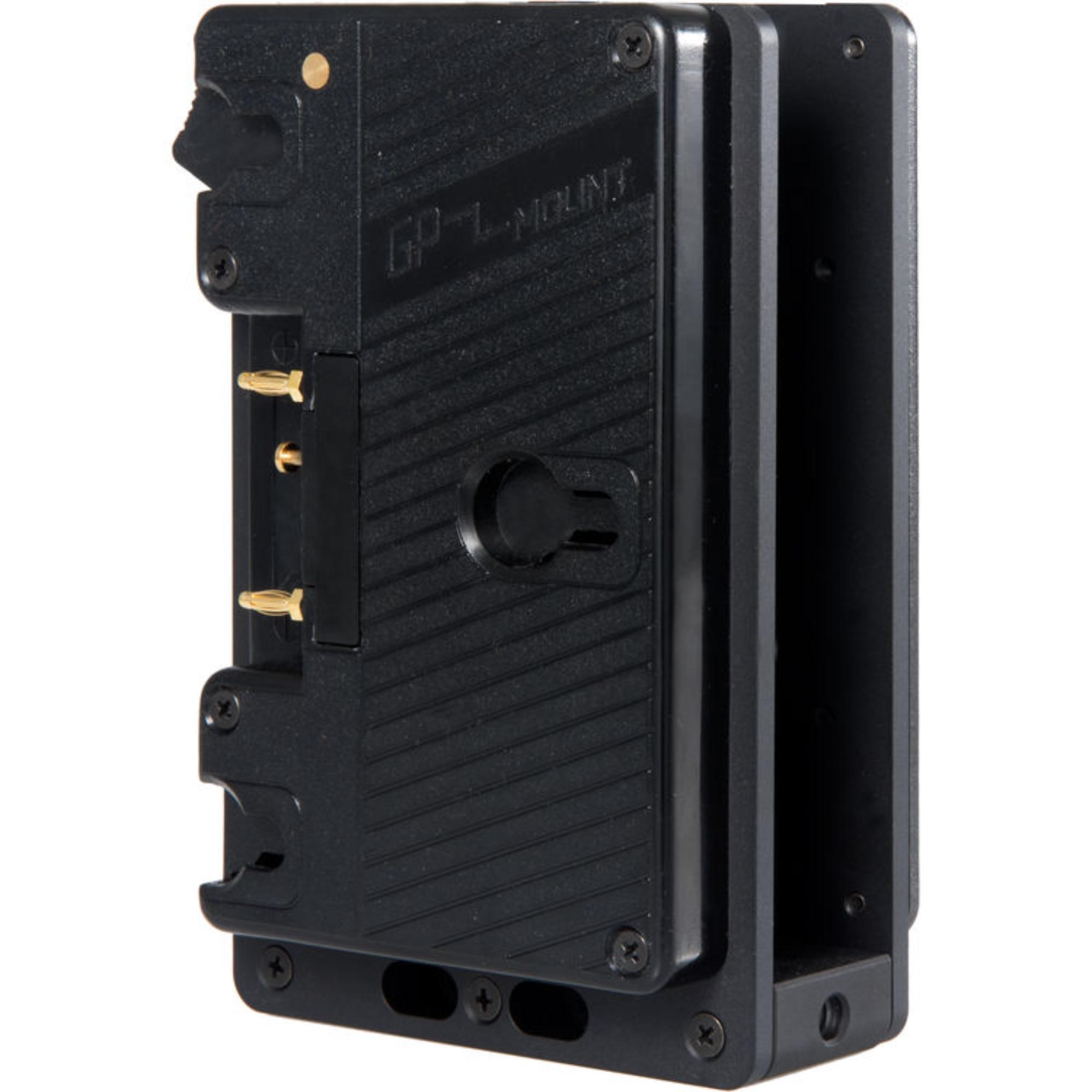

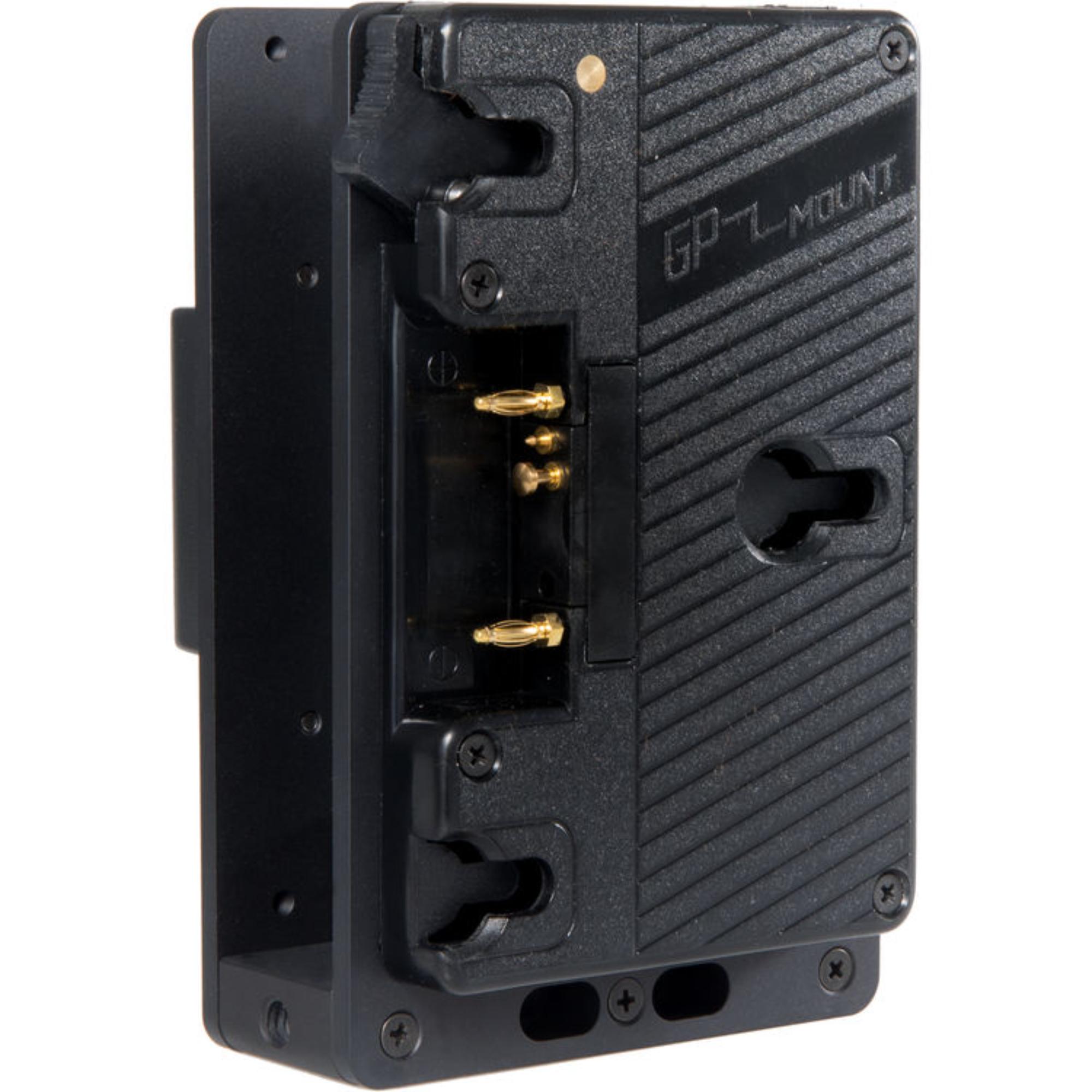

Teradek Dual 14.4V Gold Mount Battery Plate for Bolt Pro 300/500/1000/2000/3000 Receivers is a pass-through power and mounting plate for compatible Bolt Pro receivers. From the supplied source, it supports the Bolt Pro 300, 500, 1000, 2000, and 3000 receiver models.

The plate places the receiver between a production monitor and two 14.4V Gold Mount batteries. This keeps the receiver, display, and battery system together as one monitor-mounted package instead of spreading the components across separate brackets.

Highlights

• Dual Gold Mount battery plate for compatible Teradek Bolt Pro receivers
• Supports Bolt Pro 300, 500, 1000, 2000, and 3000 receivers
• Sandwich-style monitor mounting with Gold Mount batteries on both sides
• One D-Tap accessory output rated up to 50W
• Three 1/4"-20 mounting points and two pass-through slots

Quick Specs & Uses

• Product type: Dual Gold Mount receiver battery plate
• Compatible receivers: Teradek Bolt Pro 300, 500, 1000, 2000, and 3000
• Battery support: Two 14.4V Gold Mount batteries
• Mounting arrangement: Receiver positioned between the monitor and battery plates

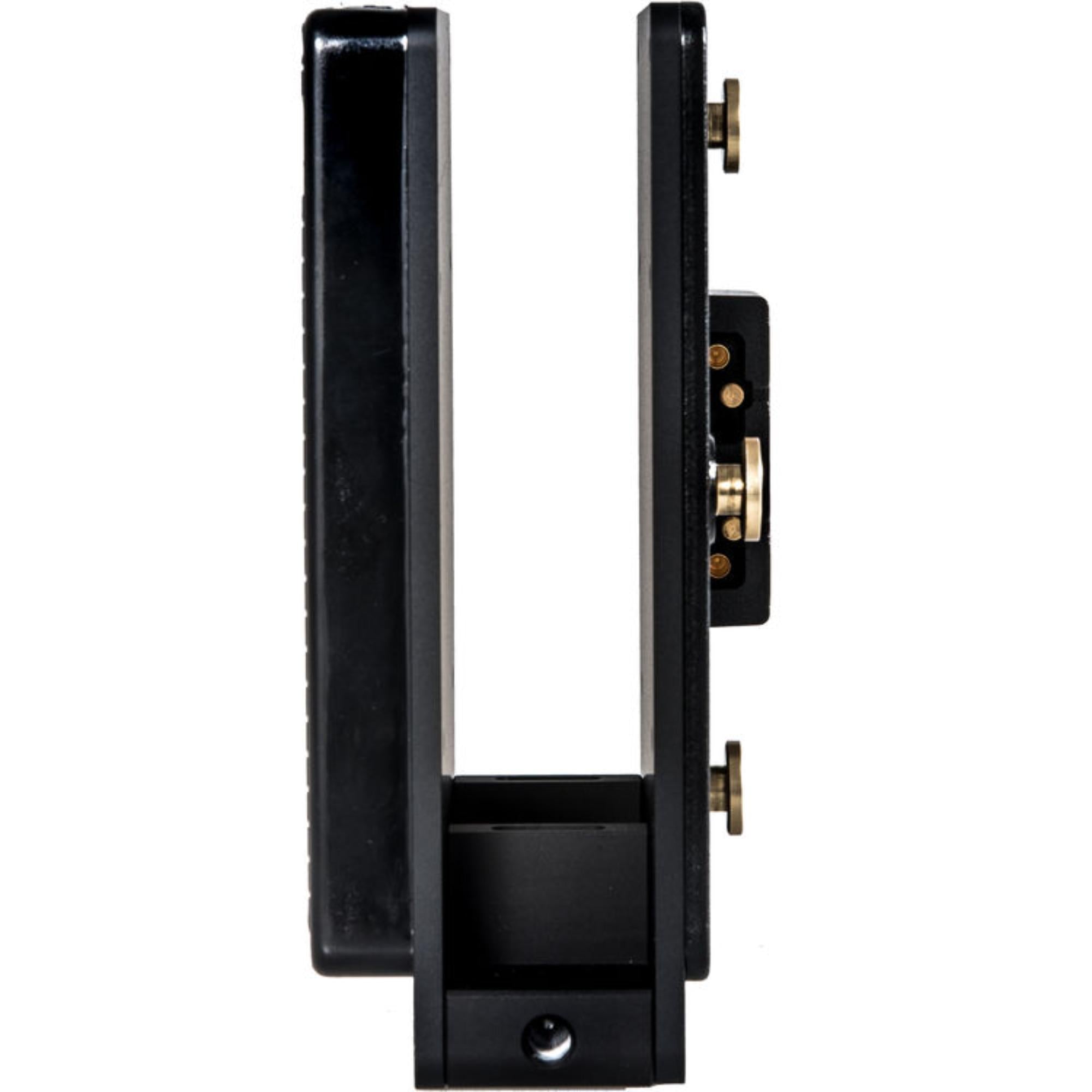

• Receiver fit: Plate surrounds the Bolt Pro receiver chassis
• Accessory output: 1 x D-Tap
• D-Tap output rating: 50W maximum
• Mounting points: Three 1/4"-20 points
• Pass-through slots: Two 1/4"-20 slots
• Primary uses: Video village, director’s monitors, wireless receiver stations, production carts, and field monitoring

Why It Helps

A monitor station is easier to move when the receiver, batteries, and display stay together as one assembly. This plate places the Bolt Pro receiver directly behind the monitor, reducing the need for a separate receiver bracket or mounting arm.

The dual Gold Mount layout also fits naturally into broadcast and cinema environments where full-size 14.4V batteries are already part of the kit. With batteries positioned on both sides, the monitor station can remain self-contained and ready to move between a stand, cart, or production position.

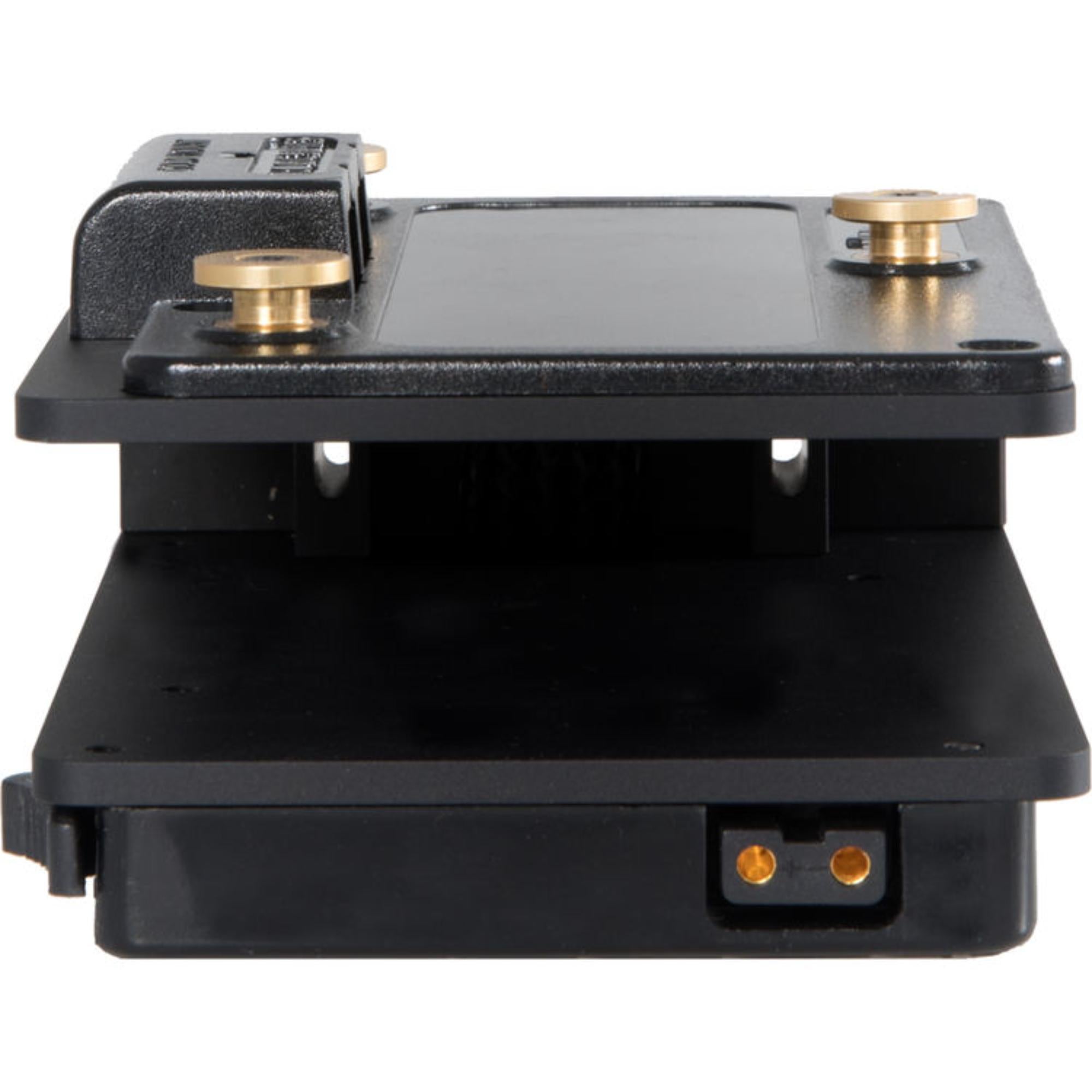

The side-mounted D-Tap output provides another power point for a compatible accessory and is rated up to 50W. That can help simplify power distribution around a compact monitor and receiver build.

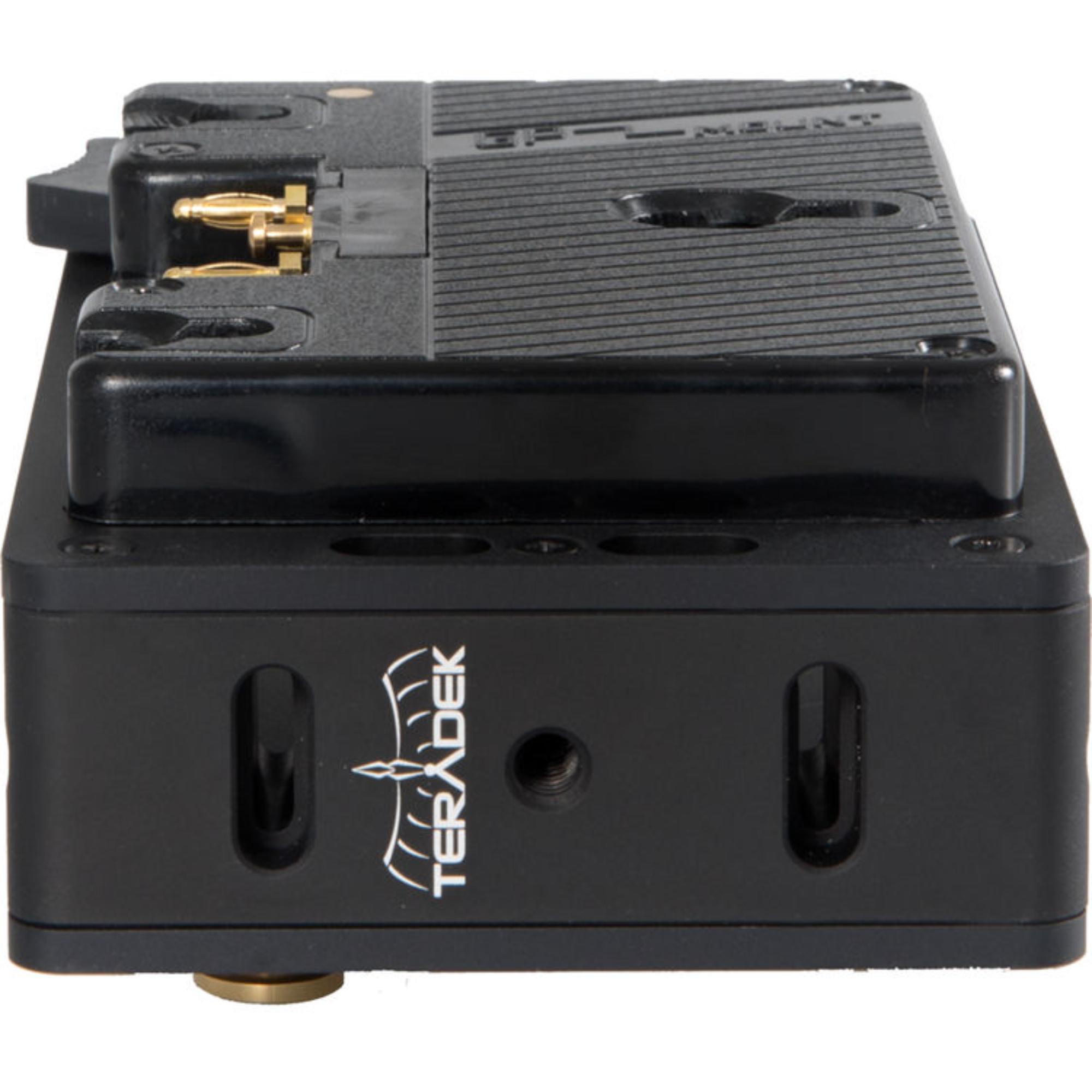

Three 1/4"-20 mounting points and two pass-through slots give the operator several ways to secure the plate within an existing rig. This makes it easier to adapt the setup to different monitor supports and production layouts.

System Characteristics

• Dual Gold Mount power arrangement for compatible Bolt Pro receiver stations
• Sandwich-style installation between monitor and battery plates
• Receiver-surrounding design for a compact integrated build
• 50W D-Tap accessory output for compatible equipment
• Three 1/4"-20 mounting points for rig attachment
• Two 1/4"-20 pass-through slots for flexible positioning

What’s In The Box

• 1 x Teradek Dual 14.4V Gold Mount Battery Plate for Bolt Pro 300/500/1000/2000/3000 Receivers
