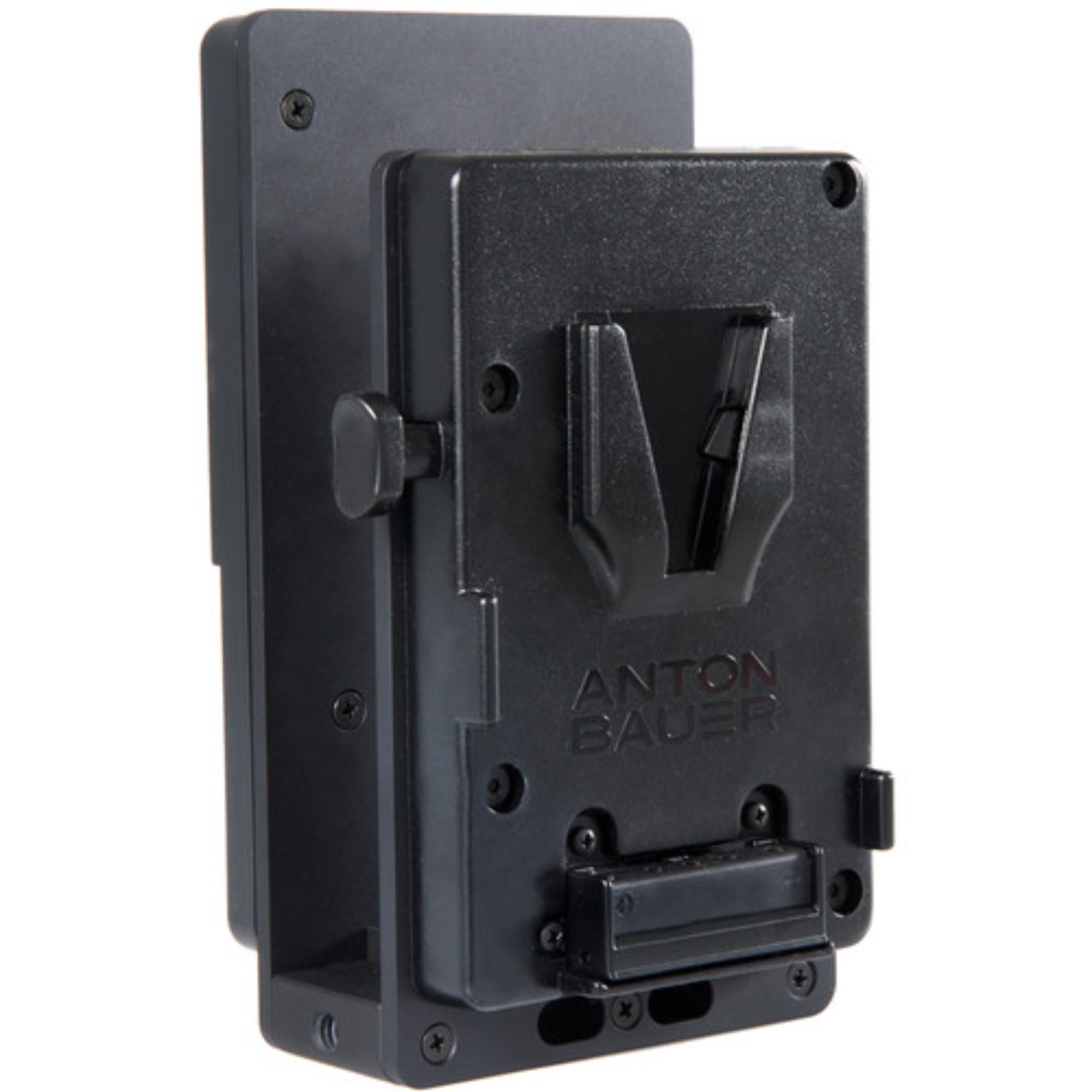

Teradek Dual Battery V-Mount Plate for Cube 605/655

Teradek Dual Battery V-Mount Plate for Cube 605/655 is a pass-through mounting and power plate for the Teradek Cube 605 and Cube 655. From the supplied source, it allows the Cube to sit securely between a camera or monitor and a V-Mount battery, creating a compact camera-back arrangement for ENG-style use.

The plate draws power through the male V-Mount side and passes that power onward through the female V-Mount side. It also provides one 14.4V D-Tap output rated up to 50W, with an included 11-inch D-Tap-to-2-pin cable for powering the Cube.

Highlights

• Dual V-Mount pass-through plate for Teradek Cube 605 and Cube 655
• Mounts the Cube between a camera or monitor and battery
• One 14.4V D-Tap output rated up to 50W
• Includes an 11-inch D-Tap-to-2-pin power cable
• 6061-T6 aluminum construction for secure production mounting

Quick Specs & Uses

• Product type: Dual battery V-Mount pass-through plate
• Compatible systems: Teradek Cube 605 and Cube 655
• Battery mount: V-Mount
• Mounting arrangement: Cube positioned between a camera or monitor and V-Mount battery
• Power flow: Draws power from the male V-Mount side and passes it through the female V-Mount side
• Accessory output: 1 x D-Tap
• D-Tap output: 50W, 14.4V maximum
• Included power cable: D-Tap to 2-pin
• Cable length: 11 in / 27.9 cm
• Material: 6061-T6 aluminum
• Dimensions: 3.36 x 6.17 x 3.06 in / 8.5 x 15.7 x 7.8 cm
• Weight: 15.3 oz / 433.7 g
• Primary uses: ENG camera-back builds, field encoding, monitor-mounted setups, and mobile production systems

Why It Helps

ENG-style camera builds work better when the encoder, battery, and camera stay together as one package. This plate places the Cube 605 or 655 directly in the V-Mount power chain, which keeps the encoder secured behind the camera or monitor instead of hanging from a separate bracket.

The pass-through layout allows the camera or monitor to continue receiving power from the same battery. That helps reduce the number of separate power sources in the build and keeps the camera-back arrangement easier to manage during field work.

The side-mounted D-Tap output provides up to 50W at 14.4V, while the included D-Tap-to-2-pin cable handles the direct connection to the Cube. At 11 inches, the cable is long enough for nearby routing without leaving a large amount of unused cable around the rig.

System Characteristics

• V-Mount pass-through design for integrated camera-back power
• Direct Cube 605/655 mounting between monitor or camera and battery
• 50W D-Tap output for powering the Cube
• Included 11-inch power cable for short equipment runs
• 6061-T6 aluminum body for regular field and production use
• Compact ENG-style configuration for mobile encoding workflows

What’s In The Box

• 1 x Teradek Dual Battery V-Mount Plate for Cube 605/655
• 1 x 11 in 2-Pin Connector to D-Tap Cable
• 1 x 4-40 x 9/16 in Black Oxide Socket Head Machine Screw
• 1 x 0.09 x 2.13 in Hex L Key
