Teradek L-Bracket Battery Plate for Sony L-Series or Canon LP-E6 Battery

Teradek L-Bracket Battery Plate for Sony L-Series or Canon LP-E6 Battery is a compact power solution for selected Teradek video products. From the supplied source, it accepts either a Sony L-Series battery or a Canon LP-E6 battery and can be used with Bolt transmitters and receivers, the Serv Pro Wi-Fi transmitter, Cube 700/600 encoders and decoders, and the COLR LUT box.

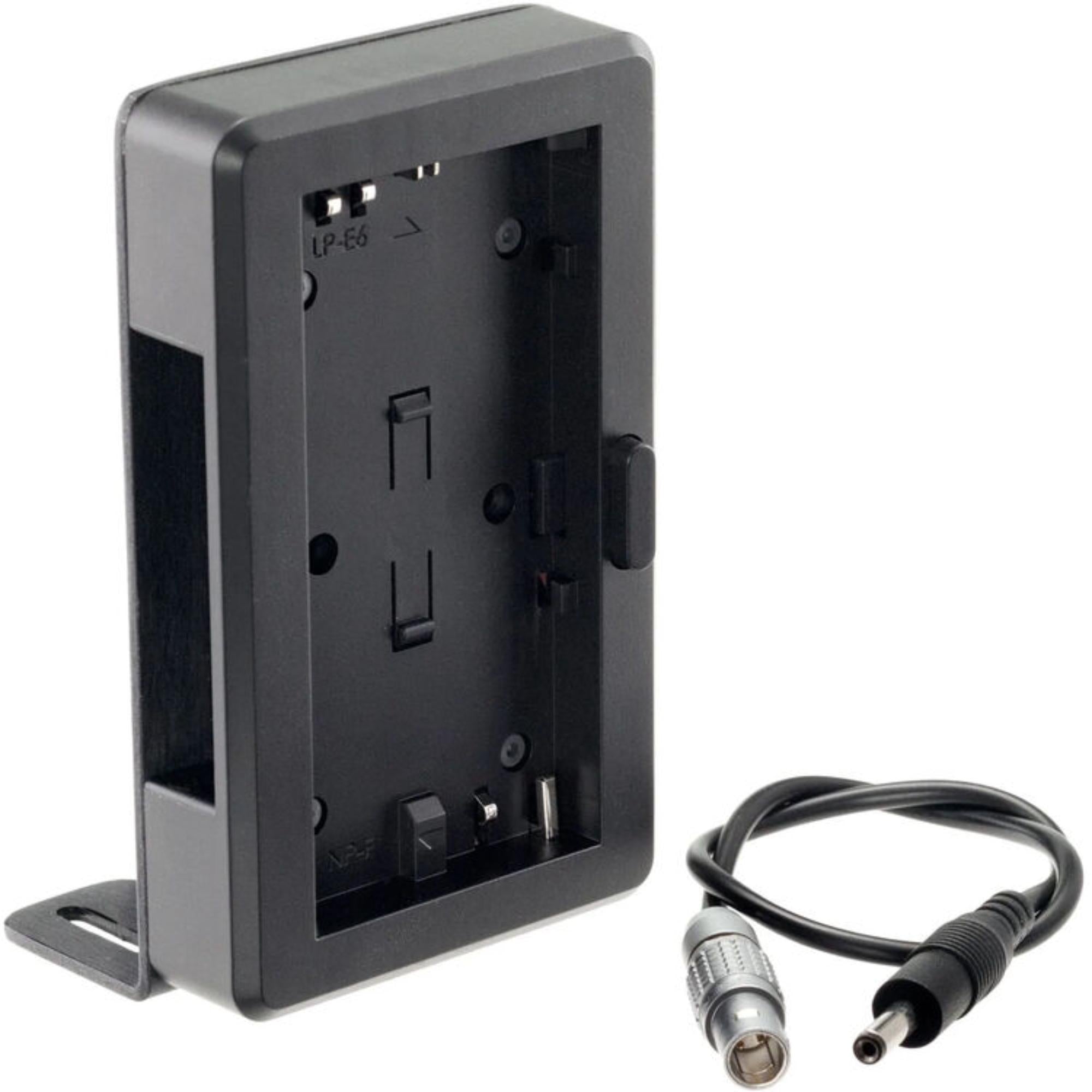

The L-shaped plate mounts directly to the supported device and connects through the included 2-pin LEMO-type to DC barrel cable. That keeps the battery close to the equipment and gives the operator a cleaner alternative to a loose external battery plate.

Highlights

• L-bracket battery plate for Sony L-Series and Canon LP-E6 batteries
• Compatible with all Teradek Bolt transmitters and receivers
• Supports Serv Pro, Cube 700/600, and COLR LUT box
• 2-pin LEMO-type power connection with included DC barrel cable
• Compact direct-mount design with mounting hardware included

Quick Specs & Uses

• Product type: L-bracket battery plate
• Supported battery types: Sony L-Series and Canon LP-E6
• Compatible Teradek systems: Bolt transmitters and receivers, Serv Pro Wi-Fi transmitter, Cube 700/600 encoders and decoders, and COLR LUT box
• Connection type: 2-pin LEMO-type
• Included power cable: 2-pin LEMO-type to 1.35/3.5 mm DC barrel cable, 9 in
• Mounting method: Direct attachment using included screws
• Dimensions: 3.9 x 2.56 x 0.99 in / 99 x 65 x 25 mm
• Weight: 2.8 oz / 80 g
• Primary uses: Camera-mounted wireless video, compact encoder rigs, field monitoring, and portable production setups

Why It Helps

This plate is useful when a small Teradek device needs its own removable battery without adding a larger power system to the rig. Sony L-Series and Canon LP-E6 batteries are common in camera departments, so crews may already have compatible packs and chargers available.

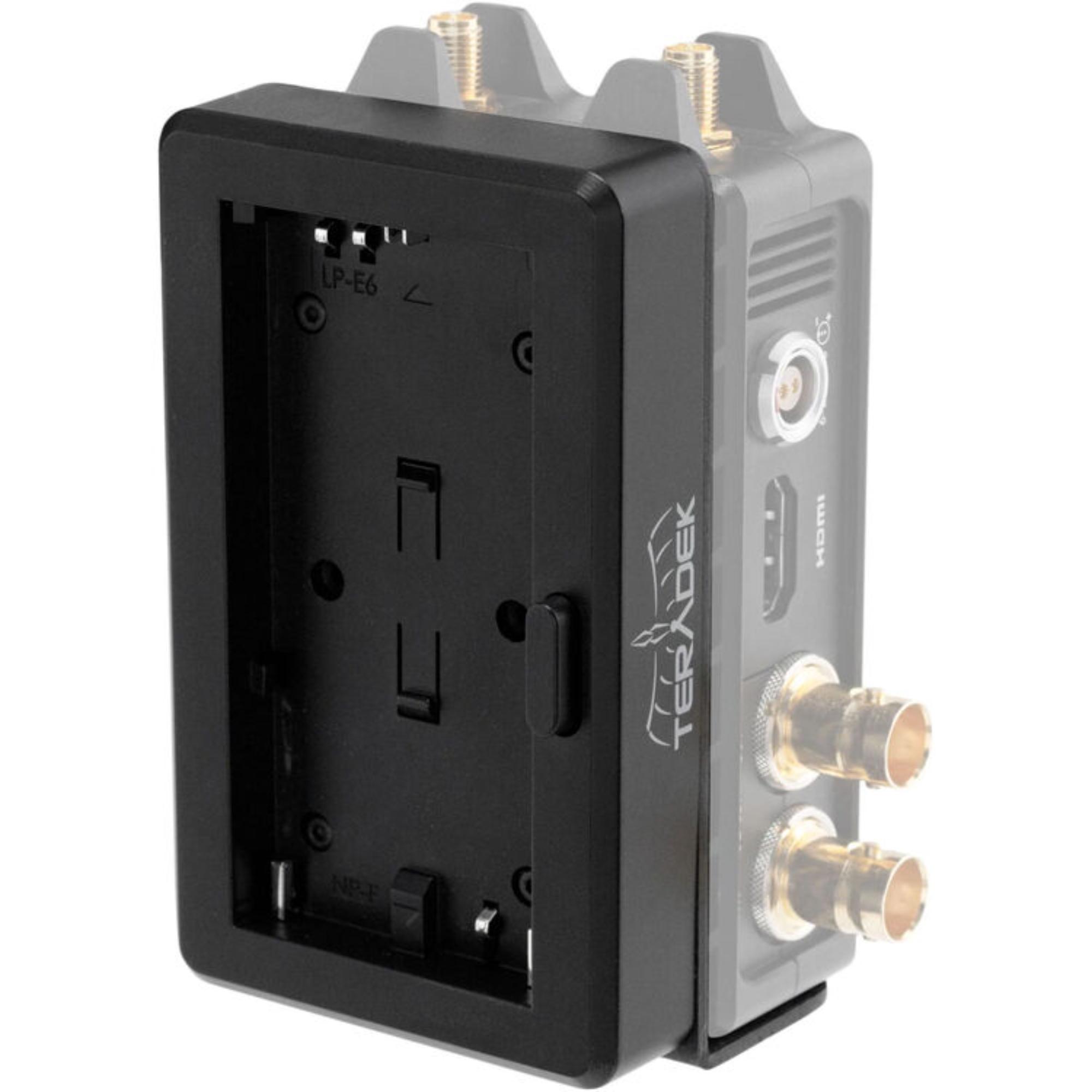

The L-shaped layout keeps the battery close to the device instead of hanging from a separate bracket or cable. That makes the setup easier to manage on compact camera builds, monitor stations, and portable encoder packages.

The included 2-pin LEMO-type to DC barrel cable handles the power connection between the plate and supported equipment. With the mounting screws installed, the plate and device stay together as one assembly, which helps reduce loose parts during setup and transport.

System Characteristics

• Dual battery-format support for Sony L-Series and Canon LP-E6 batteries
• Broad Teradek compatibility across wireless video, encoding, and LUT hardware
• Direct-mount L-bracket design for compact rigging
• 2-pin LEMO-type connection for supported Teradek devices
• Included DC barrel cable for device power
• Compact 80 g construction for lightweight production builds

What’s In The Box

• 1 x Teradek L-Bracket Battery Plate for Sony L-Series or Canon LP-E6 Battery
• 1 x 2-Pin LEMO-Type to 1.35/3.5 mm DC Barrel Cable, 9 in
• 1 x Bolt TX/RX Battery Plate for Canon LP-E6 7.4V & Sony L-Shape Plate
• 1 x 4-40 x 1/4 in Screw
• 2 x M3 x 5 mm Screws
