Teradek CineCoil 3G/HD/SD-SDI Cable (10")

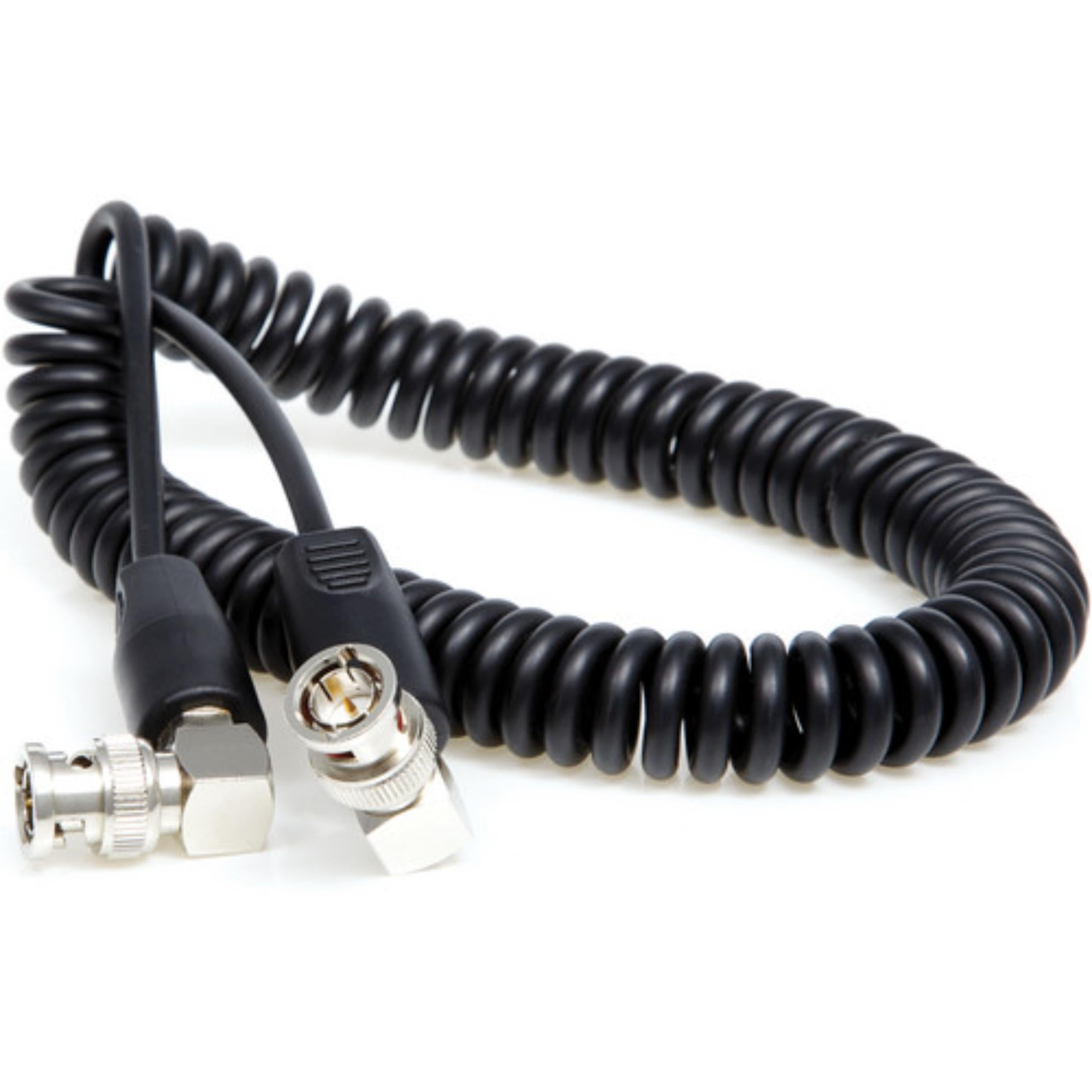

Teradek CineCoil 3G/HD/SD-SDI Cable (10") is a short coiled BNC cable for professional SDI video connections. From the supplied source, it supports 3G-SDI, HD-SDI, and SD-SDI signals and uses right-angle BNC male connectors at both ends.

The cable measures 10 inches in its coiled state and can extend by up to another 12 inches when straightened. That gives camera operators some movement without leaving a long loose cable around a monitor, recorder, or wireless video unit.

Highlights

• Coiled BNC-to-BNC SDI cable for professional video equipment
• Supports 3G-SDI, HD-SDI, and SD-SDI signals
• Right-angle BNC male connectors at both ends
• 10-inch coiled length with up to 12 inches of added reach
• 30 AWG shielded construction for reliable signal transport

Quick Specs & Uses

• Product type: Coiled SDI video cable
• Interface: 3G-SDI
• Signal compatibility: 3G-SDI, HD-SDI, and SD-SDI
• Connector 1: 1 x right-angle BNC male
• Connector 2: 1 x right-angle BNC male
• Coiled cable length: 10 in / 25.4 cm
• Additional straightened reach: Up to 12 in
• Maximum resolution support: 1920 × 1080 at 60 Hz
• Wire gauge: 30 AWG
• Shielded: Yes
• Color: Black
• Compliance: RoHS
• Primary uses: Steadicam rigs, onboard monitors, wireless video systems, recorders, studio setups, and patching

Why It Helps

A coiled SDI cable works well on rigs where the connected equipment needs a little room to move. The cable stays compact when the monitor, recorder, or transmitter is close to the camera, then stretches when the operator changes position or adjusts the rig.

The right-angle BNC connectors help keep both ends close to the equipment body. That is useful on Steadicam and camera-top builds where straight connectors can project into handles, brackets, or other accessories.

The 30 AWG shielding is intended to protect the SDI signal from loss while the cable is routed around active production hardware. Its support for signals up to 1920 × 1080 at 60 Hz makes it suitable for common HD monitoring and recording paths.

System Characteristics

• Coiled cable design for movement without excessive loose cable
• Dual right-angle BNC connectors for low-profile equipment routing
• 3G/HD/SD-SDI compatibility for a range of professional video systems
• Up to 1080p60 support for HD monitoring and recording
• 30 AWG shielding for protected signal transport
• RoHS-compliant construction

What’s In The Box

• 1 x Teradek CineCoil 3G/HD/SD-SDI Cable (10")
