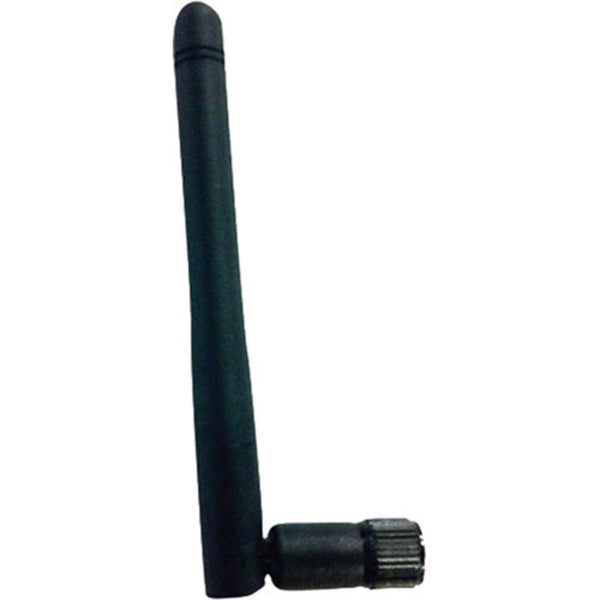

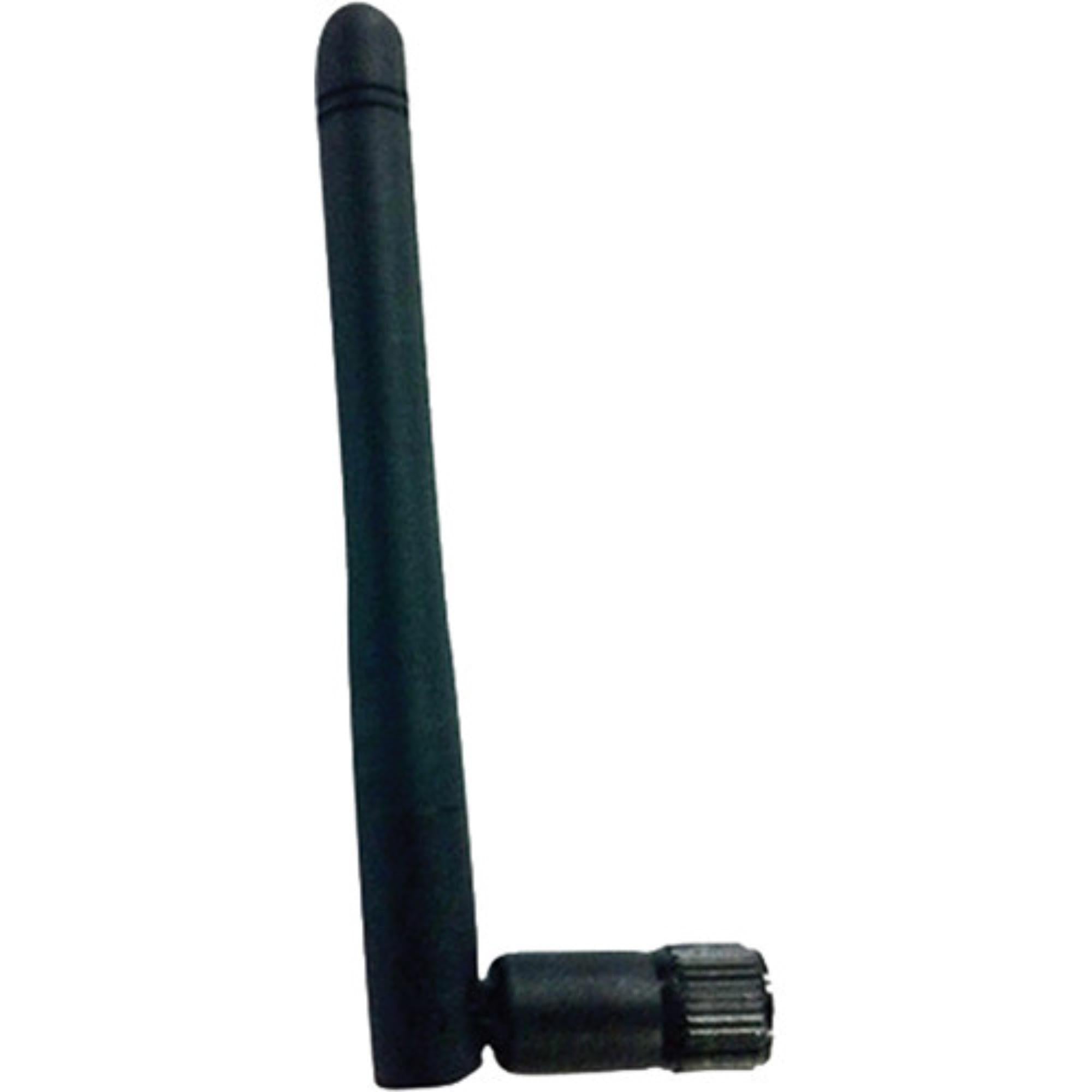

Teradek Wireless Antenna for Bolt 500/1000 Tx & Rx, Bolt 3000 Rx

Teradek Wireless Antenna for Bolt 500/1000 Tx & Rx, Bolt 3000 Rx is a standard replacement antenna for selected Teradek Bolt wireless video systems. From the supplied source, it works with Bolt 500 transmitters and receivers, Bolt 1000 transmitters and receivers, and the Bolt 3000 receiver.

The antenna provides 2 dBi gain and operates across the 2.4 and 5 GHz frequency bands. It connects through an RP-SMA female interface, making it suitable as a direct replacement or spare for compatible Bolt equipment.

Highlights

• Standard wireless antenna for selected Teradek Bolt systems
• Compatible with Bolt 500 and Bolt 1000 transmitters and receivers
• Compatible with the Bolt 3000 receiver
• 2 dBi antenna gain
• Supports 2.4 and 5 GHz operation through an RP-SMA female connection

Quick Specs & Uses

• Product type: Standard replacement wireless antenna
• Compatible transmitters: Teradek Bolt 500 and Bolt 1000
• Compatible receivers: Teradek Bolt 500, Bolt 1000, and Bolt 3000
• Antenna type: Standard
• Gain: 2 dBi
• Operating frequencies: 2.4 and 5 GHz
• Connection: 1 x coaxial RP-SMA female
• Pattern: Not specified by the manufacturer
• Beamwidth: Not specified by the manufacturer
• Polarization: Not specified by the manufacturer
• Third-order intercept point: Not specified by the manufacturer
• Impedance: Not specified by the manufacturer
• Dimensions: 0.5 in diameter x 6 in high / 1.2 x 15 cm
• Weight: 0.6 oz / 17 g
• Primary uses: Replacement, backup, rental inventory, and field servicing for compatible Bolt wireless video systems

Why It Helps

A damaged or missing antenna can take an otherwise working wireless video unit out of service. Keeping a compatible spare in the kit gives the camera or video-assist team a quick way to restore the transmitter or receiver without replacing the complete system.

The 2.4 and 5 GHz support matches the listed operating range of the compatible Bolt units. That makes this antenna useful for normal production deployment as well as maintenance and replacement work.

At only 17 g, it adds very little weight to the unit. The six-inch form factor also keeps it easy to store in a spare-parts pouch, wireless video case, or rental inventory drawer.

System Characteristics

• Direct compatibility with selected Bolt transmitters and receivers
• 2 dBi gain for supported wireless video operation
• Dual-band 2.4 and 5 GHz support
• RP-SMA female connection for compatible Teradek hardware
• Lightweight replacement design for field and rental use

What’s In The Box

• 1 x Teradek Wireless Antenna for Bolt 500/1000 Tx & Rx, Bolt 3000 Rx
