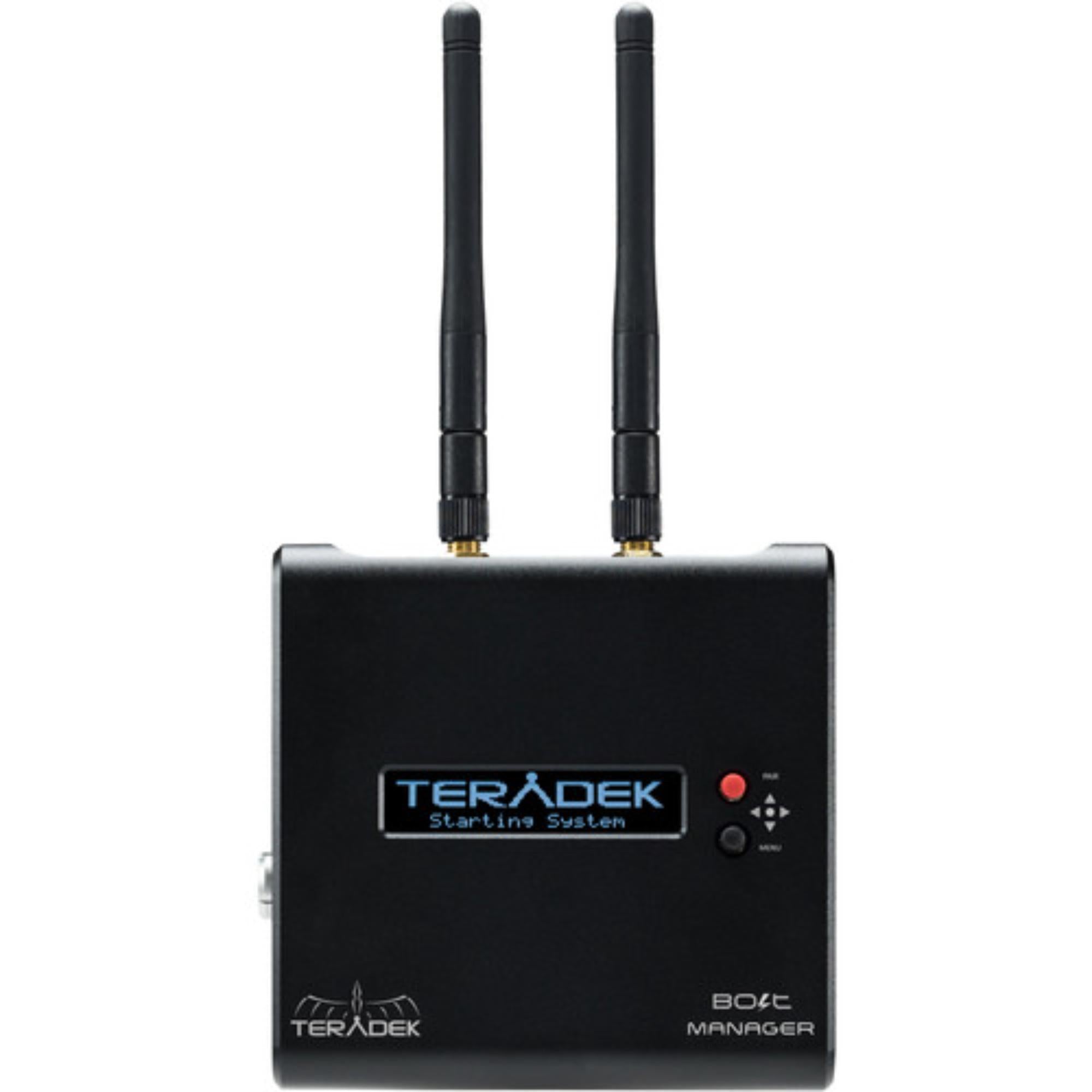

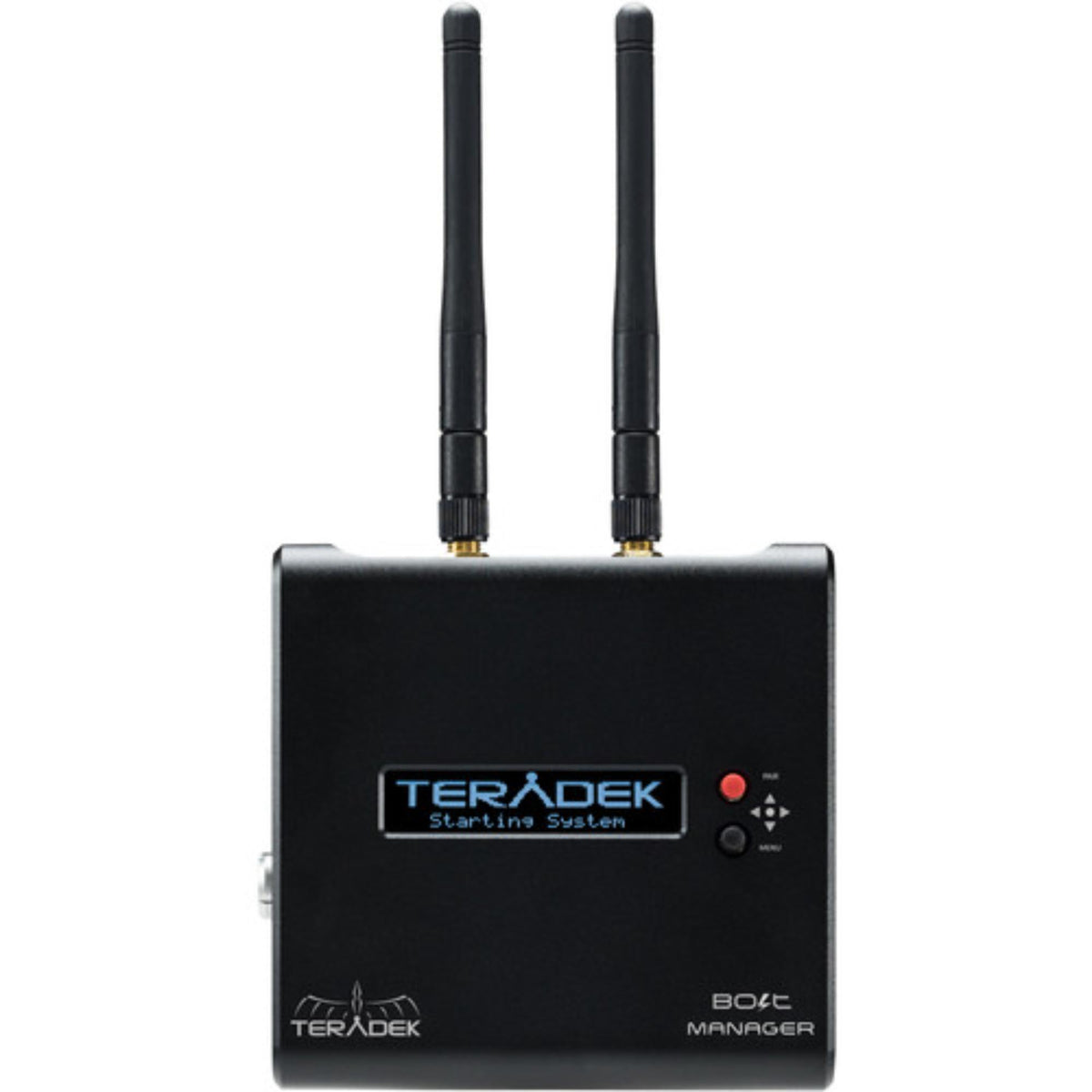

Teradek 10-0032 Bolt Manager

Teradek Bolt Manager is a dedicated configuration and fleet-management unit for Teradek Bolt wireless video hardware. From the supplied source, it allows an operator to connect several Bolt devices through five USB ports and manage pairing, wireless channels, and regional settings without requiring a separate computer.

The unit can pair as many as four receivers simultaneously with a single transmitter. Control is available from the front panel or through a web GUI, while Ethernet and dual-band Wi-Fi provide flexible access in a workshop, rental facility, video-assist environment, or production engineering area.

Highlights

• Centralized Bolt pairing and fleet management for professional wireless video systems
• Pairs up to four receivers simultaneously with one transmitter

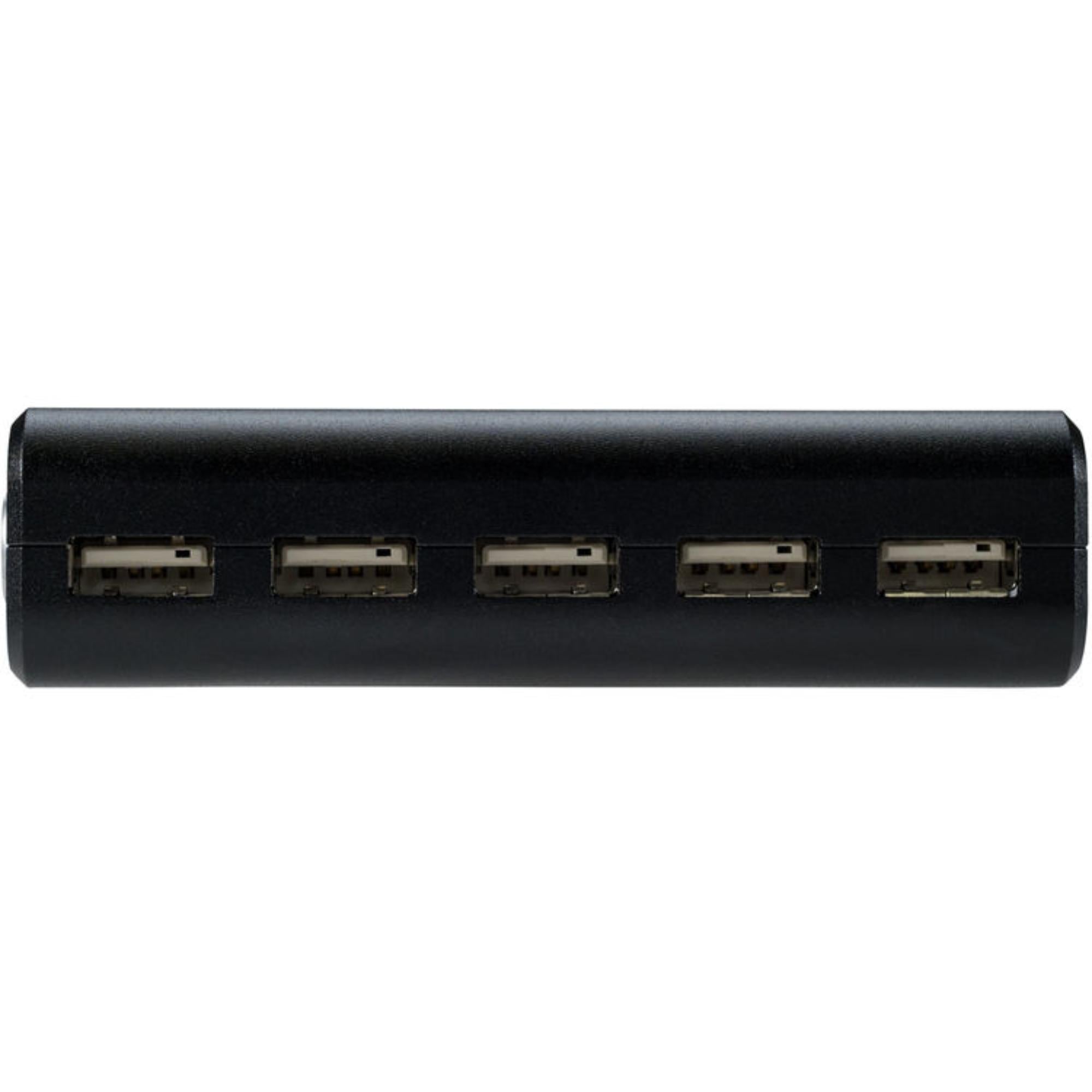

• Five USB 2.0 Type-A host ports for connecting Bolt hardware
• Ethernet and dual-band Wi-Fi connectivity with no computer required
• Front-panel and web GUI control for configuration and setup

Quick Specs & Uses

• Product type: Wireless video hardware configuration and fleet-management unit
• Compatible workflow: Teradek Bolt hardware pairing and configuration
• Simultaneous receiver pairing: Up to four receivers with one transmitter
• USB host ports: 5 x USB 2.0 Type-A
• Upgrade port: 1 x USB 2.0 Mini-B

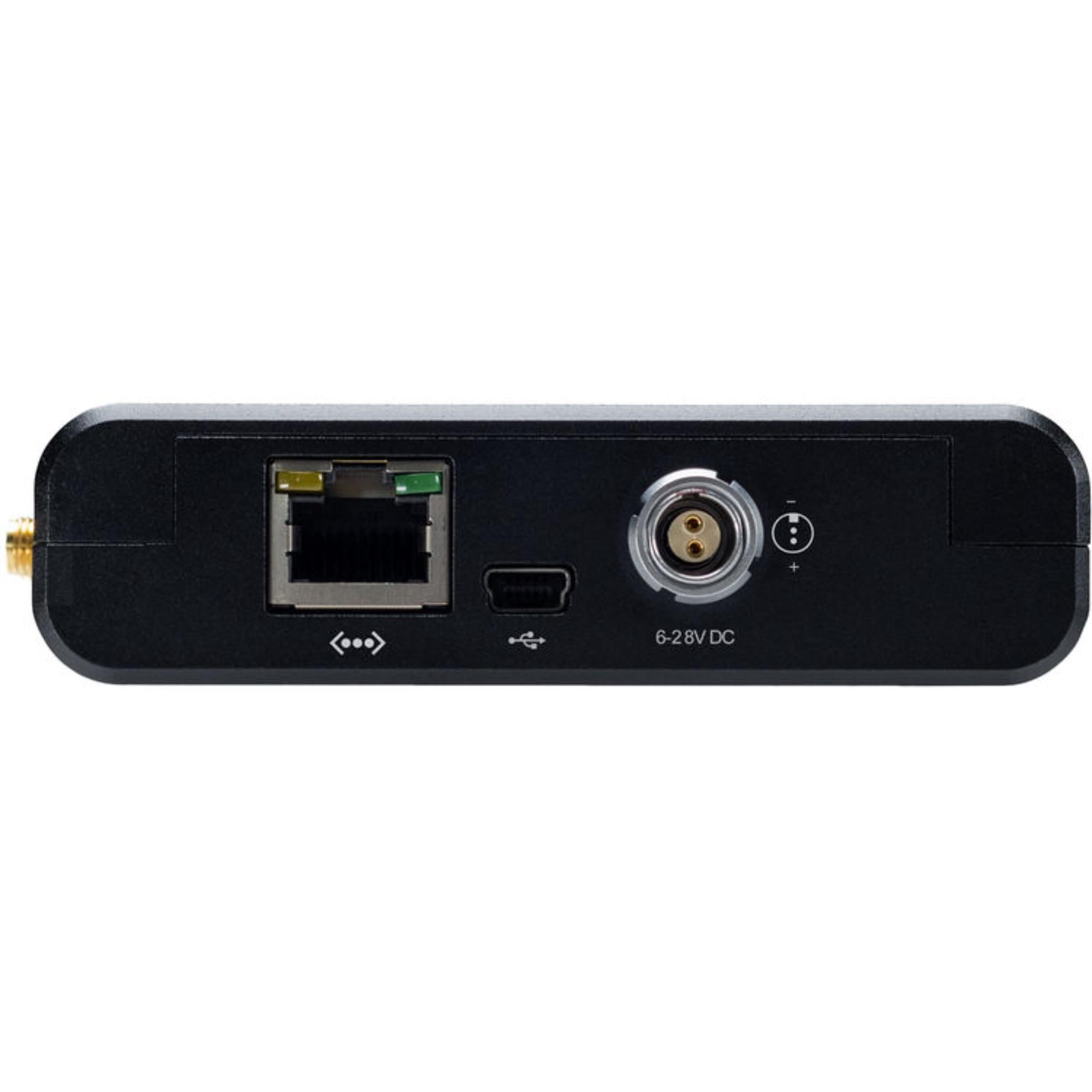

• Ethernet: 10/100Base-T
• Wireless networking: Dual-band MIMO 802.11a/b/g/n Wi-Fi
• Control methods: Front panel and web GUI
• Configuration functions: Device pairing, wireless-channel changes, and regional settings
• External computer required: No
• Power input: 1 x 2-pin, 6 to 28 VDC
• Operating temperature: 32 to 122°F / 0 to 50°C
• Dimensions: 5 x 5 x 2 in / 12.7 x 12.7 x 5.1 cm
• Weight: 8.7 oz / 247 g
• Primary uses: Rental preparation, wireless fleet setup, video-assist departments, broadcast engineering, equipment servicing, and multi-camera production support

Why It Helps

Pairing wireless video equipment one device at a time can slow down preparation when a production or rental package contains several Bolt systems. Bolt Manager brings those setup tasks into one dedicated unit, allowing multiple receivers to be connected and paired with a transmitter at the same time.

The five USB host ports are particularly useful for fleet work. Instead of repeatedly disconnecting and reconnecting individual units, an engineer can keep several Bolt devices attached while changing pairings, wireless channels, or region-specific settings.

Because the Manager does not require an external computer, it can remain as a permanent bench or cart tool. The front panel provides local control, while the web GUI gives the operator another way to manage the system over Ethernet or Wi-Fi.

This type of centralized setup is practical for rental houses, video-assist teams, and engineering departments that need to prepare matched transmitter and receiver groups before equipment reaches the set.

System Characteristics

• Multi-device USB management for connected Bolt hardware
• One-to-four simultaneous pairing between a transmitter and receivers
• Wireless-channel configuration from a central control point
• Regional setting management for supported Bolt systems
• Front-panel operation without a separate workstation
• Web-based control through the network interface
• Ethernet and dual-band Wi-Fi for flexible access
• Compact standalone design for benches, carts, and equipment rooms

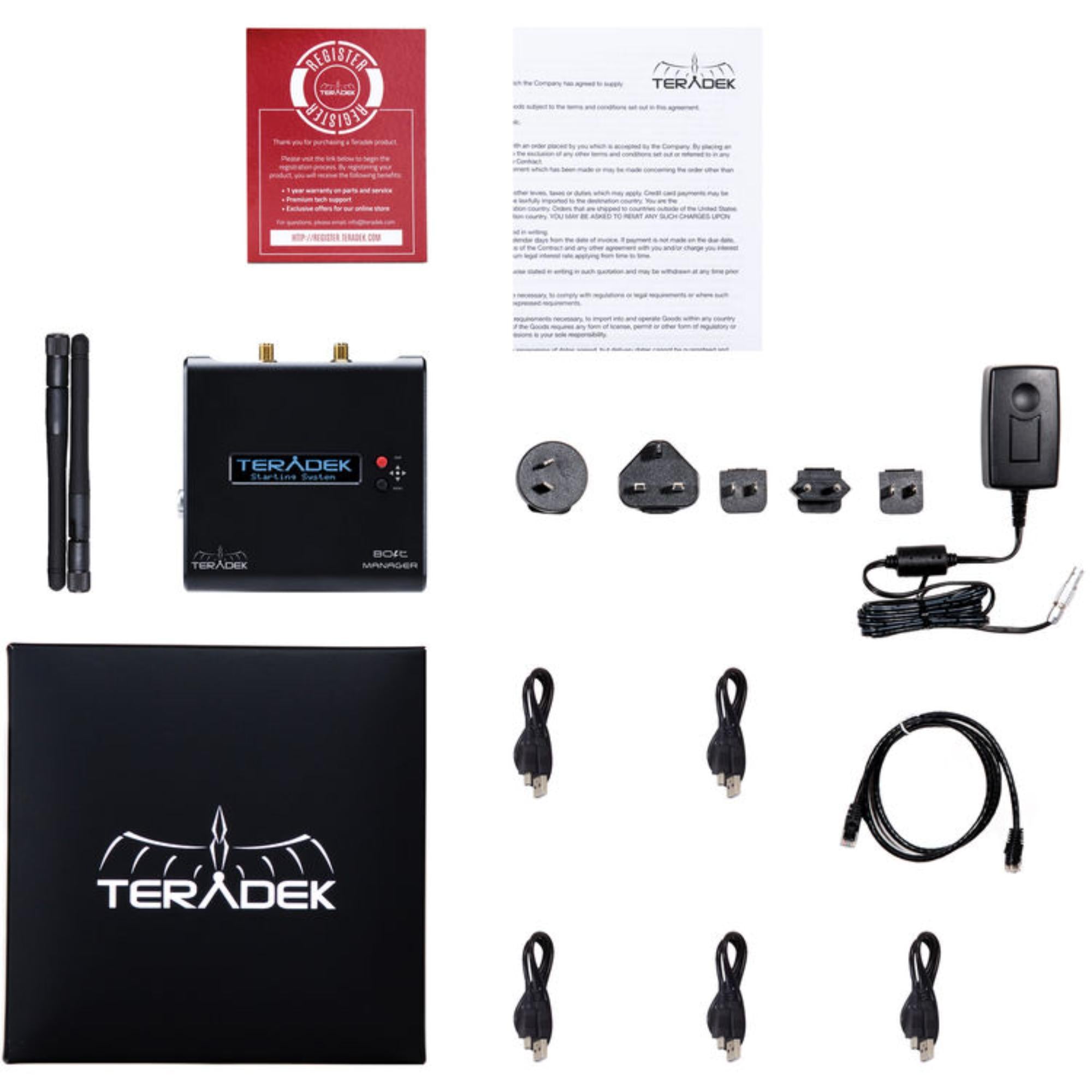

What’s In The Box

• 1 x Teradek Bolt Manager

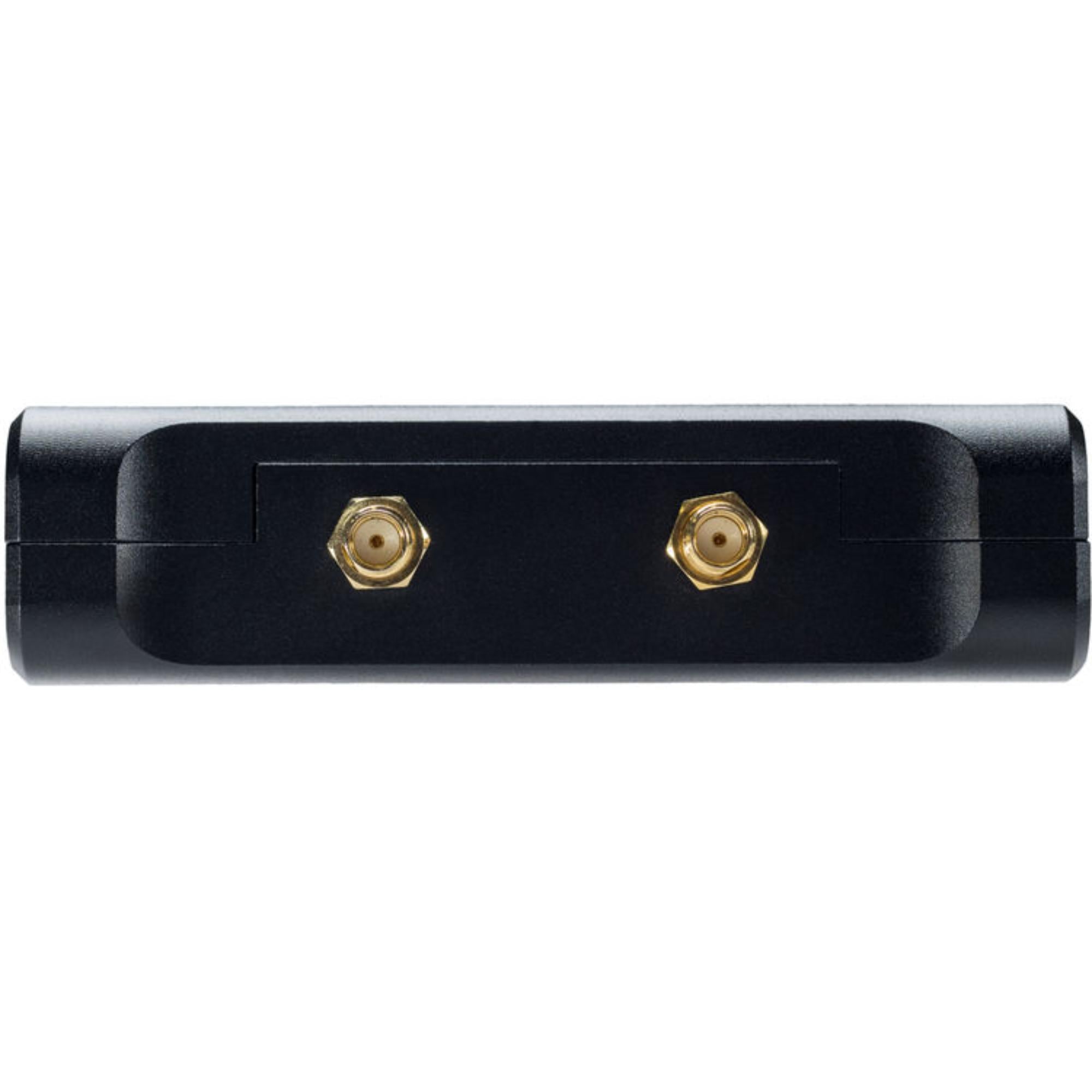

• 2 x Antennas
• 1 x D-Tap Power Cable
• 5 x USB Cables
• 1 x Ethernet Cable
