Product Highlights
- 32-bit float mono recording
- Omnidirectional lavalier mic included
- Wired and wireless timecode
- Bluetooth app control and monitoring
Tentacle Sync TRACK E 32-Bit Float Timecode Recorder with Lavalier Mic
- SKU:
- TEN-TR1-US
- MPN:
- TR1US
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Tentacle Sync TRACK E 32-Bit Float Timecode Recorder with Lavalier Mic combines professional 48 kHz mono recording, wired and wireless timecode synchronization, and an included omnidirectional lavalier microphone in a compact talent-worn recorder. Its 32-bit float recording mode provides additional headroom for interviews, documentaries, journalism, multicamera shoots, and location sound workflows where levels can change unexpectedly. Bluetooth app control gives crews remote access to synchronization and recorder operation while the unit remains mounted on talent.
32-Bit Float Recording for Unpredictable Dialogue
TRACK E records mono audio at 48 kHz with selectable 32-bit float or 24-bit recording. The 32-bit float mode provides additional level latitude when talent moves between quiet speech and louder dialogue, reducing the need to constantly adjust input gain during interviews and location production.

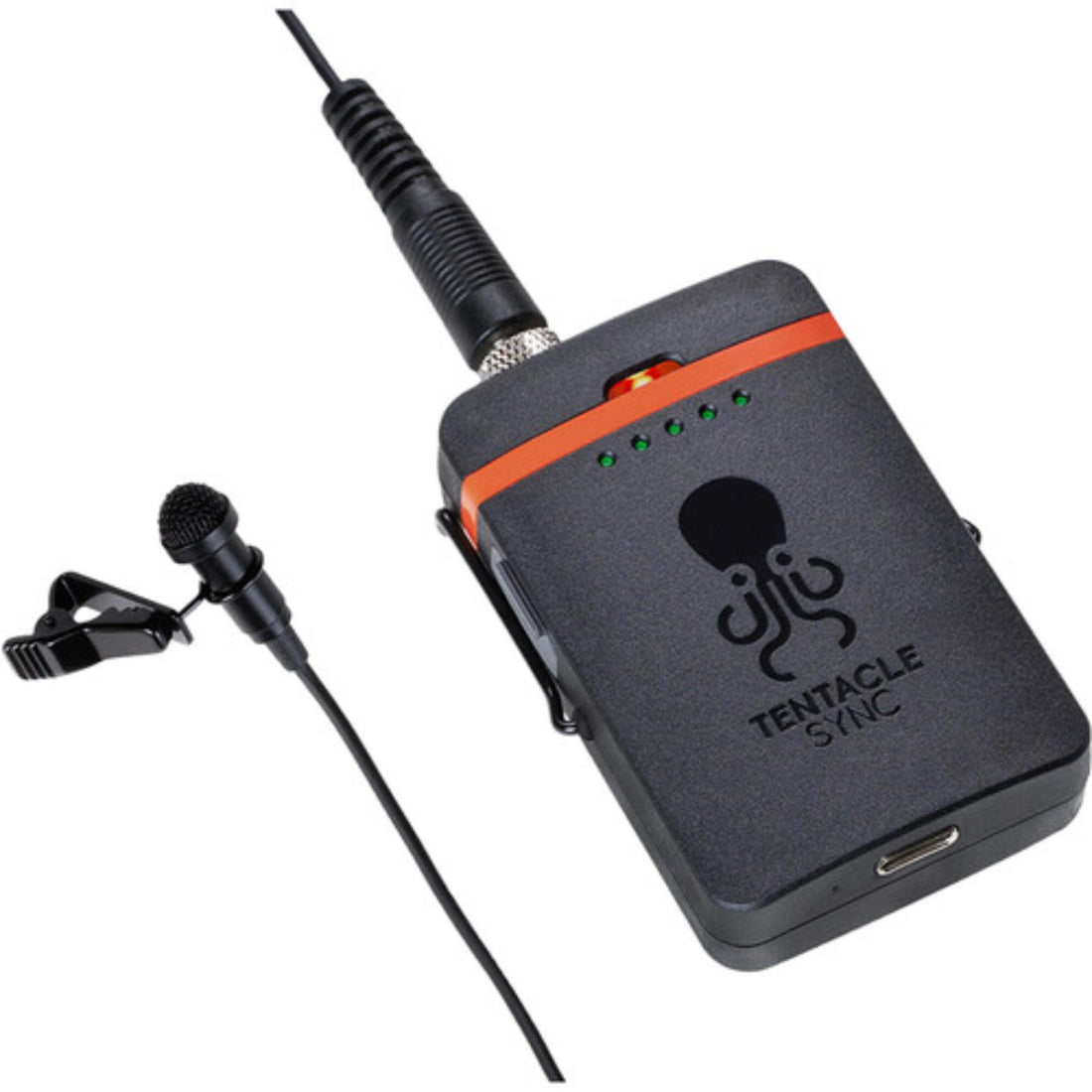

Omnidirectional Lavalier Microphone Included
The TR1-US package includes an interchangeable omnidirectional lavalier microphone that connects through the locking 3.5 mm microphone input. Its omnidirectional pickup pattern helps keep dialogue consistent when talent turns their head, making the system practical for documentary interviews, journalism, presentations, and creator production.
Wired and Wireless Timecode Synchronization
TRACK E supports wired timecode input and output together with wireless synchronization for compatible Tentacle workflows. Multiple recorders can share a common time reference, helping editors align separately recorded dialogue with camera footage during multicamera, documentary, interview, and production sound workflows.

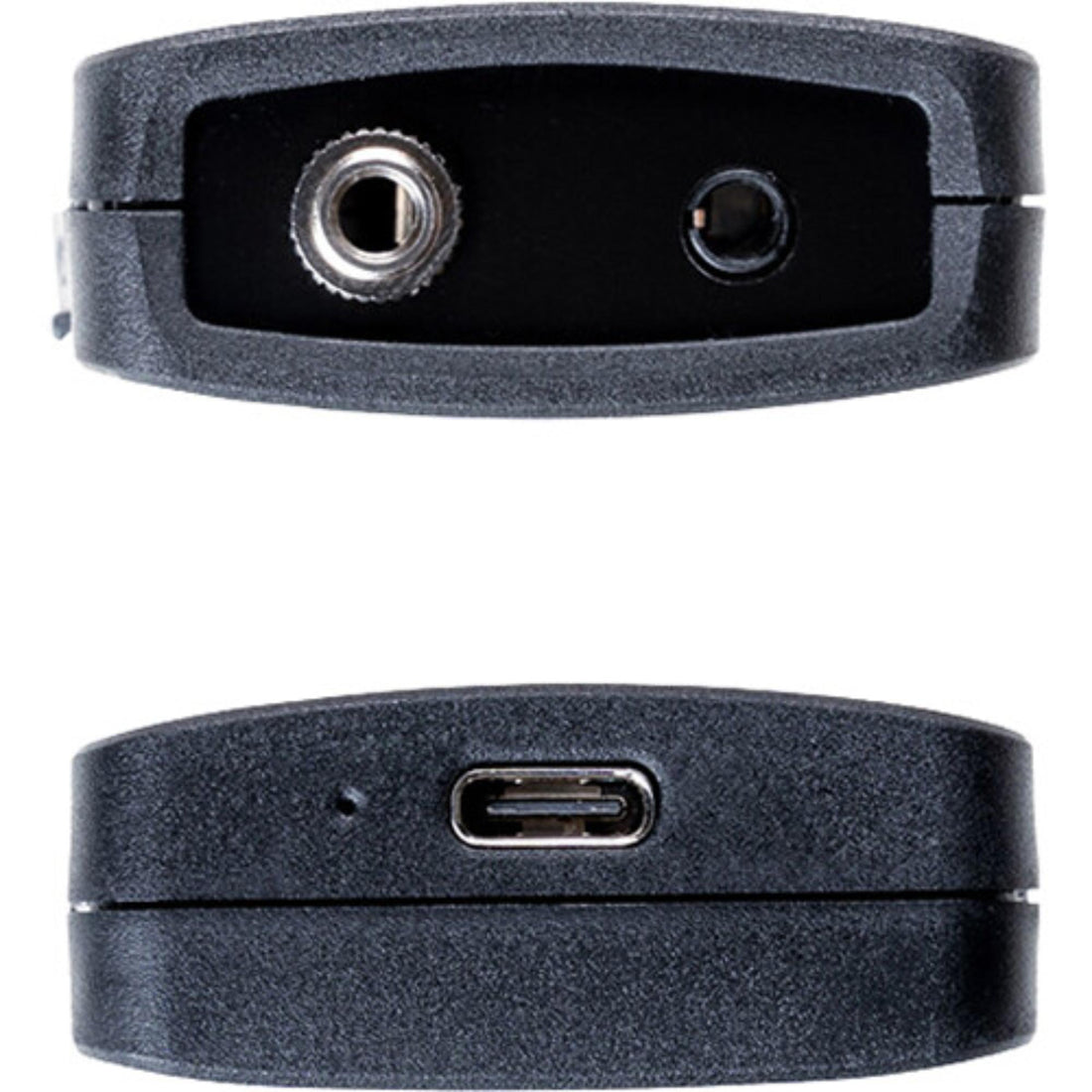

Locking 3.5 mm Microphone Connection
A locking 3.5 mm TRS microphone input helps keep the lavalier cable secured during talent-worn recording. The input provides 5 V plug-in power for compatible microphones and supports the included lavalier as well as other compatible locking 3.5 mm microphones.
Bluetooth Control with the Tentacle Setup App
Bluetooth 5.0 connects TRACK E to the Tentacle Setup App on compatible iOS and Android devices for remote control and configuration. Crews can manage recorder settings and synchronization without removing the recorder from talent, helping streamline multi-recorder and location sound setups.
Limiter and Low-Cut Filter for Dialogue Recording
Built-in signal processing includes a limiter and low-cut filter to support clean spoken-word recording in the field. The low-cut filter can reduce unwanted low-frequency energy, while the limiter provides additional peak management when working in 24-bit recording mode.
Up to 10-Hour Battery Runtime
The built-in rechargeable battery supports up to approximately 10 hours of operation for extended interviews, documentary shoots, events, and production days.
110 dB Dynamic Range
A specified 110 dB dynamic range supports detailed dialogue capture across a broad range of recording levels in professional audio-for-video workflows.

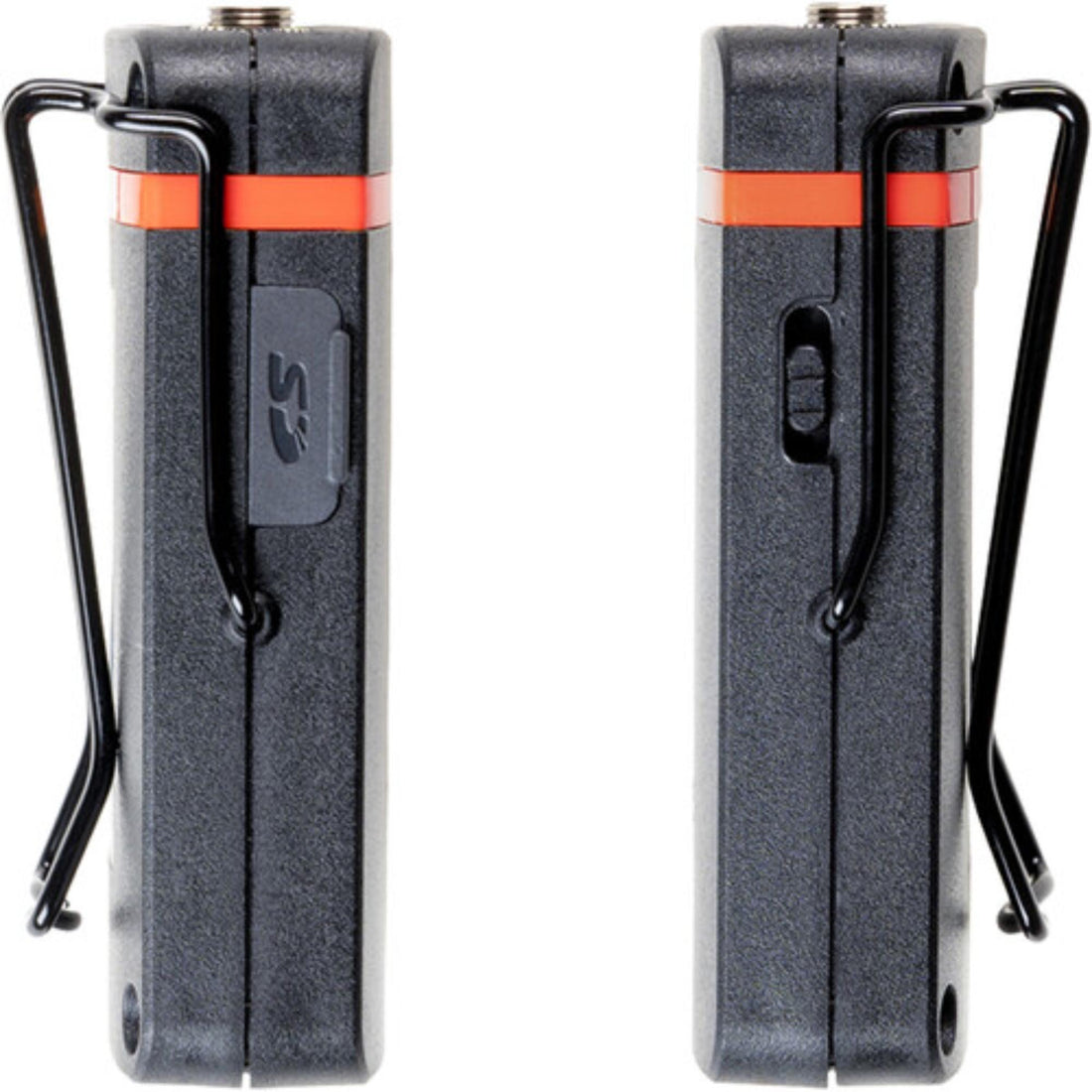

Compact 58 g Talent-Worn Design
The 58 g recorder clips directly to talent with the included belt clip, keeping the recording system compact for interviews, presenters, journalists, and mobile production crews.
Record Talent Directly with Timecode-Synced Lavalier Audio
Clip the TRACK E and included omnidirectional lavalier microphone directly to talent for isolated dialogue recording during interviews, documentaries, journalism, and field production. Timecode provides a common timing reference that helps align separately recorded audio with camera footage during post-production.
Synchronize Multiple TRACK E Recorders Across a Production
Multiple TRACK E units can be synchronized through the Tentacle ecosystem so each person can carry an independent recorder while sharing the same time reference. This workflow is practical for panel discussions, multicamera interviews, reality production, music sessions, and multi-talent shoots.
Simplify Dialogue Synchronization in Post-Production
TRACK E can jam-sync from an external LTC source or work with compatible Tentacle devices for wireless synchronization. Matching timecode references reduce manual alignment work when combining isolated dialogue tracks with footage from cameras, recorders, and other production devices.
Documentary Filmmakers
Recording isolated talent dialogue with timecode for interviews, documentaries, and mobile field production.
Location Sound Teams
Adding compact talent-worn recorders to production sound workflows where independent backup or primary dialogue tracks are required.
Videographers
Capturing synchronized lavalier audio for corporate interviews, branded content, events, and multicamera video production.
Journalists
Using a lightweight bodypack recorder for mobile interviews where fast setup and reliable isolated dialogue capture matter.
Content Creators
Recording YouTube, vlog, podcast, interview, and creator content with an included lavalier microphone and app-based control.
Tentacle Sync Users
Expanding an existing Tentacle timecode workflow with additional talent recorders for synchronized multicamera production.
Tentacle Sync Support
Coremicro can help integrate the TRACK E into professional documentary, interview, location sound, multicamera, and content-production workflows. Our team can help confirm compatible lavalier microphones, timecode cabling, additional Tentacle units, and recorder quantities for your camera and post-production setup.
| Specification | Detail |
|---|---|
| Product | TRACK E Pocket Audio Recorder with Lavalier Mic and Timecode Support |
| Manufacturer Part Number | TR1-US |
| Form Factor | Lavalier / Bodypack Audio Recorder |
| Number of Channels | 1 |
| Number of Tracks | 1 Mono Track |
| Sampling Rate | 48 kHz |
| Recording Bit Depth | 32-Bit Float · 24-Bit |
| Audio File Formats | WAV · BWF |
| Signal Processing | Low-Cut Filter · Limiter |
| Included Microphone | Interchangeable Omnidirectional Lavalier Microphone |
| Microphone Input | 1 × Locking 3.5 mm TRS Mic Input |
| Mic Plug-In Power | 5 V |
| Headphone Output | 3.5 mm Connection for Playback Monitoring and Supported Timecode Output |
| Timecode | Wired Input / Output · Wireless Synchronization |
| Timecode Standard | SMPTE 12M LTC |
| Timecode Input | LTC via Microphone Input |
| Synchronization | Bluetooth via Tentacle Setup App or Cable Jam-Sync |
| Supported Frame Rates | 23.98 · 24 · 25 · 29.97 · 29.97DF · 30 fps |
| Bluetooth | Bluetooth 5.0 |
| Remote Control | Tentacle Setup App · iOS / Android |
| Wireless Audio Monitoring | Supported through the Tentacle Setup App |
| Apple Watch Control | Synchronization · Start / Stop Control |
| Storage Media | microSD / microSDHC · Up to 32GB |
| Included Memory Card | 16GB microSD Card |
| Recording Time with 16GB Card | Approximately 30 Hours at 24-Bit · 23 Hours at 32-Bit Float |
| USB | USB-C |
| Frequency Response | 20 Hz to 20 kHz |
| Gain Range | Up to +46 dB |
| Dynamic Range | 110 dB |
| THD | ≤ 0.05% |
| Battery | Built-In Rechargeable Lithium Battery |
| Battery Runtime | Up to 10 Hours |
| Maximum Charging Time | Approximately 2 Hours |
| Mounting | Removable Belt Clip |
| Dimensions | 47 × 68 × 19 mm / 1.9 × 2.7 × 0.7 in |
| Weight | 58 g / 2 oz |
| Included Software | Tentacle Sync Studio Software License |
| Warranty | Limited 2-Year Manufacturer Warranty |
| What's In The Box | TRACK E Pocket Audio Recorder · Omnidirectional Lavalier Microphone · Microphone Clip · Foam Windscreen · Belt Clip · 16GB microSD Card · USB Type-A to USB Type-C Cable · USB Type-C to USB Type-C Cable · Colored Bands · Zipper Bag · Tentacle Sync Studio License |
Does the Tentacle Sync TRACK E record 32-bit float audio?
Yes. The TRACK E records mono audio at 48 kHz in either 32-bit floating-point or 24-bit mode. The 32-bit float option provides additional headroom for dialogue and location recording where input levels can change unexpectedly.
Does the TRACK E TR1-US include a lavalier microphone?
Yes. The TR1-US package includes an omnidirectional lavalier microphone with a locking 3.5 mm connector, along with a microphone clip and foam windscreen for talent-worn recording.
Can the Tentacle TRACK E synchronize with cameras using timecode?
Yes. TRACK E supports LTC timecode and can jam-sync from an external timecode source or synchronize wirelessly with compatible Tentacle devices. This allows separately recorded dialogue and camera footage to share a common timing reference for post-production.
Can multiple TRACK E recorders stay synchronized?
Yes. Multiple TRACK E units can be synchronized through the Tentacle ecosystem and then operate independently while maintaining their common time reference. This is useful for multicamera interviews, documentaries, panel discussions, and productions with several talent recorders.
Can TRACK E be controlled from a smartphone?
Yes. Bluetooth connectivity allows TRACK E to be configured, synchronized, and controlled through the Tentacle Setup App on compatible iOS and Android devices. Wireless audio monitoring is also available through the app, although monitoring latency depends on the connected mobile device.
How long does the Tentacle TRACK E battery last?
The built-in rechargeable lithium battery provides up to approximately 10 hours of operating time. Charging is handled through USB-C and takes approximately two hours at maximum.
What memory card does the TRACK E use?
The TR1-US package includes a 16GB microSD card and supports microSDHC media up to 32GB. The included 16GB card provides approximately 30 hours of recording at 24-bit or about 23 hours in 32-bit float mode.
What comes with the Tentacle Sync TRACK E TR1-US?
The package includes the TRACK E recorder, omnidirectional lavalier microphone, microphone clip, foam windscreen, belt clip, 16GB microSD card, USB Type-A to USB Type-C cable, USB Type-C to USB Type-C cable, colored bands, zipper bag, and Tentacle Sync Studio software license.
