Tentacle Sync Lockable 3.5mm Mini Jack for TRACK E

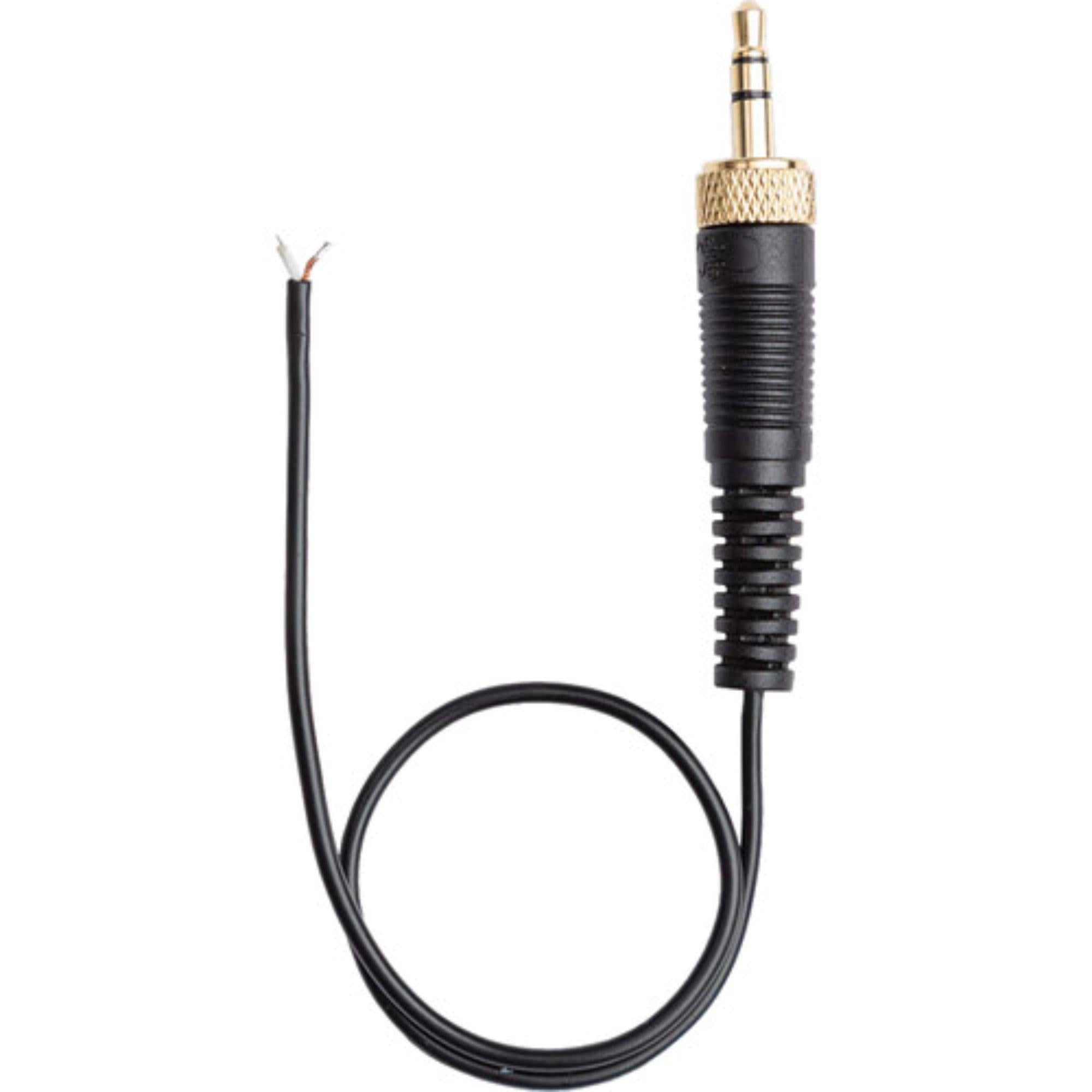

Tentacle Sync Lockable 3.5mm Mini Jack for TRACK E is a short adapter cable made for building a custom microphone connection around the Tentacle Sync TRACK E timecode audio recorder. One end terminates in a lockable 3.5 mm stereo TRS male plug for the TRACK E, while the opposite end is left as a mono bare-wire connection for custom wiring.

At 20 cm (7.9"), the cable is short enough to stay tidy around bodypack and field-recording setups without leaving a large loop of unused cable. The lockable 3.5 mm connection helps keep the TRACK E side secure, while the bare-wire end gives technicians the flexibility to terminate the adapter for the microphone or wiring scheme required by the setup.

Highlights

• TRACK E microphone adapter – provides a dedicated connection point for custom microphone wiring with the Tentacle Sync TRACK E
• Lockable 3.5 mm stereo jack – secures the recorder-side connection against accidental disconnection
• Bare-wire open end – allows the technician to create a custom termination for the required microphone interface
• Compact 7.9" cable run – keeps wiring short around bodypack, talent, and field-recording setups
• Lightweight construction – adds very little weight to a TRACK E recording rig

Quick Specs & Uses

• Product type: TRACK E microphone adapter cable
• Compatibility: Tentacle Sync TRACK E
• Connector 1: Stereo 3.5 mm TRS male
• Connector 2: Mono bare-wire open end
• Recorder-side connection: Lockable 3.5 mm mini jack
• Cable length: 20 cm (7.9 in)
• Color: Black
• Application: Custom microphone wiring, bodypack audio, field recording, talent recording, and TRACK E integration

Why It Helps

The useful part of this adapter is that it leaves the microphone side open for the exact termination the job needs. Instead of being locked into one connector type, the bare-wire end gives an audio technician room to build the cable around the microphone or wiring standard being used on set.

The TRACK E side is already handled with a lockable 3.5 mm stereo connection. That matters on body-worn or portable setups where movement can put stress on a normal friction-fit mini jack. The locking connection helps keep the recorder side in place once the rig is dressed.

The short 20 cm cable also keeps the setup manageable. There is enough length to route between the TRACK E and the custom microphone termination without leaving excess cable around talent, a pouch, or a compact field rig.

System Characteristics

• Tentacle Sync TRACK E compatibility provides the recorder-side connection
• Lockable 3.5 mm interface helps secure the cable at the TRACK E
• Stereo 3.5 mm TRS male connector is used on the recorder side
• Mono bare-wire open end provides the custom termination side
• Custom microphone adapter design allows technician-defined wiring for compatible microphone connections
• Color: Black
• Cable length: 20 cm (7.9 in)
• Dimensions: 170 × 120 × 12 mm (6.7 × 4.7 × 0.5 in)
• Weight: 0.015 kg (0.033 lb)

What's In The Box

• 1 x Tentacle Sync Lockable 3.5mm Mini Jack for TRACK E
