Product Highlights
- 0.2 ppm TCXO accuracy
- Bluetooth 5 app control
- Up to 50-hour runtime
- Lockable 3.5mm timecode I/O

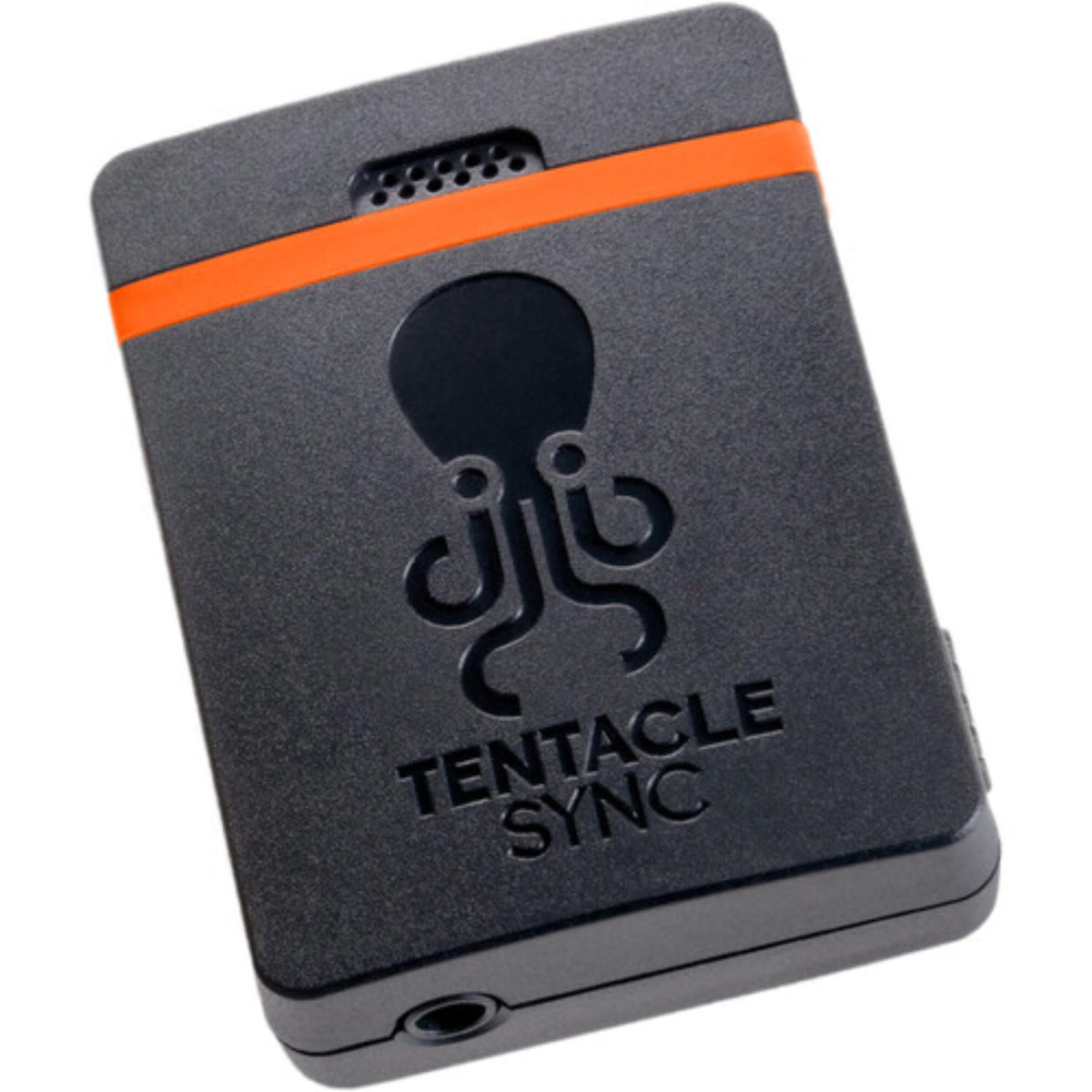

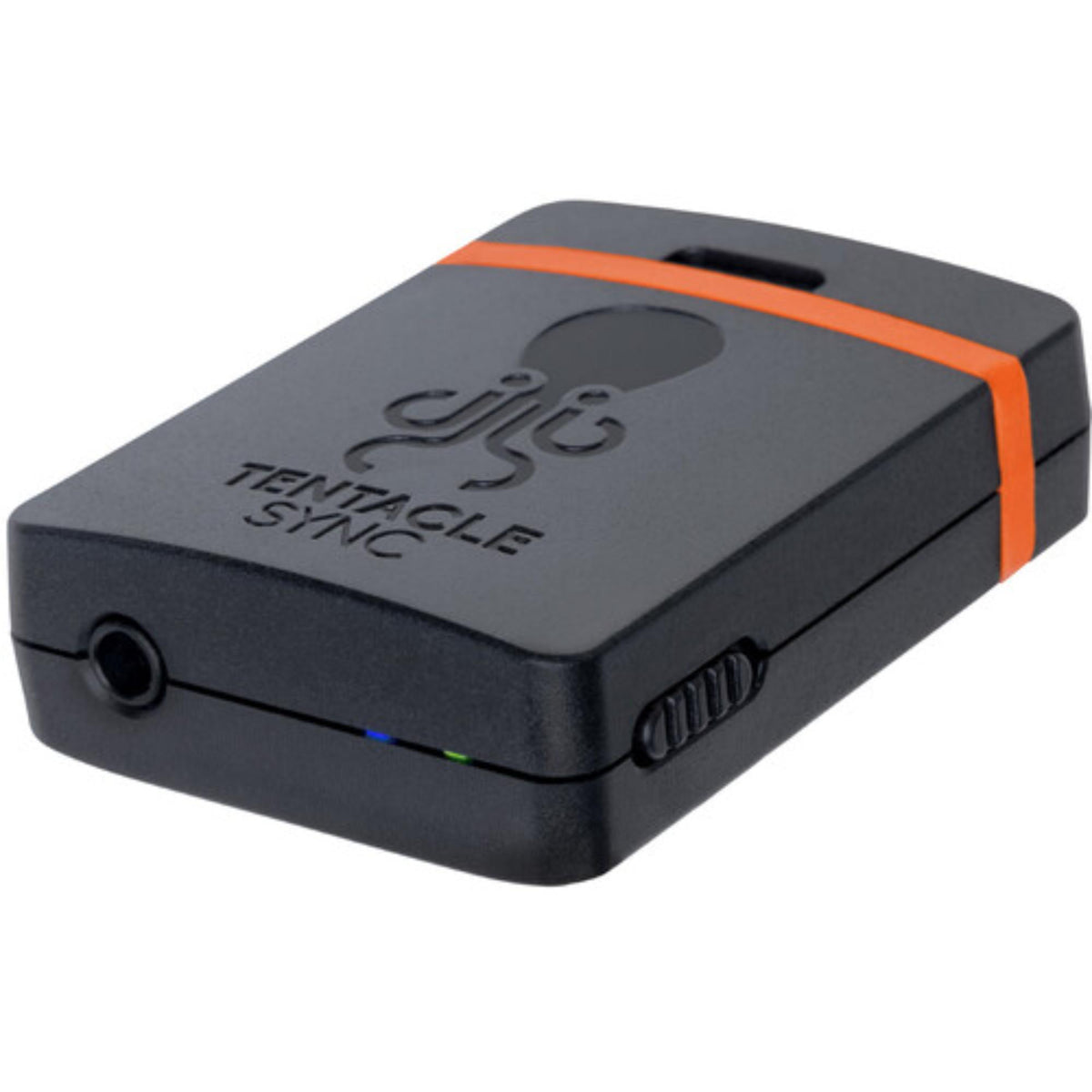

Tentacle Sync TE1-MK2 SYNC E mkII Timecode Generator
- SKU:
- TEN-TE1-MK2
- MPN:
- TE1MK2
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Tentacle Sync TE1-MK2 SYNC E mkII Timecode Generator provides precise SMPTE LTC synchronization for professional camera, production sound, multicamera, and post-production workflows. Its high-precision 0.2 ppm TCXO maintains less than one frame of drift over 24 hours, while Bluetooth 5 Low Energy enables wireless setup and monitoring through the Tentacle Setup App. The compact 30 g generator can operate as a master clock or jam-sync from an external timecode source.
Timecode Generator and Jam-Sync for Cameras & Recorders
The SYNC E mkII uses a lockable 3.5 mm connection for LTC timecode input and output. It can generate SMPTE timecode as a master clock or jam-sync from an external source for compatible camera and production audio workflows.
Its compact design makes the TE1-MK2 practical for multicamera shoots, location sound, interviews, events, and production rigs where synchronized camera and recorder clocks simplify post-production.
Wireless Control with the Tentacle Setup App
Bluetooth 5 Low Energy provides wireless access to setup, monitoring, and synchronization functions through the Tentacle Setup App on compatible iOS and Android devices.
Camera and sound crews can configure and monitor the SYNC E mkII while it remains mounted to a camera or recorder, helping streamline multicamera and location production workflows.
Professional SMPTE Frame Rate Support
The TE1-MK2 supports 23.98, 24, 25, 29.97, 29.97DF, and 30 fps timecode rates, with corresponding support for 50 and 60 fps production workflows.
Broad SMPTE frame rate support makes the SYNC E mkII suitable for cinema, broadcast, documentary, event, and multicamera productions using compatible cameras and audio recorders.
0.2 ppm Precision TCXO
Maintains less than one frame of drift over 24 hours for dependable professional timecode synchronization.
Up to 50-Hour Battery Runtime
The built-in 400 mAh rechargeable Li-Po battery supports extended production days with USB-C charging.
Built-In Reference Microphone
Integrated scratch audio provides an additional reference for clip identification and picture-to-sound alignment in post.
Synchronize Multiple Cameras with a Shared LTC Reference
The SYNC E mkII can provide a common SMPTE LTC reference across compatible cameras and recorders, helping multicamera productions maintain consistent timing throughout interviews, events, documentaries, and professional production days.
Jam-Sync from an Existing Timecode Source
The lockable 3.5 mm LTC connection allows the TE1-MK2 to receive timecode from an external source and maintain that reference with its high-precision 0.2 ppm TCXO.
Simplify Picture and Production Audio Synchronization
Matching timecode references help camera and sound departments keep picture and production audio aligned, while the built-in reference microphone provides scratch audio for clip identification during post-production.
Camera Departments
Adding compact LTC synchronization to compatible cameras and professional multicamera production rigs.
Production Sound Teams
Maintaining matching timecode references between cameras and audio recorders during location sound workflows.
Documentary & Event Crews
Using a lightweight 30 g timecode generator for interviews, documentaries, events, and mobile production setups.
Content Production Teams
Simplifying synchronization across multiple capture devices for branded content, podcasts, interviews, and studio production.
Rental Houses
Adding compact professional timecode generators to camera, production audio, and broadcast rental packages.
Tentacle Sync Users
Expanding existing Tentacle workflows with Setup App control and compatible LTC-enabled production equipment.
Tentacle Sync Support
Coremicro can help integrate the TE1-MK2 SYNC E mkII into professional camera, production sound, documentary, event, multicamera, and post-synchronization workflows with compatible Tentacle Sync and LTC-enabled equipment.
| Specification | Detail |
|---|---|
| Product | SYNC E mkII Timecode Generator — Single Set |
| Manufacturer Part Number | TE1-MK2 |
| Timecode Standard | LTC According to SMPTE-12M |
| Clock Accuracy | High-Precision TCXO · 0.2 ppm |
| Drift | Less Than 1 Frame in 24 Hours |
| Accuracy Temperature Range | -30°C to +85°C / -22°F to +185°F |
| Supported Frame Rates | 23.98 · 24 · 25 (50) · 29.97 · 29.97DF · 30 (60) fps |
| Timecode Input / Output | Lockable 3.5 mm Jack · LTC Input / Output |
| Synchronization | Bluetooth or Cable Jam-Sync |
| Bluetooth | Bluetooth 5 Low Energy |
| Wireless Control | Tentacle Setup App · iOS / Android |
| Reference Audio | Built-In Reference Microphone |
| USB | USB-C · USB 2.0 |
| USB Functions | Charging · Firmware Update · Setup on Mac / Windows · MIDI Timecode |
| Battery | 400 mAh Rechargeable Lithium Polymer / Li-Po |
| Battery Runtime | Up to 50 Hours |
| Maximum Charging Time | Approximately 1.5 Hours |

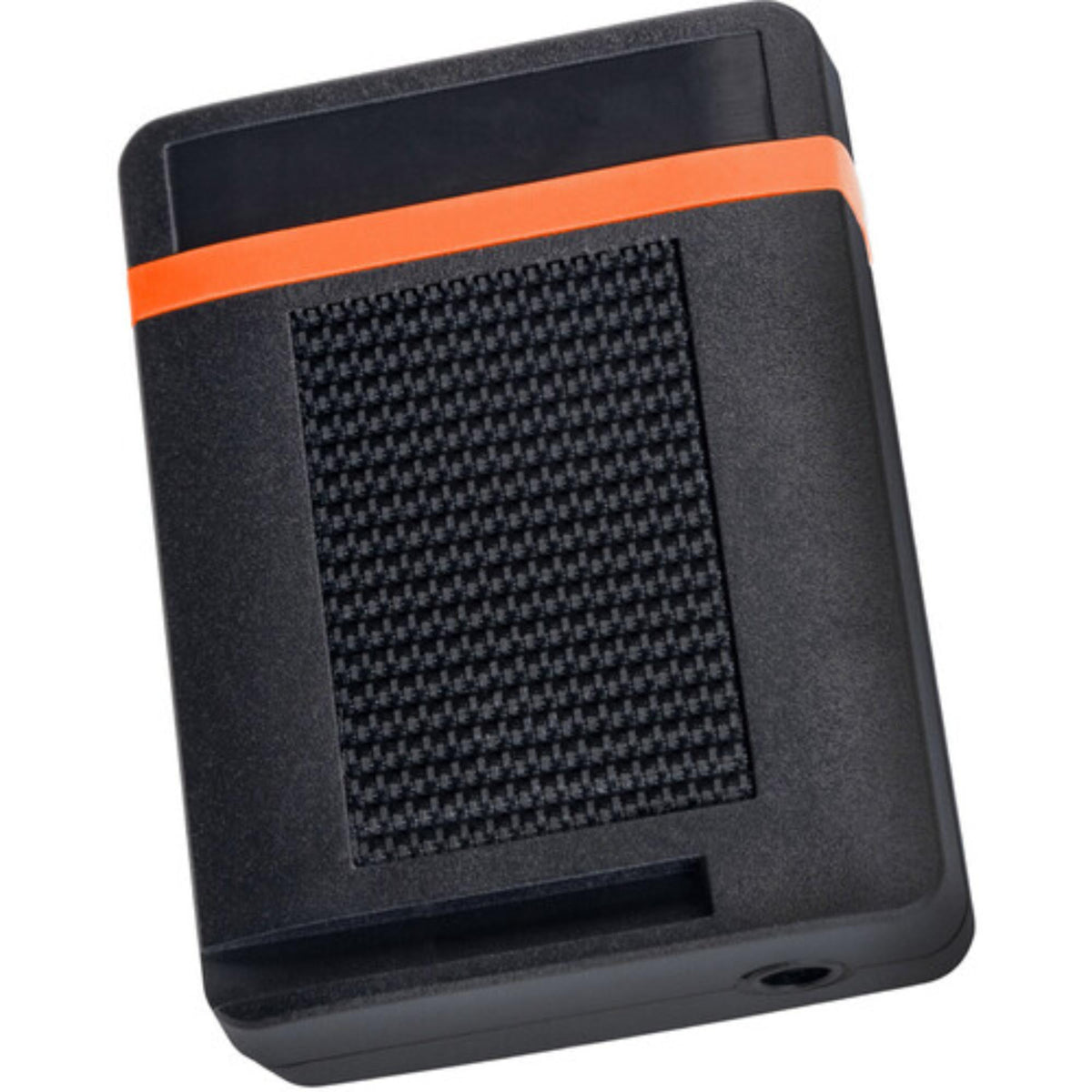

| Mounting | Integrated Hook Surface on Rear |
| Dimensions | 38 × 50 × 15 mm / 1.49 × 1.97 × 0.59 in |
| Weight | 30 g / 1.0 oz |
| Included Software | Tentacle Sync Studio Software License for macOS |
| EAN | 4260452430077 |
| Country of Origin | Germany |
| HS Code | 8543.20.00 |
| What's In The Box | SYNC E mkII Timecode Generator · Right-Angle Mini Jack Cable · USB-C to USB-C Cable · USB-A Adapter · 2 × Locking Clamps · 10 × Velcro Loop Pads · 5 × Colored Silicone Bands · Quickstart Guide · Tentacle Sync Studio License Activation Instructions |
Can the Tentacle SYNC E mkII generate its own timecode?
Yes. The TE1-MK2 can operate as a master LTC timecode generator or jam-sync from an external timecode source through its lockable 3.5 mm connection.
How accurate is the SYNC E mkII timecode generator?
The SYNC E mkII uses a high-precision 0.2 ppm TCXO and is rated for less than one frame of drift over 24 hours.
How long does the TE1-MK2 battery last?
The built-in 400 mAh rechargeable Li-Po battery provides up to 50 hours of operating time and recharges through USB-C.
Can the SYNC E mkII be controlled from a smartphone?
Yes. Bluetooth 5 Low Energy enables setup, monitoring, and synchronization through the Tentacle Setup App on compatible iOS and Android devices.
Does the SYNC E mkII include a reference microphone?
Yes. The built-in reference microphone provides scratch audio that can assist clip identification and picture-to-sound alignment during post-production.
Which frame rates does the SYNC E mkII support?
The TE1-MK2 supports SMPTE timecode rates including 23.98, 24, 25, 29.97, 29.97DF, and 30 fps, with corresponding support for 50 and 60 fps production workflows.
Build a Precise Timecode Synchronization Workflow
Coremicro is an authorized Tentacle Sync dealer supporting professional camera, production sound, documentary, event, and multicamera workflows. Contact our team to integrate the TE1-MK2 SYNC E mkII with compatible cameras, recorders, and timecode accessories.
Talk to a SpecialistSpecifications
Tentacle Sync TE1-MK2 SYNC E mkII Timecode Generator Specifications
