Product Highlights
- High-contrast OLED timecode display
- 0.2 ppm TCXO accuracy
- Bluetooth 5.2 app control
- 2200mAh replaceable Li-Po battery

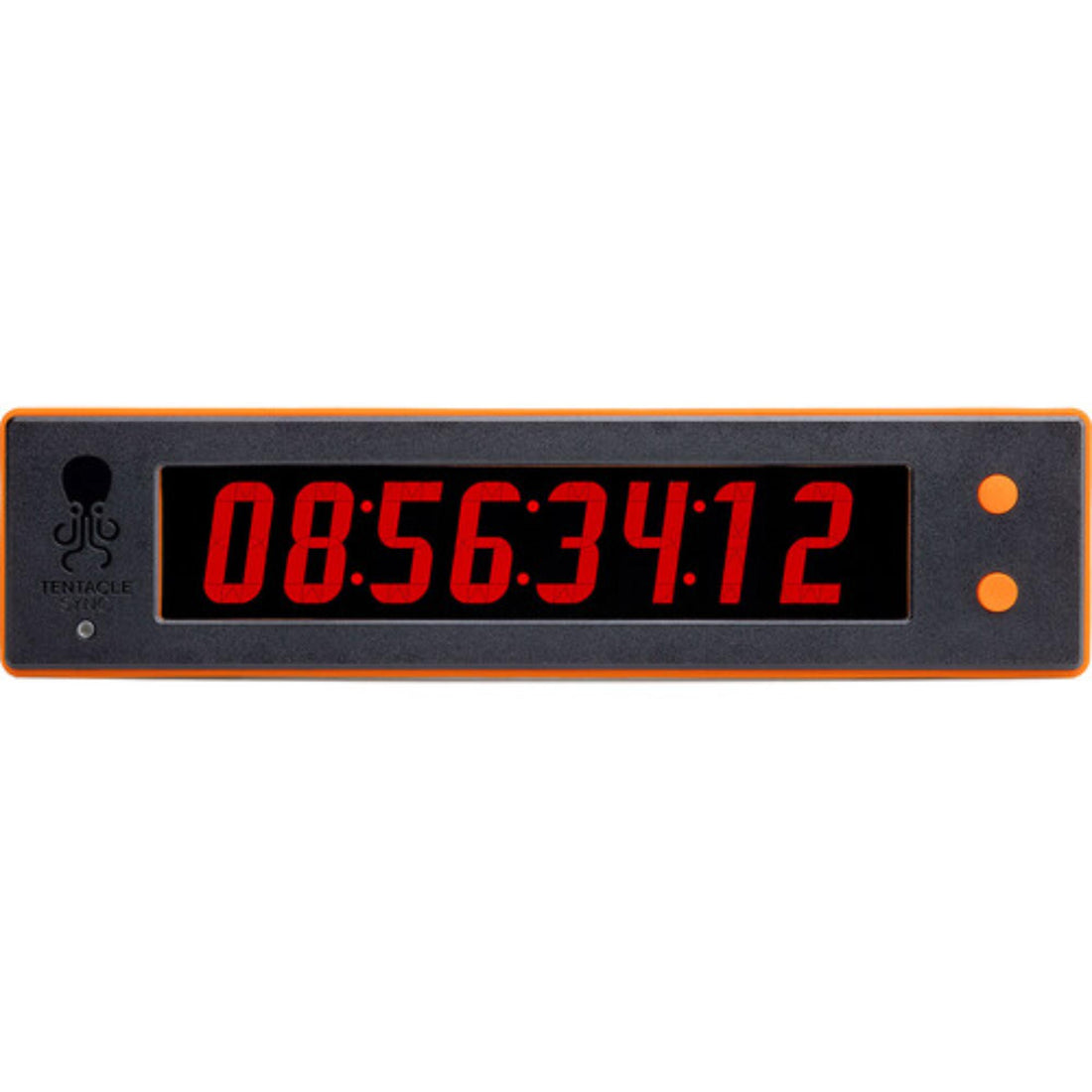

Tentacle Sync TB1 TIMEBAR Multipurpose Timecode Display
- SKU:
- TEN-TB1
- MPN:
- TB1
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Tentacle Sync TB1 TIMEBAR Timecode Display combines a high-contrast OLED screen with a precision 0.2 ppm TCXO timecode generator for visible synchronization across studio and on-set production workflows. TIMEBAR can operate as a timecode display or standalone generator, while additional timer, stopwatch, message, and slate modes expand its use for directors, presenters, camera teams, and production crews. Bluetooth 5.2 control through the Tentacle Setup App provides wireless configuration and synchronization with compatible Tentacle devices.

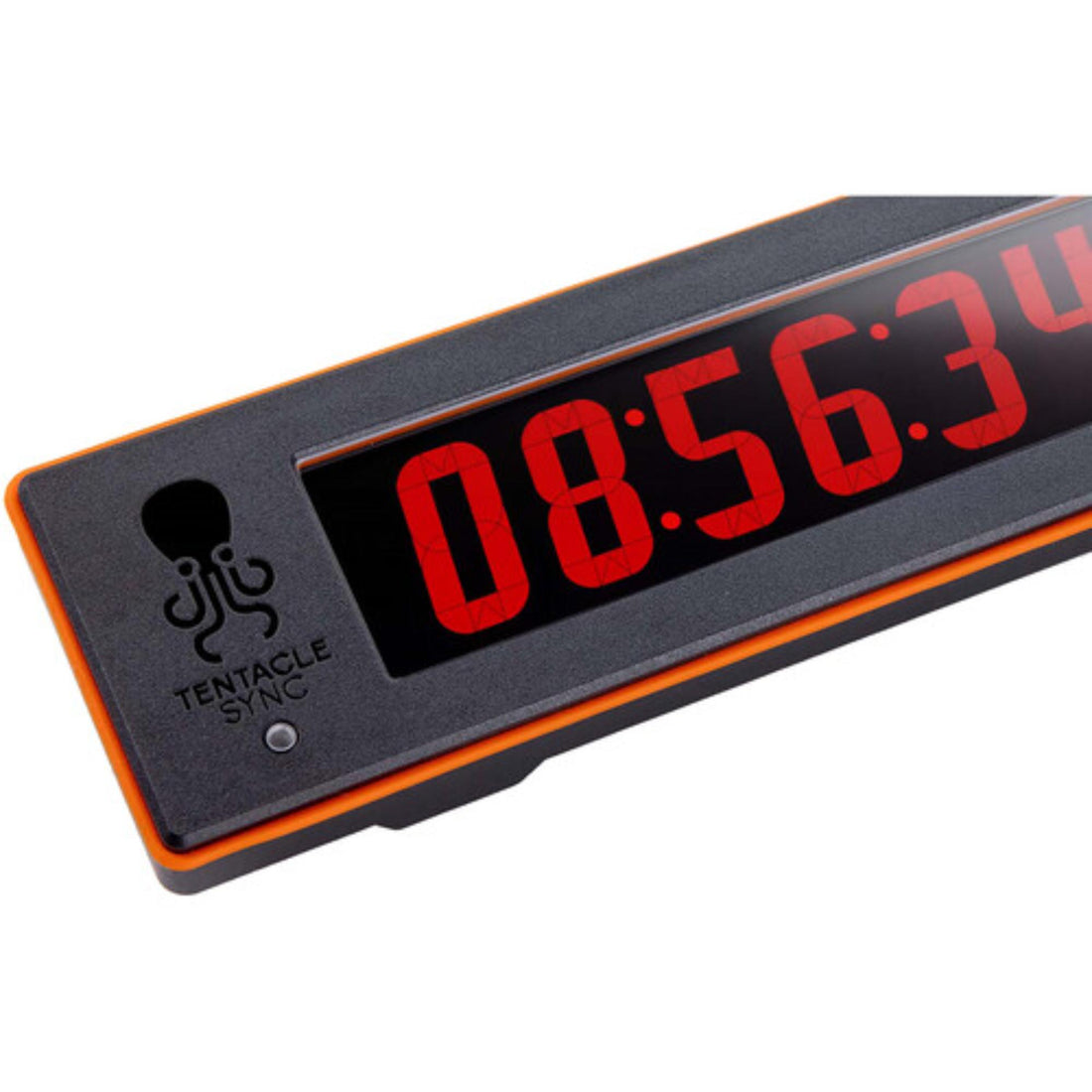

High-Contrast OLED Display
The wide-viewing-angle OLED display presents timecode and timing information with high contrast for clear visibility by directors, camera teams, presenters, and other crew members across studio and on-set environments.
0.2 ppm Precision Timecode Generator
A high-precision TCXO delivers 0.2 ppm accuracy with less than one frame of drift over 24 hours, supporting dependable LTC synchronization across professional production workflows.
3.5mm Timecode In & Out
The 3.5 mm connector supports LTC timecode input and output, allowing TIMEBAR to receive, generate, or distribute timecode within compatible camera, audio, and synchronization setups.
Timer, Stopwatch & Message Modes
Beyond timecode display, TIMEBAR can operate as a timer, countdown, stopwatch, custom-message display, or slate display, expanding its usefulness for studio timing, presentations, and production communication.
Bluetooth 5.2 Setup App Control
Bluetooth 5.2 Low Energy connectivity enables wireless setup, operation, and synchronization through the Tentacle Setup App, including workflows alongside compatible SYNC E and TRACK E devices.
Replaceable 2200 mAh Battery & OLED
The built-in 2200 mAh rechargeable Li-Po battery supports approximately 6 to 80 hours of operation depending on display brightness, with typical runtime around 24 hours. Both the battery and OLED module are designed to be replaceable.
Make Timecode Visible for Cameras Without TC Input
TIMEBAR provides a clearly visible SMPTE LTC reference that can be recorded in frame when working with cameras that lack a dedicated timecode input, supporting faster synchronization and identification during post-production.
Display Timecode, Countdown or Stopwatch Information
Directors, presenters, and studio teams can use TIMEBAR as a visible timecode display, countdown timer, stopwatch, or timing reference during broadcast, live production, interviews, and content creation.
Control and Sync TIMEBAR from the Setup App
Bluetooth 5.2 Low Energy connectivity allows TIMEBAR to be configured and synchronized through the Tentacle Setup App, supporting coordinated workflows with compatible SYNC E and TRACK E devices.
Camera Departments
Providing a visible timecode reference for multi-camera shoots, cameras without dedicated timecode input, and synchronized production workflows.
Directors & Producers
Monitoring production timing, timecode, countdowns, and other information from a high-contrast display on set or in the studio.
Broadcast & Studio Teams
Using timer, stopwatch, message, and timecode modes for live production, studio timing, presenter cues, and coordinated recording.
Tentacle Sync Users
Expanding existing SYNC E and TRACK E setups with a visible, app-controlled timecode display and standalone generator.
Tentacle Sync Support
Coremicro can help integrate the TB1 TIMEBAR into professional camera, production sound, studio timing, and Tentacle Sync workflows, including setups using compatible SYNC E and TRACK E devices.
| Specification | Detail |
|---|---|
| Product | TIMEBAR Multipurpose Timecode Display |
| Manufacturer Part Number | TB1 |
| Timecode Standard | LTC According to SMPTE-12M |
| Clock Accuracy | High-Precision TCXO · 0.2 ppm |
| Drift | Less Than 1 Frame in 24 Hours |
| Accuracy Temperature Range | -30°C to +85°C / -22°F to +185°F |
| Supported Frame Rates | 23.98 · 24 · 25 (50) · 29.97 · 29.97DF · 30 (60) fps |
| Display | High-Contrast OLED with Wide Viewing Angle |
| Display Modes | Timecode · Timer · Stopwatch · Message · Slate |
| Timecode I/O | 3.5 mm Jack · LTC Input / Output |
| USB | USB-C · USB 2.0 |
| Bluetooth | Bluetooth 5.2 Low Energy |
| Wireless Control | Tentacle Setup App |
| Synchronization | Bluetooth or Cable Jam-Sync |
| Battery | 2200 mAh Rechargeable Lithium Polymer / Li-Po |
| Typical Battery Runtime | Approximately 24 Hours |
| Battery Runtime Range | Approximately 6–80 Hours Depending on Display Brightness |
| Standard Charging Time | 4–5 Hours |
| Fast Charging Time | Approximately 2 Hours |
| Replaceable Components | Battery · OLED Display Module |

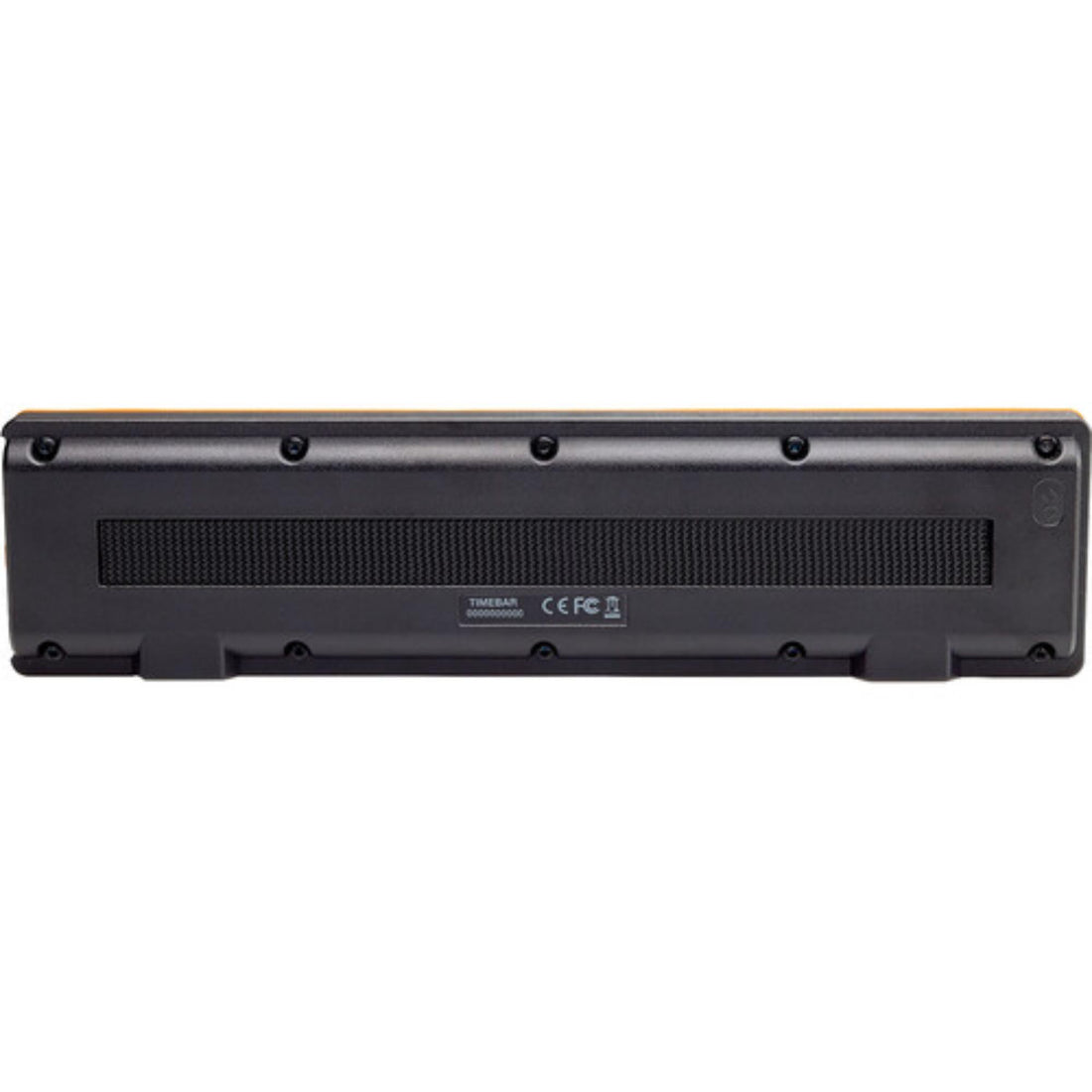

| Mounting | Integrated Hook Surface on Rear |
| Dimensions | 211 × 54 × 19 mm / 8.3 × 2.13 × 0.75 in |
| Weight | 222 g / 7.83 oz |
| Included Software | Tentacle Sync Studio Software License |
| EAN | 4260452430114 |
| Country of Origin | Germany |
| HS Code | 8543.70.90 |
Can the Tentacle TIMEBAR generate timecode?
Yes. The TB1 TIMEBAR can operate as both a visible timecode display and a standalone LTC timecode generator using its high-precision 0.2 ppm TCXO.
How long does the TIMEBAR battery last?
Typical runtime is approximately 24 hours. Depending on OLED brightness, operating time can range from approximately 6 hours at the highest brightness to as much as 80 hours at the lowest.
Can TIMEBAR be controlled from a smartphone?
Yes. Bluetooth 5.2 Low Energy connectivity allows TIMEBAR to be configured, operated, and synchronized through the Tentacle Setup App.
What display modes does TIMEBAR support?
TIMEBAR supports timecode, timer, stopwatch, message, and slate display modes for studio, on-set, presenter, and production timing workflows.
Are the TIMEBAR battery and OLED display replaceable?
Yes. Both the rechargeable 2200 mAh Li-Po battery and the OLED display module are designed to be replaceable for long-term serviceability.
Add Visible Timecode to Your Production Workflow
Coremicro is an authorized Tentacle Sync dealer supporting professional timecode, camera, production sound, and studio timing workflows. Contact our team to integrate the TB1 TIMEBAR with your production setup.
