Product Highlights
- TIMEBAR display included
- Precision acrylic slate board
- 0.2 ppm TCXO accuracy
- Bluetooth 5.2 app control
Tentacle Sync TB1-SL TIMEBAR Timecode Slate
- SKU:
- TEN-TB1-SL
- MPN:
- TB1SL
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview

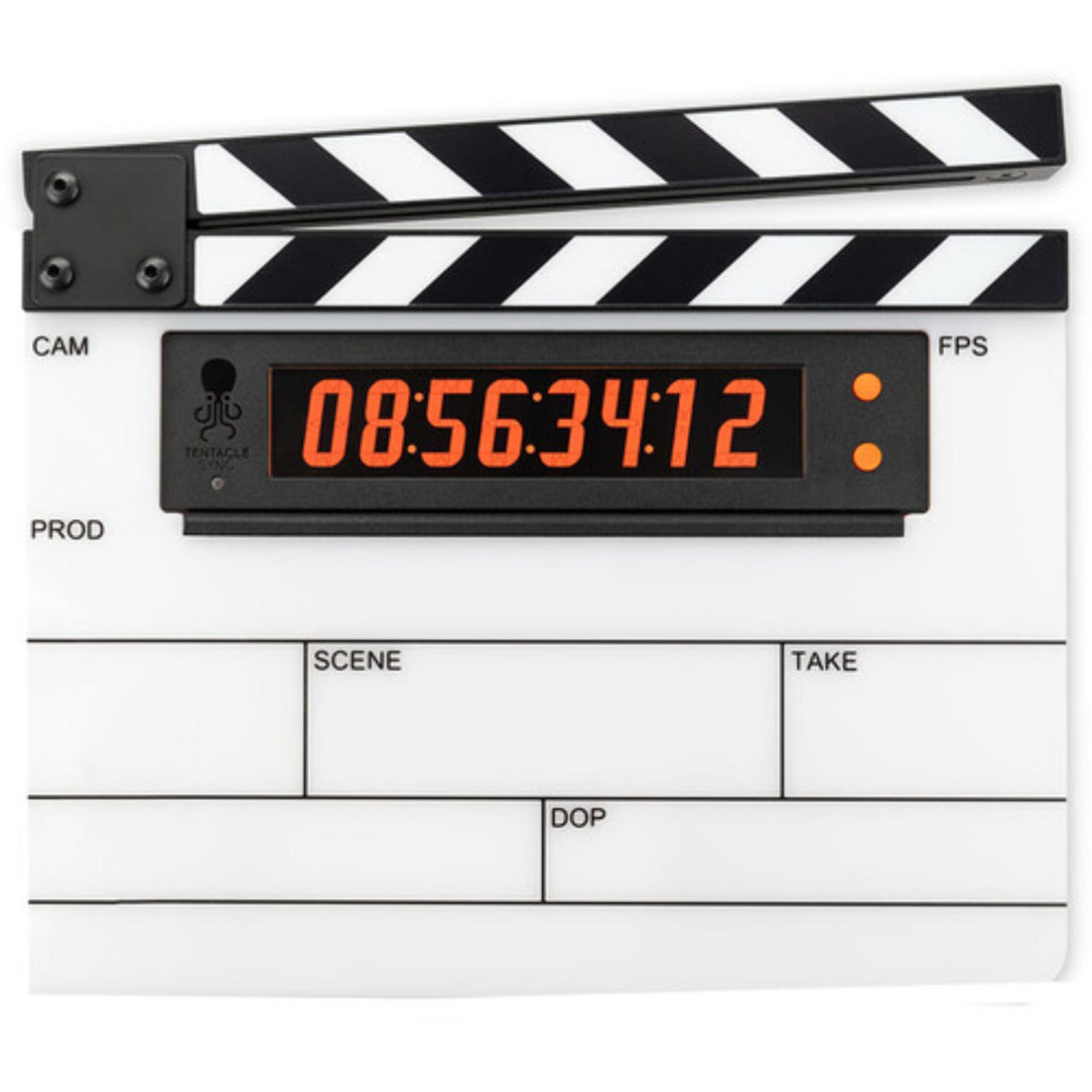

The Tentacle Sync TB1-SL TIMEBAR Timecode Slate combines the Tentacle TIMEBAR multipurpose timecode display with a precision acrylic Roll / Scene / Take board, durable clapper sticks, and a custom removable holder. Designed for professional camera and production workflows, the complete slate provides visible SMPTE LTC timecode, a high-contrast OLED display, 0.2 ppm TCXO accuracy, Bluetooth control, and dedicated slate functionality in one modular system.
Complete TIMEBAR Digital Slate
The TB1-SL includes the Tentacle TIMEBAR display together with the acrylic slate board, clapper sticks, custom holder, cables, and supporting hardware required for a complete digital timecode slate setup.
Precision Acrylic Slate Board
The precision-engineered acrylic board uses a dedicated Roll / Scene / Take layout and durable clapper sticks for traditional production identification and slate operation on set.
0.2 ppm Timecode Generator
TIMEBAR uses a high-precision 0.2 ppm TCXO with less than one frame of drift over 24 hours, supporting accurate SMPTE LTC synchronization across professional camera and production workflows.
Dedicated Slate Mode with TC Freeze
Dedicated slate mode can freeze the displayed timecode at the clap, helping camera and post-production teams identify the exact slate event before the display continues with additional configured slate information.
Bluetooth 5.2 Setup App Control
Bluetooth 5.2 Low Energy connectivity enables wireless setup, synchronization, messages, timer settings, and slate configuration through the Tentacle Setup App on compatible mobile devices.
Modular User-Replaceable Components

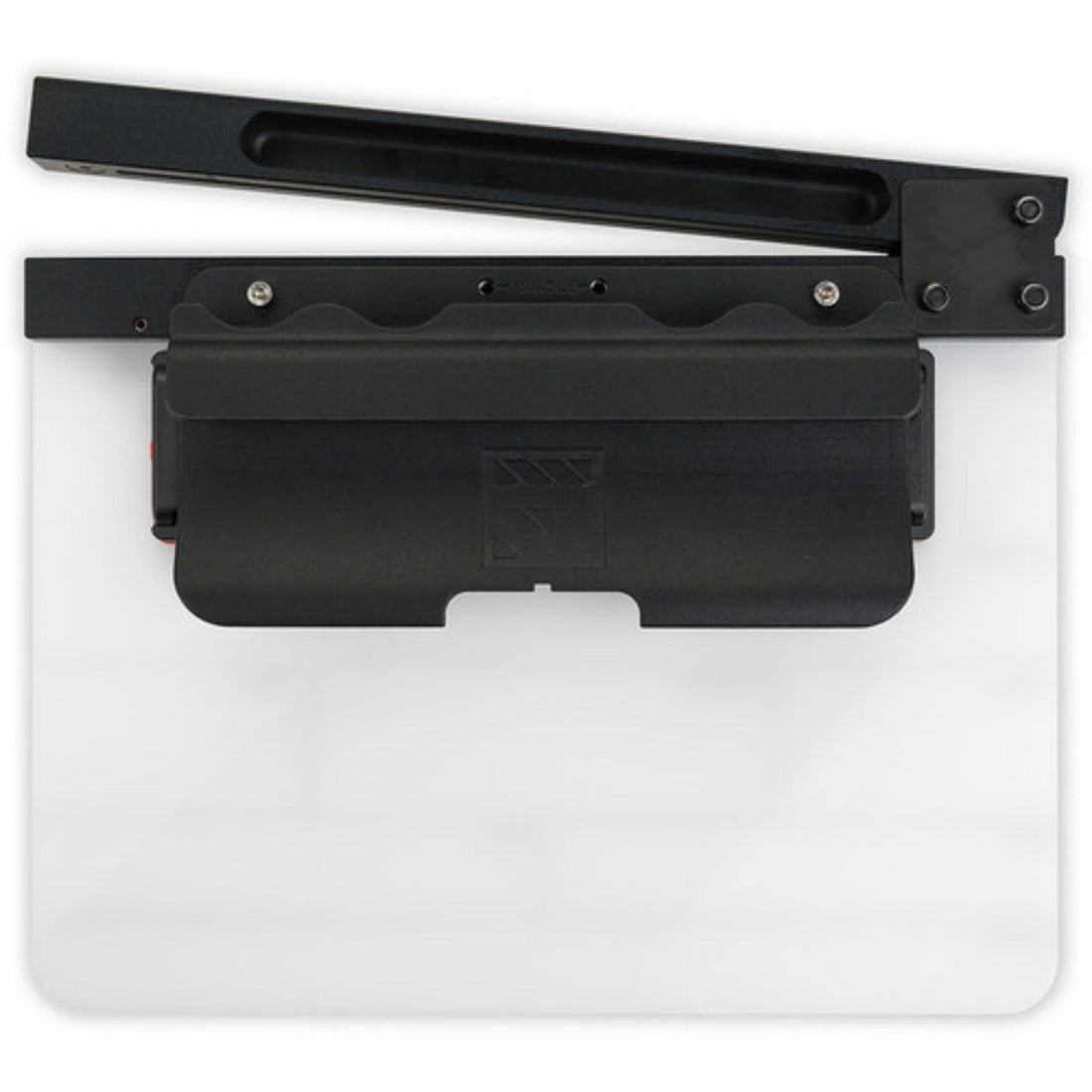

The slate system is designed for long-term serviceability with user-replaceable slate components, while the TIMEBAR battery and OLED display module can also be replaced when required.
Capture a Clear Digital Slate Reference on Set
The TB1-SL combines a traditional Roll / Scene / Take clapperboard with the TIMEBAR OLED display, giving camera assistants and production crews a visible timecode reference for scripted, commercial, documentary, and multi-camera shoots.
Keep Camera and Sound Workflows Aligned
TIMEBAR can operate as a visible SMPTE LTC display and precision timecode generator, helping crews maintain a common timing reference across compatible camera, audio, and Tentacle Sync workflows.
Detach TIMEBAR for Timer or Message Display Use
The removable TIMEBAR can be separated from the slate and used independently as a timer, stopwatch, message display, or visible timecode reference, giving production teams additional flexibility between takes and across studio setups.
Camera Assistants
Combining traditional slating with a visible digital timecode reference during professional camera workflows.
Production Crews
Using one modular system for clapperboard operation, timecode display, timing, and on-set production communication.
Rental Houses
Adding a complete TIMEBAR digital slate package with user-replaceable components to professional rental inventories.
Broadcast & Studio Teams
Using TIMEBAR for visible timecode, timer, stopwatch, and message display workflows in studio and live production environments.
Tentacle Sync Support
Coremicro can help integrate the TB1-SL TIMEBAR Timecode Slate into professional camera, production sound, studio timing, and Tentacle Sync workflows, including compatible SYNC E and TRACK E systems.
| Specification | Detail |
|---|---|
| Product | TIMEBAR Timecode Slate |
| Manufacturer Part Number | TB1-SL |
| TIMEBAR Included | Yes |
| Timecode Standard | LTC According to SMPTE-12M |
| Clock Accuracy | High-Precision TCXO · 0.2 ppm |
| Drift | Less Than 1 Frame in 24 Hours |
| Display | High-Contrast OLED with Wide Viewing Angle |
| Display Modes | Timecode · Timer · Stopwatch · Message · Slate |
| Timecode I/O | 3.5 mm Jack · LTC Input / Output |
| Bluetooth | Bluetooth 5.2 Low Energy |
| Wireless Control | Tentacle Setup App |
| Synchronization | Bluetooth or Cable Jam-Sync |
| Battery | 2200 mAh Rechargeable Lithium Polymer / Li-Po |
| Continuous Runtime | Approximately 6–80 Hours Depending on Display Brightness |
| Slate Mode Runtime | Minimum 2 Weeks |
| Standard Charging Time | 4–5 Hours |
| Fast Charging Time | Approximately 2 Hours |
| Slate Board | Precision-Engineered Acrylic Board |
| Board Layout | Roll / Scene / Take |
| Board Dimensions | 280 × 190 × 5 mm |
| Overall Dimensions | 280 × 226 × 43 mm / 11 × 8.9 × 1.7 in |
| Complete Weight | 786 g / 27.7 oz |
| Serviceability | User-Replaceable Slate Components · Replaceable TIMEBAR Battery and OLED |
| Included Software | Tentacle Sync Studio Software License for macOS |
| EAN | 4260452430121 |
| Country of Origin | Germany |
| HS Code | 8543.70.90 |
| What's In The Box | TIMEBAR Multipurpose Timecode Display · Acrylic Slate Board · Clapper Sticks · TIMEBAR Holder / Mount · 3.5 mm to Straight BNC Cable · USB-C to USB-C Cable with USB-A Adapter · Long Zipper Bag · Quickstart Guide · Software License Activation Instructions · 1.5 mm Hex Key · 3 mm Hex Key · Spare Grub Screw |
Is the TIMEBAR included with the TB1-SL Timecode Slate?
Yes. The TB1-SL is a complete timecode slate system that includes the Tentacle TIMEBAR display, acrylic slate board, clapper sticks, holder, cables, and supporting hardware.
What happens when the slate is clapped?
In dedicated slate mode, TIMEBAR can freeze the displayed timecode at the clap, providing a clear visual reference for the exact slate event before continuing with configured slate information.
Can the TIMEBAR be removed from the slate?
Yes. The custom holder allows TIMEBAR to be detached and used independently as a timecode display, generator, timer, stopwatch, or message display.
How is the TB1-SL controlled wirelessly?
Bluetooth 5.2 Low Energy allows TIMEBAR to be configured, synchronized, and operated through the Tentacle Setup App on compatible mobile devices.
Are the TB1-SL components replaceable?
Yes. The slate components are designed to be user-replaceable, and the TIMEBAR battery and OLED display module can also be replaced for long-term serviceability.
Build a Complete Digital Timecode Slate Workflow
Coremicro is an authorized Tentacle Sync dealer supporting professional timecode, camera, production sound, and digital slate workflows. Contact our team to integrate the TB1-SL TIMEBAR Timecode Slate into your production setup.
