Product Highlights
- A20-Mini and A20-TX compatible
- Right-angle 3.5mm Neutrik connector
- Straight USB-C timecode connection
- 40cm compact cable length

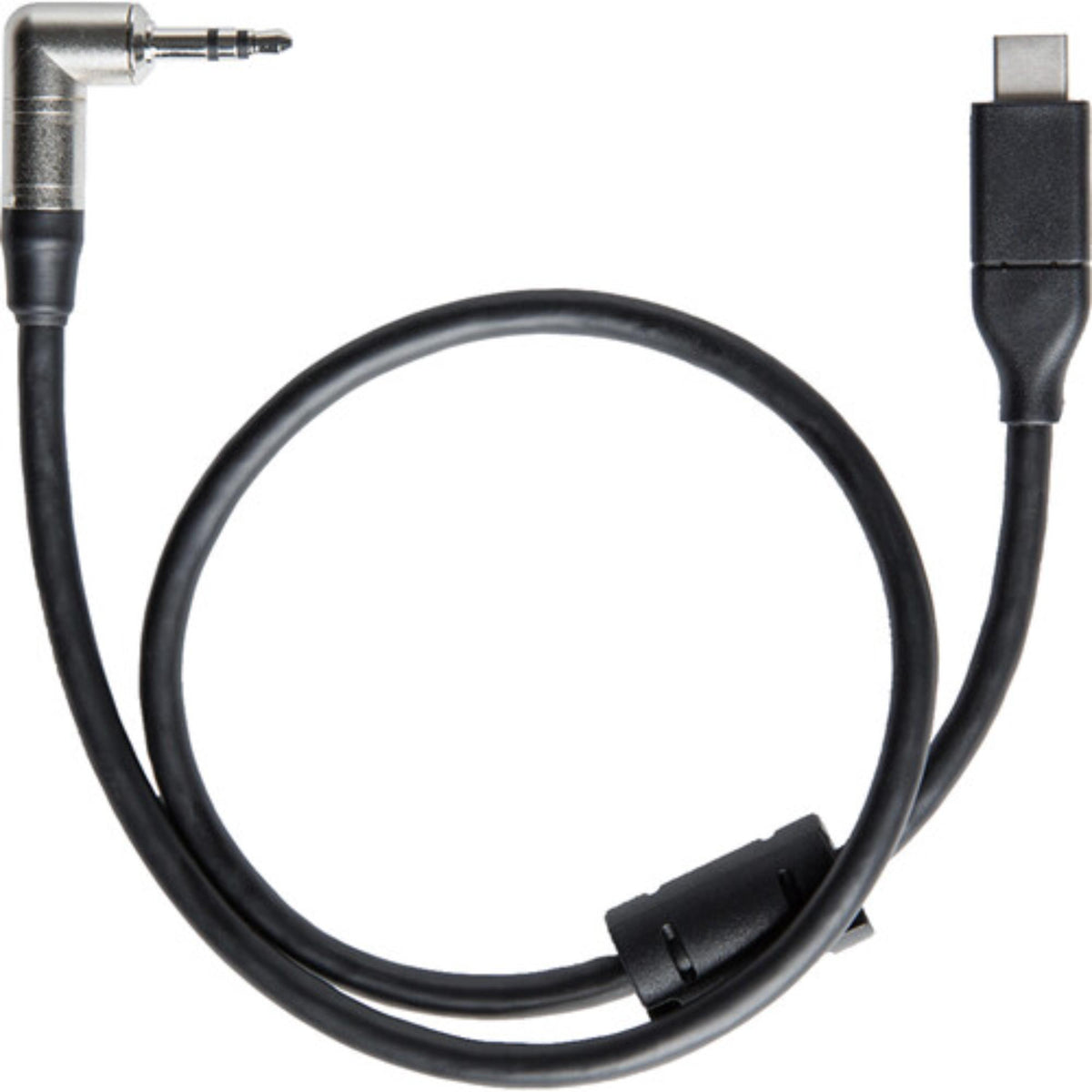

Tentacle Sync C23 USB-C Timecode Cable
- SKU:
- TEN-C23
- MPN:
- C23
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Tentacle Sync C23 USB-C Timecode Cable sends timecode from compatible Tentacle devices to Sound Devices Astral Mini A20-Mini and Astral TX A20-TX transmitters through their USB-C connection. It combines a right-angle 3.5mm Neutrik mini jack with a straight USB-C connector for professional wireless audio and timecode workflows.
A20-Mini and A20-TX Timecode
The C23 provides a dedicated timecode connection for Sound Devices Astral Mini A20-Mini and Astral TX A20-TX transmitters equipped with the supported USB-C interface.
Right-Angle 3.5mm Neutrik Connector
The Tentacle side uses a right-angle Neutrik 3.5mm mini jack for connection to compatible Tentacle timecode devices.
Straight USB-C Timecode Connection
The transmitter side terminates in a straight USB-C connector for feeding external timecode into the supported Sound Devices wireless transmitters.
Compact 40 cm Cable Length
The 40 cm / 15.7 in cable length provides practical routing between a Tentacle timecode source and transmitter without excessive cable around compact production setups.
Model
C23
Primary Function
External Timecode Input
Signal Direction
Mini Jack to USB-C
Tentacle Connector
Right-Angle Neutrik 3.5mm Mini Jack
Device Connector
Straight USB-C
Sound Devices
Astral Mini A20-Mini / Astral TX A20-TX
Tentacle Devices
SYNC E / ORIGINAL / TRACK E / TIMEBAR
Cable Length
40 cm / 15.7 in
Weight
30 g / 1.06 oz
Built for Astral Mini and Astral TX
The C23 is designed to feed external timecode into supported Sound Devices transmitters through their USB-C connection.
Verified models include the Astral Mini A20-Mini and Astral TX A20-TX for professional wireless audio and synchronization workflows.
Astral Mini A20-Mini
Compatible
Astral TX A20-TX
Compatible
Timecode Input
USB-C
Signal Direction
Tentacle to Sound Devices
Feed Timecode to the Wireless Transmitter
The signal travels from the compatible Tentacle device through the right-angle 3.5mm mini jack and into the Sound Devices transmitter through the USB-C connection.
The C23 is specified for Mini Jack to USB-C timecode operation and is not presented as a bidirectional, charging, or general USB data cable.
Supports Multiple Tentacle Devices
Compatible Tentacle timecode sources include SYNC E, ORIGINAL, TRACK E, and TIMEBAR when feeding timecode to supported Sound Devices transmitters.
SYNC E
Supported
ORIGINAL
Supported
TRACK E
Supported
TIMEBAR
Supported
Integrate Tentacle Timecode with Sound Devices

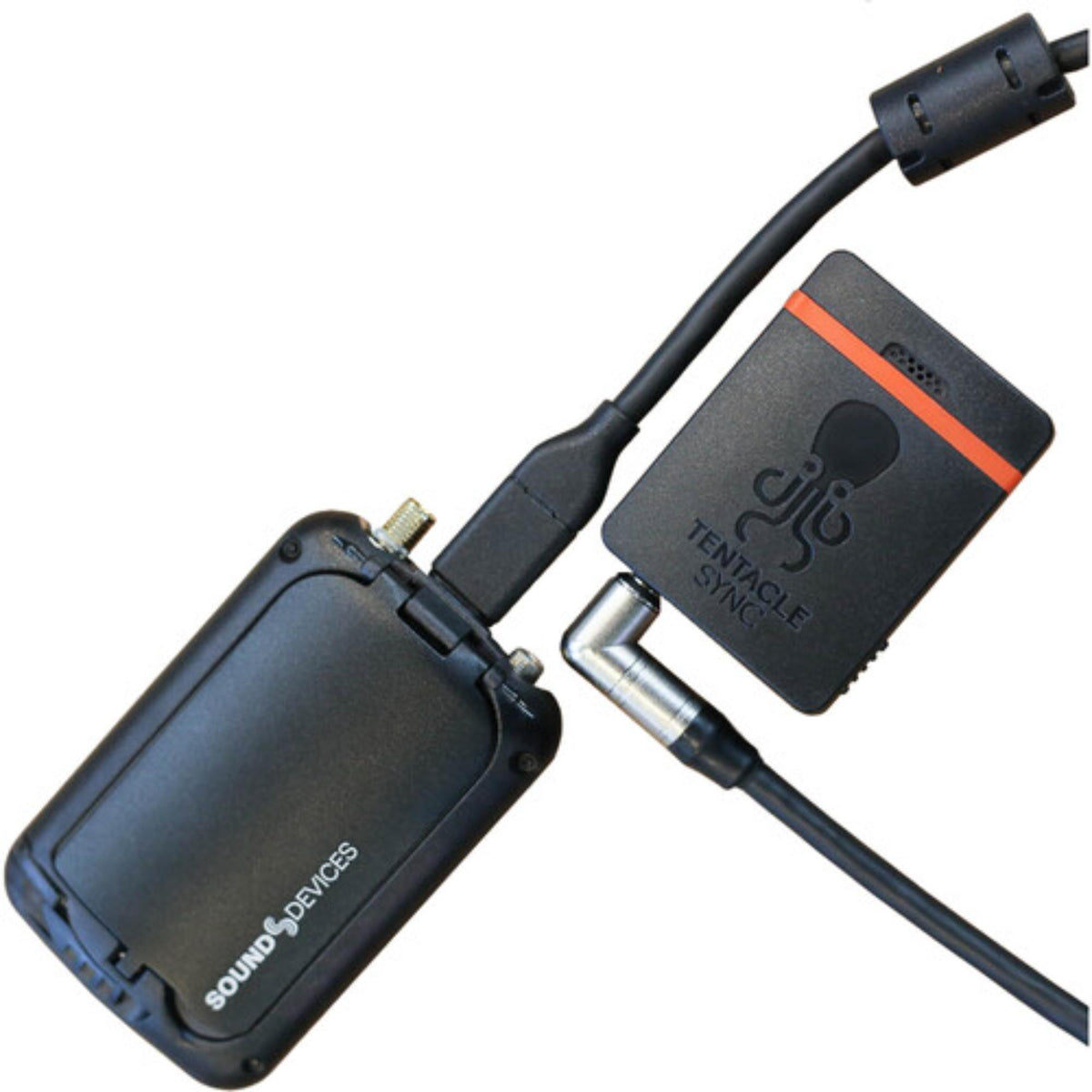

Connect the right-angle 3.5mm side to the compatible Tentacle source and the straight USB-C side to the supported Sound Devices transmitter.
Match the required production frame rate and configure the Tentacle output appropriately before confirming external timecode on the transmitter.
Feed Timecode to A20 Transmitters
Send external timecode from a compatible Tentacle source to an A20-Mini or A20-TX through its USB-C interface.
Keep Wireless Audio on Production Timecode
Integrate compatible Sound Devices transmitters into a shared timecode workflow alongside cameras and other production equipment.
Route Timecode with a Short Cable
The 40 cm cable length keeps the connection manageable when the Tentacle source and wireless transmitter are positioned close together.
Production Sound Mixers
Integrating Sound Devices transmitters into shared timecode workflows.
Location Sound Teams
Feeding external timecode to compatible A20 wireless transmitters.
Multi-Camera Crews
Keeping wireless audio equipment aligned with production timecode.
Rental Houses
Completing Sound Devices and Tentacle timecode packages with dedicated cabling.
Tentacle Sync Support
Coremicro can help confirm A20-Mini and A20-TX compatibility, Tentacle output requirements, and the appropriate timecode cable for professional wireless audio workflows.
| Specification | Detail |
|---|---|
| Product | Tentacle to USB-C Timecode Cable |
| Manufacturer Part Number | C23 |
| Primary Function | External Timecode Input for Sound Devices Transmitters |
| Signal Direction | Mini Jack to USB-C |
| Tentacle Connector | Right-Angle Neutrik 3.5mm Mini Jack, 3-Pin |
| Device Connector | Straight USB-C |
| Sound Devices Compatibility | Astral Mini A20-Mini / Astral TX A20-TX |
| Compatible Tentacle Devices | SYNC E, ORIGINAL, TRACK E, TIMEBAR |
| Cable Length | 40 cm / 15.7 in |
| Weight | 30 g / 1.06 oz |
| USB-C Function | Timecode Connection |
| EAN | 4260452431234 |
| Country of Origin | Germany |
| HS Code | 8544.42.10 |
| What's In The Box | 1 x Tentacle Sync C23 Timecode Cable |
What is the Tentacle Sync C23 used for?
The C23 sends timecode from a compatible Tentacle device to supported Sound Devices Astral Mini A20-Mini and Astral TX A20-TX transmitters through their USB-C connection.
Which Sound Devices transmitters are compatible?
The C23 is specified for the Sound Devices Astral Mini A20-Mini and Astral TX A20-TX.
What connectors are used on the C23?
The Tentacle side uses a right-angle Neutrik 3.5mm mini jack, while the Sound Devices side uses a straight USB-C connector.
Is the C23 a bidirectional USB-C cable?
No. Current manufacturer specifications define the C23 signal direction as Mini Jack to USB-C for feeding timecode to the supported Sound Devices transmitter.
How long is the Tentacle Sync C23 cable?
The C23 is 40 cm / 15.7 in long and weighs 30 g / 1.06 oz.
Building a Sound Devices Timecode Setup?
Coremicro is an authorized Tentacle Sync dealer supporting professional audio and timecode workflows. Contact our team to confirm C23 compatibility and the appropriate Tentacle Sync cable for your A20-Mini or A20-TX setup.
