Product Highlights
- Bidirectional timecode signal path
- Right-angle 3.5mm Neutrik connector
- Straight DIN 1.0/2.3 connector
- 30cm compact cable length

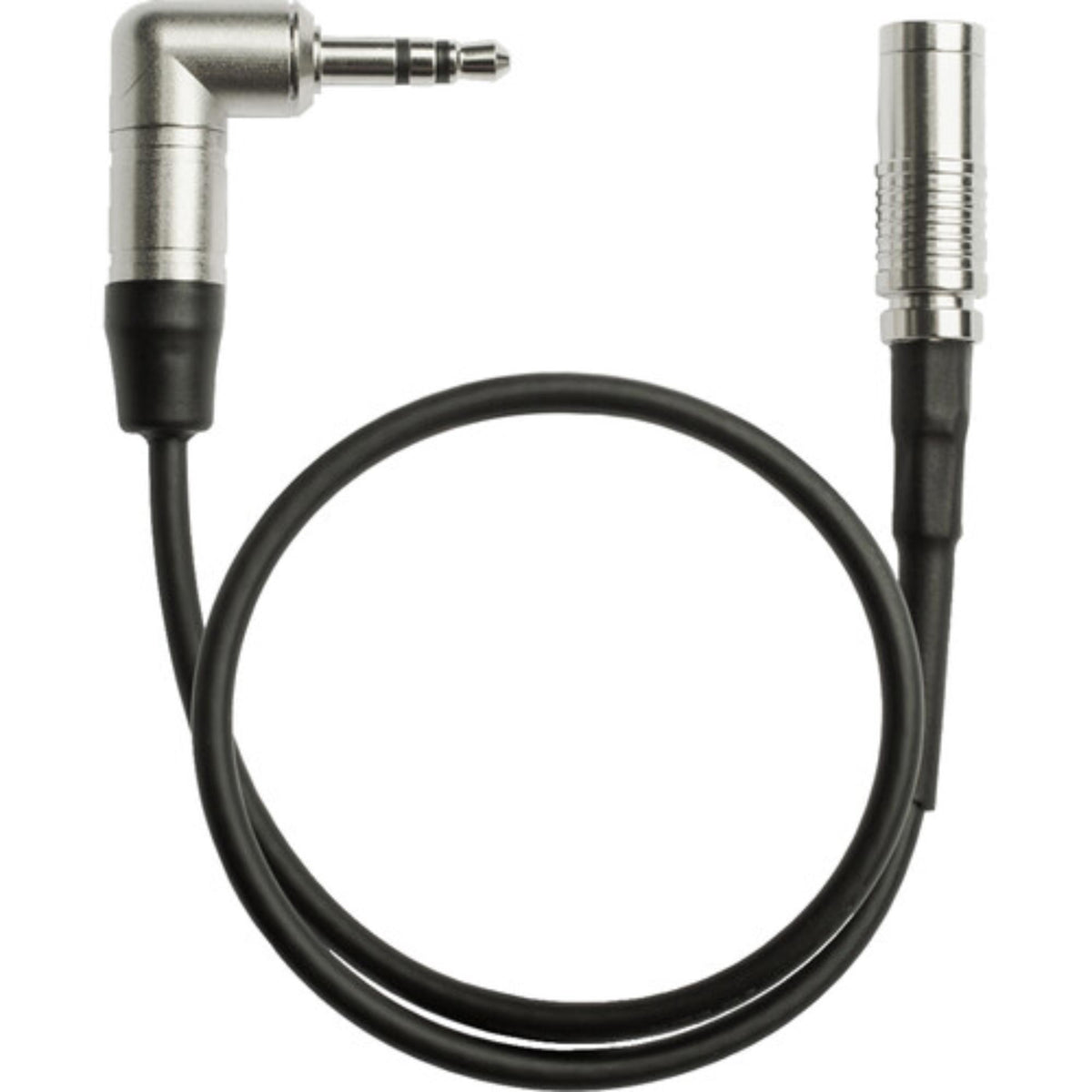

Tentacle Sync Tentacle to DIN 1.0/2.3 Cable
- SKU:
- TEN-C22
- MPN:
- C22
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Tentacle Sync C22 DIN 1.0/2.3 Timecode Cable provides a bidirectional connection between compatible Tentacle devices and equipment using a DIN 1.0/2.3 timecode interface. It can feed timecode to supported cameras and devices or jam-sync a Tentacle unit from an external DIN timecode source.
Bidirectional Timecode Operation
The C22 supports timecode in both directions, allowing a Tentacle device to feed an external DIN-equipped device or receive timecode for jam synchronization.
Straight DIN 1.0/2.3 Connector
The device-side connector provides a direct DIN 1.0/2.3 interface for compatible cameras, timecode generators, and synchronization hardware.

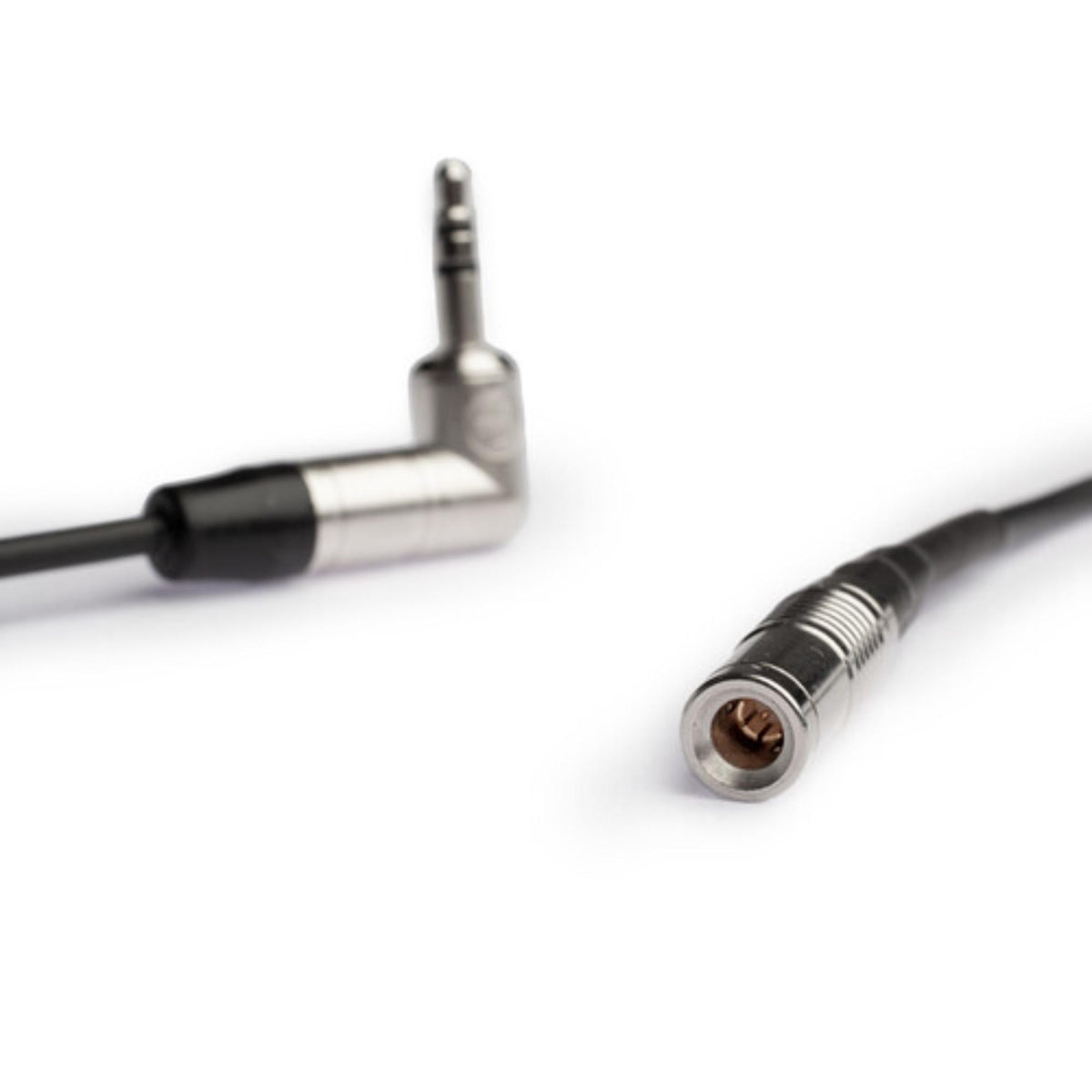

Right-Angle 3.5mm Neutrik Connector
The Tentacle side uses a right-angle Neutrik 3.5mm mini jack for connection to compatible Tentacle timecode devices.
Compact 30 cm Cable Length
The 30 cm / 12 in cable length keeps timecode routing compact for camera rigs and other production setups where devices are positioned close together.
Model
C22
Primary Function
Bidirectional Timecode
Signal Direction
Bidirectional
Tentacle Connector
Right-Angle Neutrik 3.5mm Mini Jack
Device Connector
Straight DIN 1.0/2.3
Tentacle Devices
SYNC E / ORIGINAL / TRACK E / TIMEBAR
Verified Devices
Canon EOS R5 C / C50 / C400 / Atomos UltraSync ONE
Cable Length
30 cm / 12 in
Weight
22 g / 0.77 oz
Connect Tentacle Devices to Supported DIN Equipment
The C22 provides a DIN 1.0/2.3 timecode connection for supported cameras and synchronization devices while retaining the 3.5mm interface used by compatible Tentacle equipment.
Verified device examples include the Canon EOS R5 C, Canon C50, Canon C400, and Atomos UltraSync ONE.
Canon EOS R5 C
Compatible
Canon C50
Compatible
Canon C400
Compatible
Atomos UltraSync ONE
Compatible
Send or Receive Timecode
The bidirectional design allows a compatible Tentacle device to send timecode to equipment with a DIN 1.0/2.3 input.
The same cable can also carry timecode from an external DIN source back to a compatible Tentacle device for jam synchronization.
Supports Multiple Tentacle Timecode Devices
The right-angle 3.5mm connection supports compatible Tentacle devices including SYNC E, ORIGINAL, TRACK E, and TIMEBAR for bidirectional timecode workflows.
SYNC E
Supported
ORIGINAL
Supported
TRACK E
Supported
TIMEBAR
Supported
Integrate DIN Timecode with Production Equipment
Connect the right-angle 3.5mm side to the compatible Tentacle device and the straight DIN 1.0/2.3 side to the supported camera or synchronization device.
Configure the connected equipment for the appropriate external timecode input or output mode before confirming synchronization.
Feed External Timecode to Canon Cameras
Connect a Tentacle timecode source to a supported Canon camera with DIN 1.0/2.3 timecode input for synchronized production.
Sync Tentacle from an External Source
Use the bidirectional connection to feed external DIN timecode into a compatible Tentacle device for jam-sync operation.
Keep Timecode Routing Compact
The 30 cm cable length helps minimize excess cable when the timecode source is positioned close to the connected device.
Camera Assistants
Integrating external timecode into compatible Canon camera builds.
Production Sound Teams
Sending or receiving timecode across synchronized production equipment.
Multi-Camera Crews
Maintaining shared timecode across compatible cameras and devices.
Rental Houses
Completing camera and timecode kits with DIN interface cabling.
Tentacle Sync Support
Coremicro can help confirm DIN 1.0/2.3 compatibility, signal direction requirements, and the appropriate Tentacle Sync cable for professional camera and timecode workflows.
| Specification | Detail |
|---|---|
| Product | Tentacle to DIN 1.0/2.3 Timecode Cable |
| Manufacturer Part Number | C22 |
| Primary Function | Bidirectional Timecode Connection |
| Signal Direction | Bidirectional |
| Tentacle Connector | Right-Angle Neutrik 3.5mm Mini Jack, 3-Pin |
| Device Connector | Straight DIN 1.0/2.3 |
| Compatible Tentacle Devices | SYNC E, ORIGINAL, TRACK E, TIMEBAR |
| Canon EOS R5 C | Compatible |
| Canon C50 | Compatible |
| Canon C400 | Compatible |
| Atomos UltraSync ONE | Compatible |
| Cable Length | 30 cm / 12 in |
| Weight | 22 g / 0.77 oz |
| EAN | 4260452431227 |
| Country of Origin | Germany |
| HS Code | 8544.42.10 |
| What's In The Box | 1 x Tentacle Sync C22 Timecode Cable |
What is the Tentacle Sync C22 used for?
The C22 provides a bidirectional timecode connection between compatible Tentacle devices and equipment using a DIN 1.0/2.3 timecode interface.
Can the C22 send and receive timecode?
Yes. The C22 is bidirectional, allowing a Tentacle device to feed timecode to compatible DIN equipment or receive timecode from an external DIN source for jam synchronization.
Which devices are verified for the C22?
Verified examples include the Canon EOS R5 C, Canon C50, Canon C400, and Atomos UltraSync ONE.
What connectors are used on the C22?
The Tentacle side uses a right-angle Neutrik 3.5mm mini jack, while the device side uses a straight DIN 1.0/2.3 connector.
How long is the Tentacle Sync C22 cable?
The C22 is 30 cm / 12 in long and weighs 22 g / 0.77 oz.
Building a DIN Timecode Workflow?
Coremicro is an authorized Tentacle Sync dealer supporting professional camera and timecode workflows. Contact our team to confirm DIN 1.0/2.3 compatibility and the appropriate Tentacle Sync cable for your camera or synchronization setup.
