Product Highlights
- RED 9-pin LEMO connection
- Right-angle 3.5mm Neutrik jack
- 30cm timecode cable
- LEMO-manufactured cable assembly
Tentacle Sync C21 RED 9-Pin Timecode Cable
- SKU:
- TEN-C21
- MPN:
- C21
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview

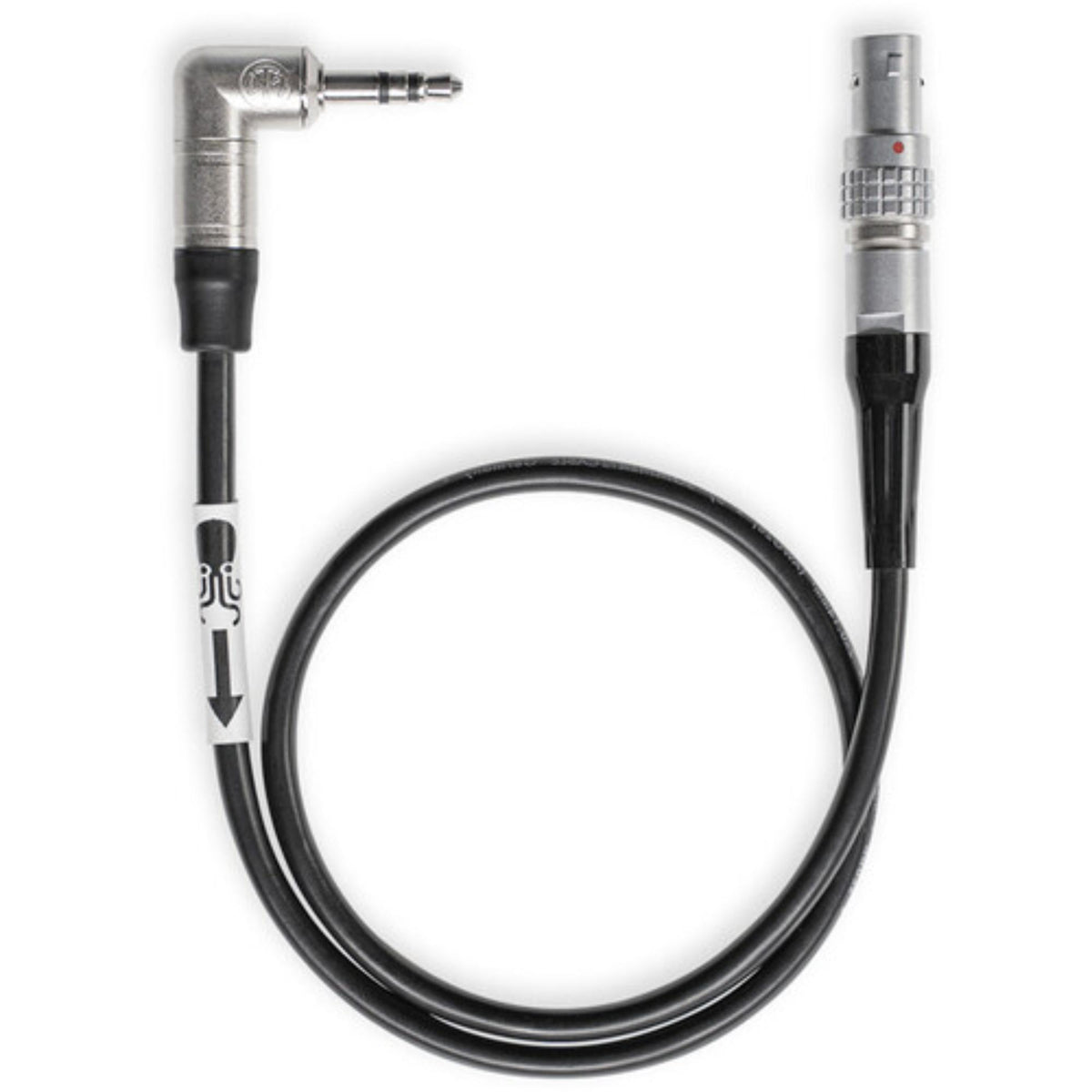

The Tentacle Sync C21 RED 9-Pin Timecode Cable sends timecode from compatible Tentacle devices to supported RED cameras through the camera's 9-pin EXT connection. The cable combines a right-angle 3.5mm Neutrik mini jack with an original 9-pin LEMO connector for professional camera timecode workflows.
RED 9-Pin EXT Timecode Connection
The camera-side 9-pin LEMO connector interfaces with supported RED camera bodies equipped with the compatible 9-pin EXT port for external timecode input.
Right-Angle 3.5mm Neutrik Connector
The Tentacle side uses a right-angle Neutrik 3.5mm mini jack for connection to compatible Tentacle timecode devices.
30 cm Timecode Cable
The current C21 specification uses a 30 cm / 12 in cable length, suitable for compact camera rigs and external timecode setups.

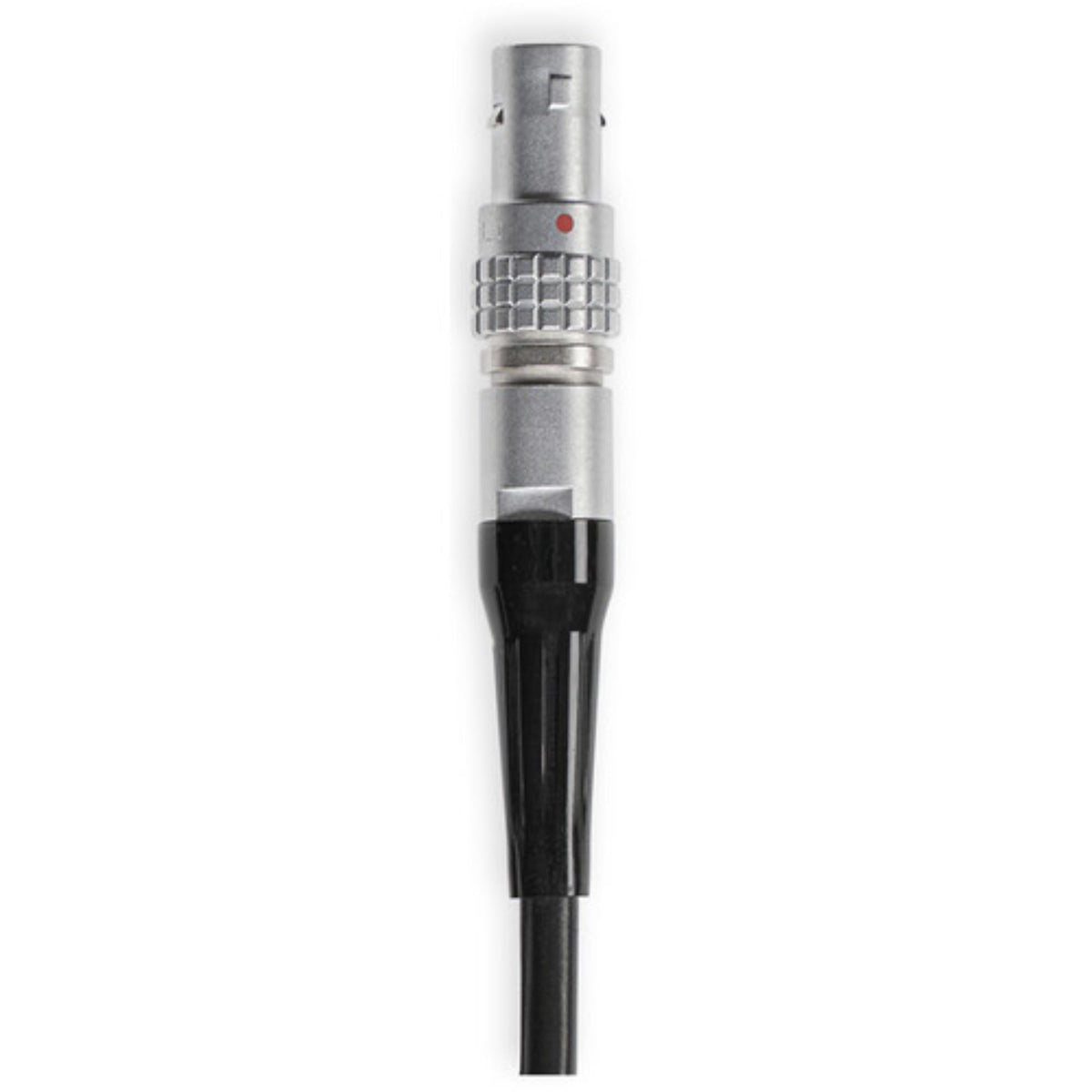

LEMO-Manufactured Cable Assembly
The cable assembly is manufactured directly by LEMO for Tentacle Sync and uses an original 9-pin LEMO connector on the RED camera side.
Model
C21
Primary Function
RED Camera Timecode Input
Signal Direction
Mini Jack to LEMO 9-Pin
Tentacle Connector
Right-Angle Neutrik 3.5mm Mini Jack
RED Connector
Original LEMO 9-Pin
RED KOMODO
Compatible
RED KOMODO-X
Compatible
RED V-RAPTOR
Compatible with 9-Pin EXT
Cable Length
30 cm / 12 in
Weight
20 g / 0.7 oz
Built for RED Cameras with 9-Pin EXT
The C21 connects compatible Tentacle timecode devices to RED camera bodies that accept external timecode through a 9-pin EXT connector.
Supported workflows include RED KOMODO, KOMODO-X, and V-RAPTOR camera configurations equipped with the compatible 9-pin EXT interface.
RED KOMODO
Compatible
RED KOMODO-X
Compatible
RED V-RAPTOR
9-Pin EXT Models
V-RAPTOR XL
Not Specified for C21
Send External Timecode to the RED Camera
The signal path runs from the Tentacle device through the right-angle 3.5mm mini jack and into the RED camera through the 9-pin LEMO connection.
Current manufacturer specifications define the C21 direction as Mini Jack to LEMO 9-pin for feeding timecode into compatible RED camera bodies.
Connect Compatible Tentacle Sources
The C21 can be used with compatible Tentacle timecode devices including SYNC E, ORIGINAL, TRACK E, and TIMEBAR when sending timecode to supported RED cameras.
SYNC E
Supported
ORIGINAL
Supported
TRACK E
Supported
TIMEBAR
Supported
Integrate Tentacle Timecode with RED Cameras
Connect the 3.5mm side to the compatible Tentacle device and the 9-pin LEMO side to the RED camera's EXT connection.
Configure the camera for external timecode input and match the required production frame rate before confirming timecode sync.
Feed External Timecode to KOMODO
Connect a compatible Tentacle source to the KOMODO 9-pin EXT port for external camera timecode during production.
Keep RED Cameras on Shared Timecode
Use Tentacle timecode devices across multiple cameras to help maintain a consistent time reference throughout a shoot.
Route Timecode with a Short Cable
The 30 cm cable length keeps the connection compact when the Tentacle device is mounted close to the RED camera body.
Camera Assistants
Integrating Tentacle timecode into RED camera builds.
DIT Teams
Maintaining consistent camera timecode across production workflows.
Multi-Camera Crews
Feeding shared external timecode to compatible RED cameras.
Rental Houses
Completing RED camera packages with dedicated timecode cabling.
Tentacle Sync Support
Coremicro can help confirm RED camera compatibility, 9-pin EXT requirements, and the appropriate Tentacle Sync cable for your professional timecode workflow.
| Specification | Detail |
|---|---|
| Product | Tentacle to RED 9-Pin Timecode Cable |
| Manufacturer Part Number | C21 |
| Primary Function | External RED Camera Timecode Input |
| Signal Direction | Mini Jack to LEMO 9-Pin |
| Tentacle Connector | Right-Angle Neutrik 3.5mm Mini Jack, 3-Pin |
| RED Connector | Original LEMO 9-Pin Connector |
| Compatible Tentacle Devices | SYNC E, ORIGINAL, TRACK E, TIMEBAR |
| RED KOMODO | Compatible |
| RED KOMODO-X | Compatible |
| RED V-RAPTOR | Compatible with Supported 9-Pin EXT Configuration |
| Cable Length | 30 cm / 12 in |
| Weight | 20 g / 0.7 oz |
| Cable Manufacturer | LEMO for Tentacle Sync |
| EAN | 4260452431210 |
| Country of Origin | Germany |
| HS Code | 8544.42.10 |
| What's In The Box | 1 x Tentacle Sync C21 Timecode Cable |
What is the Tentacle Sync C21 used for?
The C21 sends timecode from a compatible Tentacle device to a supported RED camera through the camera's 9-pin EXT connection.
Which RED cameras are compatible with the C21?
The C21 supports RED KOMODO, KOMODO-X, and compatible RED V-RAPTOR configurations that use the supported 9-pin EXT connection.
What connectors are used on the C21 cable?
The Tentacle side uses a right-angle Neutrik 3.5mm mini jack, while the camera side uses an original 9-pin LEMO connector.
Is the current C21 specified as a bidirectional cable?
No. Current manufacturer specifications define the signal direction as Mini Jack to LEMO 9-pin for feeding timecode into a compatible RED camera.
How long is the current Tentacle Sync C21 cable?
The current manufacturer specification lists the C21 at 30 cm / 12 in long with a weight of 20 g / 0.7 oz.
Building a RED Camera Timecode Setup?
Coremicro is an authorized Tentacle Sync dealer supporting professional camera and timecode workflows. Contact our team to confirm C21 compatibility, RED 9-pin EXT requirements, and the appropriate Tentacle Sync cable for your camera package.
