Product Highlights
- 8-inch timecode and bodypack Y-cable
- Combines Tentacle LTC with Sennheiser receiver audio
- LTC records to the left camera channel
- Receiver audio records to the right channel
Tentacle Sync C16 Timecode & Sennheiser Bodypack Y-Cable 8-Inch
- SKU:
- TEN-C16
- MPN:
- C16
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Tentacle Sync C16 Timecode & Sennheiser Bodypack Y-Cable combines Tentacle LTC timecode and audio from a compatible Sennheiser Evolution bodypack receiver through a stereo 3.5mm camera input. Timecode is recorded to the left channel while receiver audio is recorded to the right channel.
Timecode + Receiver Y-Cable
Combines Tentacle timecode and Sennheiser bodypack receiver audio into one compatible stereo camera input.
LTC on Left Channel
Tentacle audio timecode is routed to the camera's left audio channel for production synchronization.
Receiver Audio on Right
Audio from the connected Sennheiser Evolution bodypack receiver is routed to the camera's right channel.
Compact 3.5mm Connection

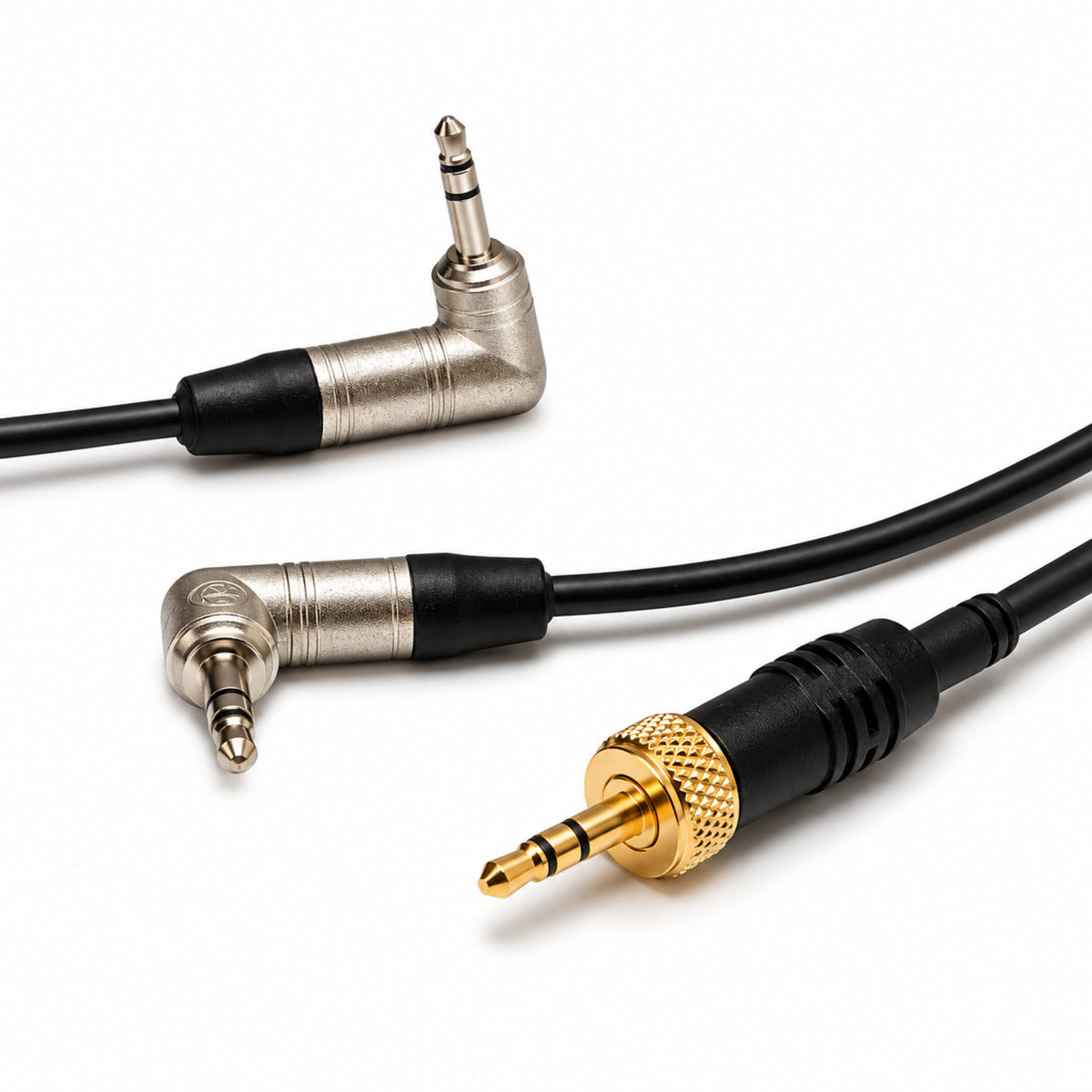

Uses dual right-angle 3.5mm Neutrik connectors plus a dedicated HICON 3.5mm connection for the receiver.
Model
C16
Function
Timecode + Bodypack Y-Cable
Signal Routing
Tentacle + Receiver → Camera
Length
20 cm / 8 in
Left Channel
LTC Timecode
Right Channel
Bodypack Receiver Audio
Receiver Connection
HICON 3.5mm Male Mini-Jack
Weight
35 g / 1.2 oz
Built for Timecode + Wireless Receiver Audio
The Tentacle Sync C16 is designed for camera workflows that combine a compatible Tentacle device with a Sennheiser Evolution bodypack receiver through a stereo 3.5mm input.
The cable keeps Tentacle LTC and receiver audio on separate camera channels for straightforward production recording.
SYNC E
Compatible
ORIGINAL
Compatible
TRACK E
Compatible
TIMEBAR
Compatible
Left = LTC Timecode · Right = Receiver Audio
Tentacle audio timecode is recorded to the camera's left channel while audio from the connected Sennheiser bodypack receiver is recorded to the right channel.
This allows both signals to share one stereo 3.5mm camera input while remaining separated by channel.
Jam Tentacle from a Zoom F6
The C16 can also be used in a specific Zoom F6 workflow where the F6 acts as the master timecode source and feeds timecode into a Tentacle device.
In this setup, the HICON locking mini-jack side connects to the Zoom F6 and the standard 3.5mm connection goes to the Tentacle for receiving timecode.
Record Timecode and Wireless Audio Together
Feed Tentacle LTC and Sennheiser receiver audio into a compatible stereo camera input at the same time.
Keep Receiver Audio on Its Own Channel
Route bodypack receiver audio separately from LTC so each signal remains easy to identify during post-production.
Use One Stereo Camera Input
Combine timecode and wireless receiver audio without adding another camera-side audio connection.
DSLR & Mirrorless Crews
Recording Tentacle LTC together with Sennheiser wireless receiver audio.
Documentary Shooters
Combining wireless lav audio and camera timecode in a compact production setup.
Production Sound Teams
Integrating Tentacle synchronization with Sennheiser Evolution receiver workflows.
Rental Houses
Building complete timecode and wireless-audio accessory kits for compact camera systems.
Tentacle Sync Support
Coremicro can help confirm camera input compatibility, Sennheiser receiver connections, and the correct Tentacle Sync cable for your production workflow.
| Specification | Detail |
|---|---|
| Product | Tentacle Sync C16 Timecode & Sennheiser Bodypack Y-Cable |
| Model | C16 |
| Cable Type | Timecode + Bodypack Receiver Camera Y-Cable |
| Signal Routing | Tentacle + Sennheiser Receiver to Camera |
| Left Channel | LTC / Audio Timecode |
| Right Channel | Sennheiser Bodypack Receiver Audio |
| 3.5mm Connections | 2 x Right-Angle Neutrik 3.5mm 3-Pin Mini-Jack |
| Receiver Connection | HICON 3.5mm Male Mini-Jack |
| Cable Length | 20 cm / 8 in |
| Weight | 35 g / 1.2 oz |
| Compatible Tentacle Devices | SYNC E, ORIGINAL, TRACK E, TIMEBAR |
| Primary Receiver | Sennheiser Evolution Bodypack Receiver |
| Camera Requirement | Compatible Stereo 3.5mm Microphone Input |
| Additional Workflow | Zoom F6 to Tentacle Jam-Sync |
| EAN | 4260452431166 |
| Country of Origin | Germany |
| What's In The Box | 1 x Tentacle Sync C16 Y-Cable |
What is the Tentacle Sync C16 used for?
The C16 combines Tentacle LTC timecode and audio from a compatible Sennheiser Evolution bodypack receiver through one stereo 3.5mm camera input.
How does the C16 route timecode and receiver audio?
Tentacle LTC is recorded to the camera's left audio channel, while audio from the Sennheiser bodypack receiver is recorded to the right channel.
What receiver is the C16 designed for?
The C16 is designed for use with compatible Sennheiser Evolution bodypack receiver workflows.
How long is the Tentacle Sync C16?
The current manufacturer specification lists the C16 at 20cm, or approximately 8 inches.
Can the C16 be used with a Zoom F6?
Yes. The C16 can also be used in the specified Zoom F6 workflow to feed timecode from the F6 into a Tentacle device for jam synchronization.
Need the Right Tentacle Sync Cable?
Contact Coremicro to confirm your Sennheiser receiver, camera input, and the correct Tentacle Sync cable for your timecode and wireless-audio workflow.
