Product Highlights
- 8-inch timecode and microphone Y-cable
- Feeds Tentacle LTC and external mic to camera
- LTC records to left audio channel
- Microphone records to right audio channel
Tentacle Sync C15 Timecode & Microphone Y-Cable 8-Inch
- SKU:
- TEN-C15
- MPN:
- C15
Ships in 2-4 Weeks
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Tentacle Sync C15 Timecode & Microphone Y-Cable allows a compatible Tentacle device and an external microphone to share a stereo 3.5mm camera input. Tentacle LTC is recorded to the left audio channel while the external microphone is recorded to the right channel.
Timecode + Microphone Y-Cable
Combines Tentacle timecode and an external microphone into one compatible stereo 3.5mm camera input.
LTC on Left Channel
Tentacle audio timecode is routed to the camera's left audio channel for post-production synchronization.
Microphone on Right Channel
External microphone audio is routed separately to the camera's right audio channel.
Compact 3.5mm Cable System

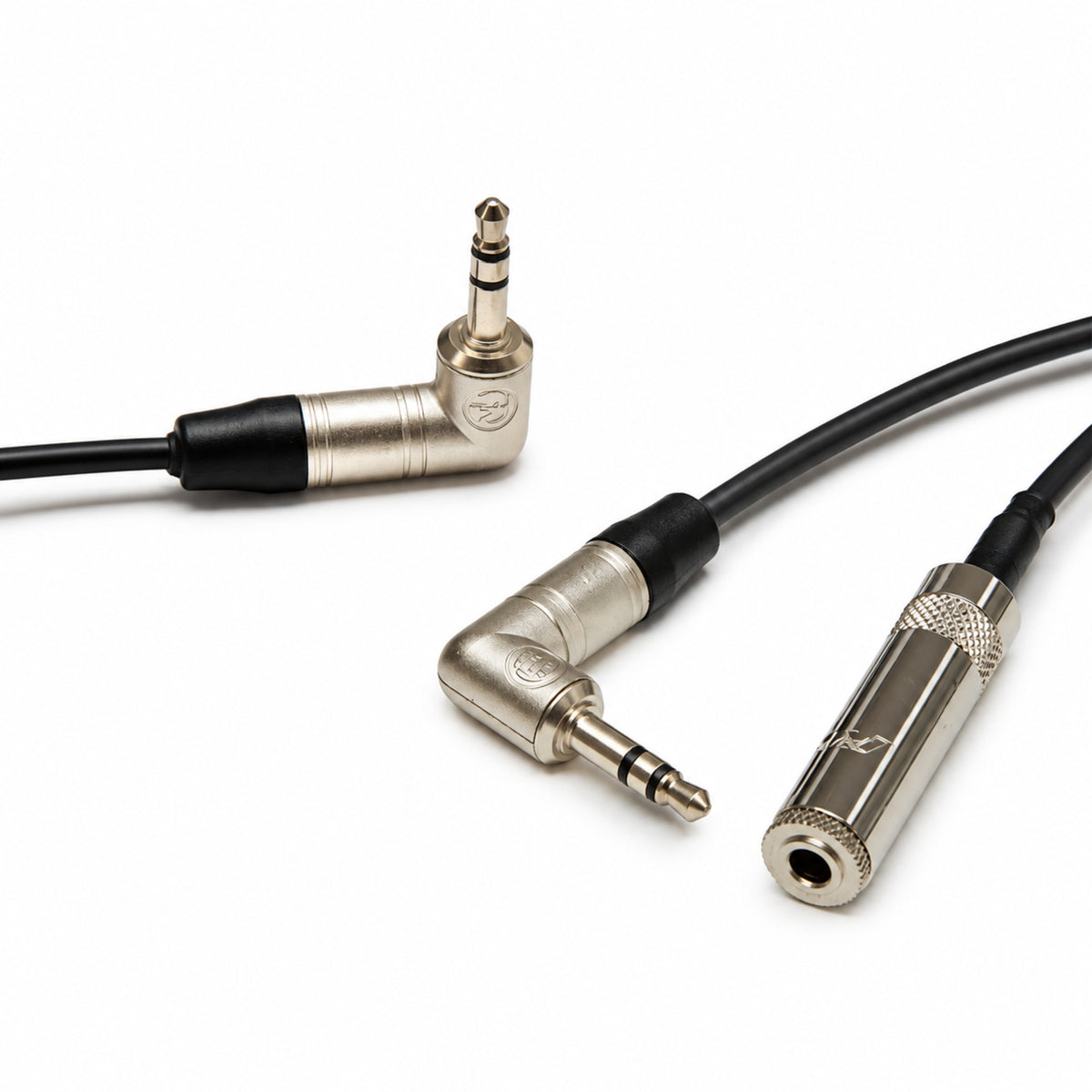

Uses two right-angle 3.5mm Neutrik connectors and a separate 3.5mm microphone input for compact camera rigs.
Model
C15
Function
Timecode + Microphone Y-Cable
Signal Routing
Tentacle + Mic → Camera
Length
20 cm / 8 in
Left Channel
LTC Timecode
Right Channel
External Microphone
Camera Requirement
Stereo 3.5mm Mic Input
Weight
35 g / 1.2 oz
For Cameras Using a Stereo Mini-Jack Input
The Tentacle Sync C15 is designed for compatible cameras with a stereo 3.5mm microphone input when both Tentacle timecode and an external microphone need to be recorded.
It is commonly used with DSLR and mirrorless camera workflows where LTC timecode is recorded as audio.
SYNC E
Compatible
ORIGINAL
Compatible
TRACK E
Compatible
TIMEBAR
Compatible
Left = LTC Timecode · Right = Microphone
The C15 routes Tentacle audio timecode to the camera's left channel and the connected external microphone to the right channel.
This keeps the timecode and microphone signals separated while using a single stereo 3.5mm camera input.
Add LTC Without Losing External Mic Audio
Record Tentacle timecode and external microphone audio simultaneously through a compatible stereo camera input.
Keep LTC on Its Own Audio Channel
Record LTC separately from the microphone signal so the timecode track can be identified during synchronization.
Use One Camera Input for Two Signals
Combine Tentacle timecode and external microphone audio without adding a separate recorder to a compact camera rig.
DSLR & Mirrorless Crews
Recording Tentacle LTC while keeping an external microphone connected to the camera.
Documentary Shooters
Combining camera-mounted microphone audio with reliable audio timecode.
Production Sound Teams
Integrating Tentacle timecode into camera audio workflows.
Rental Houses
Building complete Tentacle Sync kits for stereo mini-jack camera systems.
Tentacle Sync Support
Coremicro can help confirm stereo 3.5mm camera compatibility, channel routing, and the correct Tentacle Sync cable for your timecode and microphone workflow.
| Specification | Detail |
|---|---|
| Product | Tentacle Sync C15 Timecode & Microphone Y-Cable |
| Model | C15 |
| Cable Type | Timecode + Microphone Camera Y-Cable |
| Signal Routing | Tentacle + External Microphone to Camera |
| Left Channel | LTC / Audio Timecode |
| Right Channel | External Microphone Audio |
| Tentacle Connector | Right-Angle Neutrik 3.5mm TRS |
| Camera Connector | Right-Angle Neutrik 3.5mm TRS |
| Microphone Connection | 3.5mm Cable Jack |
| Cable Length | 20 cm / 8 in |
| Weight | 35 g / 1.2 oz |
| Compatible Tentacle Devices | SYNC E, ORIGINAL, TRACK E, TIMEBAR |
| Camera Requirement | Compatible Stereo 3.5mm Microphone Input |
| EAN | 4260452431159 |
| Country of Origin | Germany |
| What's In The Box | 1 x Tentacle Sync C15 Timecode & Microphone Y-Cable |
What is the Tentacle Sync C15 used for?
The C15 allows a compatible Tentacle timecode device and an external microphone to share a stereo 3.5mm camera input.
How does the C15 route timecode and microphone audio?
Tentacle LTC is routed to the camera's left audio channel, while the connected external microphone is routed to the right audio channel.
What type of camera input does the C15 require?
The camera needs a compatible stereo 3.5mm microphone input that can record the left and right channels separately.
How long is the C15 cable?
The current manufacturer specification lists the C15 at 20cm, or approximately 8 inches.
Why use the C15 instead of a standard Tentacle camera cable?
The C15 lets the camera record Tentacle LTC and an external microphone at the same time through a single stereo 3.5mm input, with each signal kept on its own channel.
Need the Right Tentacle Sync Cable?
Contact Coremicro to confirm your camera's stereo 3.5mm input, channel routing, and the correct Tentacle Sync cable for your timecode and microphone workflow.
