Product Highlights
- 14-inch LTC timecode cable
- Right-angle 3.5mm TRS connector
- Right-angle 1/4-inch / 6.3mm jack
- Sends Tentacle LTC to compatible audio inputs

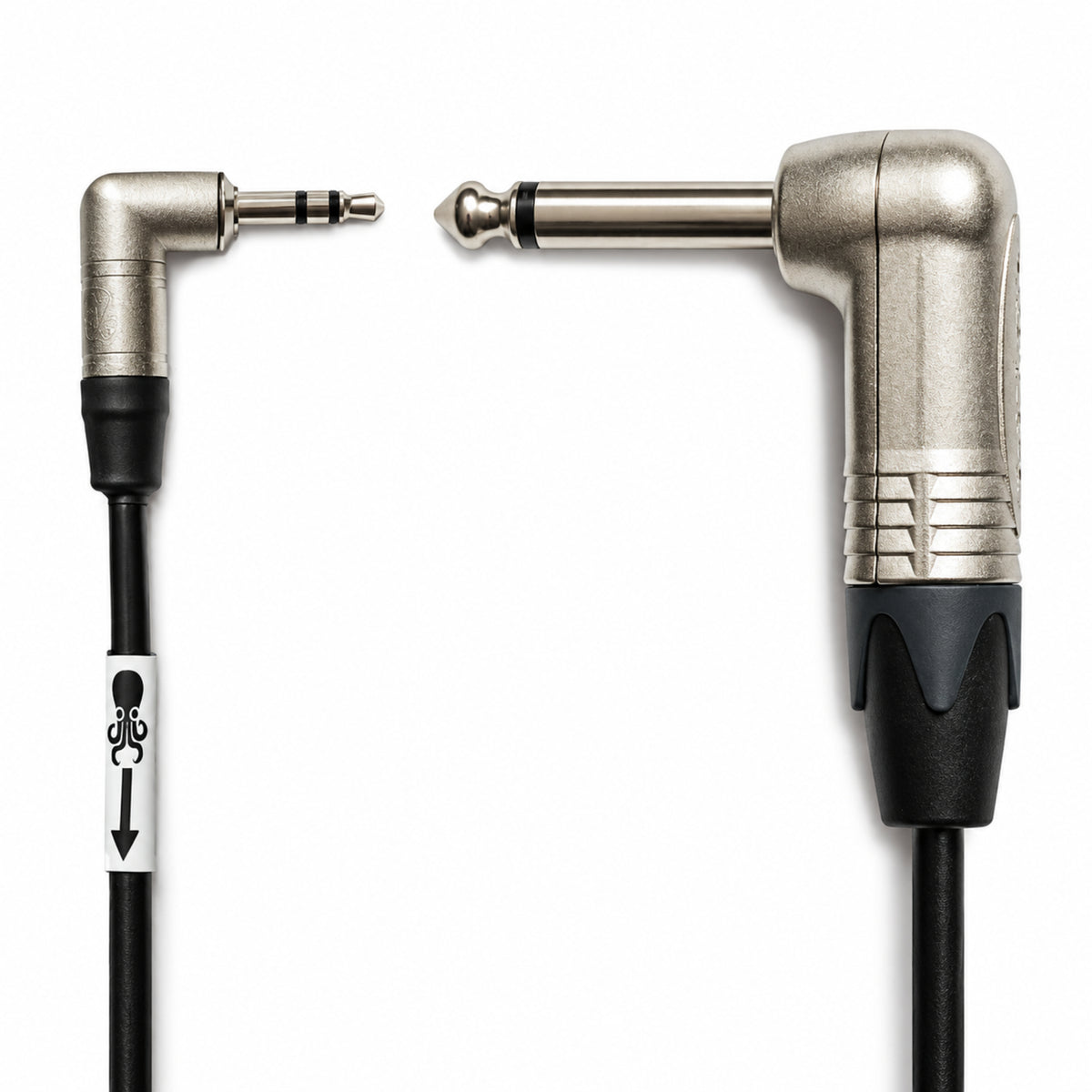

Tentacle Sync C10 1/4-Inch Right-Angle Timecode Cable 14-Inch
- SKU:
- TEN-C10
- MPN:
- C10
Ships in 2-4 Weeks
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Tentacle Sync C10 1/4-Inch Timecode Cable sends LTC timecode from a compatible Tentacle device to cameras, recorders, and other equipment with a suitable 6.3mm / 1/4-inch audio input. Both ends use right-angle connectors for compact cable routing around production equipment.
Tentacle to 1/4-Inch Jack
Sends LTC timecode from a compatible Tentacle device to equipment with a suitable 6.3mm / 1/4-inch audio input.
Right-Angle 3.5mm TRS
Uses a right-angle Neutrik 3.5mm three-pole mini-jack connector on the Tentacle side.
Right-Angle 1/4-Inch Jack
The device end uses a right-angle Neutrik 6.3mm / 1/4-inch jack for compact connection to compatible audio inputs.
Compact 14-Inch Length
Measures 35cm / 14 inches for clean integration into camera, recorder, and production audio setups.
Model
C10
Function
LTC Timecode Cable
Signal Direction
Tentacle → Audio Input
Length
35 cm / 14 in
Tentacle Connector
Right-Angle 3.5mm TRS
Device Connector
Right-Angle 6.3mm / 1/4" Jack
Weight
49 g / 1.7 oz
Timecode Method
LTC Recorded as Audio
For Compatible Cameras and Recorders
The Tentacle Sync C10 is designed to feed LTC timecode from a compatible Tentacle device into equipment with a suitable 6.3mm / 1/4-inch audio input.
Typical applications include compatible Blackmagic cameras, the Blackmagic Production Camera, and the Tascam DR-680.
SYNC E
Compatible
ORIGINAL
Compatible
TRACK E
Compatible
TIMEBAR
Compatible
Tentacle → 1/4-Inch Audio Input
The C10 sends LTC timecode from the Tentacle toward the connected 6.3mm / 1/4-inch audio input.
The receiving device records the timecode signal as audio, allowing it to be used later for synchronization.
Record LTC Through a 1/4-Inch Input
Feed Tentacle timecode into a compatible camera audio input and record the LTC signal directly to an audio track.
Add Tentacle Timecode to Recorders
Connect compatible recording equipment with a 6.3mm audio input to a Tentacle-based production workflow.
Keep Cable Routing Close to the Rig
Right-angle connectors on both ends help reduce cable projection around cameras, recorders, and production rigs.
Camera Operators
Adding Tentacle LTC to cameras with compatible 1/4-inch audio inputs.
Production Sound Teams
Integrating Tentacle timecode with compatible recording gear.
Documentary Crews
Recording LTC on an audio channel when dedicated timecode connectivity is unavailable.
Rental Houses
Building Tentacle accessory kits for cameras and recorders with 6.3mm audio connections.
Tentacle Sync Support
Coremicro can help confirm 1/4-inch input compatibility, signal direction, and the correct Tentacle Sync cable for your camera, recorder, or production setup.
| Specification | Detail |
|---|---|
| Product | Tentacle Sync Tentacle to 6.3mm / 1/4-Inch Timecode Cable |
| Model | C10 |
| Cable Type | LTC / Timecode Adapter Cable |
| Signal Direction | Tentacle to 6.3mm / 1/4-Inch Audio Input |
| Tentacle Connector | Right-Angle Neutrik 3.5mm TRS |
| Device Connector | Right-Angle Neutrik 6.3mm / 1/4-Inch Jack |
| Cable Length | 35 cm / 14 in |
| Weight | 49 g / 1.7 oz |
| Compatible Tentacle Devices | SYNC E, ORIGINAL, TRACK E, TIMEBAR |
| Compatible Interface | 6.3mm / 1/4-Inch Audio Input |
| Timecode Method | LTC Recorded as an Audio Signal |
| Typical Applications | Blackmagic Camera · Blackmagic Production Camera · Tascam DR-680 |
| EAN | 4260452431104 |
| Country of Origin | Germany |
| What's In The Box | 1 x Tentacle Sync C10 Timecode Cable |
What is the Tentacle Sync C10 used for?
The C10 sends LTC timecode from a compatible Tentacle device to equipment with a suitable 6.3mm / 1/4-inch audio input.
What connectors does the C10 use?
It uses a right-angle 3.5mm TRS connector on the Tentacle side and a right-angle 6.3mm / 1/4-inch jack on the device side.
How long is the C10 cable?
The current manufacturer specification lists the C10 at 35cm, or approximately 14 inches.
How is timecode recorded when using the C10?
The Tentacle sends LTC through the audio connection so the connected device can record the timecode signal onto an audio track.
What equipment can use the C10?
The C10 is intended for compatible equipment with a 6.3mm / 1/4-inch audio input. Manufacturer examples include Blackmagic cameras and the Tascam DR-680.
Need the Right Tentacle Sync Cable?
Contact Coremicro to confirm your audio connection and select the correct Tentacle Sync cable for your camera, recorder, or production timecode setup.
