Product Highlights
- 16-inch bidirectional timecode cable
- 90° right-angle BNC connector
- Right-angle 3.5mm TRS connector
- Supports BNC TC input and output

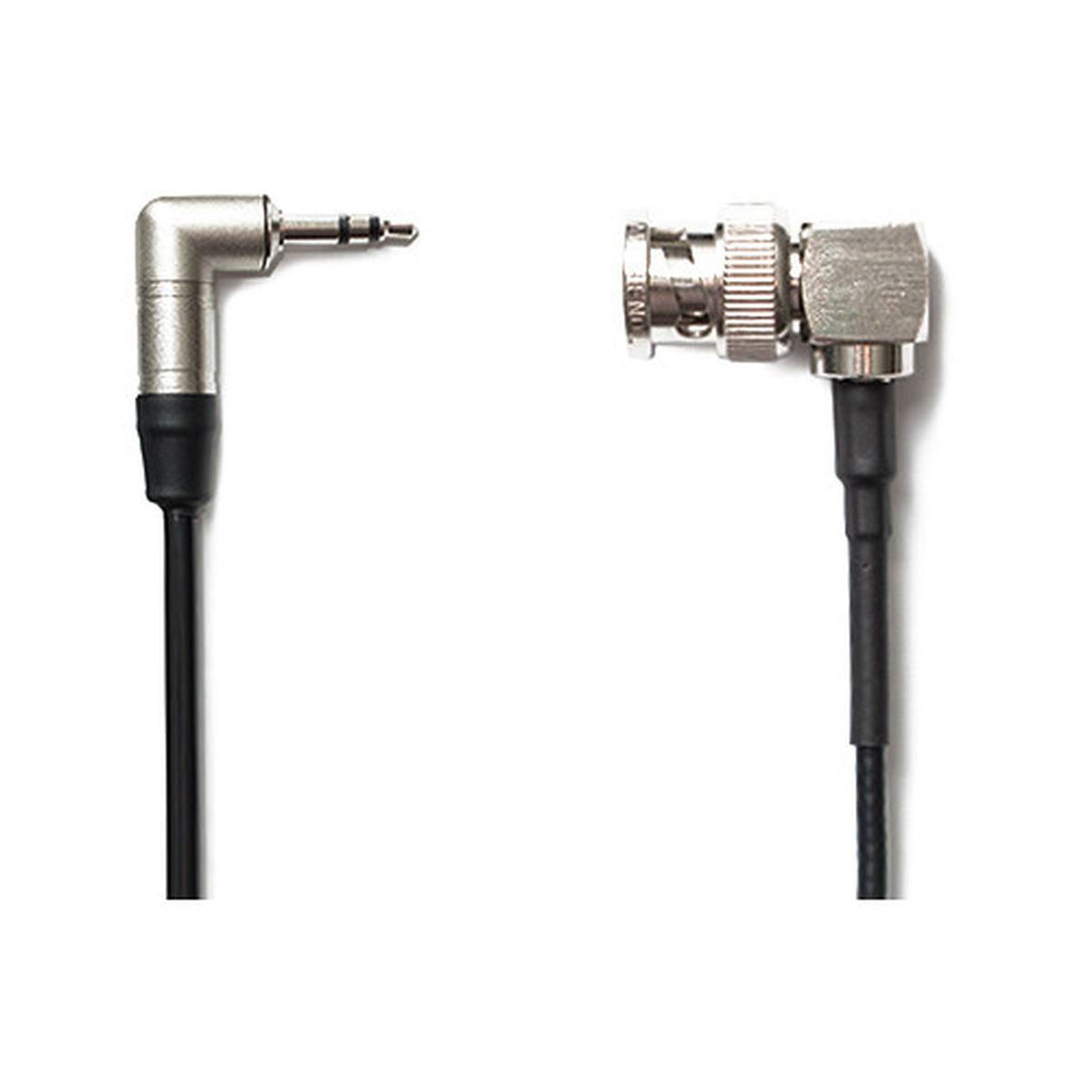

Tentacle Sync C08 Right-Angle BNC Timecode Cable 16-Inch
- SKU:
- TEN-C08
- MPN:
- C08
Ships in 2-4 Weeks
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Tentacle Sync C08 Tentacle to BNC Cable provides a bidirectional timecode connection between a compatible Tentacle device and professional equipment with a BNC TC In/Out port. Its 90° right-angle BNC connector helps keep cable routing compact around cameras and production rigs.
Bidirectional Timecode
Transfers timecode in either direction between a Tentacle device and compatible BNC TC In/Out equipment.
90° Right-Angle BNC
The angled BNC connector helps reduce cable projection and keeps routing tidy on compact camera builds.
Right-Angle 3.5mm TRS
Uses a right-angle Neutrik 3.5mm three-pole mini-jack connector on the Tentacle side.
Compact 16-Inch Length
Measures 40cm / 16 inches for clean integration into camera, recorder, and timecode rigs.
Model
C08
Function
Timecode Cable
Signal Direction
Bidirectional
Length
40 cm / 16 in
Tentacle Connector
Right-Angle 3.5mm TRS
Device Connector
90° Right-Angle BNC
Weight
35 g / 1.23 oz
Timecode Port
BNC TC In / Out
For Professional BNC Timecode Devices
The Tentacle Sync C08 connects compatible Tentacle devices with professional cameras and production equipment equipped with a BNC timecode input or output.
The 90° BNC connector is especially useful where straight cable routing would add unnecessary projection from the camera body or accessory panel.
Sony
FX6 / FX9
Canon
C300 / C500 / C70 / C80
Blackmagic Design
URSA Mini
ARRI
AMIRA
Tentacle ↔ BNC Timecode Device
The C08 supports timecode in both directions. It can send timecode from a Tentacle to a compatible BNC TC input or receive external timecode from a BNC TC output.
This allows the same cable to support both camera timecode feeds and Tentacle jam-sync workflows.
Feed Tentacle Timecode to Camera
Connect a Tentacle source to a compatible BNC TC input for synchronized production recording.
Sync Tentacle from External Timecode
Feed timecode from a compatible BNC TC output into the Tentacle when synchronizing to an external master source.
Route BNC Close to the Camera
The 90° BNC design keeps the cable close to the connector panel for cleaner routing on compact camera builds.
Camera Assistants
Connecting Tentacle devices to cameras with BNC timecode ports.
Production Sound Teams
Managing bidirectional timecode between Tentacle and production gear.
Multi-Camera Crews
Maintaining a common timecode reference across compatible cameras.
Rental Houses
Building compact Tentacle Sync kits for BNC-equipped camera systems.
Tentacle Sync Support
Coremicro can help confirm BNC timecode compatibility and determine whether the straight C06 or right-angle C08 cable is better suited to your camera and rig configuration.
| Specification | Detail |
|---|---|
| Product | Tentacle Sync Tentacle to 90° BNC Timecode Cable |
| Model | C08 |
| Cable Type | Bidirectional Timecode Adapter Cable |
| Signal Direction | Bidirectional |
| Tentacle Connector | Right-Angle Neutrik 3.5mm TRS |
| Device Connector | 90° Right-Angle BNC |
| Cable Length | 40 cm / 16 in |
| Weight | 35 g / 1.23 oz |
| Compatible Tentacle Devices | SYNC E, ORIGINAL, TRACK E, TIMEBAR |
| Compatible Interface | BNC TC In / Out |
| Typical Applications | Sony FX6 / FX9 · Canon C300 / C500 / C70 / C80 · Blackmagic URSA Mini · ARRI AMIRA |
| EAN | 4260452431081 |
| Country of Origin | Germany |
| What's In The Box | 1 x Tentacle Sync C08 Right-Angle BNC Timecode Cable |
What is the Tentacle Sync C08 used for?
The C08 provides a bidirectional timecode connection between a compatible Tentacle device and professional equipment with a BNC TC input or output.
What connectors does the C08 use?
It uses a right-angle 3.5mm TRS connector on the Tentacle side and a 90° right-angle BNC connector on the device side.
How long is the C08 cable?
The cable measures 40cm, or approximately 16 inches.
Is the C08 bidirectional?
Yes. It can send timecode from a Tentacle to a compatible BNC TC input or receive external timecode from a BNC TC output into the Tentacle.
What is the difference between the C08 and C06?
Both cables support bidirectional BNC timecode. The C08 uses a 90° right-angle BNC connector for tighter cable routing, while the C06 uses a straight BNC connector.
Need the Right Tentacle Sync Cable?
Contact Coremicro to confirm your BNC timecode connection and choose the correct straight or right-angle Tentacle Sync cable for your camera and rig.
