Product Highlights
- 16-inch bidirectional timecode cable
- Right-angle 3.5mm TRS connector
- Straight BNC TC connection
- Supports TC input and output workflows
Tentacle Sync C06 Straight BNC Timecode Cable 16-Inch
- SKU:
- TEN-C06
- MPN:
- C06
Ships in 2-4 Weeks
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview

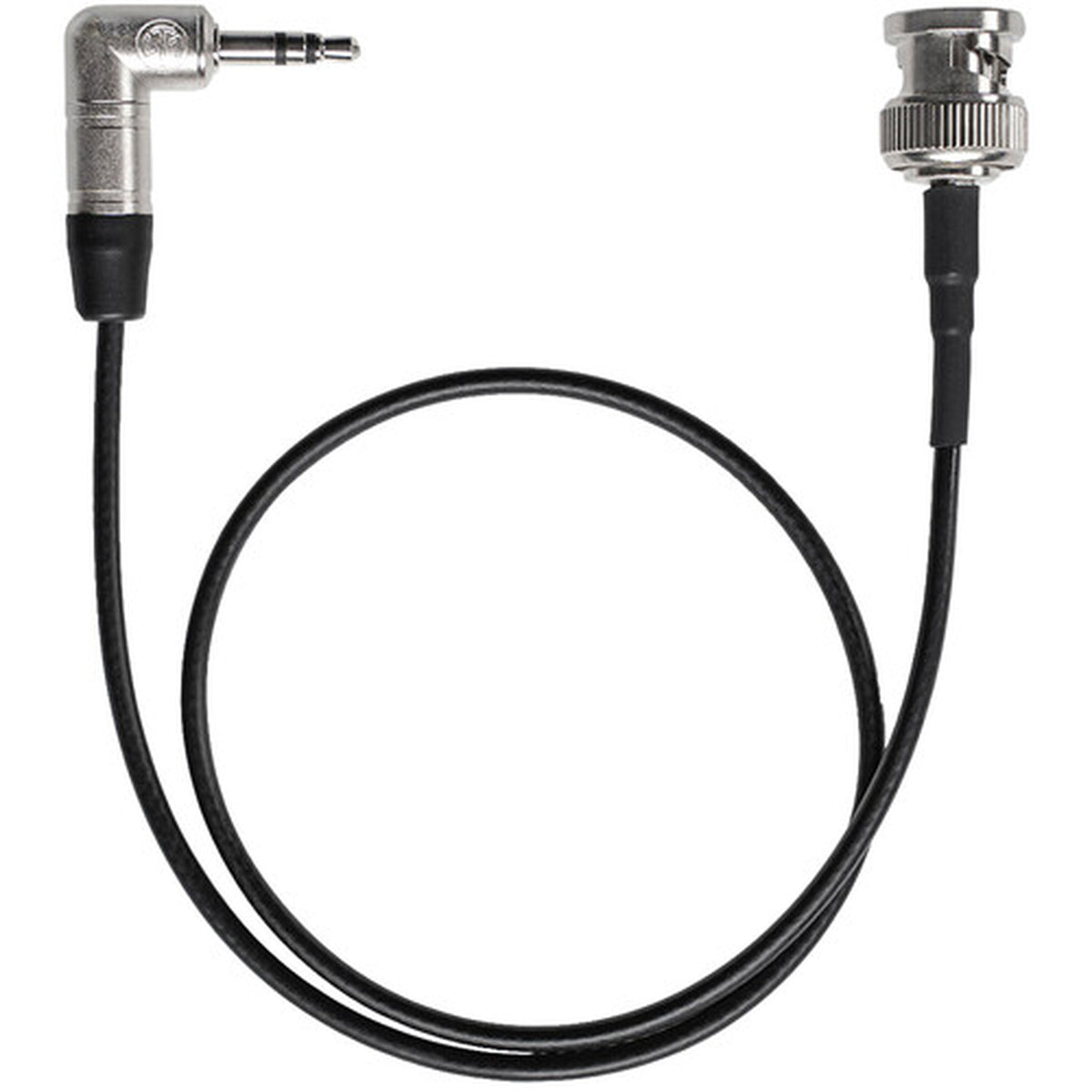

The Tentacle Sync C06 Tentacle to BNC Cable provides a bidirectional timecode connection between a compatible Tentacle device and professional equipment with a BNC TC In/Out port. The 16-inch cable uses a right-angle 3.5mm TRS connector on the Tentacle side and a straight BNC connector on the device side.
Bidirectional Timecode
Supports timecode transfer in either direction between a Tentacle device and compatible BNC TC In/Out equipment.

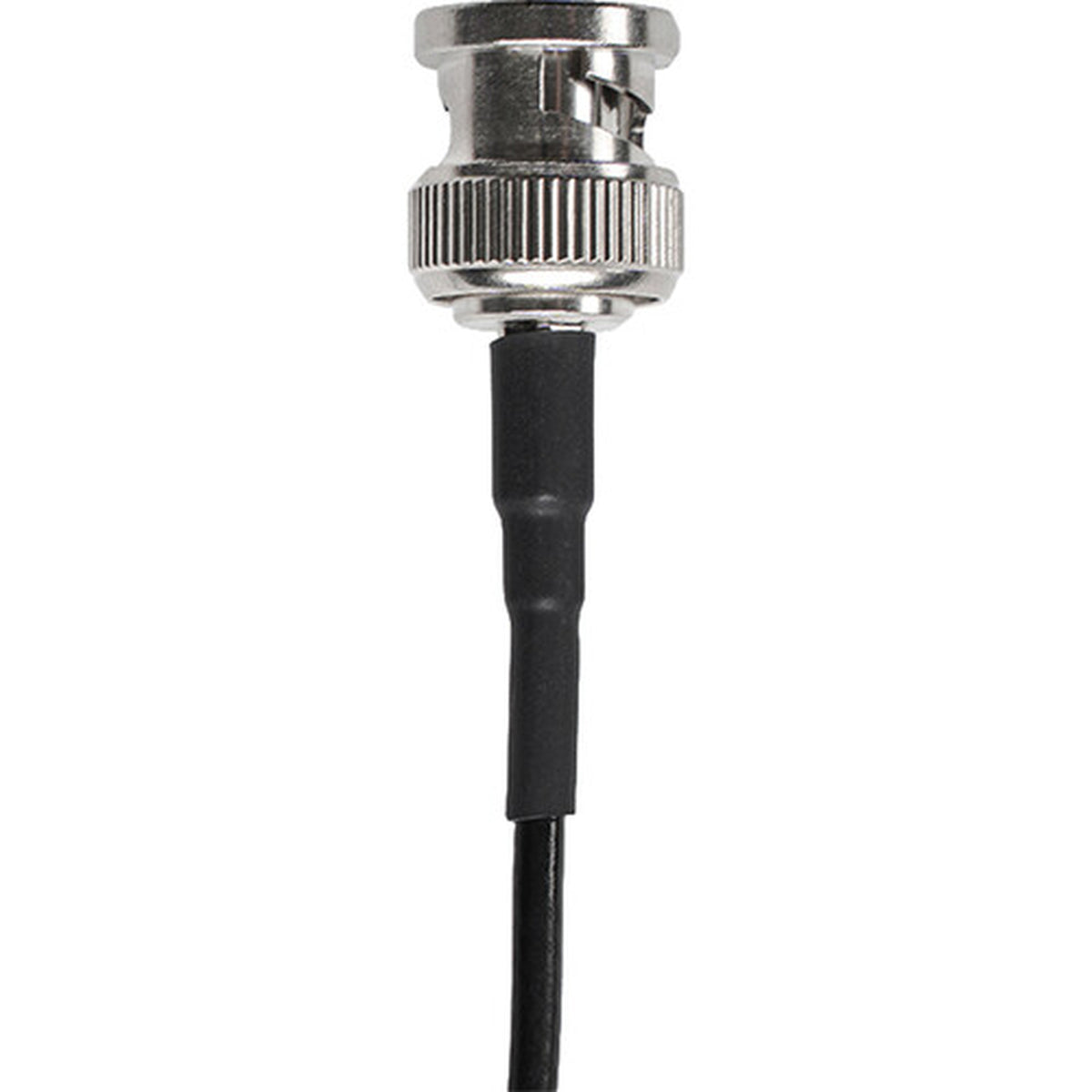

Straight BNC Connection
Connects directly to compatible professional camera and recorder BNC timecode ports.

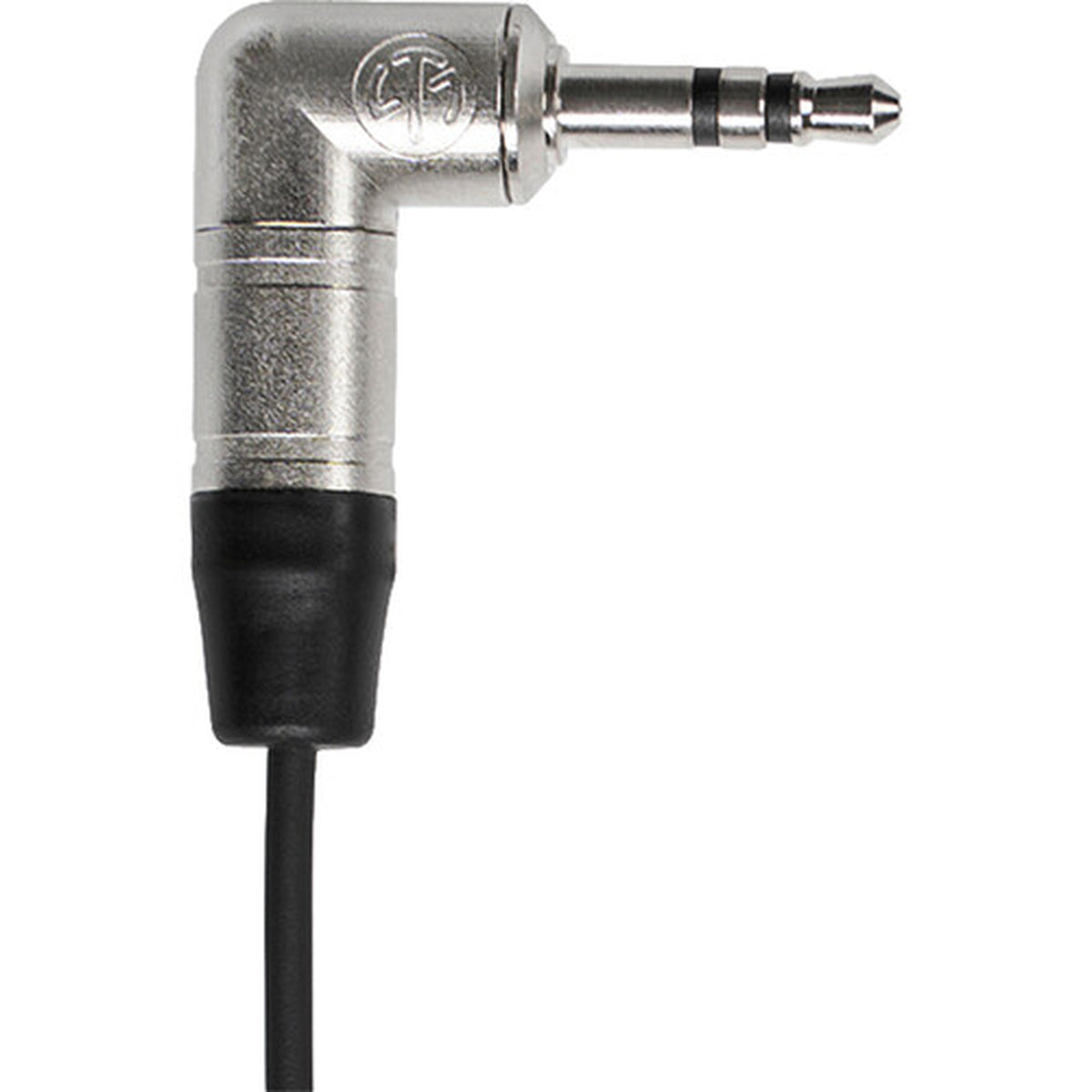

Right-Angle 3.5mm TRS
Uses a compact right-angle Neutrik 3.5mm three-pole mini-jack connector on the Tentacle side.
Compact 16-Inch Length
Measures 40cm / 16 inches for clean integration into camera, recorder, and timecode rigs.
Model
C06
Function
Timecode Cable
Signal Direction
Bidirectional
Length
40 cm / 16 in
Tentacle Connector
Right-Angle 3.5mm TRS
Device Connector
Straight BNC
Weight
28 g / 0.98 oz
Timecode Port
BNC TC In / Out
For Professional BNC Timecode Devices
The Tentacle Sync C06 is designed for professional cameras, recorders, and other equipment equipped with a compatible BNC timecode input or output.
Typical compatible systems include selected Sony, Canon, Blackmagic Design, and ARRI cameras with dedicated BNC timecode connectivity.
Sony
FX6 / FX9
Canon
C300 / C500 / C70 / C80
Blackmagic Design
URSA Mini
ARRI
AMIRA
Tentacle ↔ BNC Timecode Device
The C06 supports timecode in both directions. A Tentacle can send timecode to a compatible BNC TC input or receive external timecode from a BNC TC output for synchronization.
This makes the C06 suitable for both camera timecode feeds and jam-sync workflows without changing cable direction.
Feed Tentacle Timecode to Camera
Connect a Tentacle source to a compatible camera BNC TC input for synchronized production recording.
Sync Tentacle from External Timecode
Use a compatible BNC TC output to feed external timecode into the Tentacle when matching an existing master clock.
Integrate BNC Cameras into a Shared Sync Setup
Connect supported BNC-equipped cameras to a common Tentacle timecode workflow for multi-camera production.
Camera Assistants
Connecting Tentacle devices to cameras with BNC timecode ports.
Production Sound Teams
Managing bidirectional timecode between Tentacle and production gear.
Multi-Camera Crews
Maintaining a shared timecode reference across compatible cameras.
Rental Houses
Building complete Tentacle Sync kits for BNC-equipped camera systems.
Tentacle Sync Support
Coremicro can help confirm BNC timecode compatibility, signal direction, and the correct Tentacle Sync cable for your camera or production workflow.
| Specification | Detail |
|---|---|
| Product | Tentacle Sync Tentacle to Straight BNC Timecode Cable |
| Model | C06 |
| Cable Type | Bidirectional Timecode Adapter Cable |
| Signal Direction | Bidirectional |
| Tentacle Connector | Right-Angle Neutrik 3.5mm TRS |
| Device Connector | Straight BNC |
| Cable Length | 40 cm / 16 in |
| Weight | 28 g / 0.98 oz |
| Compatible Tentacle Devices | SYNC E, ORIGINAL, TRACK E, TIMEBAR |
| Compatible Interface | BNC TC In / Out |
| Typical Applications | Sony FX6 / FX9 · Canon C300 / C500 / C70 / C80 · Blackmagic URSA Mini · ARRI AMIRA |
| EAN | 4260452431067 |
| Country of Origin | Germany |
| What's In The Box | 1 x Tentacle Sync C06 Straight BNC Timecode Cable |
What is the Tentacle Sync C06 used for?
The C06 provides a bidirectional timecode connection between a compatible Tentacle device and professional equipment with a BNC TC input or output.
What connectors does the C06 use?
It uses a right-angle 3.5mm TRS connector on the Tentacle side and a straight BNC connector on the device side.
How long is the C06 cable?
The cable measures 40cm, or approximately 16 inches.
Is the C06 bidirectional?
Yes. It can send timecode from a Tentacle to a compatible BNC TC input or receive external timecode from a BNC TC output into the Tentacle.
What type of equipment can use the C06?
The C06 is intended for compatible professional cameras, recorders, and other production equipment equipped with a BNC timecode input or output.
Need the Right Tentacle Sync Cable?
Contact Coremicro to confirm your BNC timecode connection and the correct Tentacle Sync cable for your camera, recorder, or production setup.
