Product Highlights
- 12-inch Tentacle-to-XLR timecode cable
- Right-angle 3.5mm TRS connector
- Straight 3-pin XLR male connector
- Sends LTC to compatible XLR audio inputs
Tentacle Sync C04 3-Pin XLR Male Timecode Cable 12-Inch
- SKU:
- TEN-C04
- MPN:
- C04
Ships in 1-2 Weeks
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview

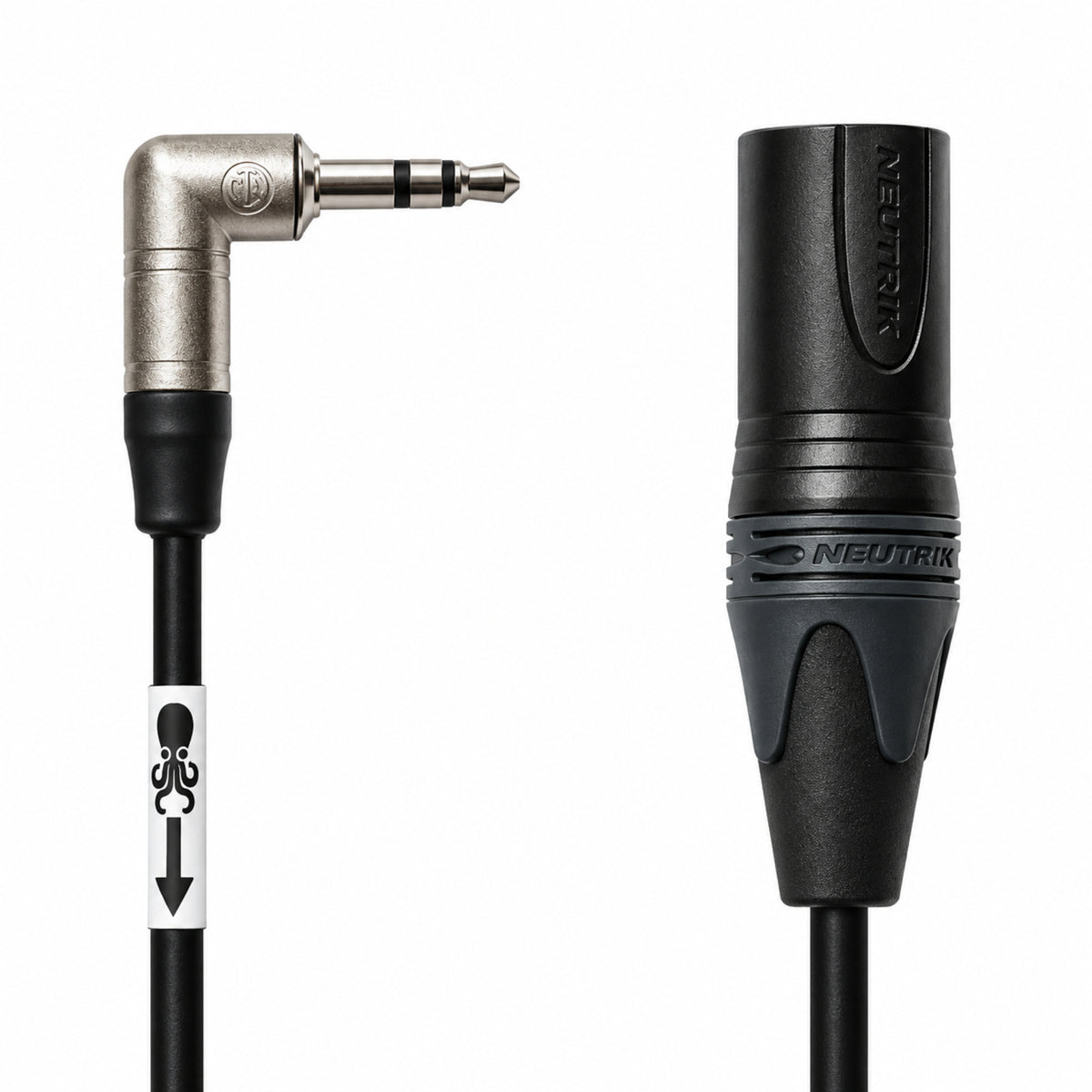

The Tentacle Sync C04 Tentacle to XLR Male Cable sends LTC timecode from a compatible Tentacle device to equipment with a suitable 3-pin XLR microphone or audio input. The compact 12-inch cable uses a right-angle 3.5mm TRS connector on the Tentacle side and a straight 3-pin XLR male connector on the device side.
Tentacle to XLR Timecode
Sends LTC timecode from a compatible Tentacle device to equipment with a suitable XLR microphone or audio input.
Right-Angle 3.5mm TRS
Uses a compact right-angle Neutrik 3.5mm three-pole mini-jack connector on the Tentacle side.
3-Pin XLR Male
The device end uses a straight Neutrik 3-pin XLR male connector for compatible professional audio inputs.
Compact 12-Inch Length
Measures 30cm / 12 inches for tidy integration into camera, recorder, and production rigs.
Model
C04
Function
LTC Timecode Cable
Signal Direction
Tentacle → XLR Device
Length
30 cm / 12 in
Tentacle Connector
Right-Angle 3.5mm TRS
Device Connector
Straight 3-Pin XLR Male
Weight
50 g / 1.76 oz
Country of Origin
Germany
For Devices Without a Dedicated Timecode Input
The Tentacle Sync C04 sends LTC timecode from a compatible Tentacle device into equipment with a suitable 3-pin XLR microphone or audio input.
In this workflow, the timecode signal is recorded onto an audio track instead of being connected to a dedicated timecode port.
SYNC E
Compatible
ORIGINAL
Compatible
TRACK E
Compatible
TIMEBAR
Compatible
Tentacle → XLR Audio Input
The C04 is wired to send LTC timecode from the Tentacle toward the connected XLR-equipped device.
It is not intended for feeding external XLR timecode into the Tentacle. That reverse workflow requires a different Tentacle cable.
Record LTC Through XLR
Feed Tentacle timecode into a compatible camera XLR input and record the LTC signal onto an audio track.
Add Timecode to Compatible Recorders
Connect the Tentacle to supported audio equipment when dedicated timecode connectivity is not available.
Capture LTC for Later Synchronization
Record Tentacle LTC as an audio signal that can be used during post-production synchronization workflows.
Camera Assistants
Adding Tentacle LTC to cameras with compatible XLR inputs.
Production Sound Teams
Integrating XLR-based audio equipment into timecode workflows.
Documentary Crews
Recording LTC on an audio channel when a camera lacks a dedicated timecode input.
Rental Houses
Building Tentacle accessory kits for cameras and recorders with XLR audio connectivity.
Tentacle Sync Support
Coremicro can help confirm XLR input compatibility, signal direction, and the correct Tentacle Sync cable for your production timecode workflow.
| Specification | Detail |
|---|---|
| Product | Tentacle Sync Tentacle to XLR Male Timecode Cable |
| Model | C04 |
| Cable Type | LTC / Timecode Adapter Cable |
| Signal Direction | Tentacle to XLR Device |
| Tentacle Connector | Right-Angle Neutrik 3.5mm TRS |
| Device Connector | Straight Neutrik 3-Pin XLR Male |
| Cable Length | 30 cm / 12 in |
| Weight | 50 g / 1.76 oz |
| Compatible Tentacle Devices | SYNC E, ORIGINAL, TRACK E, TIMEBAR |
| Connection Type | Compatible 3-Pin XLR Microphone / Audio Input |
| Timecode Method | LTC Recorded to an Audio Track |
| EAN | 4260452431043 |
| Country of Origin | Germany |
| What's In The Box | 1 x Tentacle Sync C04 Timecode Cable |
What is the Tentacle Sync C04 used for?
The C04 sends LTC timecode from a compatible Tentacle device to equipment with a suitable 3-pin XLR microphone or audio input.
What connectors does the C04 use?
It uses a right-angle 3.5mm TRS connector on the Tentacle side and a straight 3-pin XLR male connector on the device side.
How long is the C04 cable?
The current manufacturer specification lists the cable at 30cm, or approximately 12 inches.
How is timecode recorded when using the C04?
The Tentacle sends LTC through the XLR connection so the connected device can record the timecode signal onto an audio track.
Can the C04 feed XLR timecode into a Tentacle device?
No. The C04 is wired to send timecode from the Tentacle toward the XLR-equipped device. A different cable is required for the opposite signal direction.
Need the Right Tentacle Sync Cable?
Contact Coremicro to confirm your XLR connection, signal direction, and the correct Tentacle Sync cable for your production timecode workflow.
