Product Highlights
- 16-inch 5-pin LEMO cable
- Right-angle 3.5mm TRS connector
- Sends Tentacle timecode to devices
- For professional timecode workflows
Tentacle Sync C02 5-Pin LEMO Timecode Cable 16-Inch 3.5mm to 5-Pin LEMO
- SKU:
- TEN-C02
- MPN:
- C02
Ships in 7-14 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview

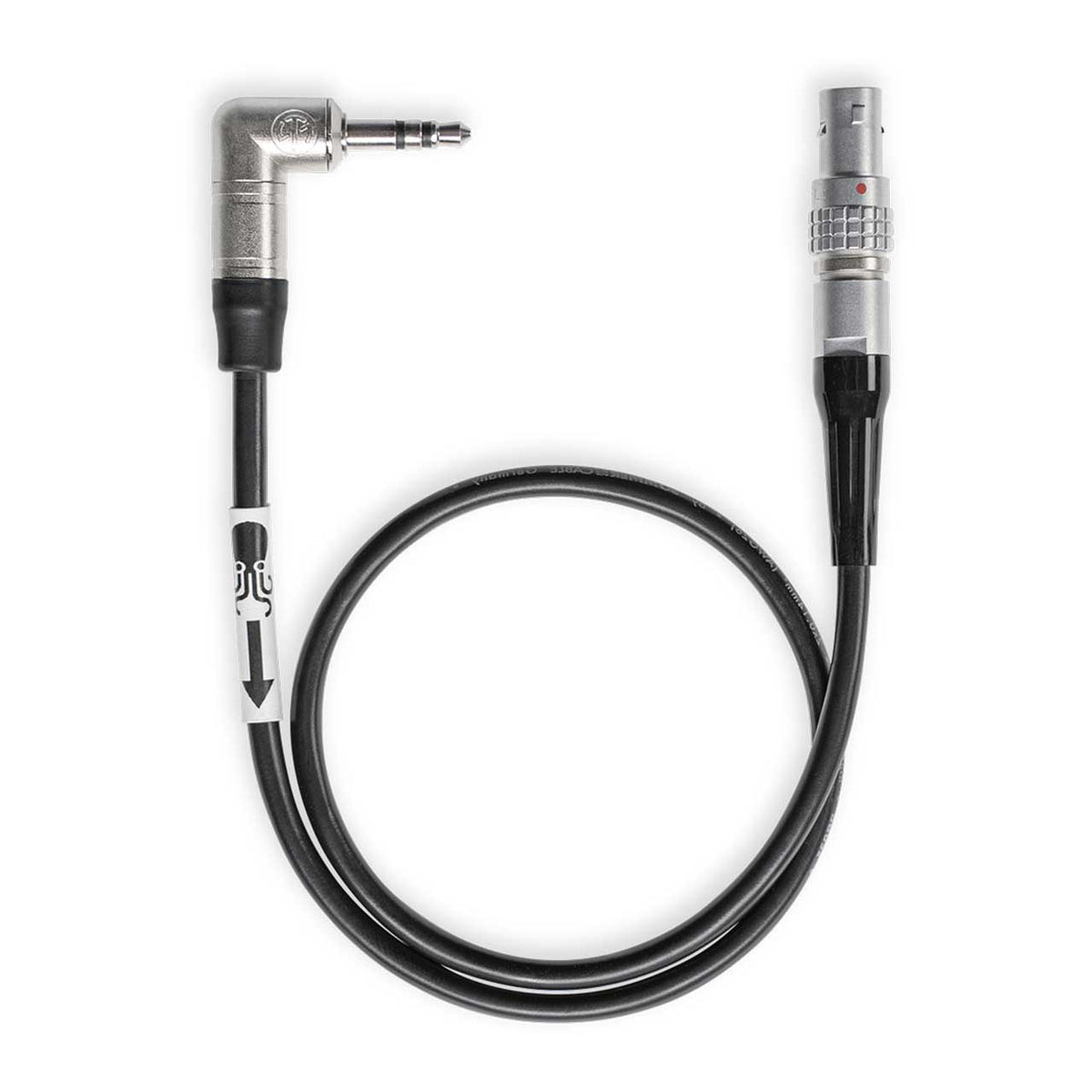

The Tentacle Sync C02 Tentacle to 5-Pin LEMO Cable sends timecode from a compatible Tentacle device to professional cameras, audio recorders, and timecode equipment equipped with a standard 5-pin LEMO timecode input. The 16-inch cable uses a right-angle 3.5mm TRS connector on the Tentacle side and a straight 5-pin LEMO connector on the device side.
Tentacle to 5-Pin LEMO
Sends timecode from a compatible Tentacle device to equipment using a standard 5-pin LEMO timecode connection.

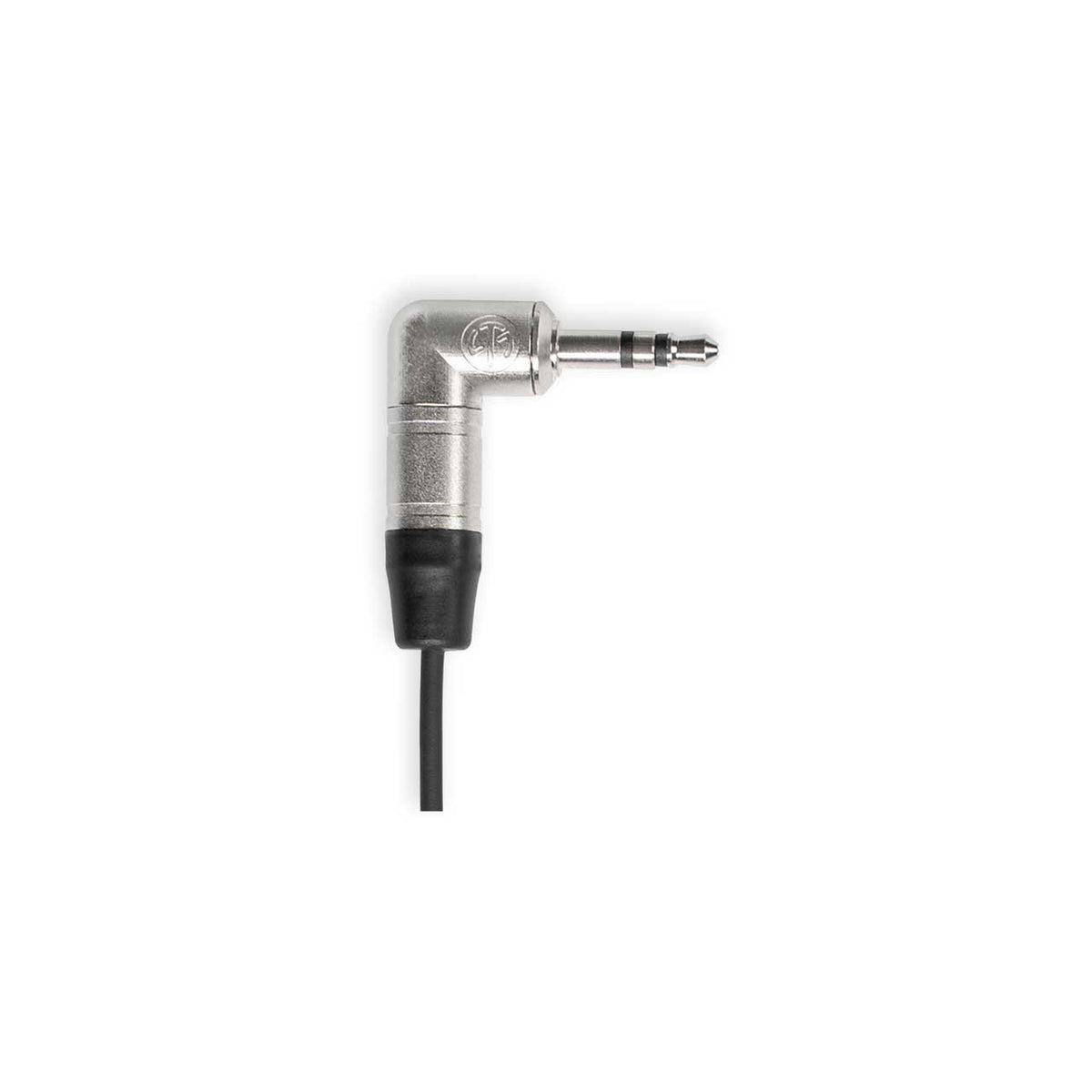

Right-Angle 3.5mm TRS
Uses a compact right-angle Neutrik 3.5mm three-pole mini-jack connector on the Tentacle side.

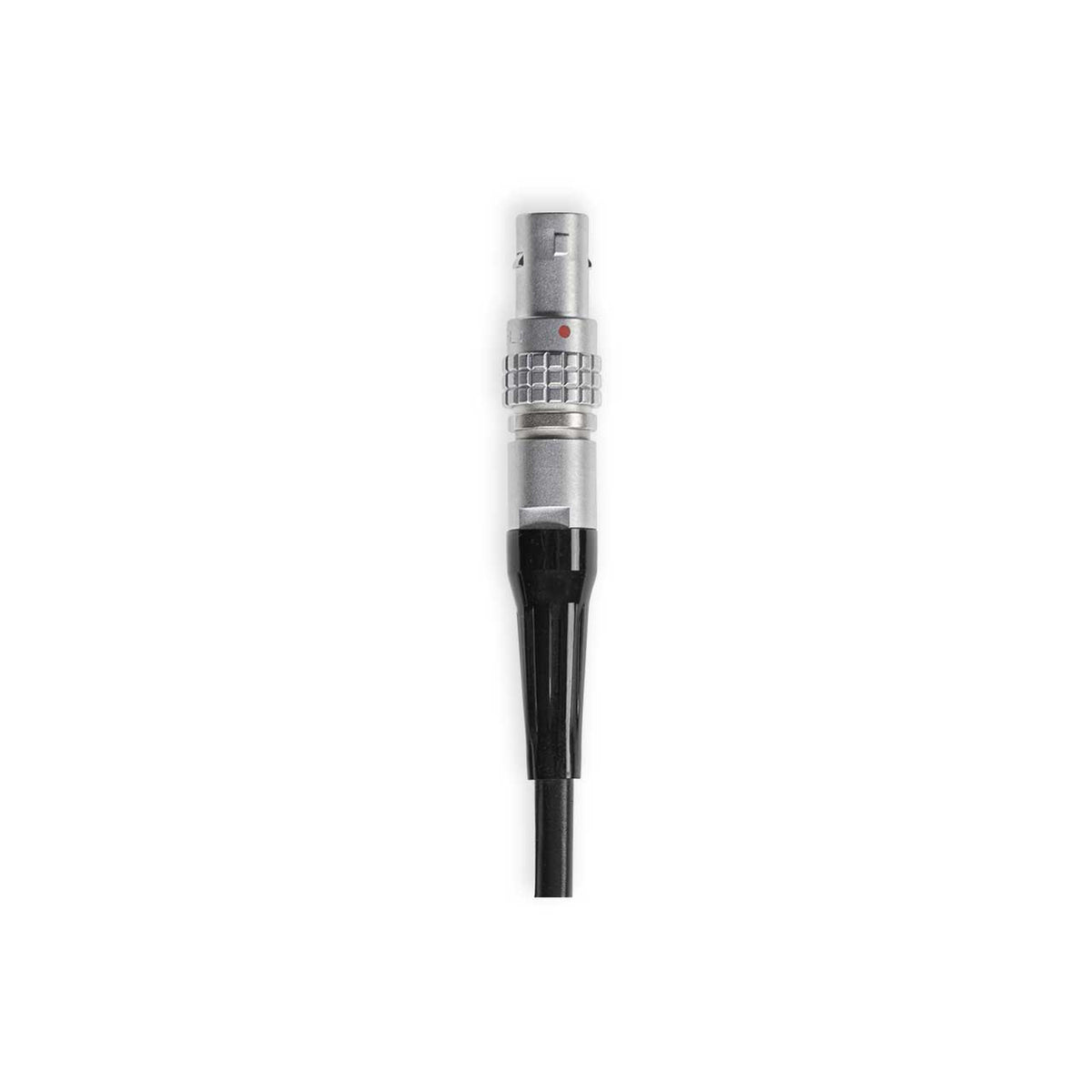

Straight 5-Pin LEMO
The device end uses an original straight 5-pin LEMO connector for professional timecode equipment.
Compact 16-Inch Length
Measures 40cm / 16 inches for clean integration into camera, recorder, and production sound setups.
Model
C02
Function
Timecode Cable
Signal Direction
Tentacle → LEMO Device
Length
40 cm / 16 in
Tentacle Connector
Right-Angle 3.5mm TRS
Device Connector
Straight 5-Pin LEMO
Weight
30 g / 1.05 oz
Country of Origin
Germany
For Professional Cameras, Recorders, and Timecode Gear
The Tentacle Sync C02 is designed to send timecode from a compatible Tentacle device to equipment with a standard 5-pin LEMO timecode input.
Typical compatible equipment includes supported ARRI ALEXA cameras, Sound Devices recorders, RED Ranger cameras, and Ambient timecode generators.
SYNC E
Compatible
ORIGINAL
Compatible
TRACK E
Compatible
TIMEBAR
Compatible
C02 Sends Timecode from Tentacle to the LEMO Device
The C02 is wired for timecode output from the Tentacle side toward the connected 5-pin LEMO device.
If the workflow requires sending timecode in the opposite direction from a 5-pin LEMO source into a Tentacle unit, a different Tentacle cable is required.
Feed Tentacle Timecode to Camera
Connect a Tentacle source to a compatible 5-pin LEMO camera input for synchronized production recording.
Connect to Compatible Audio Recorders
Use the C02 with supported professional recorders that accept timecode through a standard 5-pin LEMO interface.
Add 5-Pin LEMO Gear to a Tentacle Setup
Integrate compatible cameras, recorders, or timecode generators into a shared production timecode workflow.
Camera Assistants
Preparing professional camera packages with 5-pin LEMO timecode inputs.
Sound Teams
Integrating compatible recorders into a Tentacle timecode workflow.
Multi-Camera Crews
Maintaining common timecode references across compatible production equipment.
Rental Houses
Building complete Tentacle Sync and 5-pin LEMO accessory kits.
Tentacle Sync Support
Coremicro can help confirm 5-pin LEMO compatibility and the correct Tentacle Sync cable direction for your camera, recorder, or production timecode setup.
| Specification | Detail |
|---|---|
| Product | Tentacle Sync Tentacle to 5-Pin LEMO Cable |
| Model | C02 |
| Cable Type | Timecode Adapter Cable |
| Signal Direction | Tentacle to 5-Pin LEMO Device |
| Tentacle Connector | Right-Angle Neutrik 3.5mm TRS |
| Device Connector | Straight 5-Pin LEMO |
| Cable Length | 40 cm / 16 in |
| Weight | 30 g / 1.05 oz |
| Compatible Tentacle Devices | SYNC E, ORIGINAL, TRACK E, TIMEBAR |
| Compatible Equipment | Equipment with a compatible 5-Pin LEMO timecode input |
| Typical Applications | ARRI Cameras · Sound Devices Recorders · RED Ranger · Ambient Timecode Equipment |
| EAN | 4260452431029 |
| Country of Origin | Germany |
| What's In The Box | 1 x Tentacle Sync C02 5-Pin LEMO Cable |
What is the Tentacle Sync C02 used for?
The C02 sends timecode from a compatible Tentacle device to professional equipment with a supported 5-pin LEMO timecode input.
What connectors does the C02 use?
It uses a right-angle 3.5mm TRS connector on the Tentacle side and a straight 5-pin LEMO connector on the device side.
How long is the C02 cable?
The cable measures 40cm, or approximately 16 inches.
What equipment can use the C02?
The C02 is intended for compatible cameras, audio recorders, and timecode equipment with a standard 5-pin LEMO timecode input.
Can the C02 send timecode into a Tentacle device?
No. The C02 is wired to send timecode from the Tentacle toward the connected 5-pin LEMO device. A different cable is required for the opposite signal direction.
Need the Right Tentacle Sync Cable?
Contact Coremicro to confirm your timecode connector and the correct Tentacle Sync cable for your camera, recorder, or production setup.
