Product Highlights
- 16-inch RED timecode adapter cable
- Right-angle 3.5mm Tentacle connector
- Original 4-pin LEMO RED connector
- For RED 4-pin sync ports
Tentacle Sync C01 RED Timecode Cable 16-Inch 3.5mm to 4-Pin LEMO
- SKU:
- TEN-C01
- MPN:
- C01
Ships in 2-4 Weeks
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview

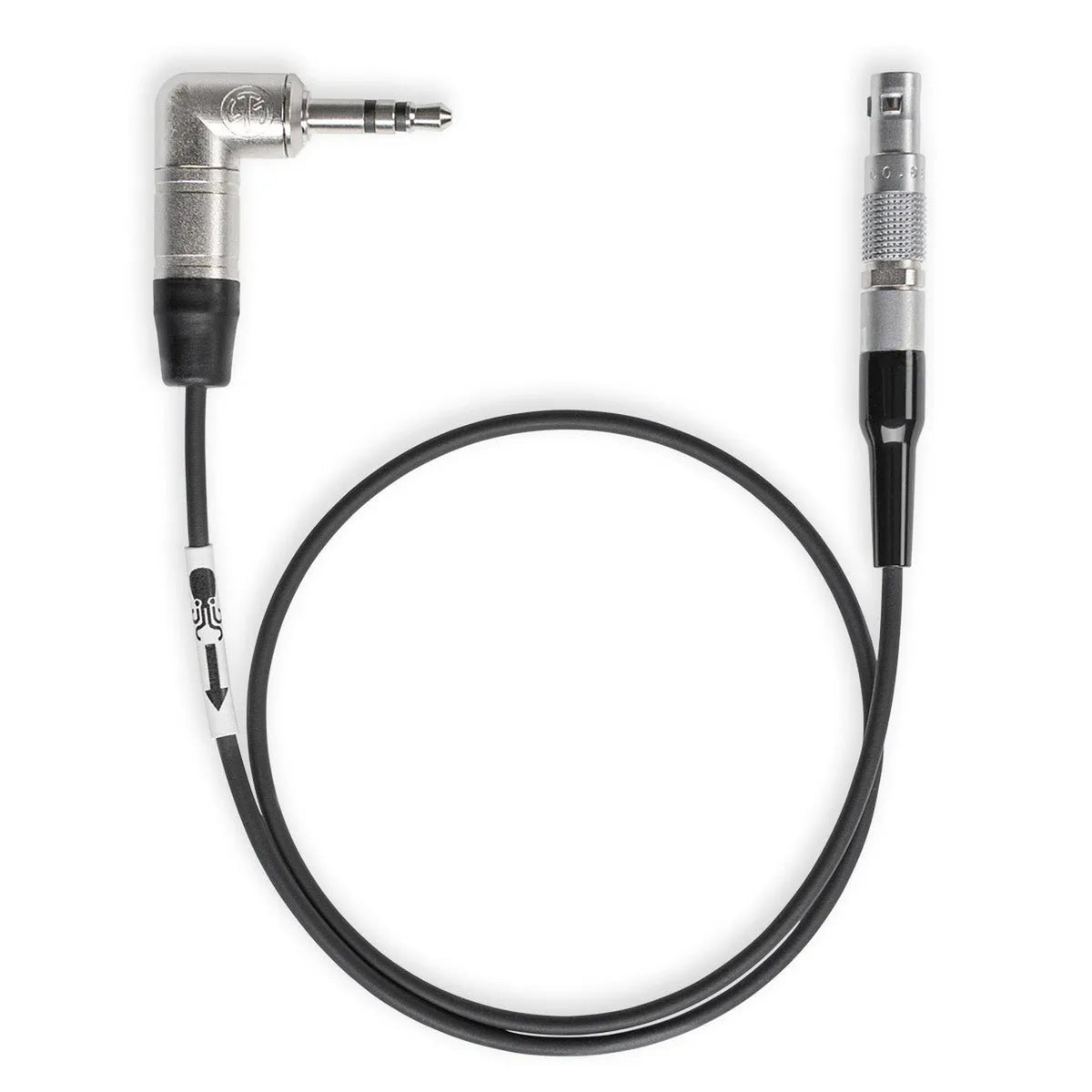

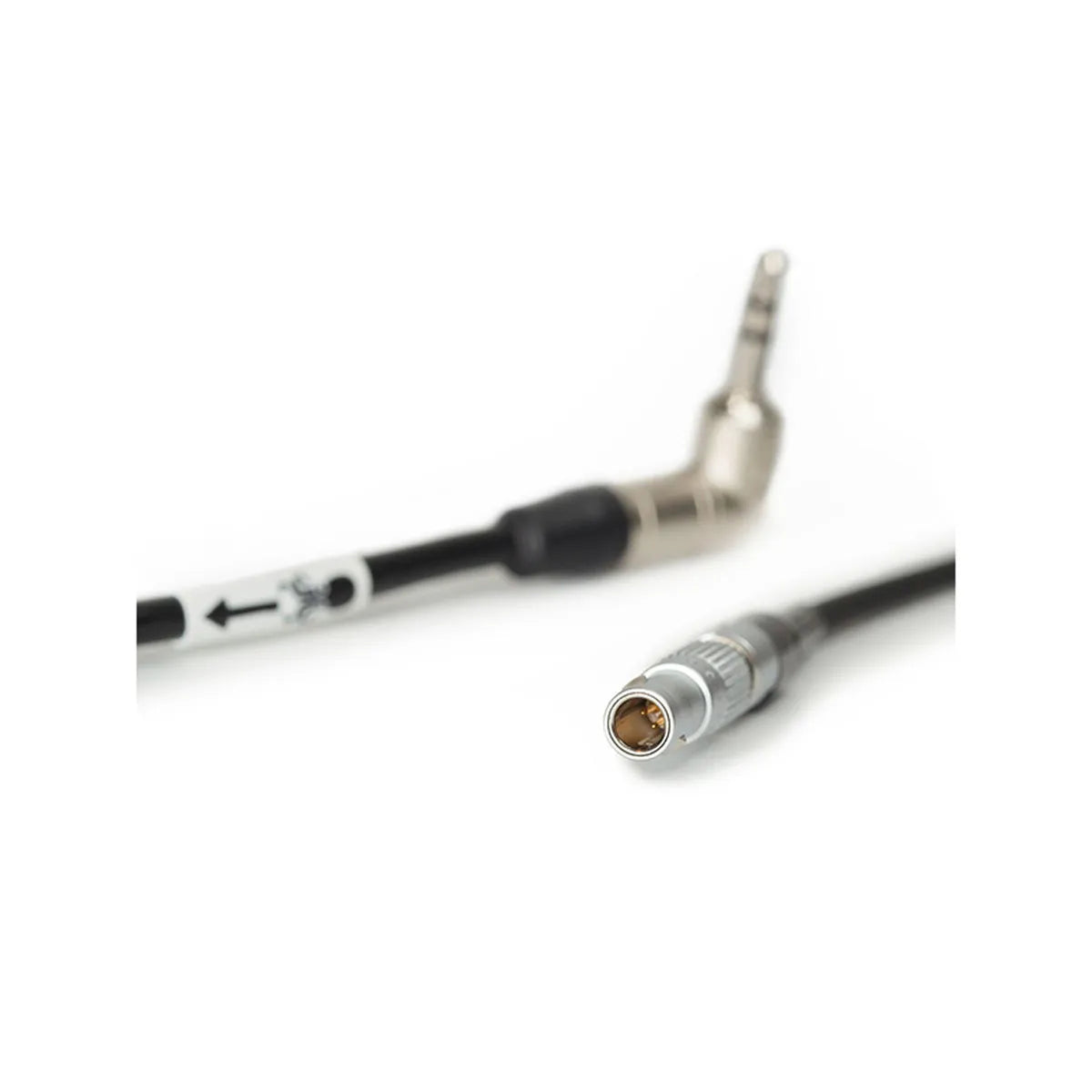

The Tentacle Sync C01 Tentacle to RED Cable connects a Tentacle timecode device to compatible RED camera systems with a 4-pin LEMO sync port. The compact 16-inch cable uses a right-angle 3.5mm TRS connector on the Tentacle side and a professional 4-pin LEMO connector on the camera side.
RED Timecode Connection
Connects a Tentacle timecode source to compatible RED camera systems equipped with a 4-pin LEMO sync port.

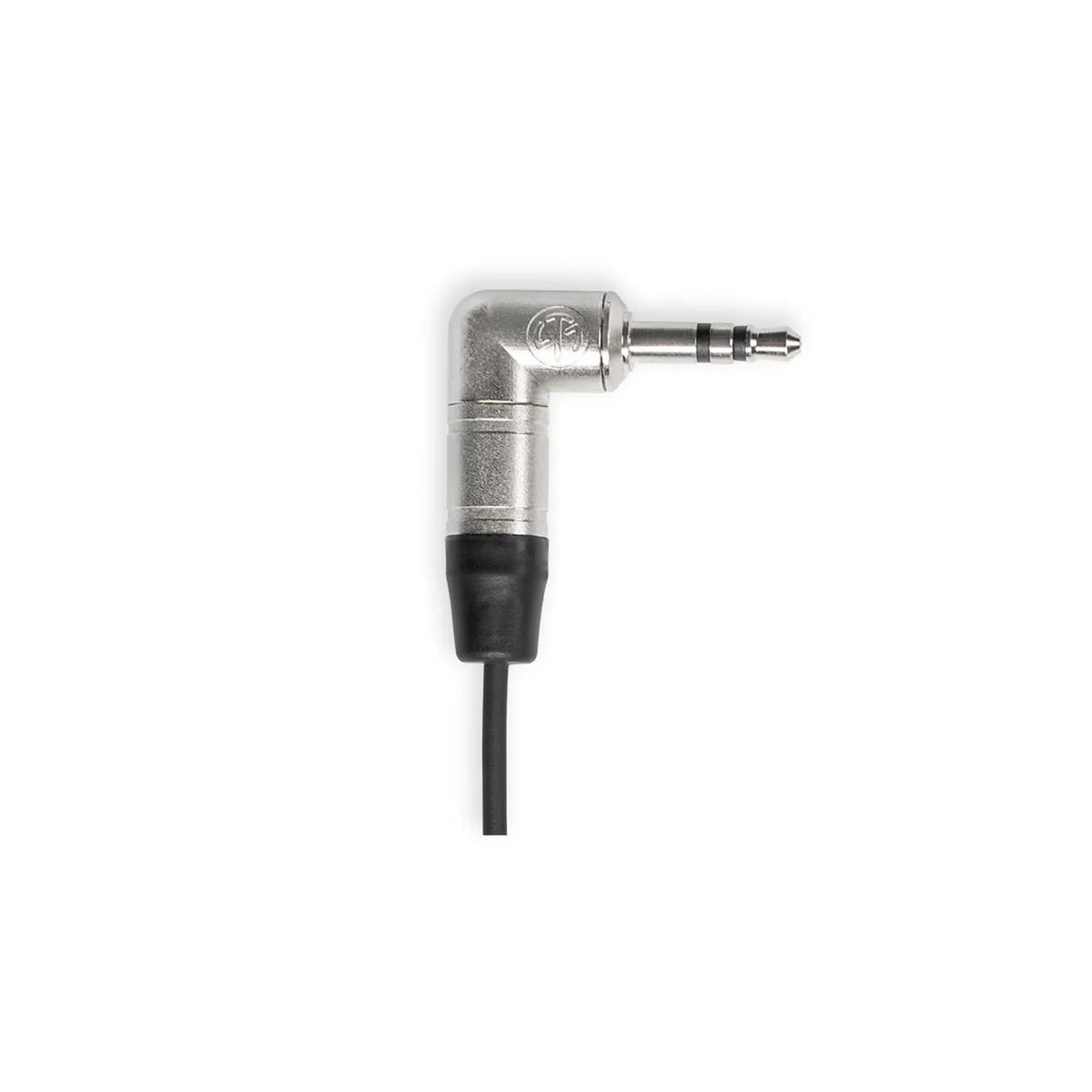

Right-Angle 3.5mm TRS
Uses a compact right-angle 3.5mm three-pole mini-jack connector on the Tentacle side.

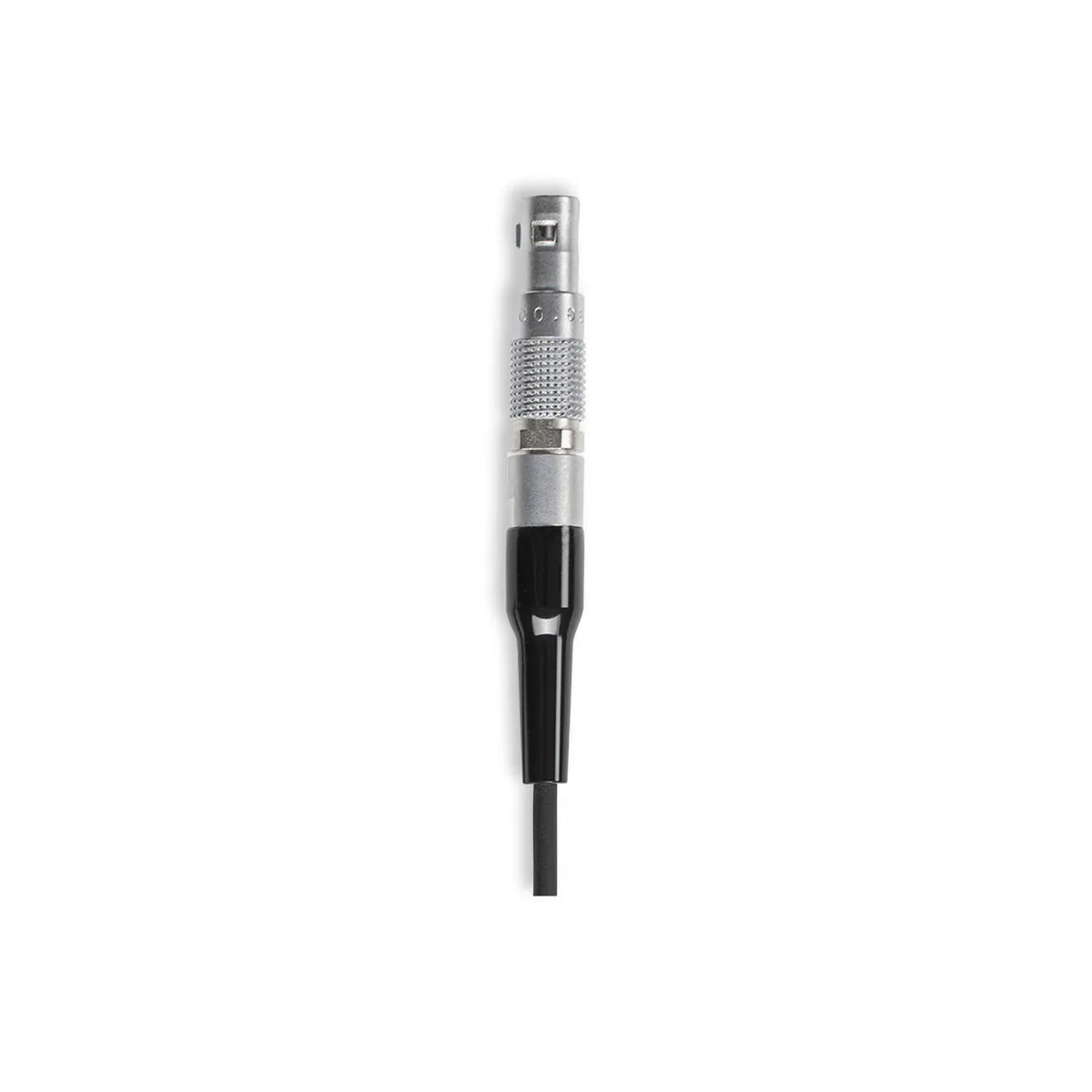

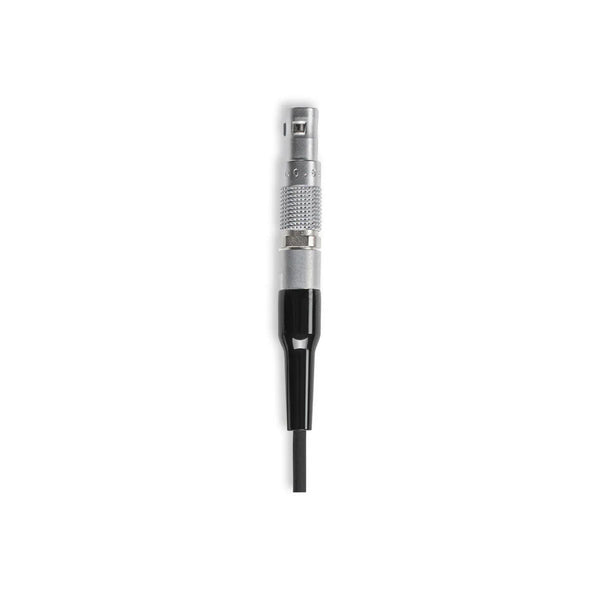

Original 4-Pin LEMO
Uses an original 4-pin LEMO connector for supported RED timecode and sync interfaces.
Compact 16-Inch Cable
Measures 40cm / 16 inches for clean integration into compact camera and timecode rigs.

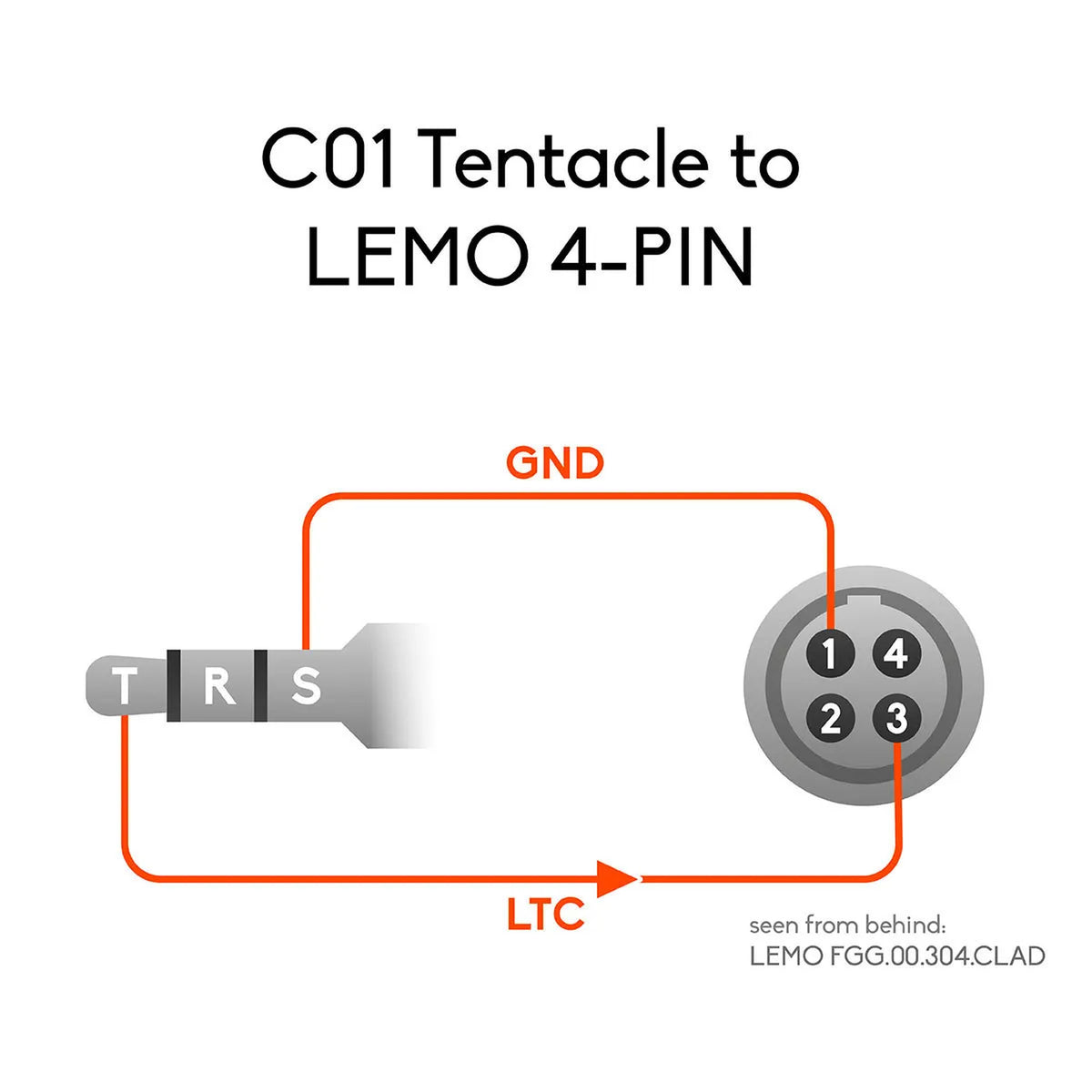

3.5mm TRS to 4-Pin LEMO Timecode Cable
The C01 is designed to carry timecode from a compatible Tentacle device into a RED camera system using a 4-pin LEMO sync connection.
Its short cable length keeps the connection tidy when the Tentacle unit is mounted close to the camera body or compatible RED I/O module.
Model
C01
Cable Type
Timecode Cable
Length
40 cm / 16 in
Weight
18 g / 0.63 oz
Tentacle Connector
Right-Angle 3.5mm TRS
RED Connector
4-Pin LEMO
For Compatible RED Camera Systems
The Tentacle Sync C01 is designed for RED camera configurations equipped with a compatible 4-pin LEMO sync port.
Manufacturer-listed examples include DSMC2 systems using the V-Lock I/O Expander, Base Expander, or Jetpack-SDI Expander.
SYNC E
Compatible
ORIGINAL
Compatible
TRACK E
Compatible
TIMEBAR
Compatible
Check the RED Sync Connector Before Ordering
The C01 is not intended for every RED camera. It is specifically made for systems using the supported 4-pin LEMO sync interface.
RED KOMODO and RED Ranger require different Tentacle cable solutions. Connector compatibility should be confirmed before purchase.
Feed Tentacle Timecode to RED
Connect a Tentacle timecode source directly to a compatible RED sync port for synchronized production recording.
Maintain a Shared Timecode Reference
Integrate supported RED cameras into a broader Tentacle Sync workflow for multi-camera production.
Keep Camera Builds Compact
The short 16-inch cable keeps excess cable length to a minimum when the Tentacle unit is mounted close to the camera.
Camera Assistants
Preparing compatible RED camera packages with Tentacle timecode.
Sound Teams
Coordinating camera timecode with separately recorded audio.
Multi-Camera Crews
Synchronizing supported RED cameras within a shared timecode setup.
Rental Houses
Building complete RED and Tentacle Sync accessory packages.
Tentacle Sync Support
Coremicro can help confirm RED connector compatibility and identify the correct Tentacle Sync cable for your camera and production timecode setup.
| Specification | Detail |
|---|---|
| Product | Tentacle Sync Tentacle to RED Cable |
| Model | C01 |
| Cable Type | Timecode Adapter Cable |
| Signal Direction | Tentacle to RED |
| Tentacle Connector | Right-Angle Neutrik 3.5mm TRS |
| RED Connector | 4-Pin LEMO FGG.00.304.CLAD22Z |
| Cable Length | 40 cm / 16 in |
| Weight | 18 g / 0.63 oz |
| Compatible Tentacle Devices | SYNC E, ORIGINAL, TRACK E, TIMEBAR |
| Camera Interface | Compatible RED 4-Pin LEMO Sync Port |
| Compatible RED Examples | DSMC2 V-Lock I/O Expander · DSMC2 Base Expander · DSMC2 Jetpack-SDI Expander |
| Not Compatible With | RED KOMODO · RED Ranger |
| EAN | 4260452431012 |
| Country of Origin | Germany |
| What's In The Box | 1 x Tentacle Sync C01 Tentacle to RED Cable |
What is the Tentacle Sync C01 used for?
The C01 connects a compatible Tentacle timecode device to a RED camera system with a supported 4-pin LEMO sync port.
What connectors does the C01 use?
It uses a right-angle 3.5mm TRS connector on the Tentacle side and a 4-pin LEMO connector on the RED camera side.
How long is the C01 cable?
The cable measures 40cm, or approximately 16 inches.
Which RED systems are compatible?
The C01 is designed for compatible RED systems with a 4-pin LEMO sync port, including supported DSMC2 configurations using the V-Lock I/O Expander, Base Expander, or Jetpack-SDI Expander.
Does the C01 work with RED KOMODO?
No. RED KOMODO uses a different timecode connection and requires another Tentacle Sync cable solution.
Need the Right Tentacle Sync Cable?
Contact Coremicro to confirm your RED camera connector and the correct Tentacle Sync cable for your production timecode setup.
