Product Highlights
- Three 1/4-inch mounting threads
- Two 3/8-inch mounting threads
- Soft silicone protection pads
- Anodized aluminum bracket
Tentacle Sync A11 TIMEBAR Mounting Bracket
- SKU:
- TEN-A11
- MPN:
- A11
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview

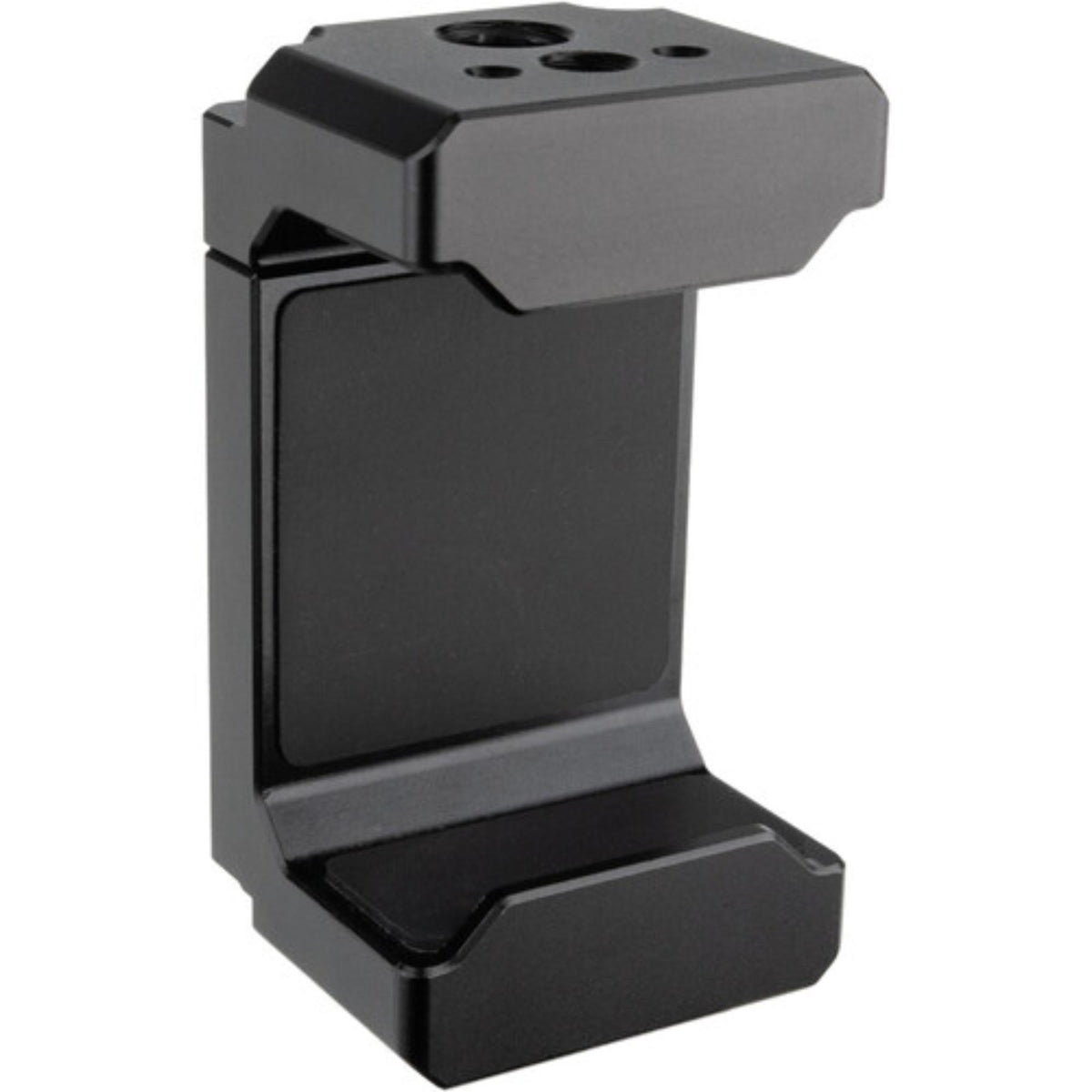

The Tentacle Sync A11 TIMEBAR Bracket provides a dedicated mounting interface for securing a Tentacle TIMEBAR to compatible stands and support hardware. Its black anodized aluminum construction combines multiple threaded mounting points with soft silicone pads that protect the TIMEBAR while it is held inside the bracket.
Dedicated TIMEBAR Mounting Bracket
The A11 is designed specifically to hold the Tentacle TIMEBAR securely when it needs to be mounted on a compatible stand or production support setup.
Three 1/4-20 Mounting Threads
Three 1/4-20 threaded mounting points are positioned across three sides of the bracket for flexible stand and support attachment.
Two 3/8-16 Mounting Threads
Additional 3/8-16 threaded mounting points on the top and bottom expand compatibility with professional support hardware.
Aluminum Bracket with Silicone Protection
Black anodized aluminum provides the bracket structure, while soft silicone pads inside the clamp help protect the TIMEBAR surface from scratches during mounting.
Model
A11
Compatible Device
Tentacle TIMEBAR
1/4-20 Threads
3
1/4-20 Locations
Three Sides
3/8-16 Threads
2
3/8-16 Locations
Top and Bottom
Material
Black Anodized Aluminum / Silicone
Retention
Clamping Mechanism
Surface Protection
Soft Silicone Pads
Bracket Manufacturer
LanParte
Dimensions
110 x 87 x 47 mm / 4.3 x 3.4 x 1.9 in
Weight
145 g / 5.1 oz
Built Specifically for Tentacle TIMEBAR
The A11 bracket is designed to hold the Tentacle TIMEBAR and provide threaded mounting points for compatible stands and professional support hardware.
Its clamping mechanism secures the TIMEBAR inside the bracket, while the multiple thread locations allow different mounting orientations depending on the support setup.
Tentacle TIMEBAR
Compatible
1/4-20 Mounting
3 Threaded Points
3/8-16 Mounting
2 Threaded Points
Primary Application
Stand / Support Mounting
Multiple Thread Positions for TIMEBAR Rigging

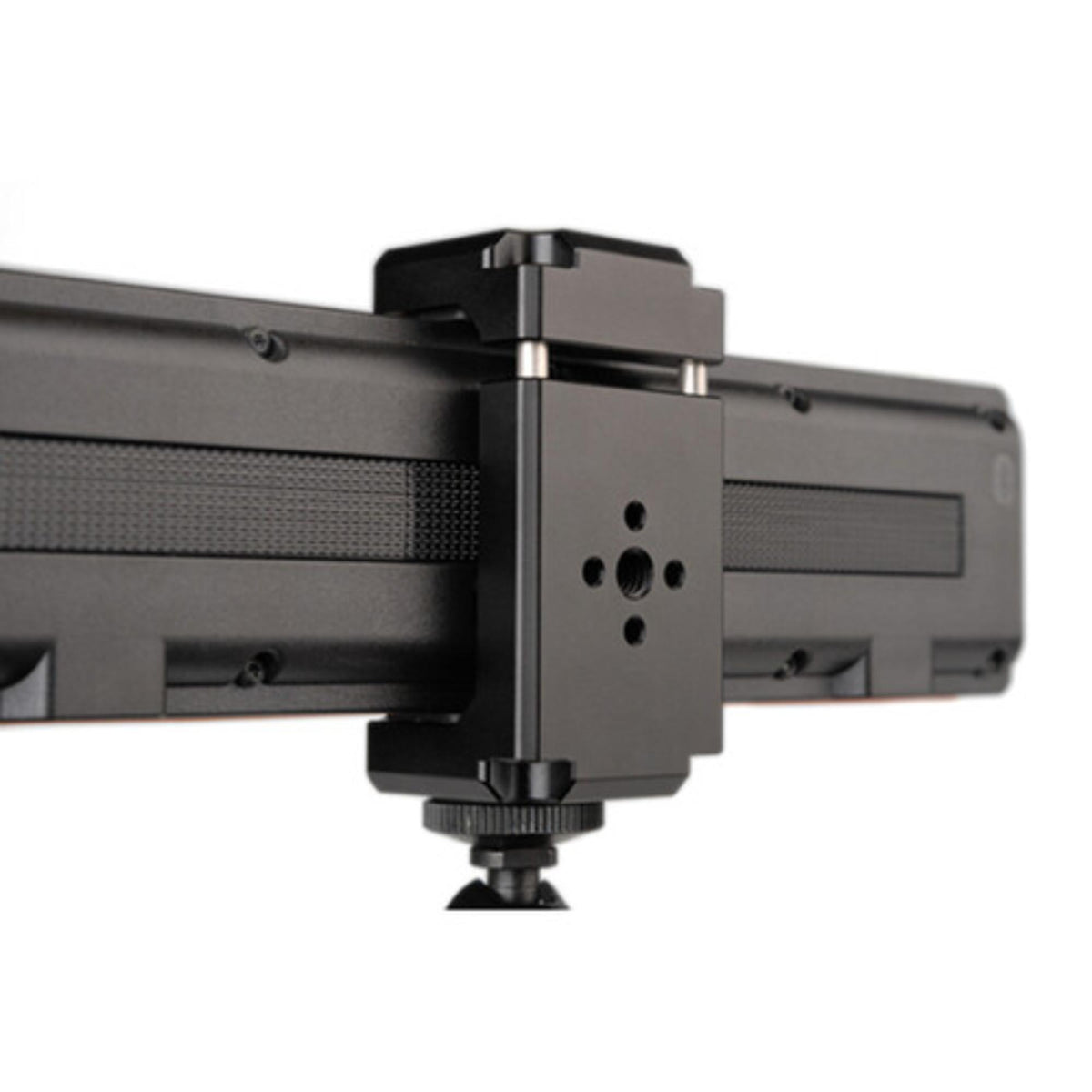

Three 1/4-20 threaded holes are distributed across three sides of the bracket, while two 3/8-16 threads are positioned on the top and bottom.
This layout gives crews several attachment points when placing the TIMEBAR on compatible stands or production support hardware.
Secure Clamping Without Direct Metal Contact
Soft silicone pads line the contact areas inside the bracket to help protect the TIMEBAR surface while the clamping mechanism holds the unit in place.
The combination of anodized aluminum structure and silicone contact surfaces provides a dedicated mounting interface for repeated production setup and removal.
Mount TIMEBAR on Production Stands
Use one of the available threaded mounting points to attach the bracket to compatible stand or support hardware.

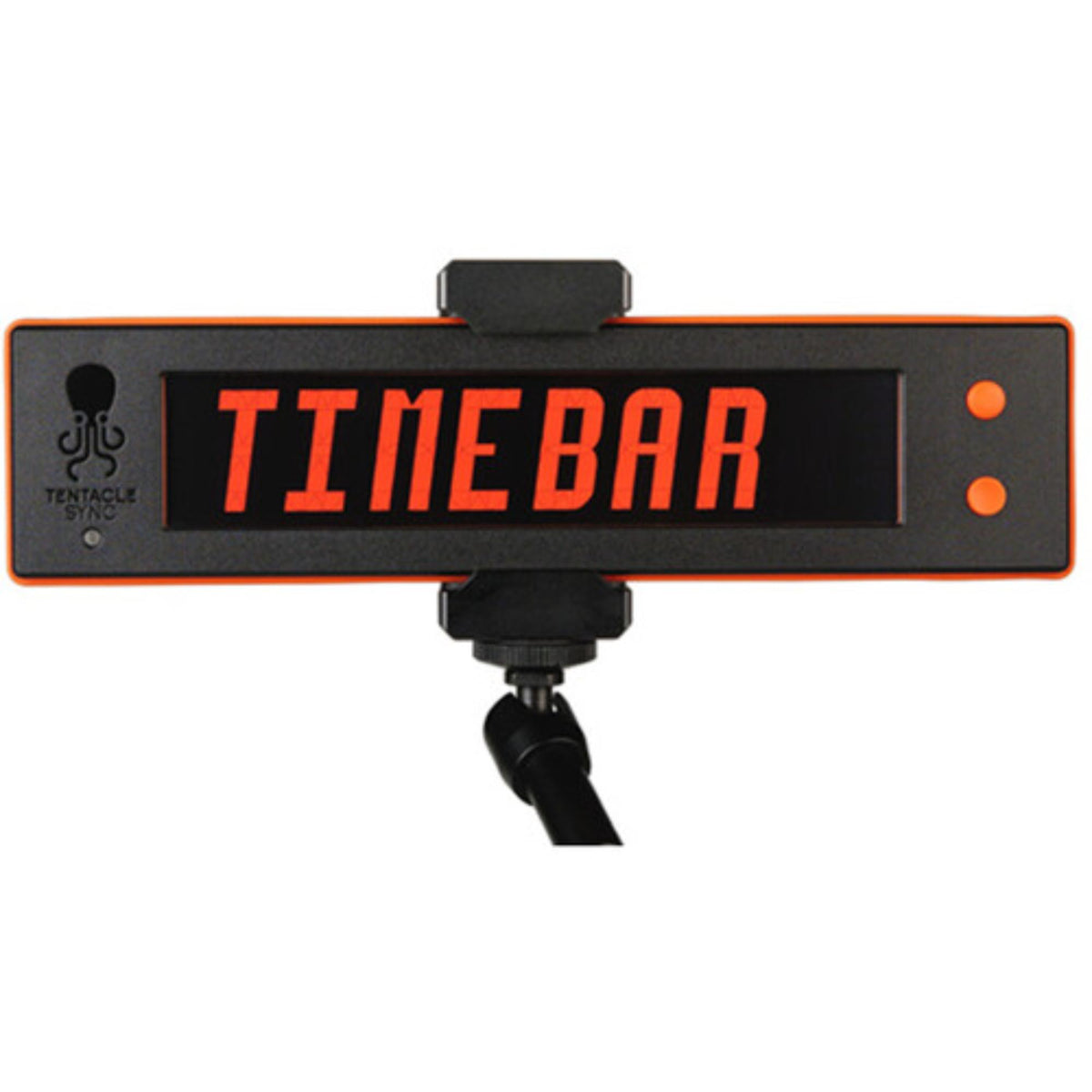

Position TIMEBAR for Crew Visibility
Mount the TIMEBAR in a suitable production position where its timecode display can be incorporated into the on-set timing workflow.
Choose Between Multiple Thread Locations
Select from the side, top, or bottom threaded points to match the orientation required by compatible support hardware.
Camera Departments
Mounting TIMEBAR units within professional production setups.
Production Crews
Positioning a TIMEBAR on compatible stands for on-set use.
DIT and Video Teams
Integrating a visible timecode display into production support setups.
Rental Houses
Completing TIMEBAR packages with dedicated mounting hardware.
Tentacle Sync Support
Coremicro can help confirm TIMEBAR mounting requirements and the appropriate Tentacle Sync accessories for stand, support, and professional timecode display setups.
| Specification | Detail |
|---|---|
| Product | Bracket for TIMEBAR |
| Manufacturer Part Number | A11 |
| Compatible Device | Tentacle TIMEBAR |
| Bracket Manufacturer | LanParte |
| Material | Black Anodized Aluminum / Silicone |
| Retention | Clamping Mechanism |
| Surface Protection | Soft Silicone Pads |
| 1/4-20 Threads | 3 |
| 1/4-20 Locations | Three Sides |
| 3/8-16 Threads | 2 |
| 3/8-16 Locations | Top and Bottom |
| Dimensions | 110 x 87 x 47 mm / 4.3 x 3.4 x 1.9 in |
| Weight | 145 g / 5.1 oz |
| EAN | 4260452432156 |
| Country of Origin | China |
| HS Code | 8529.90.96 |
| What's In The Box | 1 x Tentacle Sync A11 Bracket for TIMEBAR |
What is the Tentacle Sync A11 used for?
The A11 is a dedicated mounting bracket for the Tentacle TIMEBAR. It provides multiple threaded mounting points for attaching the TIMEBAR to compatible stands and support hardware.
How many mounting threads does the A11 have?
The bracket has three 1/4-20 threaded mounting points and two 3/8-16 threaded mounting points.
Where are the mounting threads located?
The three 1/4-20 threads are positioned on three sides of the bracket, while the two 3/8-16 threads are located on the top and bottom.
Does the bracket protect the TIMEBAR surface?
Yes. Soft silicone pads inside the bracket help protect the TIMEBAR from scratches while it is held by the clamping mechanism.
Who manufactures the A11 bracket hardware?
The A11 is a Tentacle Sync product, and the bracket hardware is exclusively manufactured by LanParte.
Need the Right TIMEBAR Mounting Setup?
Coremicro is an authorized Tentacle Sync dealer supporting professional timecode and production workflows. Contact our team to confirm A11 compatibility and the appropriate TIMEBAR mounting setup for your stand or support hardware.
