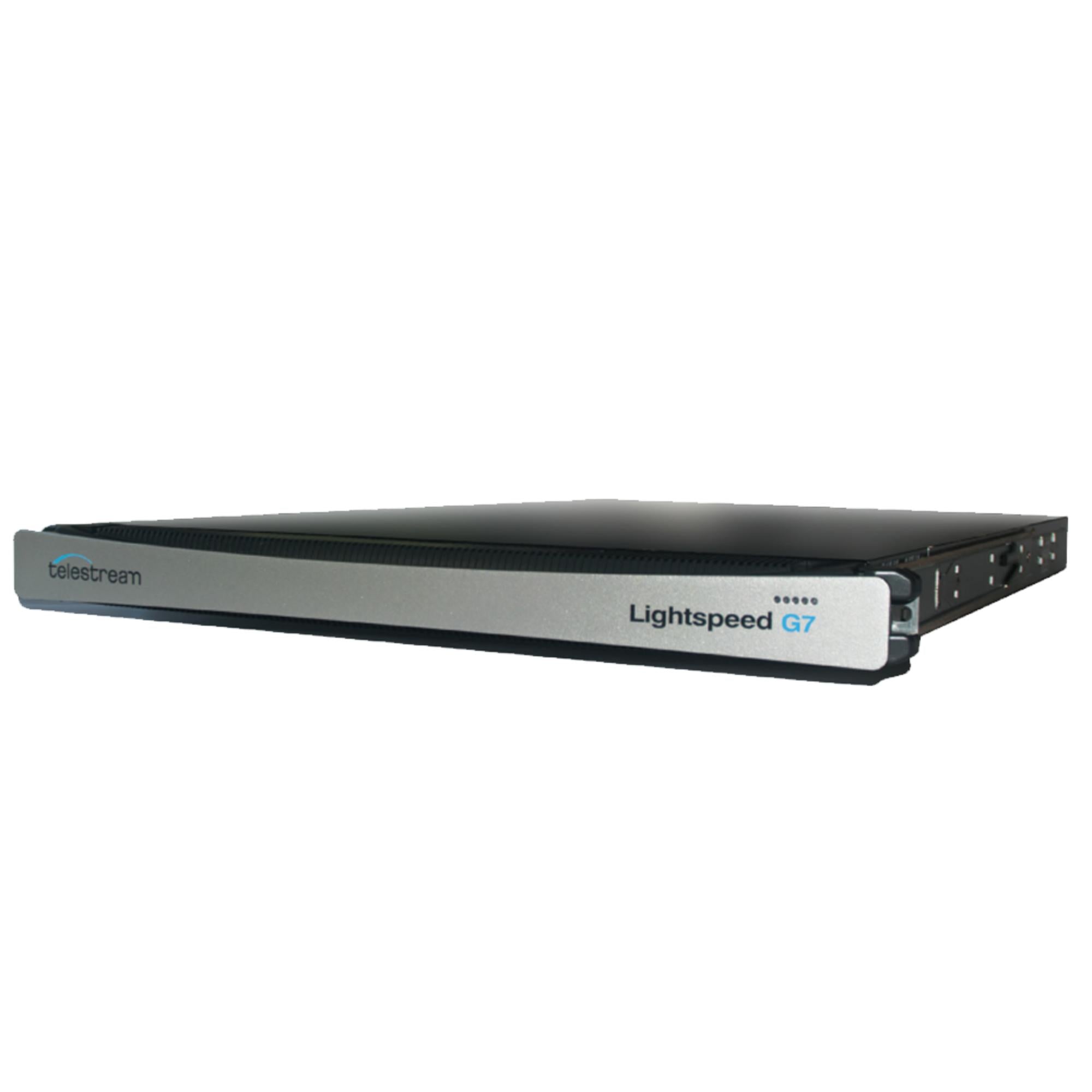

Telestream G7 Lightspeed® Server

Telestream G7 Lightspeed® Server is a 1RU GPU-accelerated processing server built for Telestream Vantage Transcode and Post Producer workflows. From the supplied source, the system combines dual Intel 4214R processors, 96GB of RAM, and a single NVIDIA GPU to speed up demanding video processing and H.264 transcoding jobs.

This is the kind of server that makes sense when a facility needs more throughput from Vantage without building a larger CPU-only transcode farm. The G7 is designed to handle scaling, deinterlacing, frame-rate conversion, motion-vector calculation, 16-bit YUV processing, and accelerated encoding inside a compact rack-mounted chassis.

Highlights

• 1RU Lightspeed processing server for Telestream Vantage and Post Producer
• Dual Intel 4214R CPUs with 96GB RAM
• Single NVIDIA GPU for accelerated image processing
• Accelerated x264 and NVENC HEVC encoding
• Four 10GBase-T Ethernet ports for high-bandwidth media workflows

Quick Specs & Uses

• Product type: GPU-accelerated video processing server
• Primary workflow: Telestream Vantage Transcode and Post Producer acceleration
• Rack format: 1RU
• Power supplies: Dual redundant 750W
• Processors: Dual Intel 4214R
• Memory: 96GB RAM
• Graphics processing: Single NVIDIA GPU
• Default operating system: Windows Server 2016 Standard Edition 64-bit
• Optional operating systems: Windows Server 2012 R2 Standard Edition; Windows Server 2019 Standard Edition 64-bit
• OS drive: 240GB SATA 6Gb/s SSD
• Media drives: Dual 1.92TB SATA 6Gb/s SSD
• Ethernet ports: 4 x 10GBase-T
• Available I/O: 1 x full-height PCIe 3.0 x16 slot and 1 x half-height PCIe 3.0 x8 slot
• USB ports: 4 x USB 3.0
• Expansion drive bays: 10 total, 7 available
• Dimensions: 43 x 437 x 707 mm / 1.7 x 17.2 x 27.8 in
• Gross weight: 15.4 kg / 33 lb
• Operating temperature: 10°C to 35°C / 50°F to 95°F
• Non-operating temperature: -40°C to 70°C / -40°F to 158°F
• Idle power consumption: Approx. 1.2 A / 135 W
• Full-load power consumption: Approx. 3.7 A / 434 W
• Certifications: FCC, CE, UL or CSA, CB, VCCI, C-Tick

Why It Helps

This server is useful when Vantage jobs are being held up by image-processing stages before the encode is complete. Deinterlacing, scaling, standards conversion, motion analysis, and frame-rate changes can all use a lot of compute power, especially when several files are moving through the workflow at once.

The NVIDIA GPU takes on much of that processing load, leaving the CPUs with more room to handle the rest of the workflow. That helps improve throughput for transcoding and automated content assembly without requiring more rack space.

The storage and network layout also suit shared production environments. Dual 1.92TB media SSDs provide local working space, while four 10GBase-T ports give the server multiple high-speed paths into shared storage, media networks, or other Vantage nodes.

System Characteristics

• GPU-accelerated deinterlacing for cleaner interlaced-to-progressive conversion
• Advanced image scaling for up-conversion and down-conversion workflows
• Frame-rate conversion acceleration for standards conversion and inverse-telecine work
• 16-bit 4:4:4:4 YUV processing for high-quality image and color handling
• Accelerated x264 encoding for H.264 delivery across different bitrates
• NVENC HEVC support for compatible Vantage transcoders
• Dual redundant power supplies for rack-based production environments
• Qualified Fibre Channel and Ethernet adapters for expanded facility integration

What’s In The Box

• 1 x Telestream G7 Lightspeed® Server
