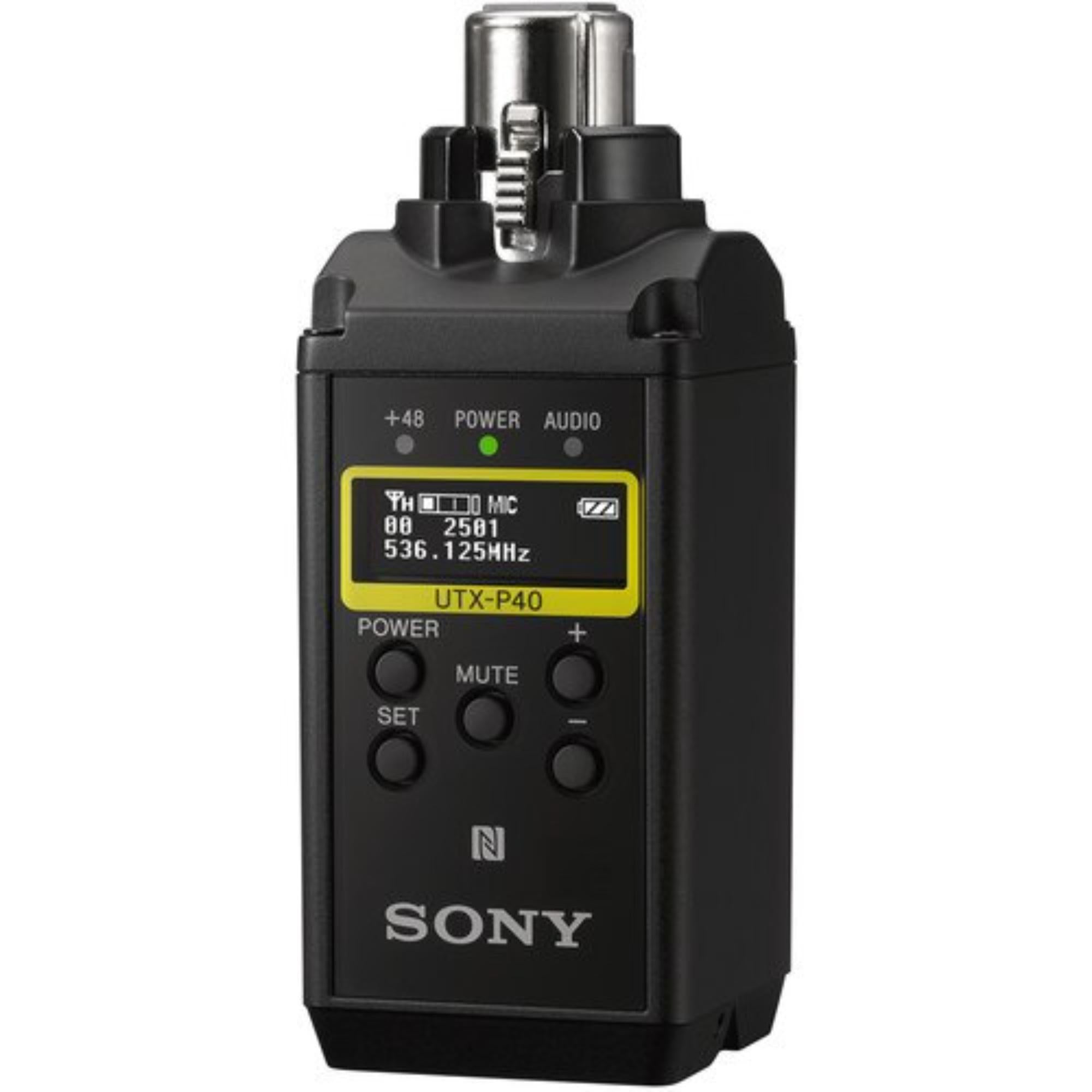

SONY Wireless XLR Plug-on Transmitter (90)

SONY Wireless XLR Plug-on Transmitter (90) is a compact UWP-D plug-on transmitter made for turning compatible XLR microphones into wireless sources. From the supplied source, the Sony UTX-P40 uses an XLR-3-11C female input connector, supports +48V power, and operates on the UC90 frequency range from 941.625 to 959.625 MHz.

This is useful when a crew wants to keep a preferred handheld or XLR microphone in service without running a cable back to the receiver position. The mic stays familiar in the hand, while the UTX-P40 handles the wireless link for ENG, interviews, documentaries, event work, and field production.

Highlights

• XLR plug-on wireless transmitter for compatible microphones
• UC90 frequency range: 941.625 to 951.875 MHz, 953.000 to 956.125 MHz, and 956.625 to 959.625 MHz
• XLR-3-11C female input connector
• 0 dB to 48 dB audio attenuator in 3 dB steps
• +48V power, OLED display, NFC sync, and USB-C power support

Quick Specs & Uses

• Model: Sony UTX-P40 wireless plug-on transmitter
• Carrier frequency, UC90: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
• Input connector: XLR-3-11C type, female
• Audio attenuator adjustment: 0 dB to 48 dB, 3 dB steps
• Audio delay: Approx. 0.35 ms
• Display: OLED
• Distortion: 0.9% or less
• Frequency response: 23 Hz to 18 kHz typical
• Oscillator type: Crystal-controlled PLL synthesizer
• RF output power: 40 mW / 5 mW selectable for UC models
• Reference audio input level: -60 dBV mic input, gain mode set to normal, 0 dB attenuation
• Signal-to-noise ratio: 60 dB; 102 dB in AUTO GAIN max.; 96 dB in NORMAL max.
• Power requirements: DC 3.0V with two LR6/AA batteries or DC 5.0V from USB Type-C connector
• Dimensions: 38 x 98 x 38 mm / 1 1/2 x 3 7/8 x 1 1/2 in, including audio input connector
• Mass: Approx. 139 g / 4.9 oz, excluding batteries
• Operating temperature: 0°C to 50°C / 32°F to 122°F
• Storage / transport temperature: -4°F to 140°F / -20°C to +60°C

Why It Helps

The UTX-P40 is handy when the microphone choice matters but the cable run gets in the way. A reporter mic, handheld interview mic, or compatible XLR microphone can be used wirelessly while the receiver stays with the camera or audio operator.

The 0 dB to 48 dB attenuator range gives the operator room to handle different source levels before the signal reaches the wireless chain. That is useful when moving between quiet speech, louder presenters, or microphones with different output behavior.

Powering is flexible as well. AA batteries keep the transmitter fully portable, while USB-C power is useful for longer fixed setups or powered production environments. The OLED display keeps status checks quick, especially when the crew is moving fast.

System Characteristics

• Plug-on XLR design for wireless handheld and XLR microphone workflows
• +48V power support for compatible condenser microphone operation
• NFC sync for quick and secure channel setting with compatible receivers
• OLED display for clear status checking in indoor or outdoor use
• Variable muting function for practical field control

What’s In The Box

• 1 x Sony UTX-P40 Wireless Plug-On Transmitter (UC90: 941 to 960 MHz)
• 1 x Soft Case
