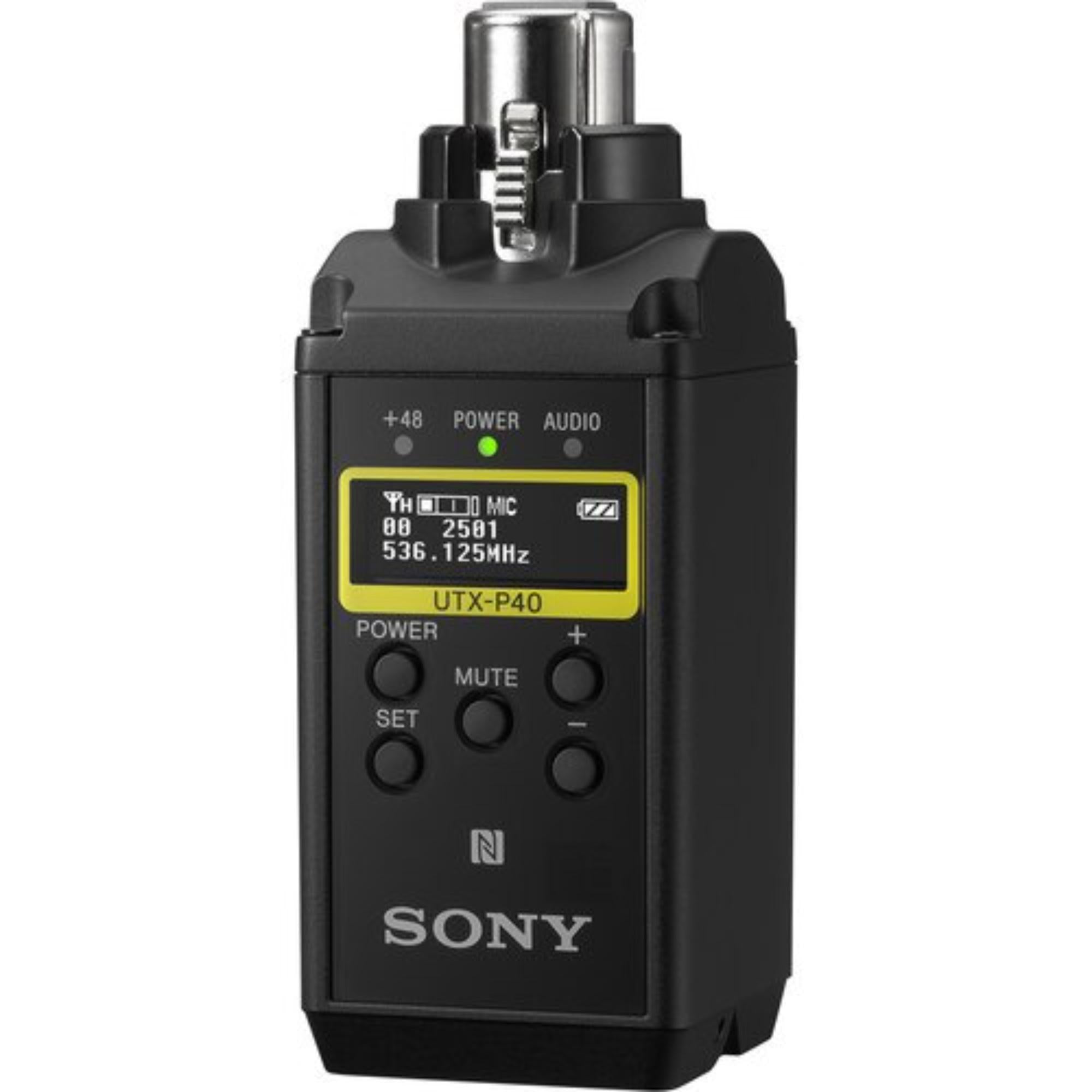

SONY Wireless XLR Plug-on Transmitter (25)

SONY Wireless XLR Plug-on Transmitter (25) is a compact UWP-D plug-on transmitter made for adding wireless operation to compatible XLR microphones. From the supplied source, the Sony UTX-P40 uses an XLR-3-11C female input connector, supports +48V power, and operates on the UC25 frequency range from 536.125 to 607.875 MHz.

This is the kind of transmitter that is useful when a crew wants to keep using a favorite handheld or XLR microphone without running a cable back to the camera or receiver position. It keeps the mic familiar in the hand, but gives the operator a wireless path for ENG, interviews, event coverage, and field production.

Highlights

• XLR plug-on wireless transmitter for compatible microphones
• UC25 frequency range: 536.125 to 607.875 MHz
• XLR-3-11C female input connector
• 0 dB to 48 dB audio attenuator in 3 dB steps
• +48V power, OLED display, NFC sync, and USB-C power support

Quick Specs & Uses

• Model: Sony UTX-P40 wireless plug-on transmitter
• Carrier frequency, UC25: 536.125 MHz to 607.875 MHz
• Input connector: XLR-3-11C type, female
• Audio attenuator adjustment: 0 dB to 48 dB, 3 dB steps
• Audio delay: Approx. 0.35 ms
• Display: OLED
• Distortion: 0.9% or less
• Frequency response: 23 Hz to 18 kHz typical
• Oscillator type: Crystal-controlled PLL synthesizer
• RF output power: 40 mW / 5 mW selectable for UC models
• Reference audio input level: -60 dBV mic input, gain mode set to normal, 0 dB attenuation
• Signal-to-noise ratio: 60 dB; 102 dB in AUTO GAIN max.; 96 dB in NORMAL max.
• Power requirements: DC 3.0V with two LR6/AA batteries or DC 5.0V from USB Type-C connector
• Dimensions: 38 x 98 x 38 mm / 1 1/2 x 3 7/8 x 1 1/2 in, including audio input connector
• Mass: Approx. 139 g / 4.9 oz, excluding batteries
• Operating temperature: 0°C to 50°C / 32°F to 122°F
• Storage / transport temperature: -4°F to 140°F / -20°C to +60°C

Why It Helps

The UTX-P40 is useful when the microphone choice matters but the cable does not. A reporter mic, interview mic, or compatible XLR microphone can stay in use while the transmitter sends audio wirelessly to the receiver. That keeps the setup cleaner around cameras, talent, and moving crews.

The 0 dB to 48 dB attenuator range gives the operator room to manage different mic levels before the signal hits the wireless path. In real field work, that helps when switching between quieter speech, louder presenters, or microphones with different output behavior.

USB-C power support and AA battery operation give the transmitter flexibility. Batteries keep it portable, while USB-C power can be useful when the transmitter is used in a longer fixed setup or powered production environment.

System Characteristics

• Plug-on XLR design for wireless handheld and XLR microphone workflows
• +48V power support for compatible condenser microphone operation
• NFC sync for quick and secure channel setting with compatible receivers
• OLED display for clear status checking in indoor or outdoor use
• Variable muting function for practical field control

What’s In The Box

• 1 x Sony UTX-P40 Wireless Plug-On Transmitter (UC25: 536 to 608 MHz)
• 1 x Soft Case
